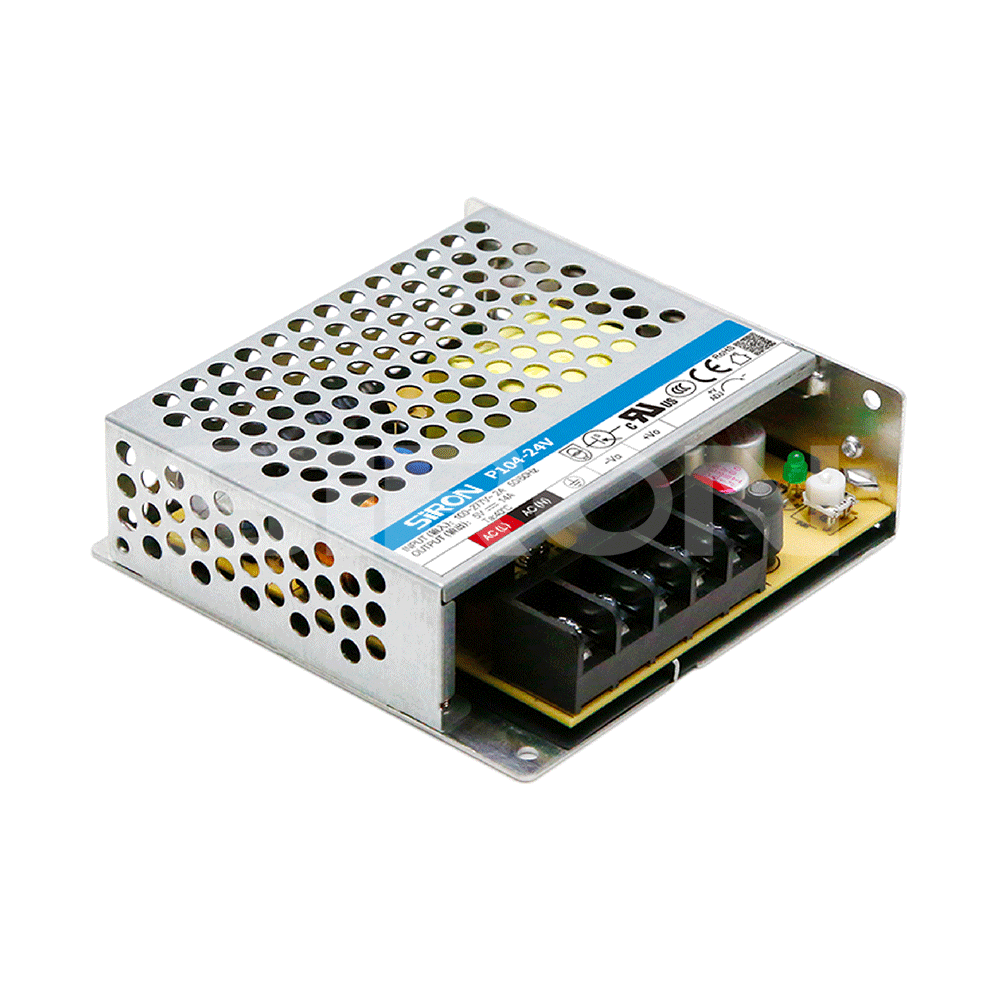

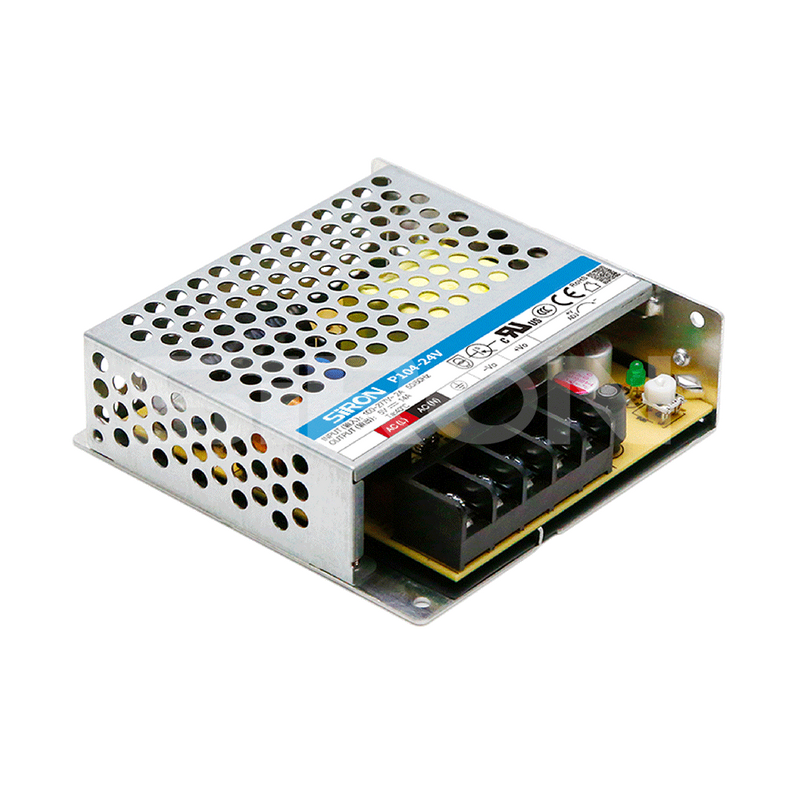

P104
SiRON
8504401400
Order
| Model | Voltage |
| P104 | 24V |
Selection reference
| Model | lnput voltage range | Power | Output voltage/current | Eficiency |
| P104-5V | 85-305VAC/ 120-430VDC | 70W | 5V/14A | 85% |
| P104-12V | 72W | 12V/6A | 87% | |
| P104-15V | 75W | 15V/5A | 87% | |
| P104-24V | 76.8W | 24V/32A | 89% | |
| P104-36V | 75.6W | 36V/2.1A | 89% | |
| P104-48V | 76.8W | 48V/1.6A | 90.5% | |
| P104-55V | 75W | 55V/1.36A | 90.5% |
Note: Terminal guard cover series: suffix with -C; Product series with conformal coating: suffix -O
Product Attributes
| Model | P104 | |
| Electric shock | Cold start, 75A | |
| Standby function | < 0.5W | |
| Overcurrent Protection | 1 1 0 % - 2 0 0 %lo | |
| Short circuit protection | Hiccup type,with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output:4kVAC,input-PE:2kVAC,Output-PE:1.25kVAC (Test for 1 minute,leakage current<10mA) | |
| Operating temperature | -30℃to+70℃ | |
| performance | EMI | CISPR32/EN55032 ClassB;IEC/EN61000-3-2 ClassA |
| EMS | IEC/EN 61000-4-2Contact±6KV,IEC/EN61000-4-610 Vr.m.s, iEC/EN 61000-4-310V/m,IEC/EN61000-4-4,5,11 | |
| Safety standard | IEC/EN/UL 62368、EN60335、EN61558、GB4943 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Wiring diameter | 22-12AWG | |
| Connector torque | M3.5, 0.8N.m | |
| Dimensions | 9 9 × 9 7 × 3 0 | |
