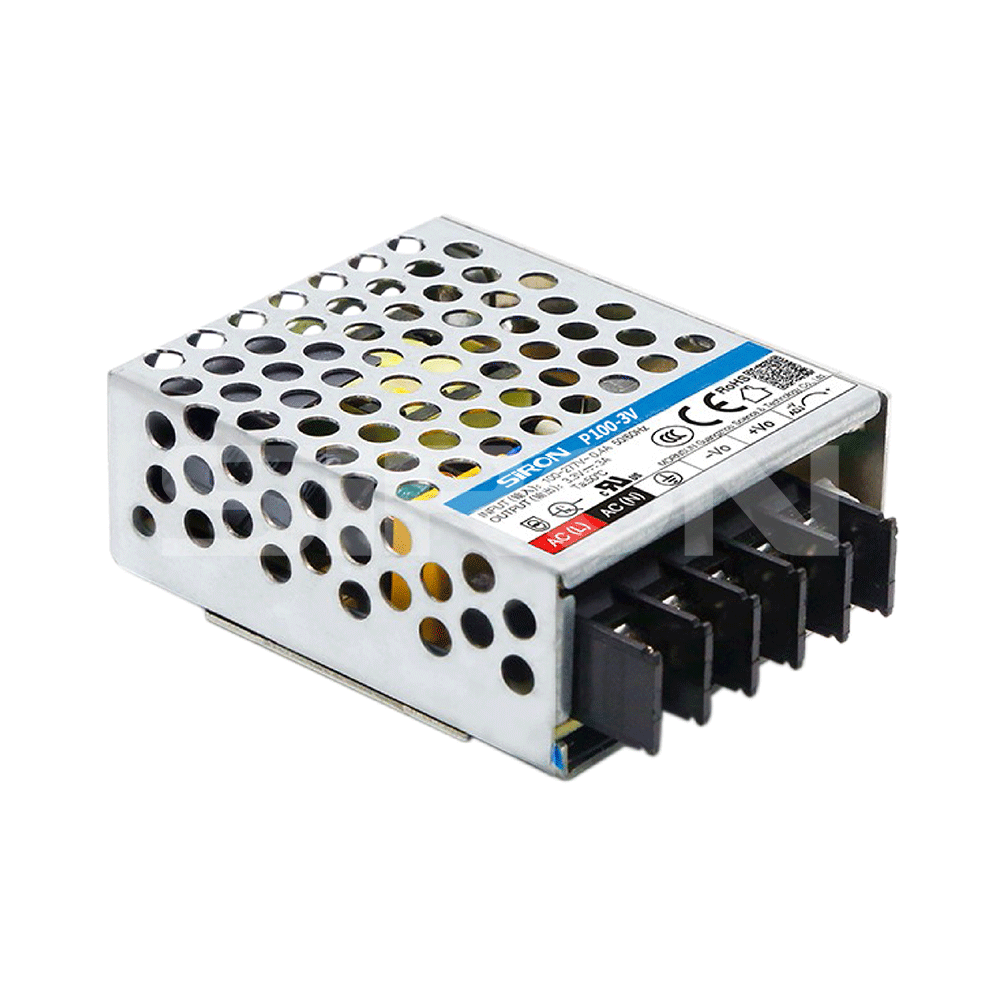

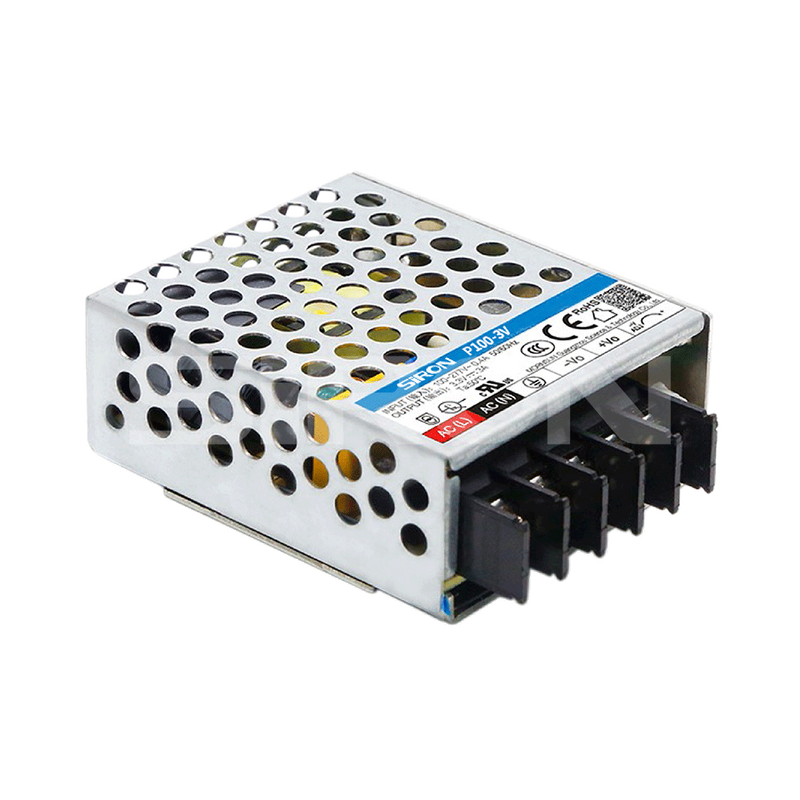

SiRON P100 Series 15W Chassis Switching Power Supply

Name: SiRON P100 Series 15W Chassis Switching Power Supply
Brand: SiRON
Rating: 5.0 (79 reviews)

Features

AC and DC dual purpose (input voltage of the same terminal), the efficiency is as high as 88%, and:he no-load power consumption is less than 0.5W;
4000VAC high isolation voltage, output short circuit, over current, over voltage protection
Overvoltage class lll (according to EN61558), to meet the 5000m altitude application;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P100	24V

Selection reference

Note: Series of terminals with protective covers: Post-mounted tape C; Product series with three-layer anti-corrosion coating: Post-mounted tape O

Product Attributes

Model		P100
Electric shock		50A
Overcurrent Protection		≥ 110 %lo
Short circuit protection		Hiccup type,with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output:4kVAC,input-PE:2kVAC,Output-PE:1.25kVAC (Test for 1 minute,leakage current<10mA)
Operating temperature		-30℃to+70℃
performance	EMI	CISPR32/EN55032 ClassB;
	EMS	IEC/EN 61000-4-2Contact±6KV,IEC/EN61000-4-610 Vr.m.s, iEC/EN 61000-4-310V/m,IEC/EN61000-4-4,5,11
Safety standard		IEC/UL62368-1、GB4943.1＆EN62368-1
MTBF		MIL - H D B K - 2 1 7 F @ 2 5℃> 7 0 0 0 0 0 h
Wiring diameter		22-14AWG
Connector torque		M 3, 0 . 4 N . m
Dimensions		6 5 × 5 5 × 2 5
