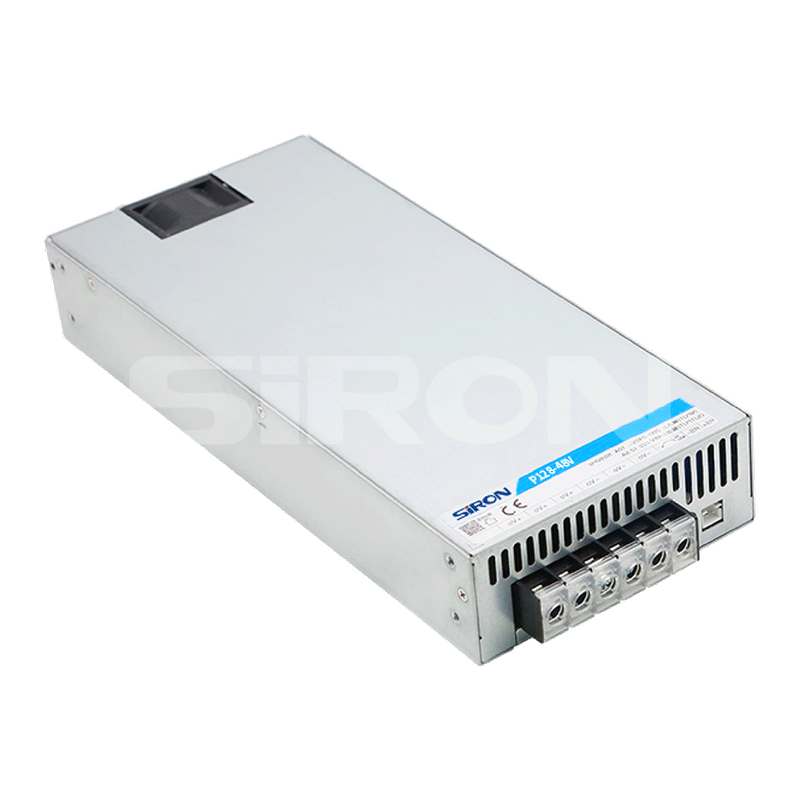

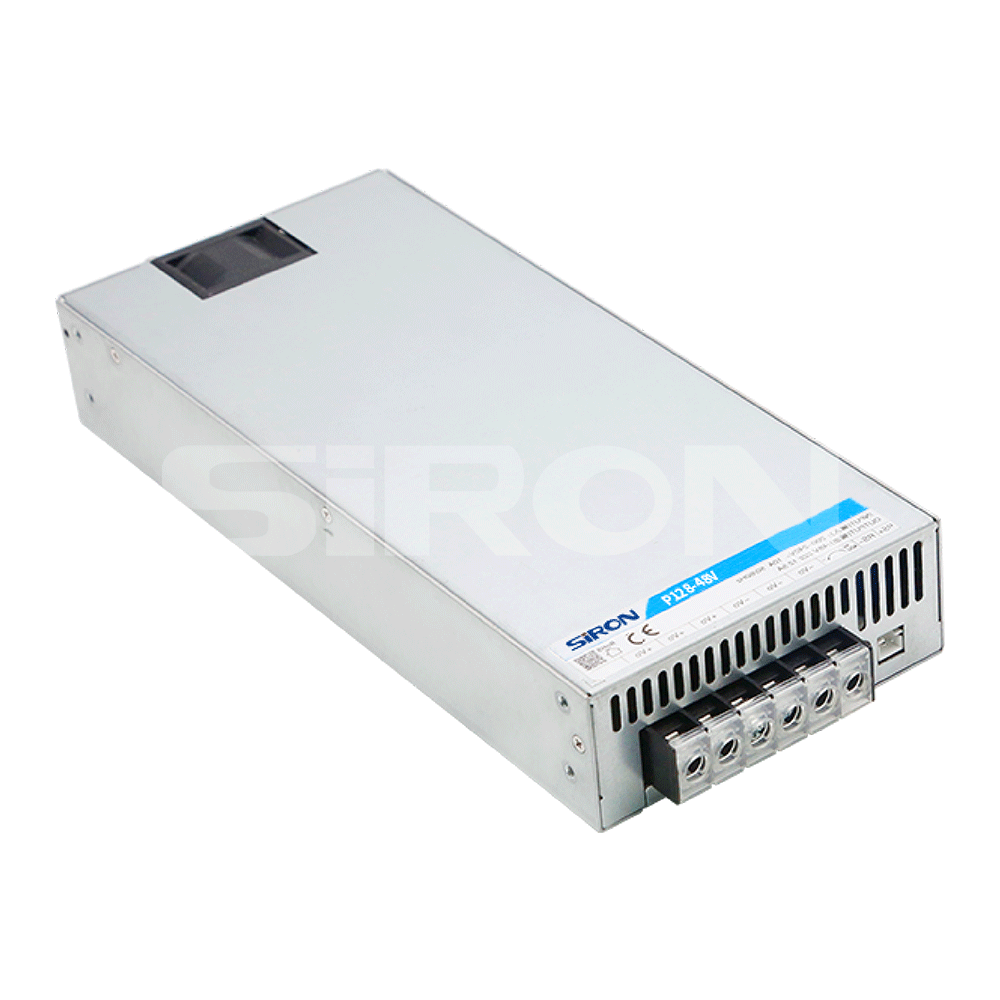

SiRON P128 Series 600W Chassis Switching Power Supply

Name: SiRON P128 Series 600W Chassis Switching Power Supply
Brand: SiRON
Rating: 5.0 (87 reviews)

Features

AC and DC dual-purpose (input voltage of the same terminal), low standby power consumption,igh efficiency,low ripple noise;
4000VAC high isolation voltage, output short circuit, overcurrent, overvoltage protection;
Overvoltage class lll (according to EN61558), to meet the 5000m altitude application;

Product Description

Order

Model	Voltage
P128	24V

Selection reference

Note: Terminal with protective cover series: Suffix with -C; The product comes with a conformal coating series: the suffix is -O

Product Attributes

Model		P128
Electric shock		Cold start,60A
Overcurrent Protection		105%-180%lo
Short circuit protection		Hiccup type,with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output:3kVAC,input-PE:2kVAC,Output-PE:0.5kVAC (Test for 1 minute,leakage current<10mA)
Operating temperature		-20℃to+60℃
performance	EMI	CISPR32/EN55032 Class A
	EMS	IEC/EN 61000-4-2 Contact+ 6KV,IEC/EN61000-4-6 10 Vr.m.sIEC/EN 61000-4-3 10V/m(200-450W)IEC/EN 61000-4-3 3V/m(600w),IEC/EN61000-4-4,5,11
Safety standard		IEC/EN/UL62368、GB4943
MTBF		MIL-HDBK-217F@25℃>300000h
Wiring diameter		22-12AWG
Connector torque		M4,0.8N.m
Dimensions		267.3x106x40
