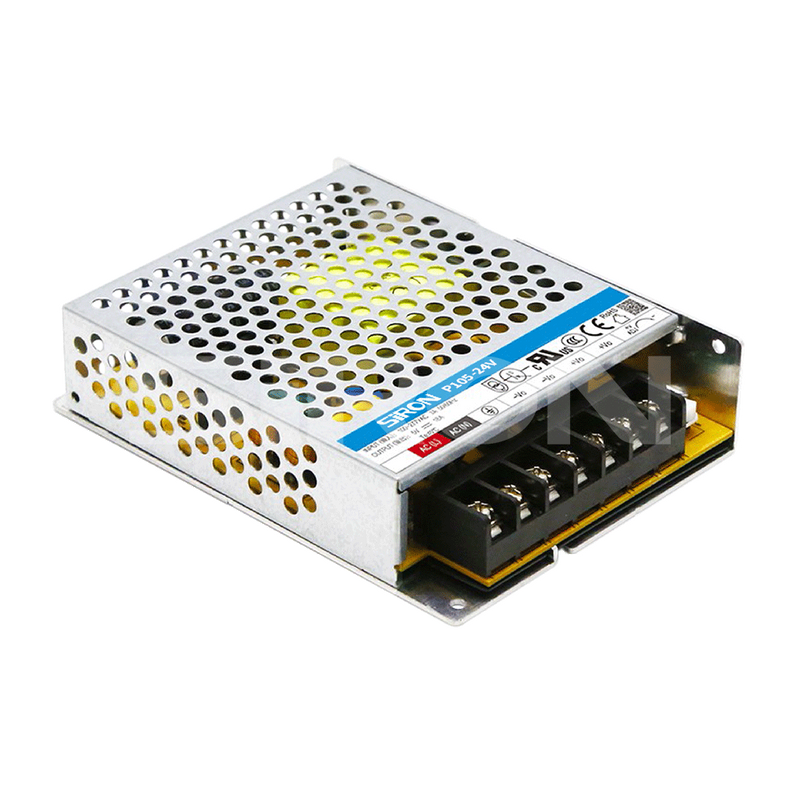

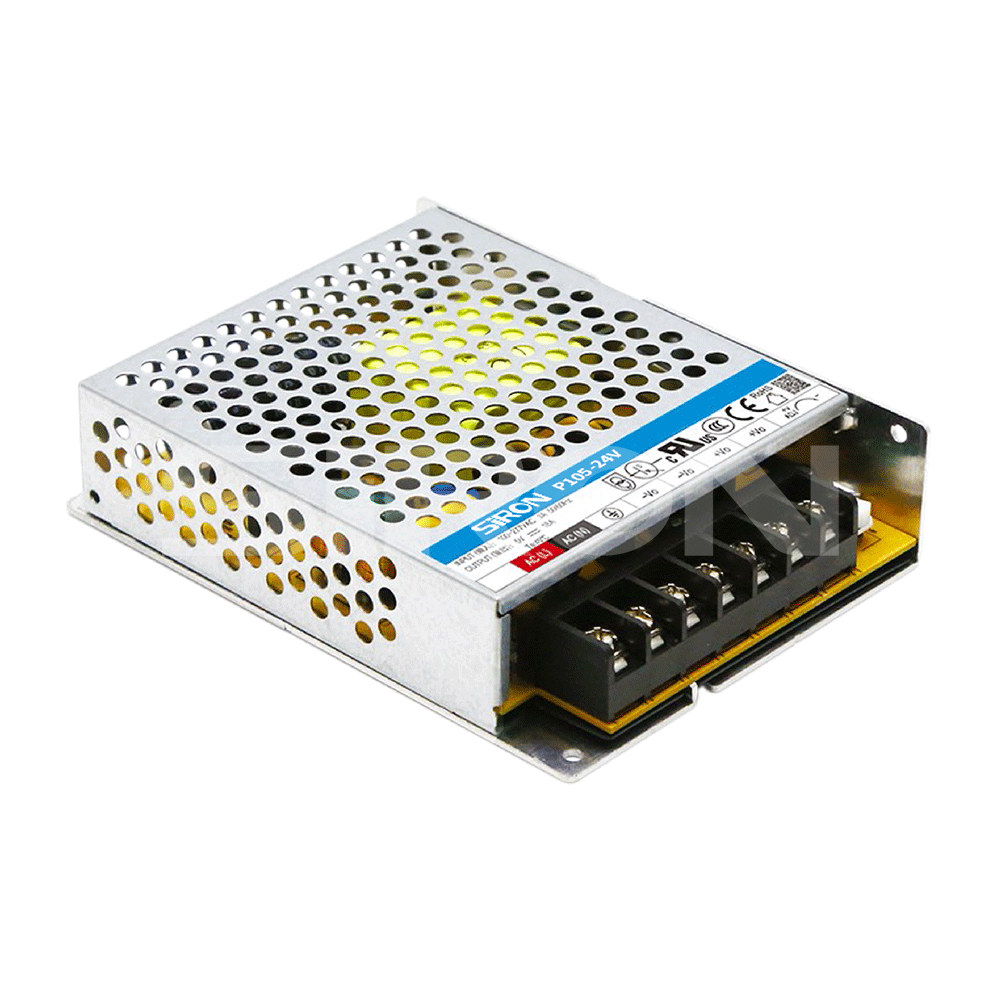

SiRON P105 Series 100W Chassis Switching Power Supply

Name: SiRON P105 Series 100W Chassis Switching Power Supply
Brand: SiRON
Rating: 5.0 (9 reviews)

Features

AC and DC dual purpose (input voltage of the same terminal), the efficiency is as high as 88%, and:he no-load power consumption is less than 0.5W;
4000VAC high isolation voltage, output short circuit, over current, over voltage protection
Overvoltage class lll (according to EN61558), to meet the 5000m altitude application;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P105	24V

Selection reference

Note: Terminal guard cover series: suffix with -C; Product series with conformal coating: suffix -O

Product Attributes

Model		P105
Electric shock		Cold start, 65A
Standby function		5 - 2 4V output: < 0.3 W; 36 - 48 V output: < 0.5 W
Overcurrent Protection		1 1 0 % - 160 %lo
Short circuit protection		Hiccup type,with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output:4kVAC,input-PE:2kVAC,Output-PE:1.25kVAC (Test for 1 minute,leakage current<10mA)
Operating temperature		-30℃to+70℃
performance	EMI	CISPR32/EN55032 ClassB;IEC/EN61000-3-2 ClassA
	EMS	IEC/EN 61000-4-2Contact±6KV,IEC/EN61000-4-610 Vr.m.s, iEC/EN 61000-4-310V/m,IEC/EN61000-4-4,5,11
Safety standard		IEC/EN/UL 62368、EN60335、EN61558、GB4943
MTBF		MIL-HDBK-217F@25℃>300000h
Wiring diameter		22-12AWG
Connector torque		M3.5, 0.8N.m
Dimensions		1 2 9 × 9 7 × 3 0
