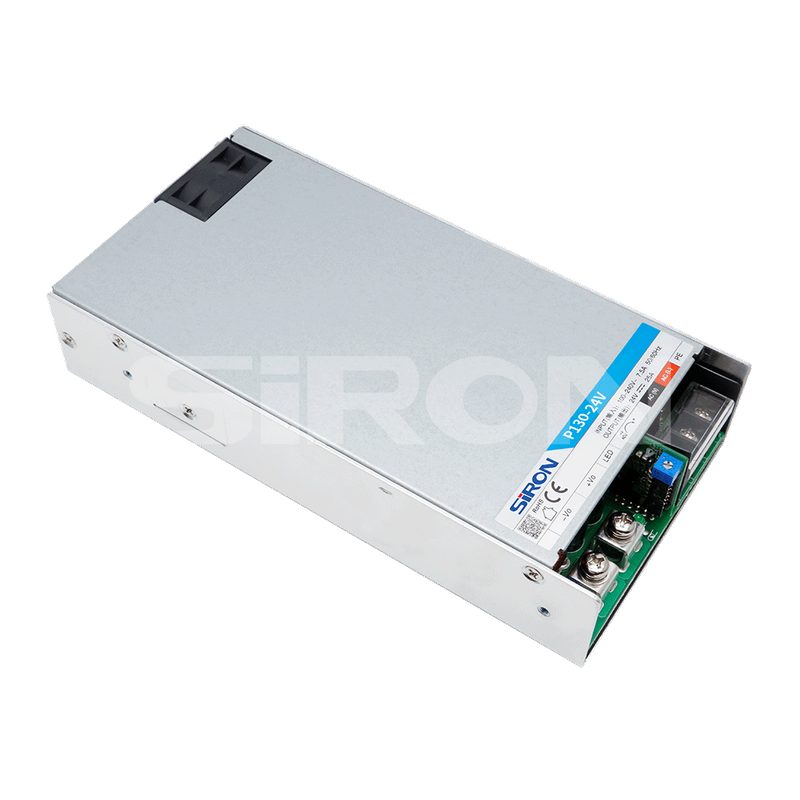

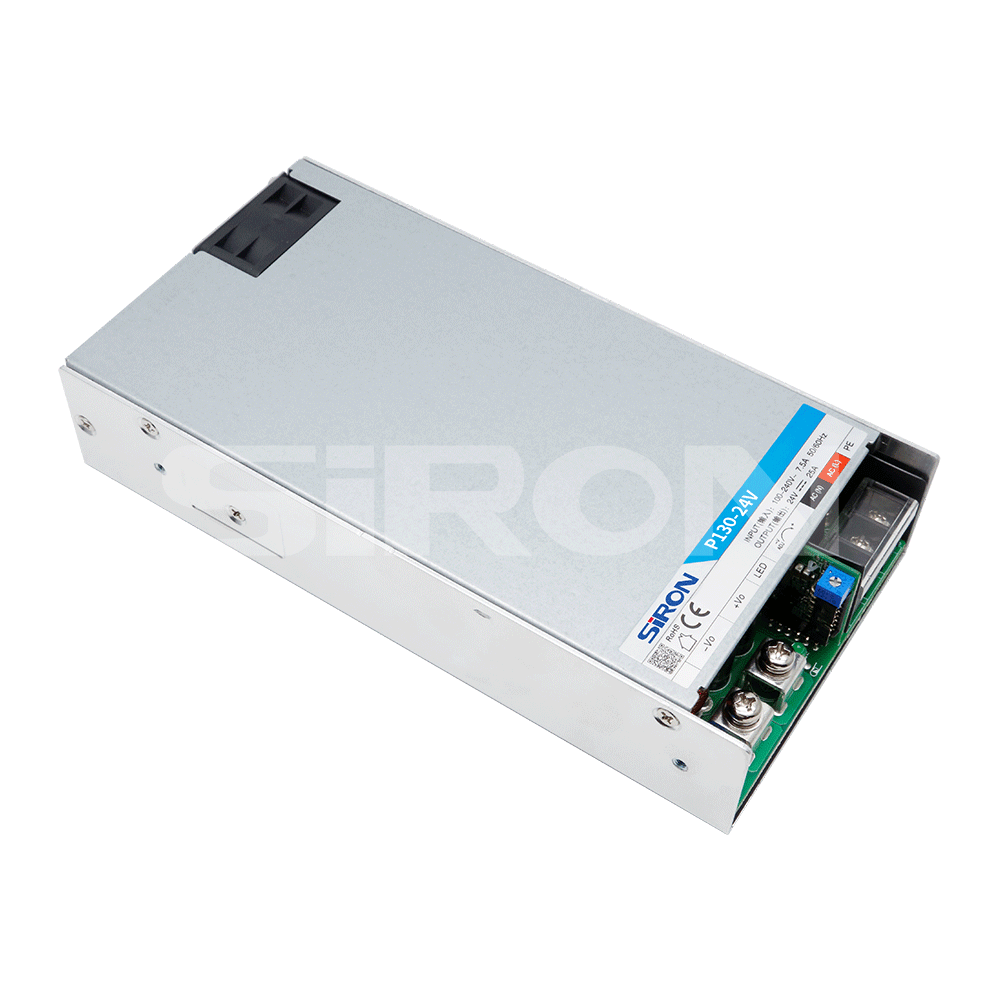

SiRON P130 Series 600W Chassis with PFCswitching power supply

Name: SiRON P130 Series 600W Chassis with PFCswitching power supply
Brand: SiRON
Rating: 5.0 (23 reviews)

Features

AC and DC dual purpose (input voltage of the same terminal), the efficiency is as high as 88%, and:he no-load power consumption is less than 0.5W;
4000VAC high isolation voltage, output short circuit, over current, over voltage protection
Overvoltage class lll (according to EN61558), to meet the 5000m altitude application;

Product Description

Order

Model	Voltage
P130	24V

Selection reference

Note: Terminal guard cover series: suffix with -C; Product series with conformal coating: suffix -O

Product Attributes

P130
Model
(@230VAC) Electric shock		cold start40A
Overcurrent Protection		110% - 160%lo,self-recovery
Short circuit protection		Hiccup type, sustainable short circuit, self-healing
Isolation withstand voltage		Input-output: 4kVAC, input-PE: 1.5kVAC, output-PE: 1.5kVAC (Test for 1 minute, leakage current <10mA)
Operating temperature		-40℃to+70℃
EMC performance	EMI	CISPR32/EN55032 Class B.IEC/EN61000-3-2 Class A and Class D
	EMS	EC/EN61000-4-2 Contact±8Kv,IEC/EN61000-4-310V/m, IEC/EN61000-4-610 Vr.m.s,IEC/EN61000-4-4,5,11
Safety standard		IEC/EN/UL62368-1,EN60335-1,EN61558-1,IEC/EN60601-1,GB4943.1
MTBF		MIL-HDBK-217F@25℃>300000h
Wiring diameter		Input terminal wiring: 22-14AWG; Output terminal wiring：22-14AWG
Connector torque		Input wiring locking torque: M4,1.2N.m; Output wiring locking torque M3.5,0.8N.m
Dimensions		203.1×101.6×40.6
