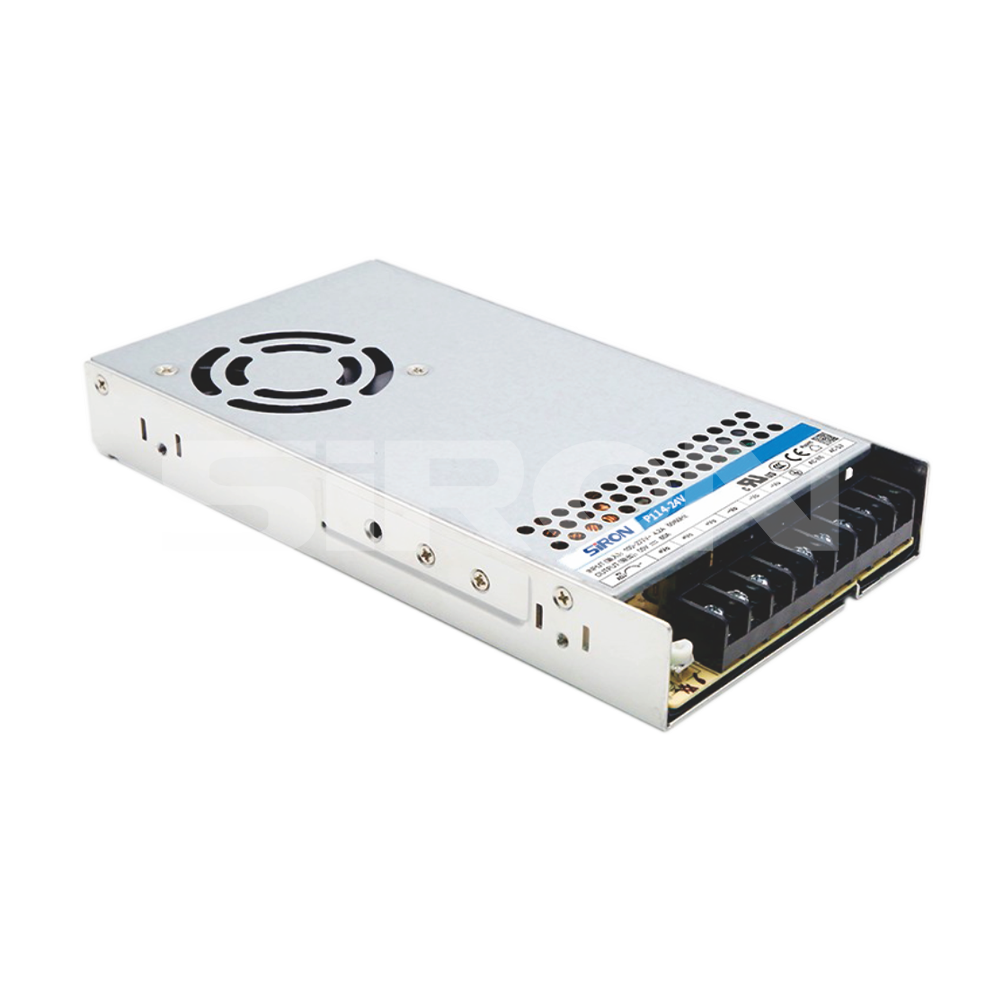

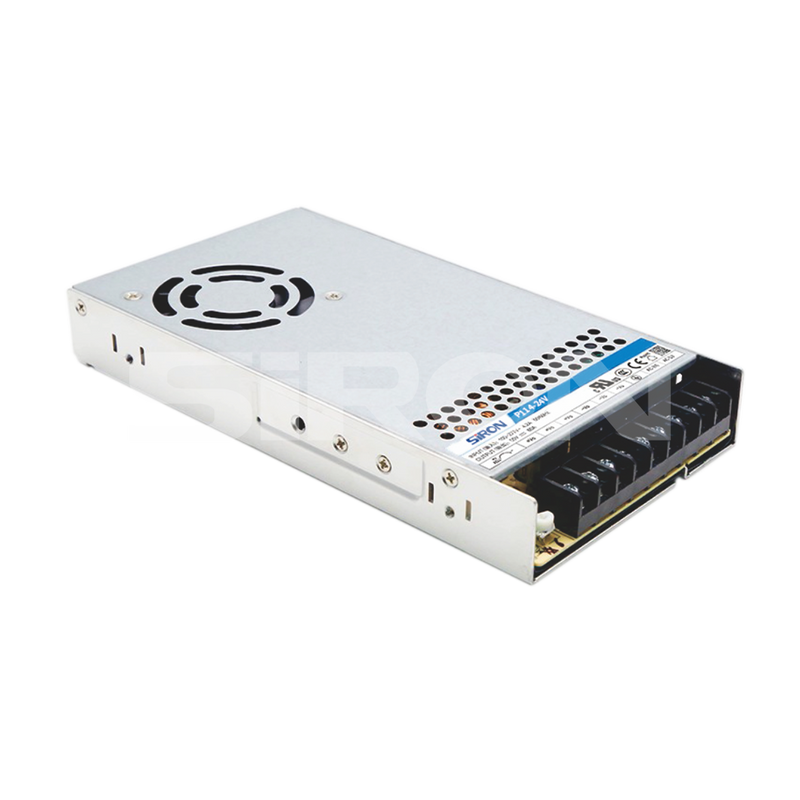

P113/P114
SiRON
8504401400
Order
| Model | Voltage |
| P113/P114 | 24V |
Selection reference
| Model | lnput voltage range | Power | Output voltage/current | Efficiency |
| P113-5V | 200W | 200W | 5V/40A | 85% |
| P113-12V | 200.4W | 12V/16.7A | 88% | |
| P113-15V | 201W | 15V/13.4A | 88% | |
| P113-24V | 201.6W | 24V/8.4A | 90% | |
| P113-48V | 201.6W | 48V/4.2A | 89% | |
| P114-4V | 320W | 240W | 4V/60A | 83% |
| P114-5V | 300W | 5V/60A | 84% | |
| P114-12V | 320.4W | 12V/26.7A | 86.5% | |
| P114-15V | 321W | 15V/21.4A | 89% | |
| P114-24V | 321.6W | 24V/13.4A | 88.5% | |
| P114-27V | 321.3W | 27V/11.9A | 88% | |
| P114-48V | 321.6W | 48V/6.7A | 89% |
Note: Terminal guard cover series: suffix with -C; Product series with conformal coating: suffix -O
Product Attributes
| Model | P113 | P114 | |
| Input voltage range | 85-305VAC/120-430VDC | ||
| The output voltage | 5V,12V,15V,24V,48V | 4V,5V,12V,15V,24V,27V,48V | |
| Electric shock | Cold start 6 5 A | ||
| Overcurrent Protection | 105%-200%lo | 105%-150%lo | |
| Short circuit protection | Hiccup type, with long-term short-circuit protection and self-recovery | ||
| Isolation withstand voltage | Input-output: 4kVAC, input-PE :2kVAC, output-PE:0 . 5kV AC (Test for 1 minute for leakage current<10mA) | ||
| Operatng temperature | -30℃to+70℃ | ||
| performance | EMI | CISPR32/EN55032 ClassB,IEC/EN61000-3-2 ClassA and ClassD,IEC/EN61000-3-3 | |
| EMS | IEC/EN 61000-4-2,Contact±6KV,IEC/EN 61000-4-310V/m, IEC/EN 61000-4-610Vr.m.s,IEC/EN61000-4-4,5,11 | ||
| Safety standard | IEC/EN/UL62368、EN60335、GB4943 | IEC/EN/UL62368-1、GB4943.1、 IEC60950-1、EN60335-1 | |
| MTBF | MIL-HDBK-217F@25℃>250000h | ||
| Wiring diameter | 22-12AWG | ||
| Connector torque | M3.5,0.8N.m | ||
| Dimensions | 179×99×30 | 215×115×30 | |
