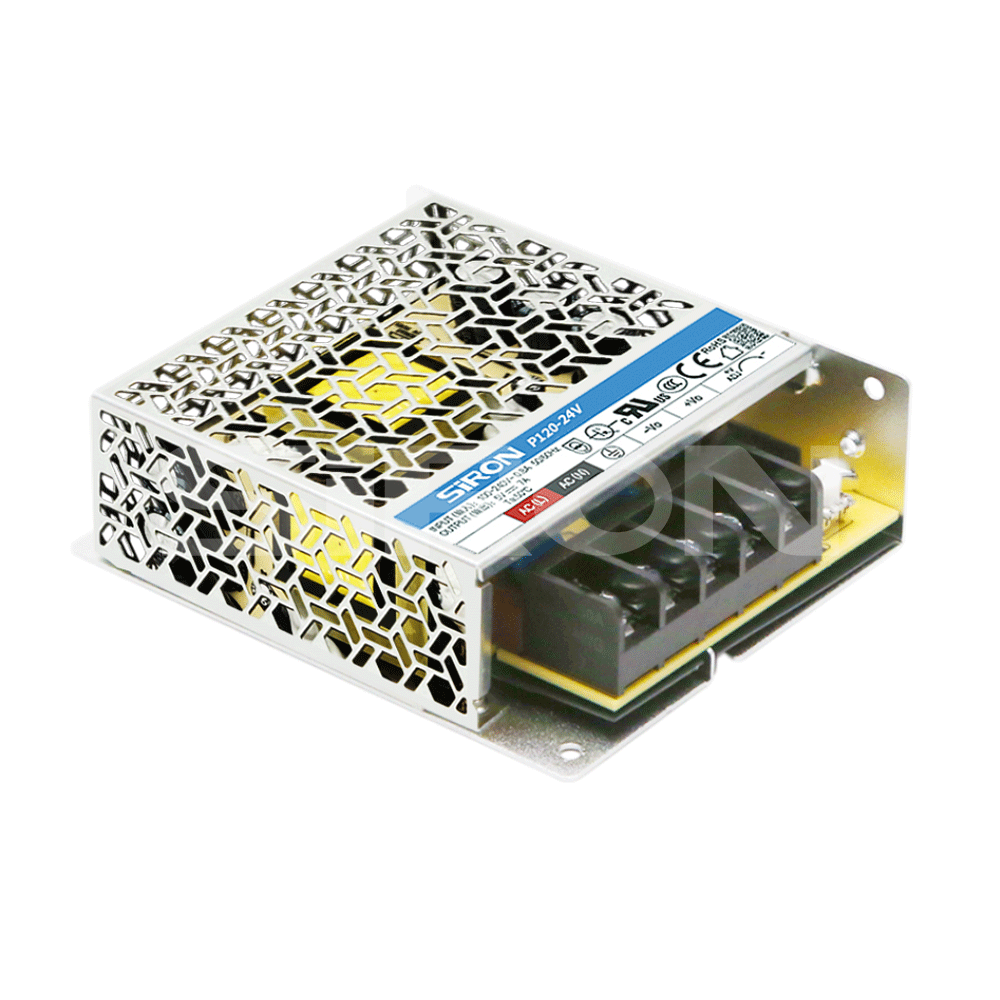

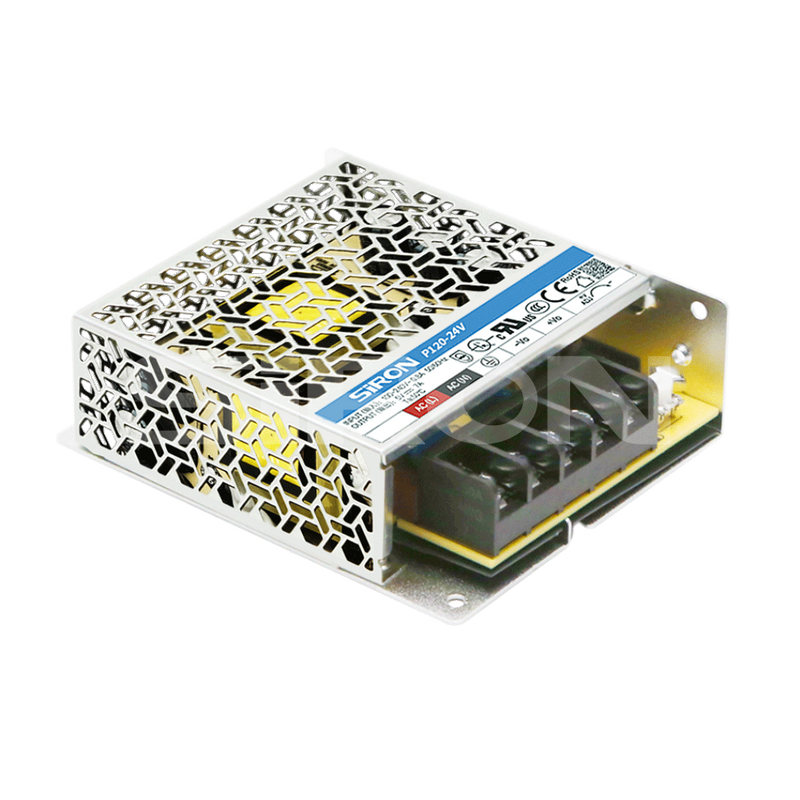

P120
SiRON
8504401400
Order
| Model | Voltage |
| P120 | 24V |
Selection reference
| Model | Input voltage range | Power | Output voltage/current | Efficiency |
| P120-5V | 85-264VAC/ 120-370VDC | 35W | 5V/7A | 86% |
| P120-12V | 36W | 12V/3A | 88% | |
| P120-15V | 36W | 15V/2.4A | 89% | |
| P120-24V | 36W | 24V/1.5A | 88% |
Note: Terminal with protective cover series: Suffix with -C; The product comes with a conformal coating series: the suffix
is -O
Product Attributes
| Model | P120 | |
| Electric shock | Cold start,50A | |
| Overcurrent Protection | 110%-200%lo | |
| Short circuit protection | Hiccup type,with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output:4kVAC,input-PE:2kVAC,Output-PE:1.25kVAC (Test for 1 minute,leakage current<10mA) | |
| Operating temperature | -30℃to+70℃ | |
| performance | EMI | CISPR32/EN55032 Class B,IEC/EN61000-3-2 Class A |
| EMS | IEC/EN 61000-4-2Contact±6KV,IEC/EN61000-4-610 Vr.m.s, iEC/EN 61000-4-310V/m,IEC/EN61000-4-4,5,11 | |
| Safety standard | IEC/EN/UL62368、EC/EN60335、GB4943、IEC/EN61558 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Wiring diameter | 22-12AWG | |
| Connector torque | M3.5,0.8N.m | |
| Dimensions | 99×82×30 | |
