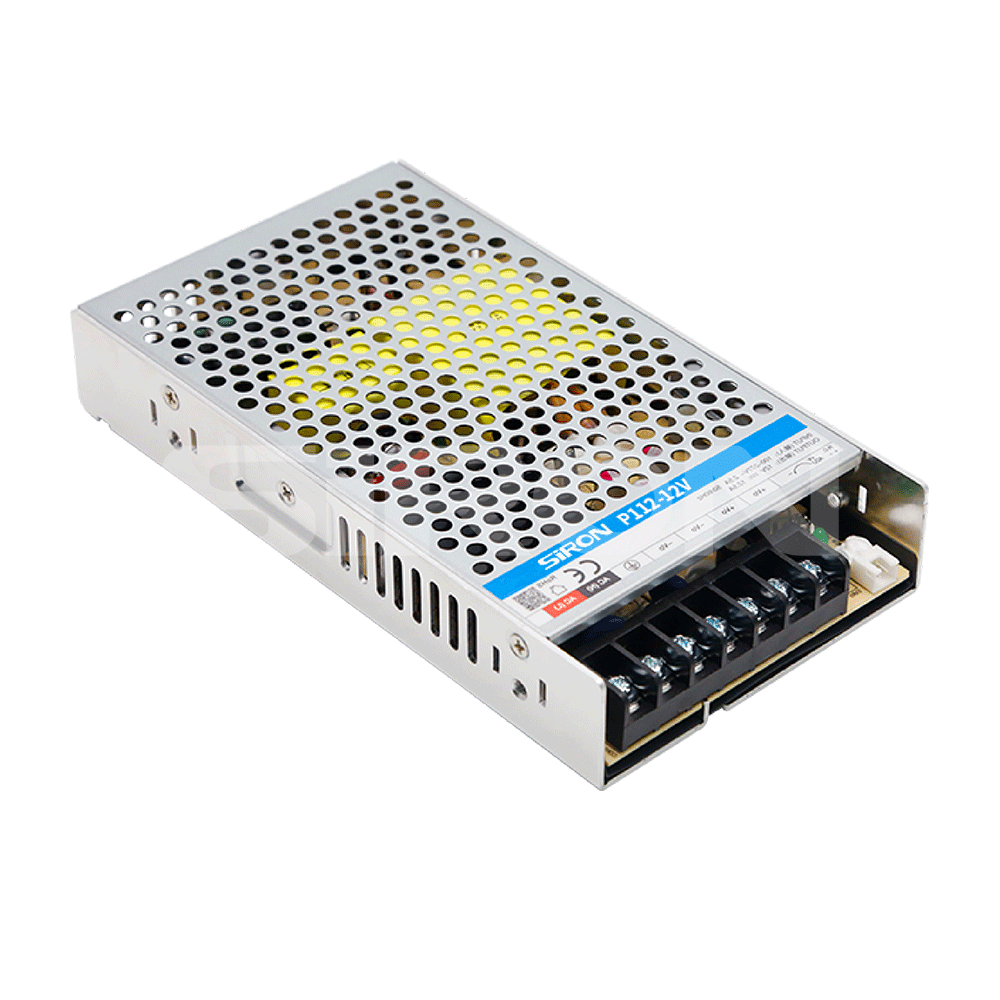

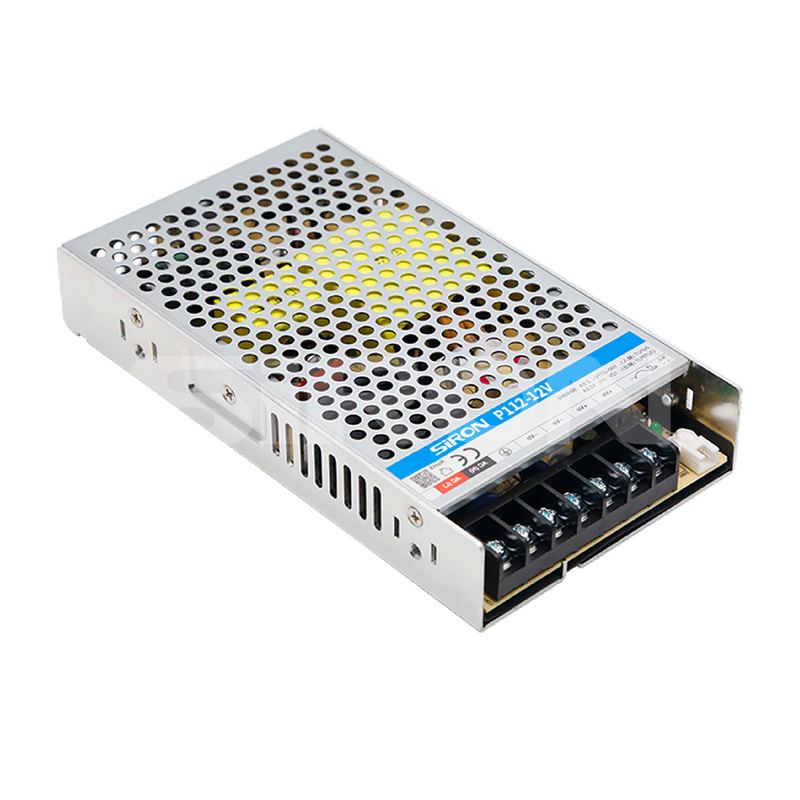

SiRON P112 Series 150W Chassis with PFC Switching Power Supply

Name: SiRON P112 Series 150W Chassis with PFC Switching Power Supply
Brand: SiRON
Rating: 5.0 (74 reviews)

Features

AC and DC dual purpose (input voltage of the same terminal), the efficiency is as high as 88%, and:he no-load power consumption is less than 0.5W;
4000VAC high isolation voltage, output short circuit, over current, over voltage protection
Overvoltage class lll (according to EN61558), to meet the 5000m altitude application;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P112	24V

Selection reference

Note: Terminal guard cover series: suffix with -C; Product series with conformal coating: suffix -O

Product Attributes

Model		P112
Electric shock		Cold start, 45A
Overcurrent Protection		105%-150% lo
Short circuit protection		Constant current, long-term short-circuit protection, self-recovery
Isolation withstand voltage		Input - Output: 4 kVA C, Input P.E.: 2 kVA C, Output P.E.: 0.5 kVA C (Test for 1 minute,leakage current<10mA)
Operating temperature		-30℃to+70℃
performance	EMI	CISPR32/EN55032 ClassB，IEC/EN61000-3-2 ClassA,IEC/EN61000-3-3
	EMS	IEC/EN 61000-4-2,Contact ±6KV,IEC/EN 61000-4-3 10V/m IEC/EN 61000-4-6 10Vr.m.s,IEC/EN61000-4-4,5,11
Safety standard		IEC/EN/UL 62368、EN60335、EN61558、GB4943
MTBF		MIL-HDBK-217F@25℃>300000h
Wiring diameter		22-12AWG
Connector torque		M3.5, 0.8N.m
Dimensions		179×99×30
