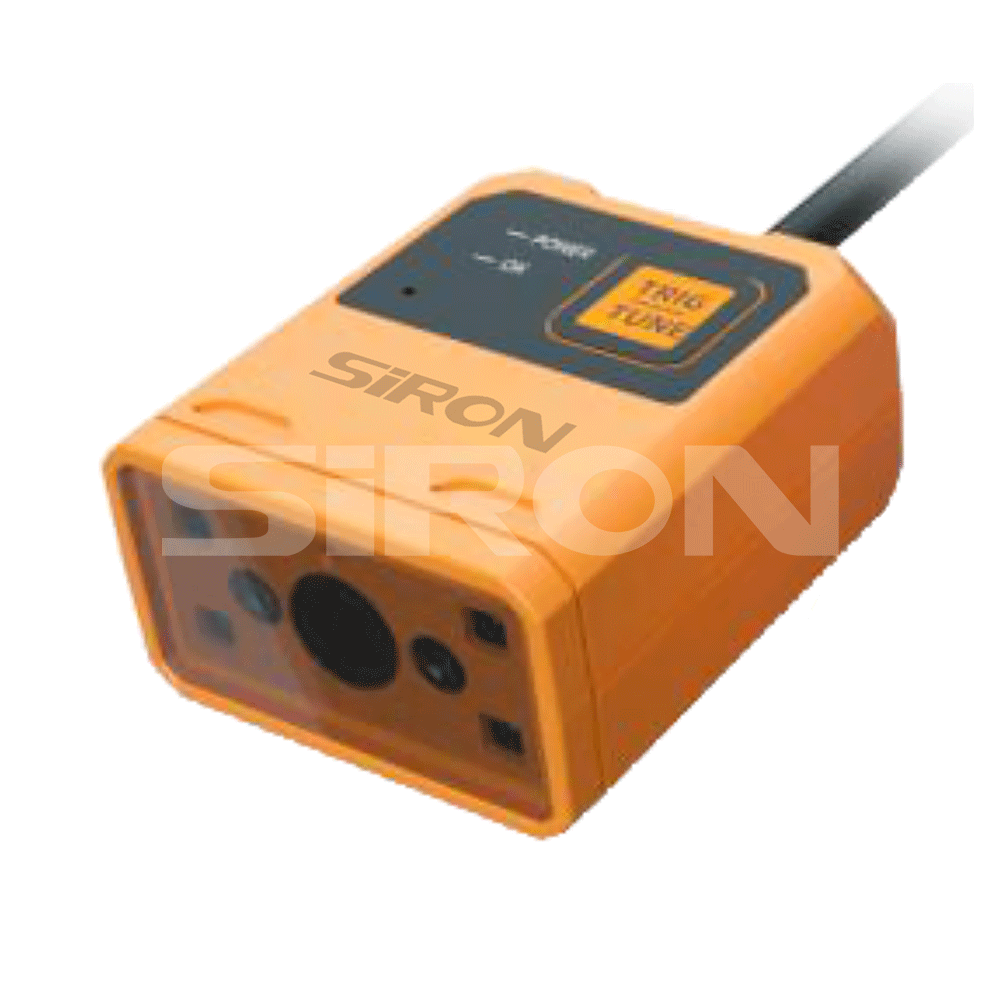

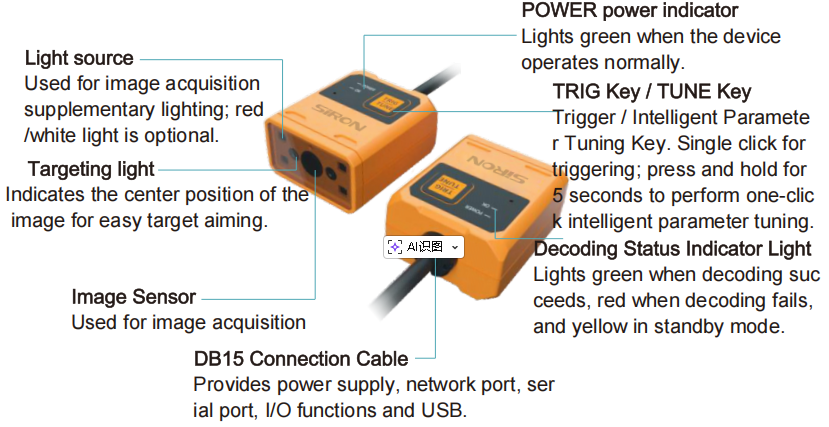

K510-1
SiRON

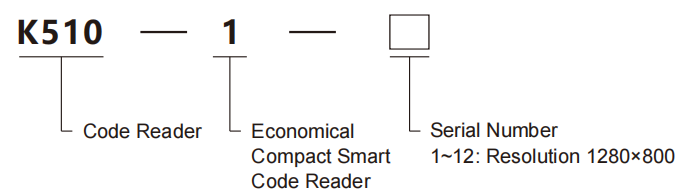

About selection

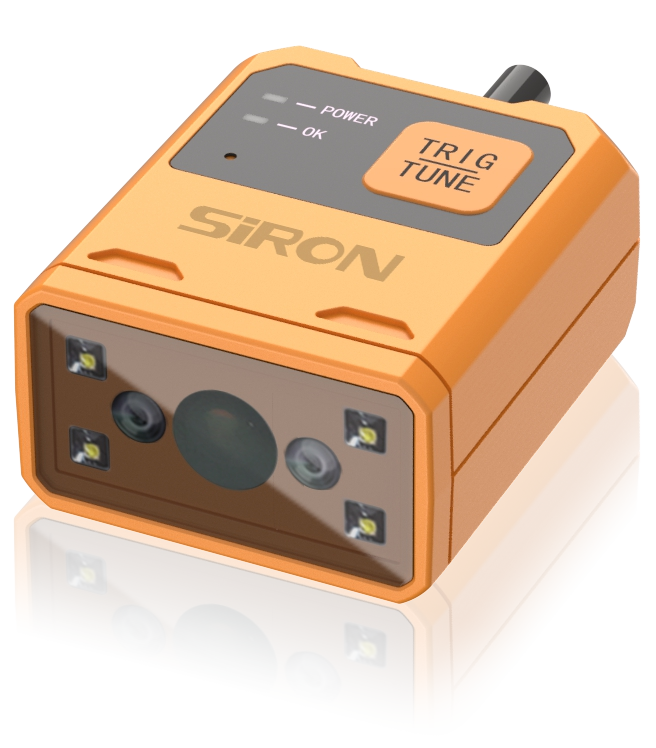

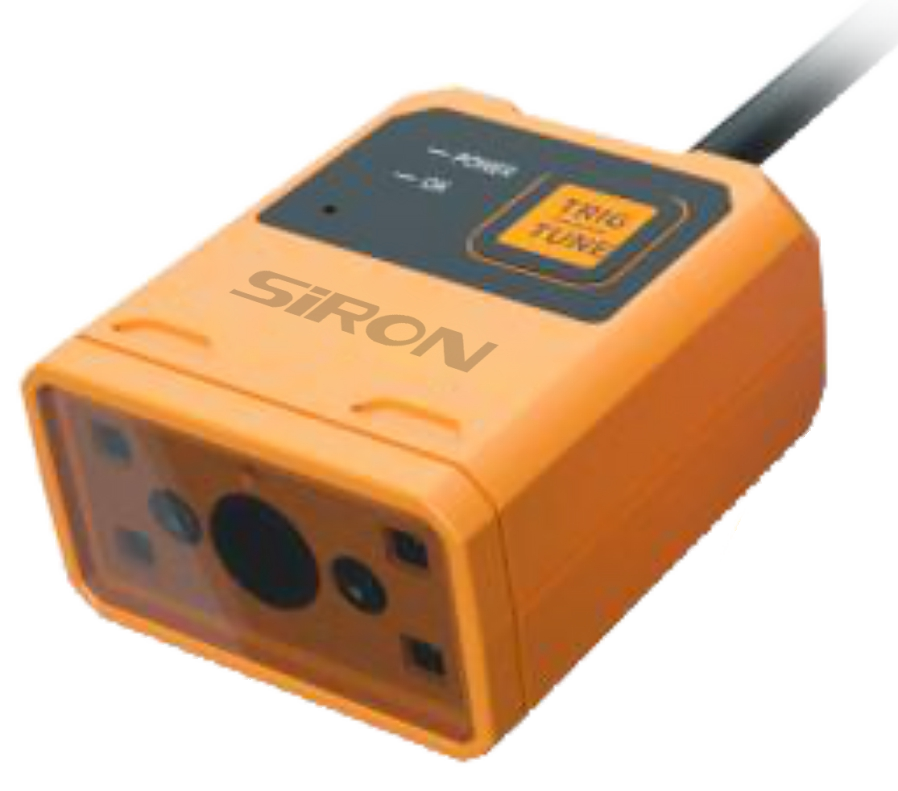

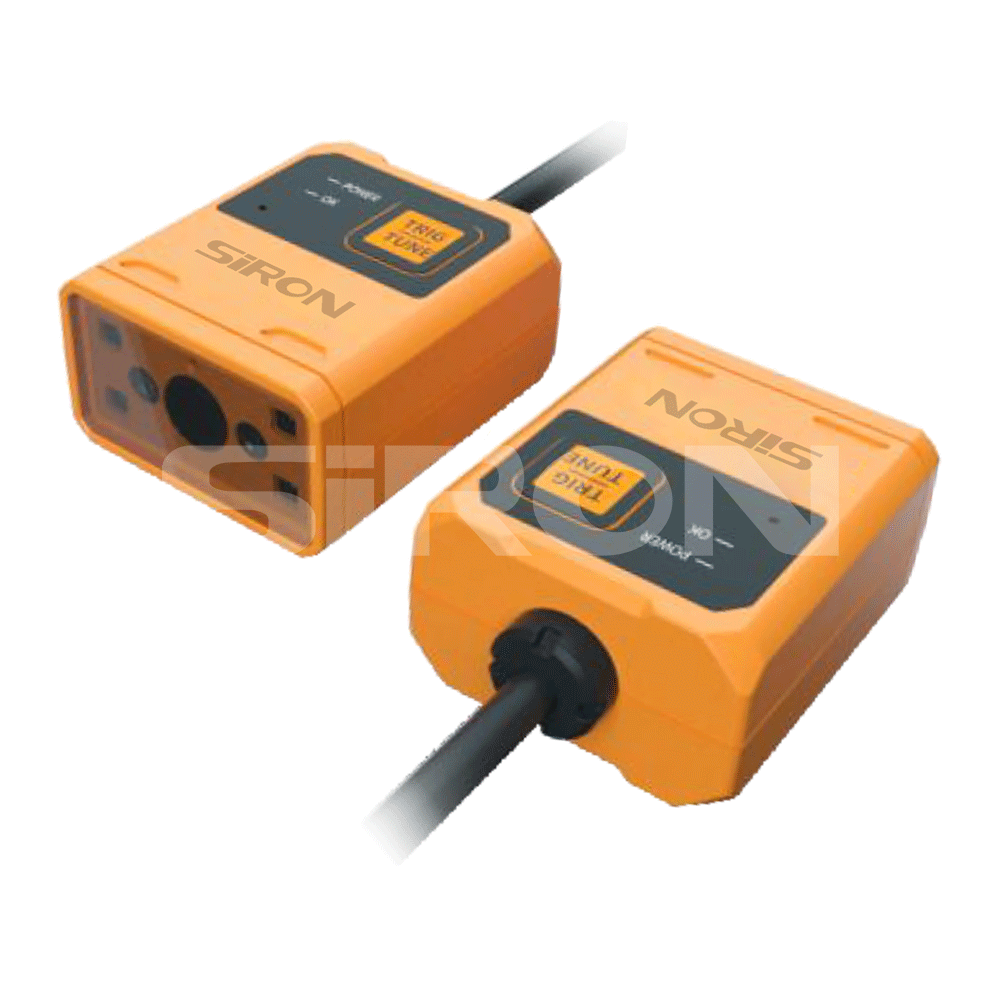

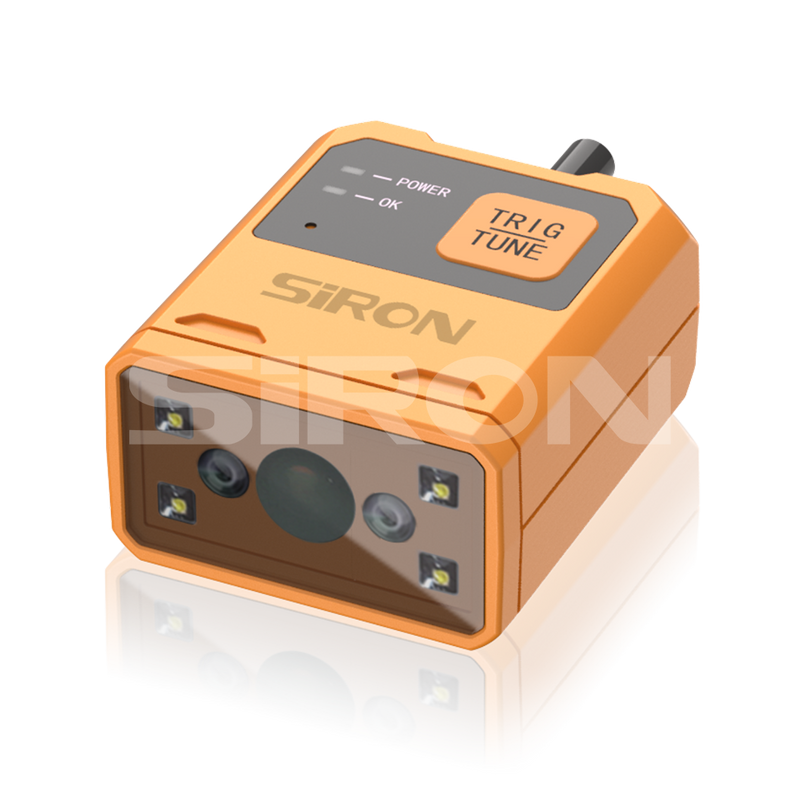

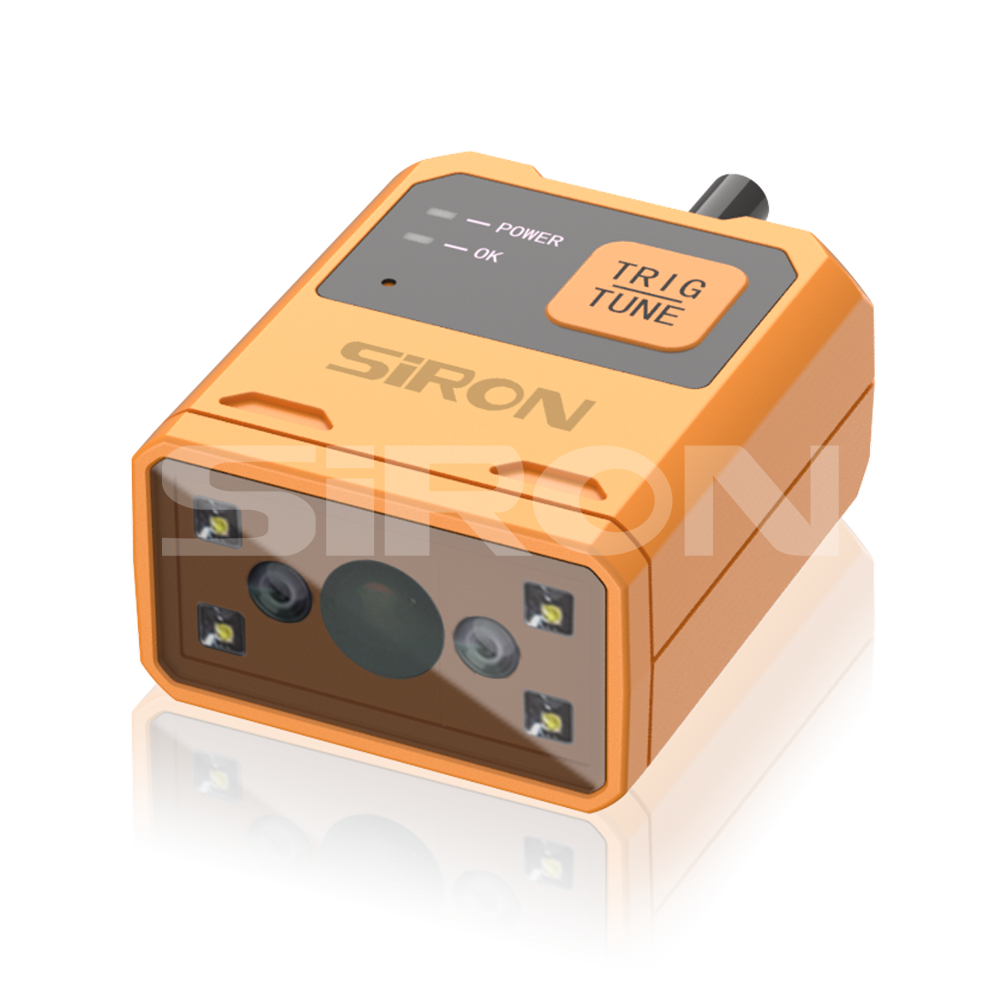

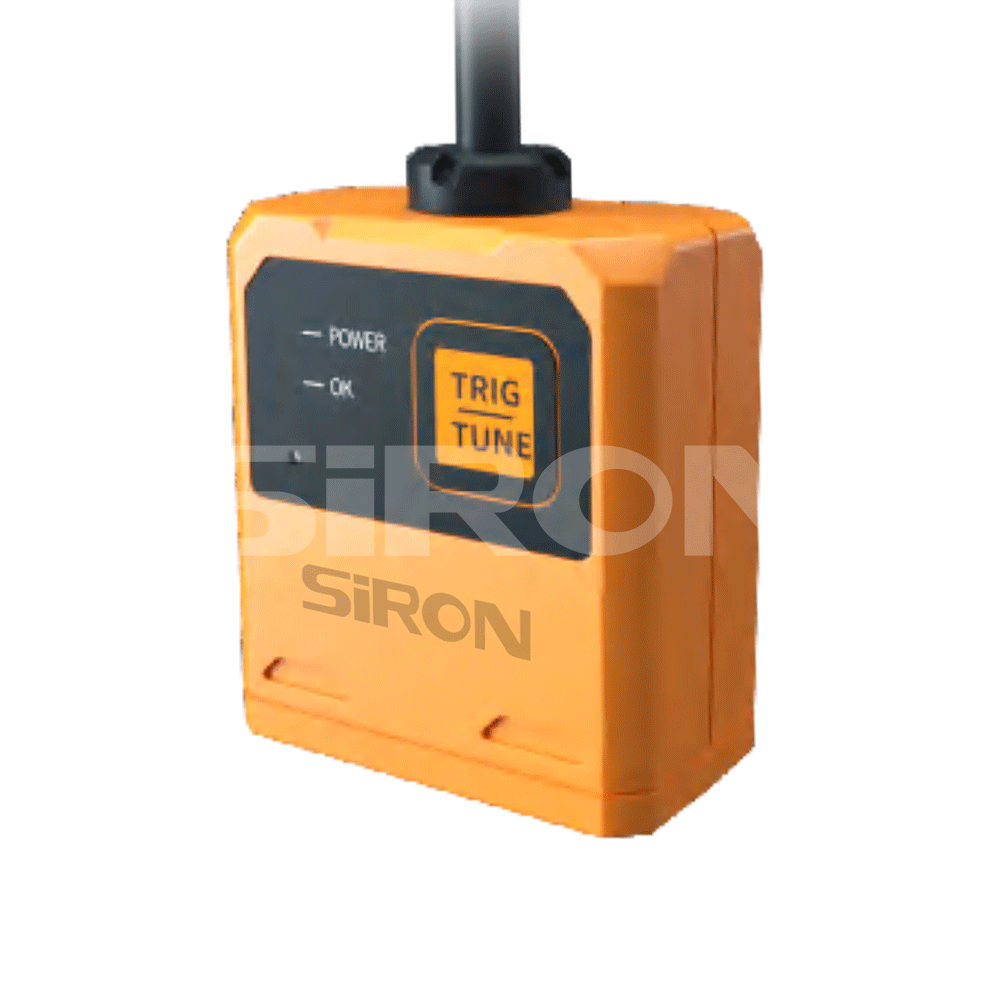

Selection Example: K510-1-2It represents the K510-1 series economical compact smart code reader, equipped with white light source, short-distance shooting, polarization function, 1280×800 pixels and fixed focus.
Selection Reference:
Resolution: 1280×800
| Code | Light source | Type | Polarization | Pixel | Foousing mode |
| 1 | white | close Range | non-polarized | 1280x800 | fixed focus |
| 2 | white | close Range | polarization | 1280x800 | fixed focus |
| 3 | red | close Range | non-polarized | 1280x800 | fixed focus |
| 4 | red | close Range | polarization | 1280x800 | fixed focus |
| 5 | white | standard | non-polarized | 1280x800 | fixed focus |
| 6 | white | standard | polarization | 1280x800 | fixed focus |
| Code | Light source | Type | Polarzation | Pixel | Focusng mode |
| 7 | red | standard | non-polarized | 1280x800 | fixed focus |
| 8 | red | standard | polarization | 1280x800 | fixed focus |
| 9 | white | high-density | non-polarized | 1280x800 | fixed focus |
| 10 | white | high-density | polarization | 1280x800 | fixed focus |
| 11 | red | high-density | non-polarized | 1280x800 | fixed focus |
| 12 | red | high-density | polarization | 1280x800 | fixed focus |

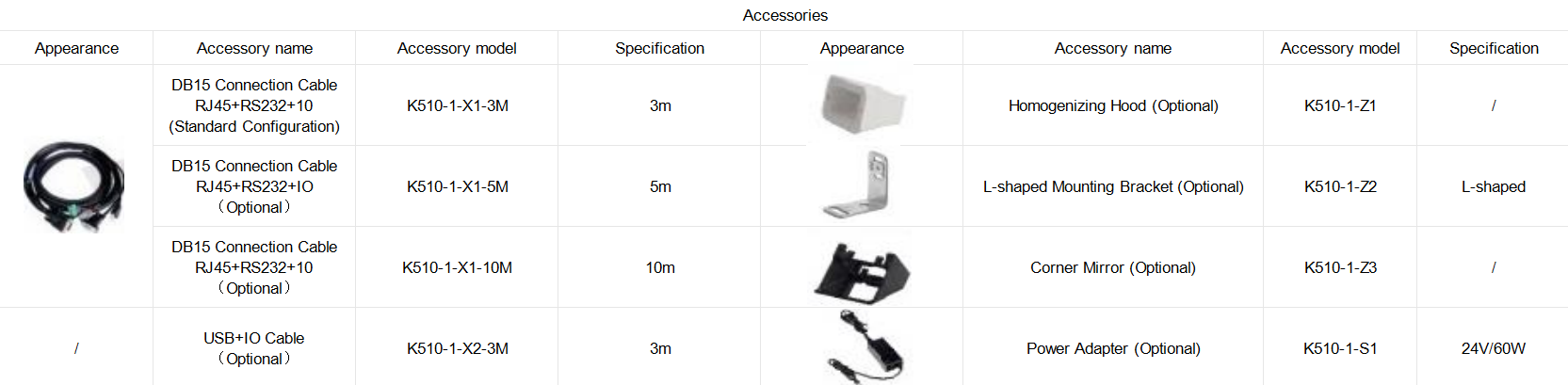

Accessories

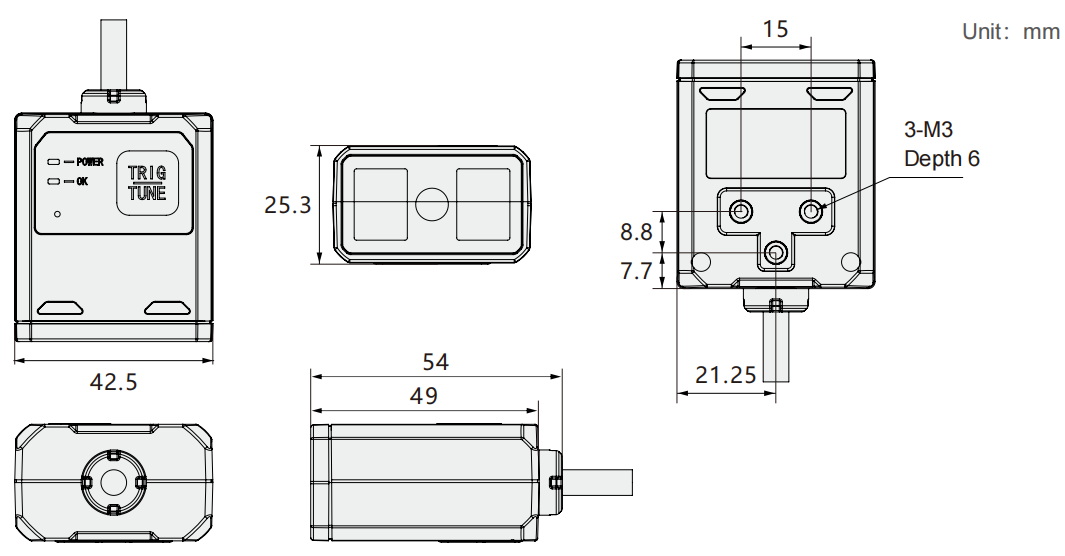

Dimension
Interface and Loose Wire Definition

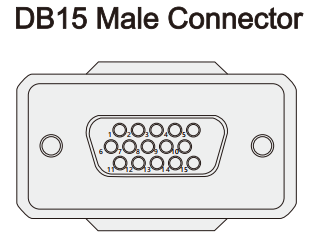

The device interface is a DB15 connector, and the specific pin signal definition is shown in the figure below.
| Pin 1 | VCC | Pin 5 | LINE_IN1 | Pin 9 | VBUS | Pin 13 | LINE_IN2 |
| Pin 2 | RS232_TXD | Pin 6 | ENET_TX+ | Pin 10 | LINE_OUT2 | Pin 14 | ENET_TX- |
| Pin 3 | RS232_RXD | Pin 7 | ENET_RX- | Pin 11 | D- | Pin 15 | ENET_RX+ |
| Pin 4 | GND | Pin 8 | LINE_OUT1 | Pin 12 | D+ | / | / |
Specifications
| Type | Standard Type (180mm ) | Close Range (100mm) | High-density Type (50mm ) |
| Resolution | 1280x800 | ||
| Frame rate | 60 | ||
| Color / Monochrome： | Monochrome | ||
| Shutter | Global | ||
| Exposure time | 20μs~100000μs | ||
| Pixel size | 3μmx3μm | ||
| Focusing mode | Fixed Focus (Focal Length 5mm) | ||
| Reading parameters | Code 39（5 mil）：85~220mm Code 128（10 mil）：51~415mm QR Code（15 mil）：42~313mm Data Matrix（10 mil）：60~150mm | Code 39（3 mil）：58~112mm Code 128（10 mil）：30~205mm QR Code（10 mil）：30~167mm Data Matrix（5 mil）：55~80mm | Code 39（3 mil）：30~60mm Code 128（10 mil）：40~122mm QR Code（5 mil）：30~80mm Data Matrix（5 mil）：35~74mm |
| Barcode type | 1D Barcode: Code39，Code93，Code128， EAN-8， EAN-13， Interleaved 2 of 5， UPCA， UPAE， Pharmacode， CODABAR 2D Barcode: Micro QR，QR code，DataMatrix，MaxiCode，Aztec Stacked Barcode: PDF417 | ||
| Position indication | 2 green light spots indicate the central scanning position area | ||
| Status indicaion | 2 status LEDs (decoding status, power status) and buzzer | ||
| Polaroid | Polarization supported | ||
| Light Source | Red / white light source optional | ||
| Input control | Two-channel non-isolated input | ||
| Output control | Two-channel non-isolated output | ||
| Communication protocol | TCP Server、TCP Client、ModBus TCP、ModBus RTU、Profinet、Ethernet/IP、MELSEC/SLMP、Fins、Serial | ||
| Communication interface | RS232、RJ45、USB | ||
| Power input | 24V DC/USB 5V | ||
| Power consumption | 5W | ||
| Overall dimension | 49×25x42.5mm | ||
| Weight | Approx 80g | ||
| Operating temperature | 0~45℃ | ||
| Storage temperature | -20~70℃ | ||
| Humidness | 5 % ~ 9 5 % R H (Non-condensing) | ||
| Class of protection | IP54 | ||
Structure Drawing
| Working Distance (mm) | Horizontal (mm) | Vertical (mm) | 1D Pixel Accuracy | 2D Pixel Accuracy |
| 30 | 22 | 14 | 0.021 | 0.034 |
| 50 | 38 | 24 | 0.036 | 0.059 |
| 100 | 76 | 38 | 0.071 | 0.119 |
| 150 | 115 | 72 | 0.108 | 0.18 |
| 200 | 153 | 96 | 0.143 | 0.239 |
| 300 | 230 | 144 | 0.216 | 0.359 |

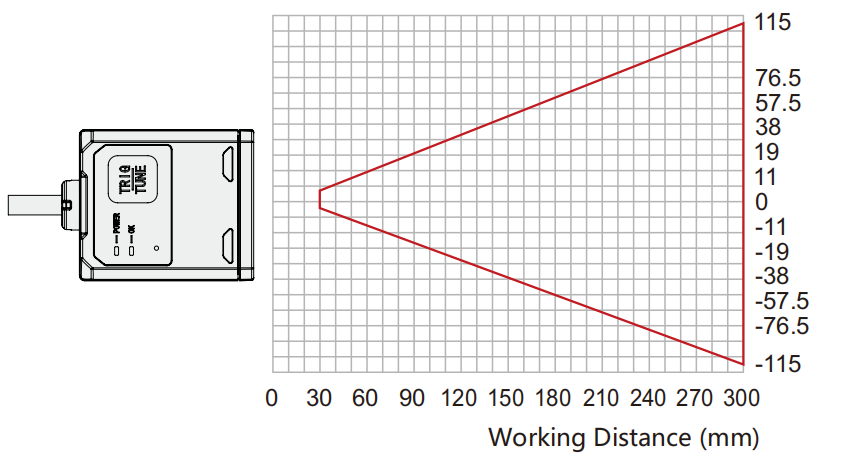

Horizontal Field of View (HFOV) Schematic Diagram

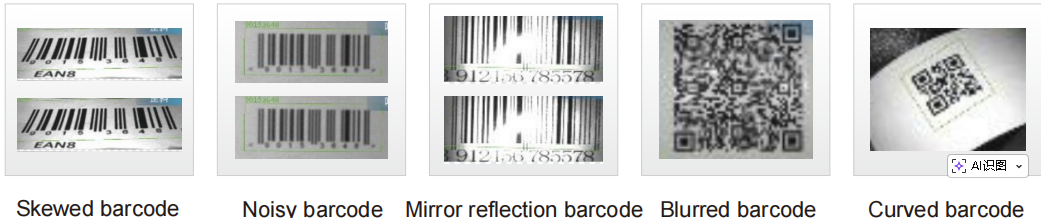

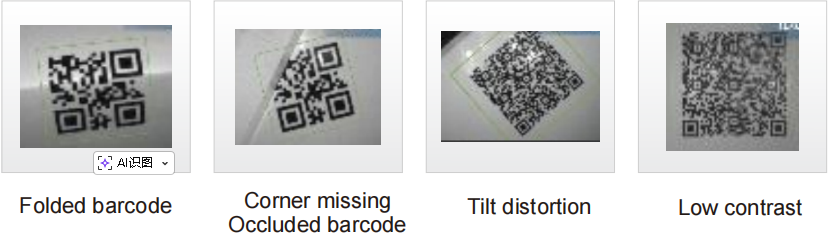

Readable Barcode Examples
