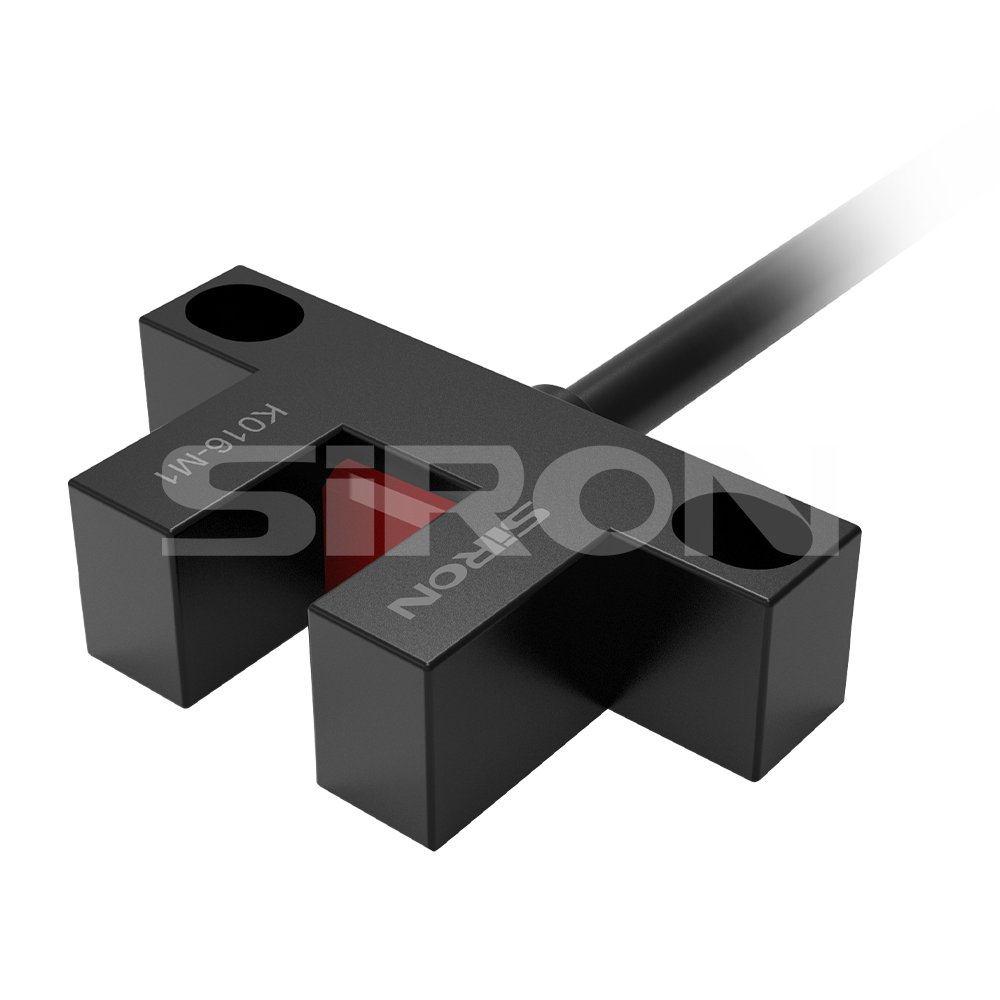

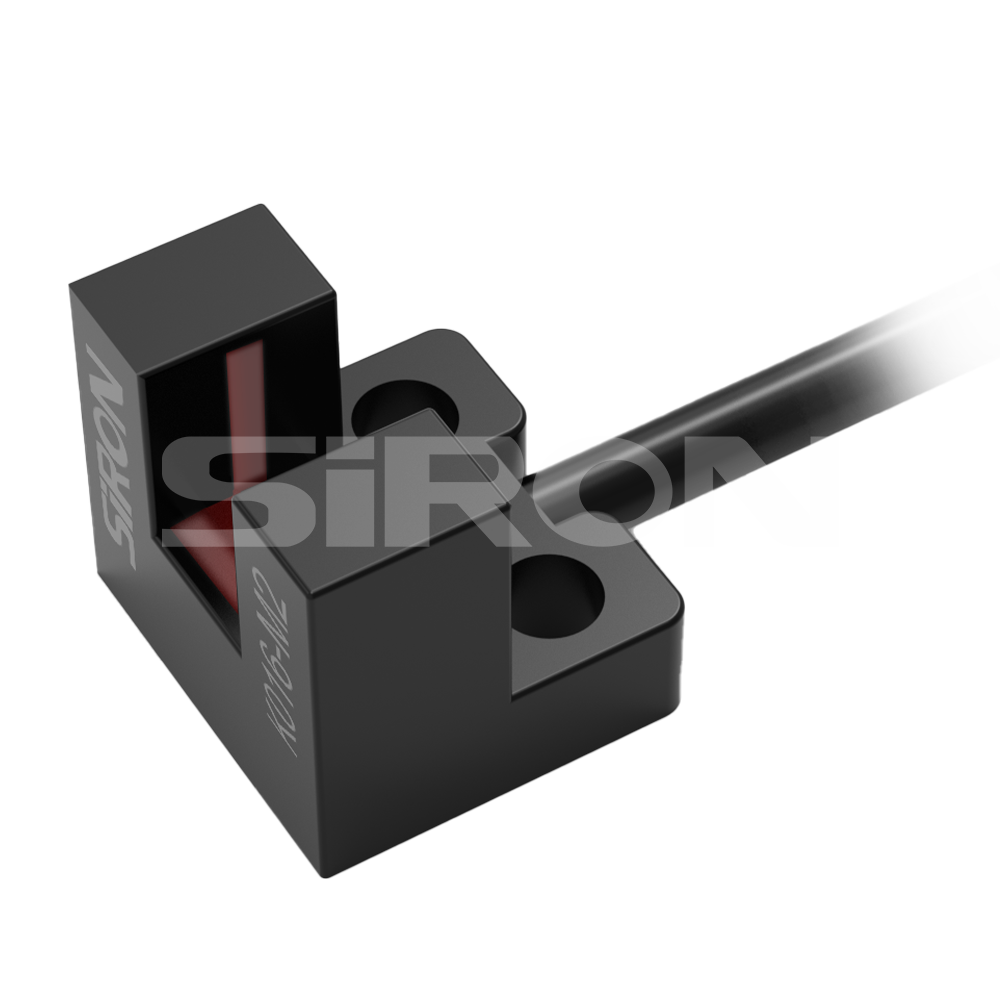

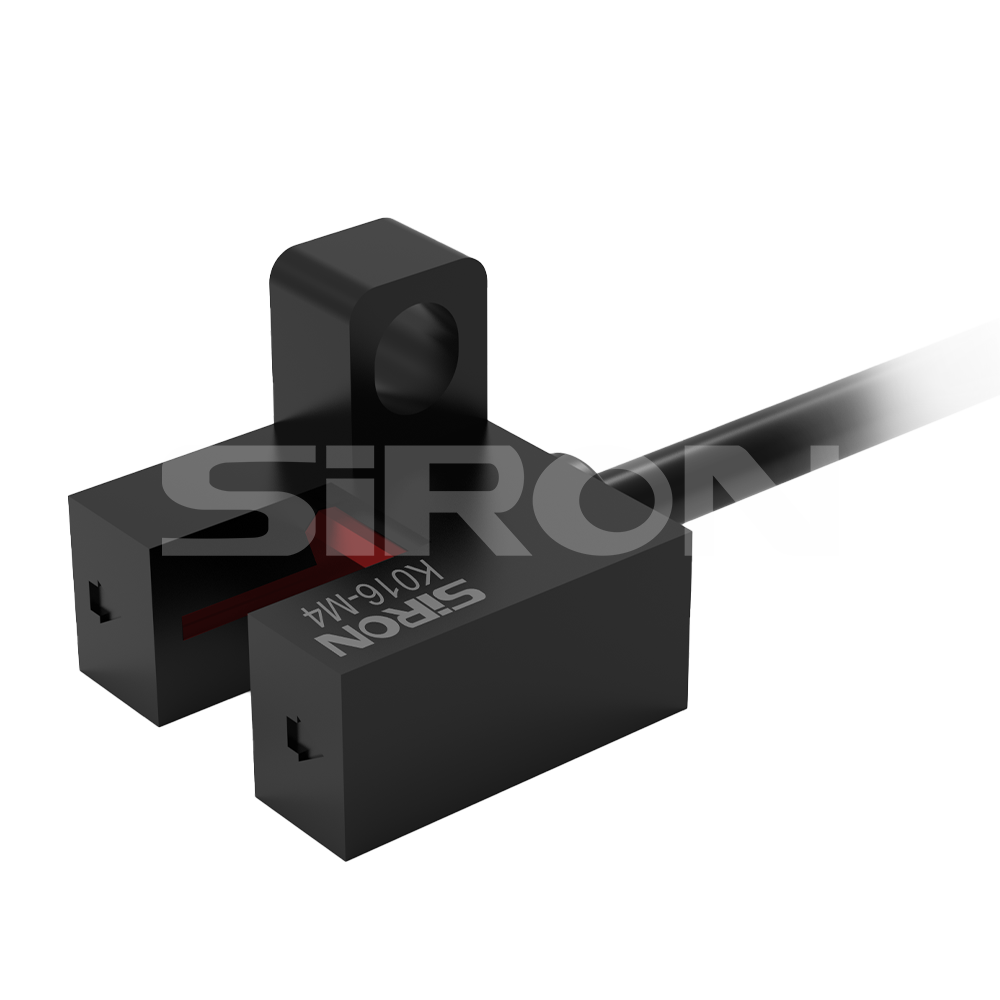

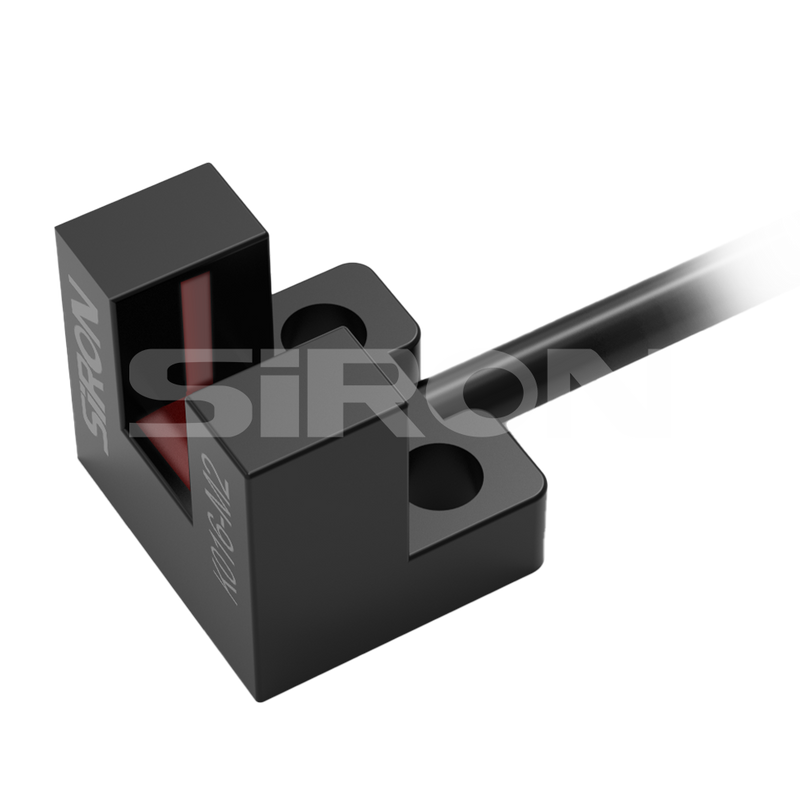

SiRON K016-M Series Groove Sensor Subminiature 5mm Slot Width

About selection

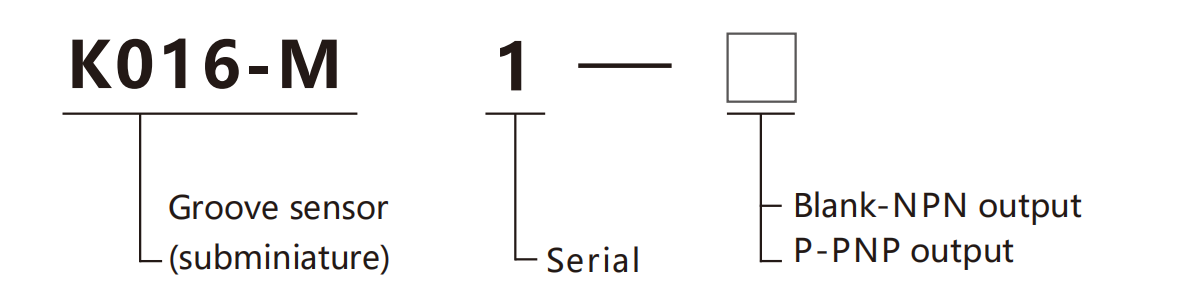

Selection example: K016-M1    indicator  the K016-M1 series, serial number 1, with NPN output ；

                                         K016-M1-P    indicator  the K016-M1 series, serial number 1, with PNP output

Specifications

Name		Slotsensor(subminiature)
Model	NPN	K016-M1		K016-M2	K016-M3		K016-M4	K016-M5
	PNP	K016-M1-P		K016-M2-P	K016-M3-P		K016-M4-P	K016-M5-P
Species		K Type		L Type	F Type		R Type	U Type
Appearance
Detection distance		5 mm ( Slot width )			Protecion circuit	Surge protection, reverse polarity protection
Standard test substance		Opaque objects larger than 0.8×1.2mm			Ambient luminosity	The illuminance of the light-receiving surface for incandescent lamps: below 1000lux
Repeatability		Below 0.03mm			Ambient temperature	Operating temperature: -25 ℃ to +55℃; Storage temperature: -30 ℃ to +80℃, no freezing
Output mode		NPN or PNP open collector			Ambient humidity	When in operation: 5% - 85%RH, when stored: 5% - 95%RH, no condensation
Switching mode		L.on(light-entering action)/Don(light-blocking action) can be switched			Withstand voltage	AC.1000V1min, between all power connection terminals and the housing
Pilot lamp		The light turns off when an object is detected, and turns on when there is no object.			Shock-proof	Frequency: 10-2000Hz, dual amplitude: 1.5mm(maximum acceleration: 196m/S⊃2;), 2 hours in each of the XYZ directions
Response frequency		3KHz			Insulation resistance	All power connection terminals and the housing should be above 20MΩ, based on DC250V
Iluminant		infrared light			Class of protection	IP50
Operating voltage		5~24V    DC			Material	ABS+PC
Residual voltage		Below 1V (when the load current is 100mA)			Outlet mode	2M,4-core cable
Current consumption		≤8mA
