SiRON K018-M Series Groove Sensor Plug-in Type 5mm Slot Width

About selection

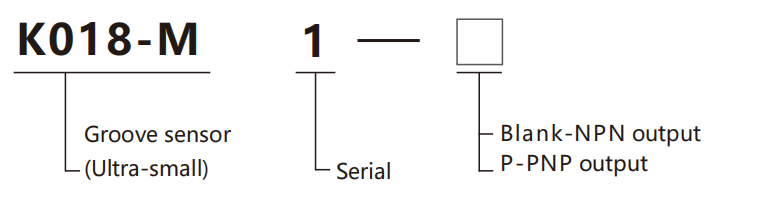

Selection example:  K018-M1 indicates the K018-M1 series, 1 serial number, NPN output;

                                            K018-M1-P indicates the K018-M1 series, 1 serial number, PNP output.

Specifications

Name		Slot sensor(Plug-in type)
Model	NPN	K018-M2	K018-M4		K018-M5		K018-M6
	PNP	K018-M2-P	K018-M4-P		K018-M5-P		K018-M6-P
Species		T Type	L Type		K Type		Y Type
Appearance
Detection distance		5 m m ( Slot width )		Protection circuit		Surge protection, reverse polarity protection
Standard test substance		Opaque objects larger than 0.8×1.2mm		Ambient luminosity		The illuminance of the light-receiving surface for incandescent lamps: below 1000lux
Repeatability		Below 0.03mm		Ambient temperature		Operating temperature: -25 ℃ to +55℃; Storage temperature: -30 ℃ to +80℃, no freezing
Output mode		Open collector of NPN or PNP		Ambient humidity		When in operation: 5% - 85%RH, when stored: 5% - 95%RH, no condensation
Switching mode		L.on(light-entering action)/Don(light-blocking action) can be switched		Withstand voltage		AC . 1000V1min, between all power connection terminals and the housing
Pilot lamp		The light goes off when an object is detected and turns on when there is no object		Shock-proof		Frequency: 10-2000Hz, dual amplitude: 1.5 mm(maximum acceleration: 196m/S), 2 hours in each of the XYZ directions
Response frequency		3KHz		Insulation resistance		All power connection terminals and the housing should be above 20MΩ (based on DC250V).
Illuminant		infrared light		Class of protection		IP50
Operating voltage		5~24VDC		Material		ABS+PC
Residual voltage		Below 1V (when the load current is 100mA)		Outlet mode		connector
Current consumption		≤8mA
