SiRON K017-A Series Groove Sensor Groove Type 6mm Slot Width

About selection

Selection example: K017-A2    indicator  the K017-A series, serial number 2, the light is on during detection,

                                           with NPN output ；

                                          K017-A2-P    indicator  the K017-A series, serial number 2 , the light is on during detection,

                                          with PNP output.

Specifications

Name		Groove sensor(groove type)
Model	NPN	K017-A2	K017-A3	K017-A4		K017-A5	K017-A6
	PNP	K017-A2-P	K017-A3-P	K017-A4-P		K017-A5-P	K017-A6-P
Species		T Type	R Type	L Type		K Type	Y Type
Appearance
Detection distance		6 m m ( Slot width )		Protection structure	IP66
Smallest detectable object		0.8mm×1.2mm opaque object		Ambient temperature	-25℃ to +55℃(Note: Do not condense or freeze). Storage temperature: -30℃ to +80℃
Repeatability		Below 0.01mm		Use environment humidity	5 % R H ~ 8 5 % R H 、 When storing ：  5 % R H ~ 9 5 % R H
Hysteresis (hysteresis)		Below 0.05mm		Use ambient lighting	Fluorescent lighting: The illuminance of the illuminated surface is less than 1000Ix
voltage		5V DC to 24V Dc±10% pulsating P-P below 10%		Withstand voltage	AC1000V for 1 minute, between all power connection terminals and the casing
Consumption voltage		Below 15mA		Insulation resistance	Between all power connection terminals and the housing, a high-resistance meter with a resistance of 20MΩ or above, based on DC 250V
Output		The applied voltage of the NPN open-collector transistor: below 30VDC (between the output and OV)		Vibration resistant	Frequency: 10Hz to 2000Hz, dual amplitude: 1.5mm(maximum acceleration: 196m/s⊃2;), 2 hours in each of XYZ directions
		Applied voltage of PNP open collector transistor: below 30V DC (between output and +V)		Shock proof	The acceleration is 15,000 m/s ⊃2; (approximately 1500G), three times in each of the X, Y, and Z directions
		Maximum inflow current of NPN/PNP: 50mA, voltage drop: <2V		Projection element	Infrared LED(Peak wavelength of projected light: 940nm, non-modulated)

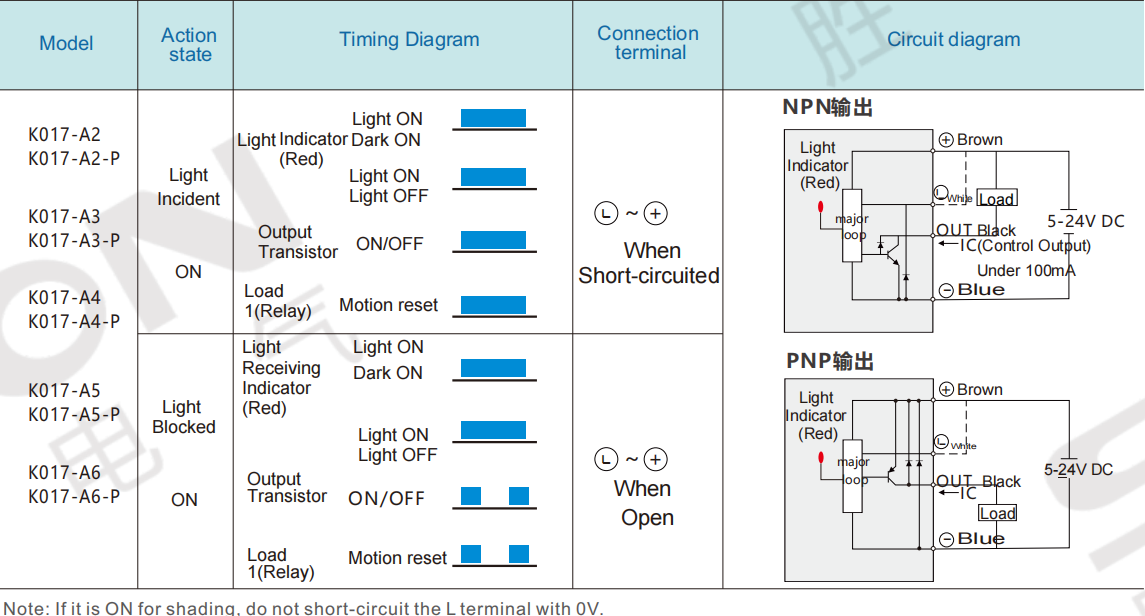

Output action		There are two types of output: ON when light enters and ON when light is blocked		Material	Shell: PC+ABS, display cover: ABS
Short circuit protection		NPN-Yes、PNP-No		Cable	0.09mm² 4-core rubber-insulated PVC cable, 2M in length
Reaction time		When exposed to light: below 20μs; when blocked from light: below 80μs (maximum reaction frequency is 3KHz)		Extension cable	Cables of 0.3mm² or more can be extended to 100 meters in total length
Working status indicator		Red LED(Lights up when light comes in)		Quality	Main body weight: approximately 10g, packaging weight: approximately 15g
