SiRON K017-C Series Groove Sensor Groove Type 5mm Slot Width

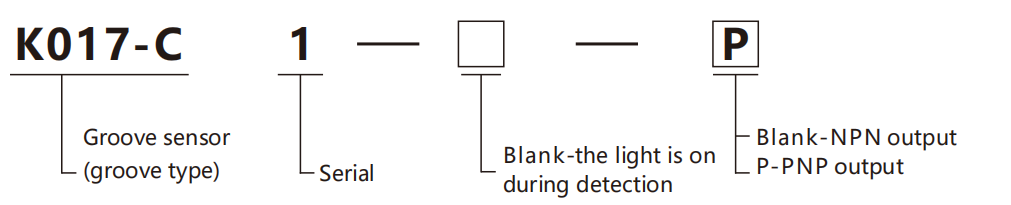

About selection

Selection example: K017-C1    indicator  the K017-C series, serial number 1, the light is on during detection,

                                           with NPN output ；

                                          K017-C1-P    indicator  the K017-C series, serial number 1 , the light is on during detection,

                                          with PNP output.

Specifications

Name		Groove sensor(groove type)
Model	NPN	K017-C1	K017-C2	K017-C3	K017-C4	K017-C5	K017-C6
	PNP	K017-C1-P	K017-C2-P	K017-C3-P	K017-C4-P	K017-C5-P	K017-C6-P
Species		F Type	T Type	R Type	L Type	K Type	Y Type
Appearance
Detection distance		5 m m ( Slot width)
Minimum detector		0.8mm×1.2mm opaque object
Repetition accuracy		Below 0.01mm
lag		Below 0.05mm
Response frequency		1500Hz(average 3000)
Supply voltage		5~24V   DC
Voltage drop		<2.5V
Load current		<100mA
Current loss		<12mA
Output action		ON when in light/ON when blocking light
Indicator light		ON when in light/ON when blocking light
Protection		Output short-circuit protection, polarity protection, surge protection
Ambient temperature		-25~+55℃
Ambient illumination		Output short-circuit protection, polarity protection, surge protection
Protection class		IP67
Connection mode		Φ2.8 PVC cable oil-resistant and corrosion-resistant wire
Cable		4 core，cable length：2M
Shell material		special PC
Weight		≈13g
