SiRON K018-D Series Groove Sensor Plug-in Type 5mm Slot Width

About selection

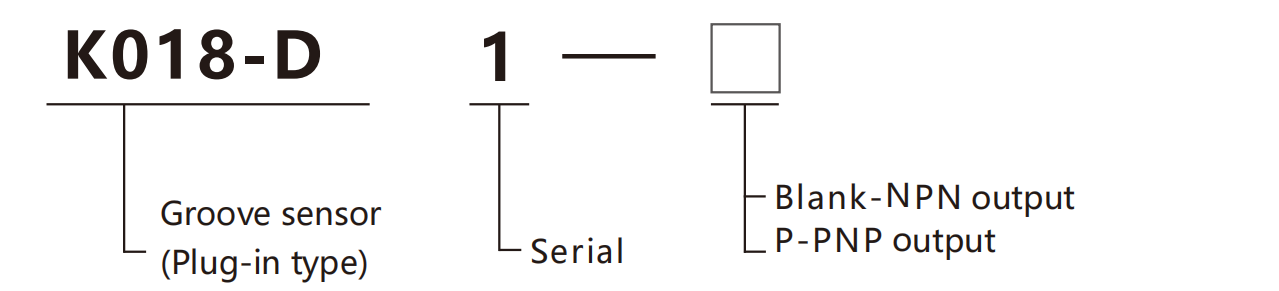

Selection example:  K018-D1 indicates the K018-D1 series, 1 serial number, NPN output;

                                            K018-D1-P indicates the K018-D1 series, 1 serial number, PNP output.

Specifications

Name			Slot sensor(Plug-in type)
Model	NPN		K018-D1	K018-D2	K018-D3		K018-D4		K018-D5	K018-D6
	PNP		K018-D1-P	K018-D2-P	K018-D3-P		K018-D4-P		K018-D5-P	K018-D6-P
Species			F Type	T Type	R Type		L Type		K Type	Y Type
Appearance
Detection distance			5 mm ( Slot width  )			Protective structure		IP50(IEC)
Standard test substance			Opaque objects larger  than 0.8×1.2mm			Ambient luminosity		The illuminance of the light-receiving surface for incandescent lamps: below 1000lux
Repeatability			Below 0.03 mm			Ambient temperature		-25℃ to +55℃(Note: Do not condense; freeze) Storage: -30℃ to +80℃
Output mode			NPN or PNP open collector			Ambienthumidity		5 % R H ~ 8 5 % R H , When storing ：  5 % R H ~ 9 5 % R H
Switching mode			Lon(light entry action)/D.on(light blocking action) can be switched			Withstand voltage		AC1,000V for 1 minute, between all power connection terminals and the housing
Pilot lamp			Orange LE D(Lights up when light comes in)			Shock-proof		Frequency: 10Hz to 2000Hz, dual amplitude: 1.5mm (maximum acceleration: 196m/S⊃2;), 2 hours in each of the XYZ directions
Response frequency			3KHz			Insulation resistance		All power connection terminals and the housing, with a resistance of more than 20MΩ, based on a DC 250V megohmmeter
lluminant			infrared light			Class of protection		IP50(IEC)
Operating voltage			5V DC to 24VDc±10%  pulsating P-P below 10%			Material		ABS+PC
Residual voltage			Below 1V (when the load  current is 100mA)			Outletmode		connector
Currentcon sumption			≤8mA
