SiRON K017-D Series Groove Sensor Conductor Pattern 5mm Slot Width

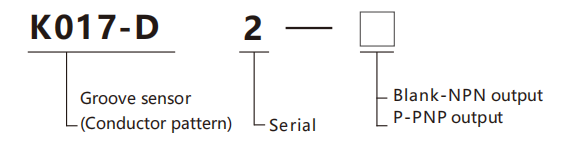

About selection

Selection example: K017-D2    indicator  the K017-D series, serial number 1,  with NPN output ；

                                          K017-D2-P    indicator  the K017-D series, serial number 1, with PNP output.

Specifications

Name		Slot sensor(Outlet type)
Model	NPN	K017-D2	K017-D4		K017-D5		K017-D6
	PNP	K017-D2-P	K017-D4-P		K017-D5-P		K017-D6-P
Species		T Type	L Type		K Type		Y Type
Appearance
Detection distance		5mm(slot width)		Protection circuit		Surge protection, reverse polarity protection
Standard test substance		Opaque objects larger than 0.8×1.2mm		Ambient luminosity		The illuminance of the light-receiving surface for incandescent lamps: below 1000lux
Repeatability		Below 0 . 03mm		Ambient temperature		Operating temperature: -25℃ to +55℃; Storage temperature: -30℃ to +80℃, no freezing
Output mode		NPN or PNP open collector		Ambient humidity		AC.1000V for 1 minute, between all power connection terminals and the housing
Switching mode		L.on(light-entering action)/D.on(light-blocking action) can be switched		Withstand voltage		AC.1000V for 1 minute, between all power connection terminals and the housing
Pilot lamp		The light goes off when an object is detected and turns on when there is no object		Shock-proof		Frequency: 10-2000Hz, dual amplitude: 1.5mm(maximum acceleration: 196m/S⊃2;), 2 hours in each of the XYZ directions
Response frequency		3KHz		Insulation resistance		All power connection terminals and the housing should be above 20MΩ (based on DC250V).
Illuminant		infrared light		Class of protection		IP50
Operating voltage		5~24V   DC		Material		PC
Residual voltage		Below 1V (when the load current is 100mA)		Outlet mode		2M,4 core cable
Current consumption		<8mA
