K018-A Series
SiRON
9031809090

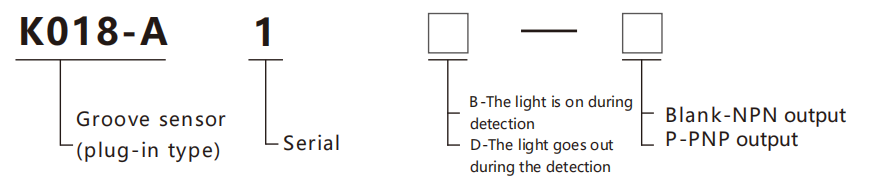

About selection

Selection example:K018-A1B indicates the K018-A series, serial number 1, B means the light is on during detection,
with NPN output.
K018-A1B-P indicates the K018-A series, serial number 1, B means the light is on during detection, with PNP output.
Specifications
Name | Groove sensor(plug-in type) | ||||||
| Model | K018-A1B | K018-A2B | K018-A3B | K018-A4B | K018-A5B | K018-A6B | |
| K018-A1D | K018-A2D | K018-A3D | K018-A4D | K018-A5D | K018-A6D | ||
| K018-A1B-P | K018-A2B-P | K018-A3B-P | K018-A4B-P | K018-A5B-P | K018-A6B-P | ||
| K018-A1D-P | K018-A2D-P | K018-A3D-P | K018-A4D-P | K018-A5D-P | K018-A6D-P | ||
Type | F Type | T Type | R Type | L Type | K Type | Y Type | |

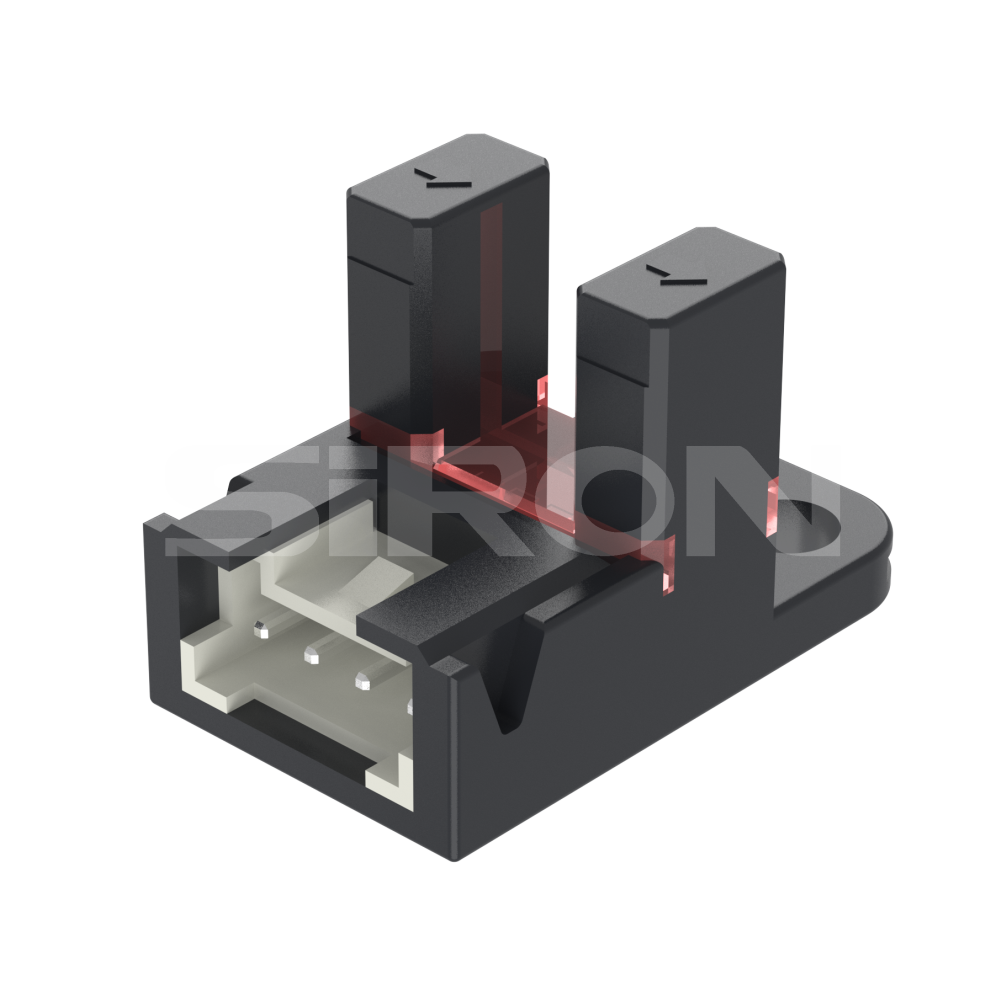

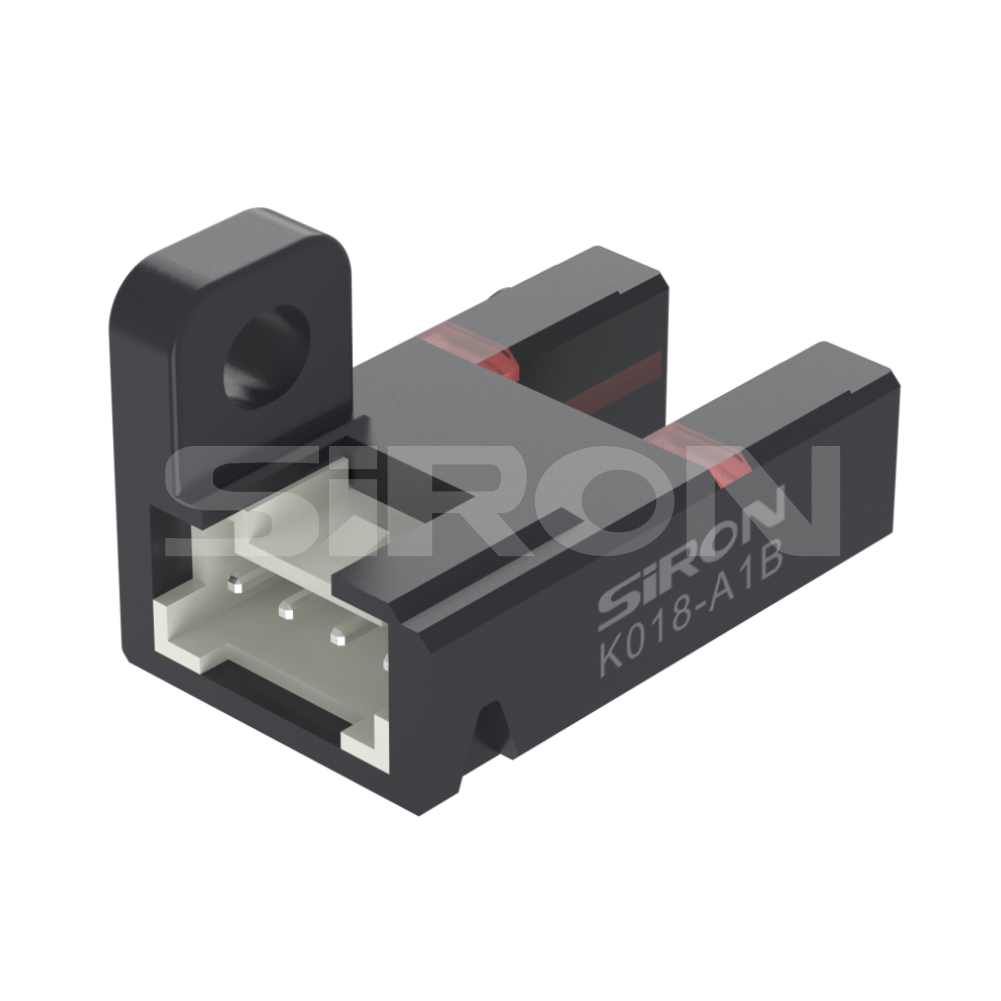

Appearance | ![]() ![]() | ![]() ![]() | ![]() ![]() | ![]() ![]() | ![]() ![]() | ![]() ![]() | |
Dstanoe ofdelecion | 6 m m ( Slot width ) | Operating status indicator | Red LED(Lights up when light comes in) | ||||
Mnimum delecion substance | 0.8 * 1.2mm opaque object | Siructure ofprotection | IP66 | ||||
Aocuracyofrepefion | Below 0 . 0 1 m m | Ambient temperature | - 25℃~+55℃注意不可结露、结冰);保存时: - 30℃~+80℃ | ||||
Delayin responsel (rysleresis) | Below 0 . 0 5 m m | Ambient humidity | 5 % ~ 8 5 % R H ; 保 存 时 : 5 % ~ 9 5 % R H | ||||
Power supply voltage | 5~24V DC±10%; Pulse P-P below 10% | Ambient ilumination | Fluorescent light: The illuminance of the illuminated surface is below 10001x | ||||
Curment of consumpfon | Below 1 5 m A | Resistance to voltage | AC1000V for 1 minute, between all power connection terminals and the casing | ||||
Output | NPN open-collector transistor Applied voltage: below 30V DC (between output and OV) | Resistance to insulation | Between all power connection terminals and the housing, 20MQ or more (based on DC250V) | ||||
Resistance to vibration | Frequency: 10-2000Hz, dual amplitude: 1.5mm(maximum acceleration: 196m/s), 2 hours in each of the XYZ directions | ||||||
| PNP open collector transistor Applied voltage: below 30V DC (between output and +V) | Resistancetoimpact | Acceleration: 15,000 m/s⊃2;(approximately 1500G), three times in each of the X, Y, and Z directions | |||||
| Light throwing element | Infrared LED(Projected peak wavelength: 940nm, non-modulated) | ||||||
| NPN/PNP Maximum incoming current: 50 m A Voltage drop < 2V | |||||||
The material | Shell: PC + ABS; Display cover: ABS | ||||||
Cable | Cables of 0.3mm² or larger | ||||||
Öutput action | 2 types of output: ON when light is incident / ON when light is blocked | Cable length | 2M | ||||
Short circuit protection | NPN-Yes , P N P-No | The quality of | Body weight:≈2g | ||||
| Reaction time | When light is incident: less than 20us. When light is blocked: less than 80us (maximum response frequency is 3KHz) | ||||||
