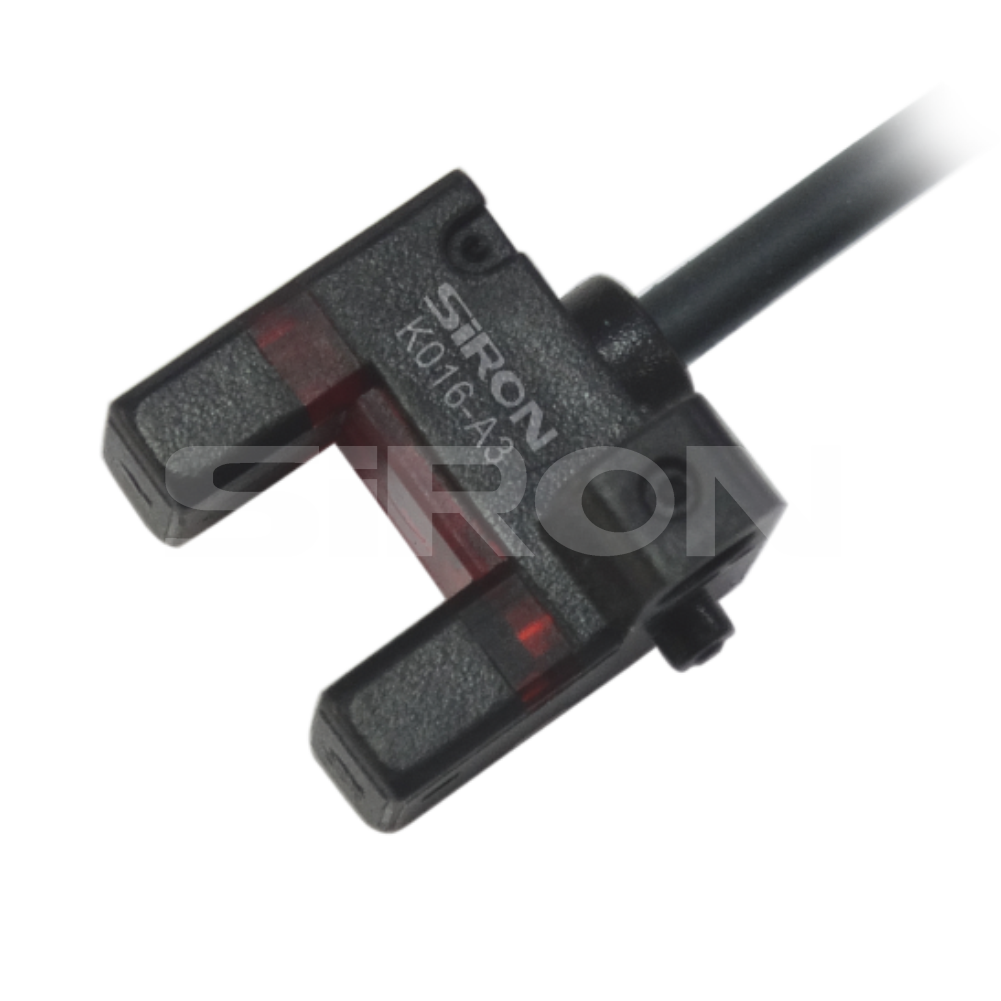

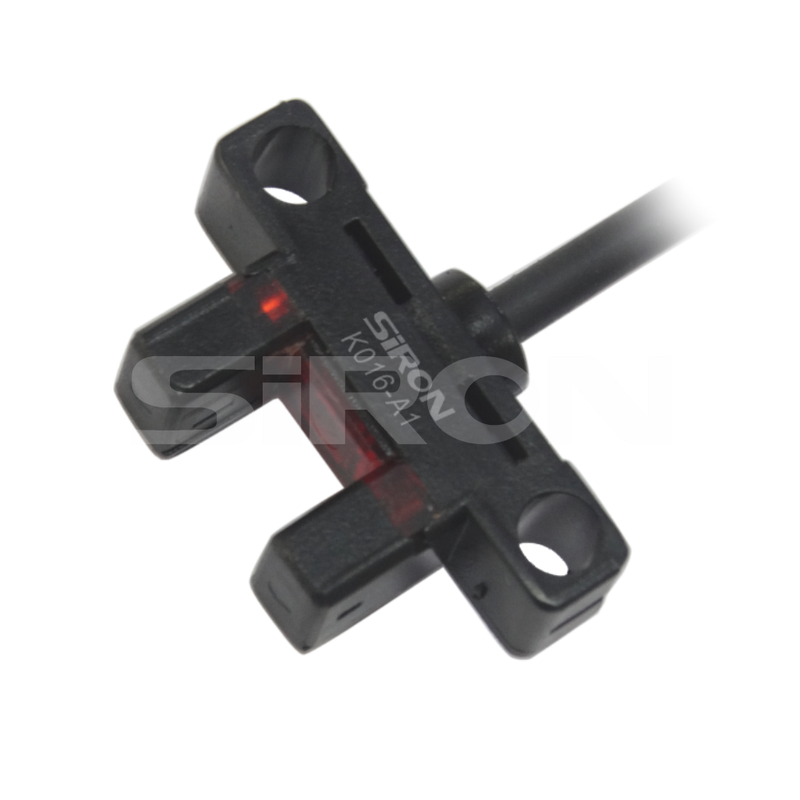

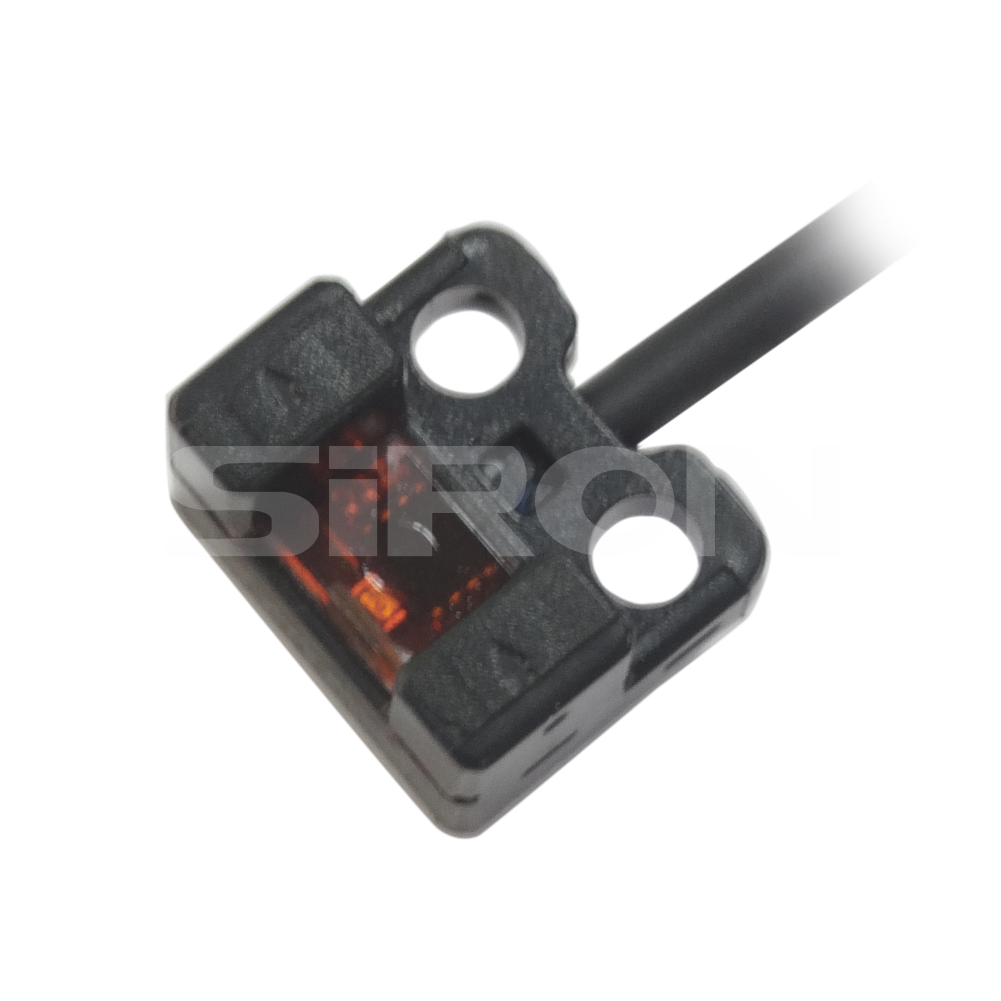

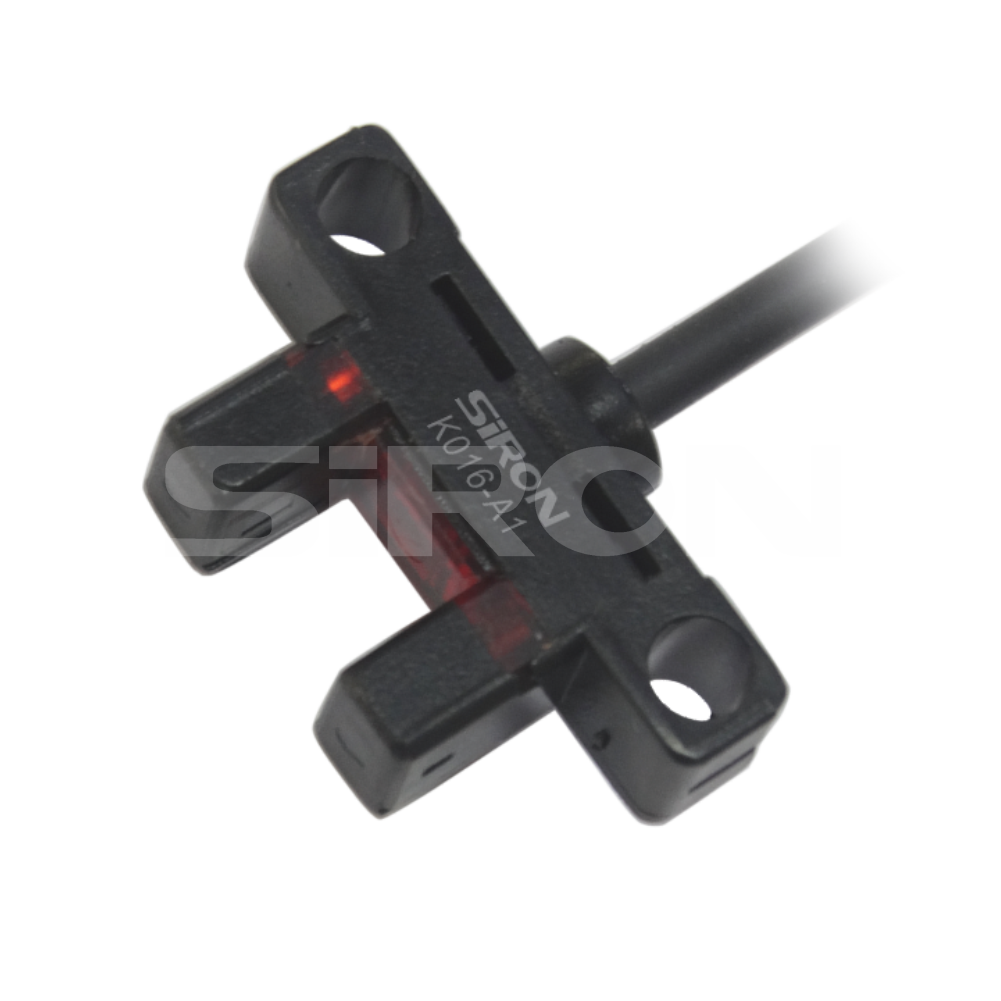

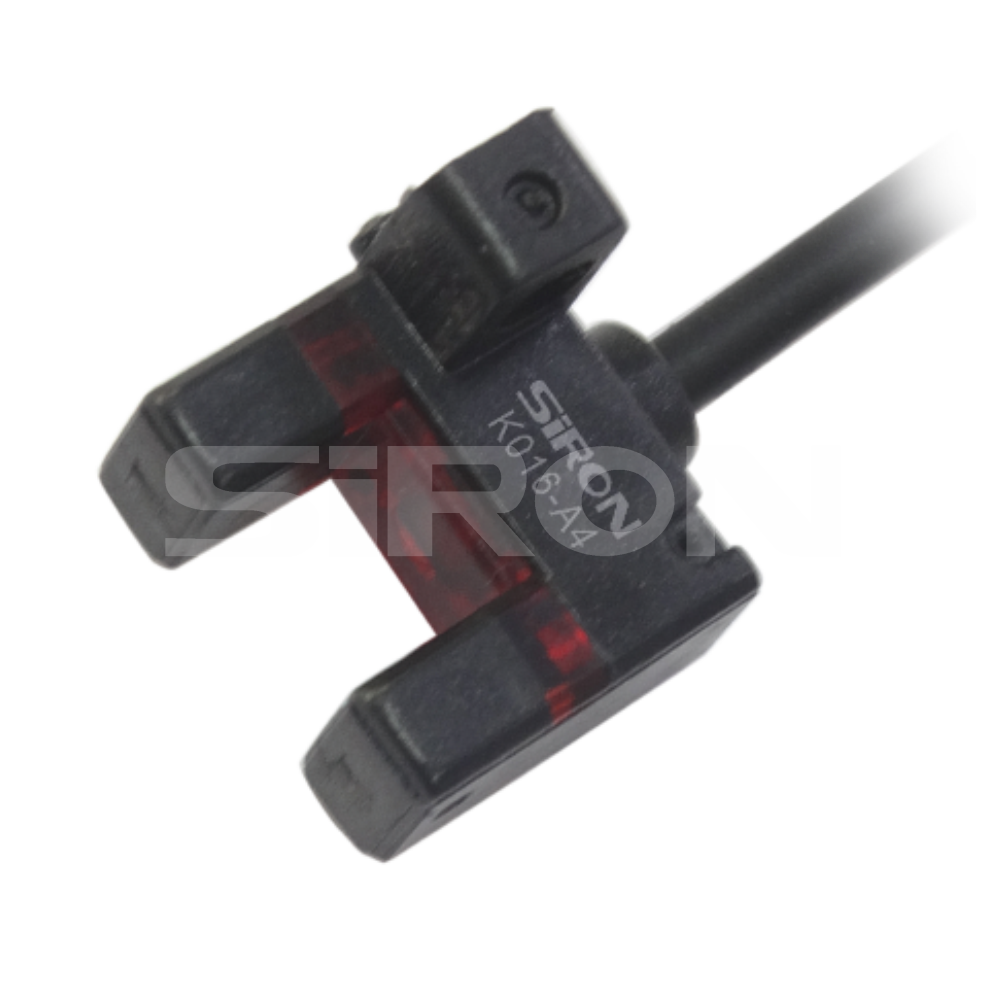

SiRON K016-A Series Groove Sensor Micro-groove Trough Sensor

About selection

Selection example: K016-A1    indicator  the K016-A series, serial number 1, with NPN output ；

                                         K016-A1-P    indicator  the K016-A series, serial number 1, with PNP output

Specifications

Name			Slot sensor(micro slot type)
Model		NPN	K016-A1	K016-A2	K016-A3		K016-A4	K016-A5
		PNP	K016-A1-P	K016-A2-P	K016-A3-P		K016-A4-P	K016-A5-P
Species			K Type	LType	F Type		R Type	U Type
Appearance
Detection distance			6mm (groove width)		Working status indicator light	Red LED (the light turns on when receiving light)
Minimum test			0.8×1.2mm opaque object		Light source	Infrared LED (Projected light peak wavelength: 940nm, non-modulated type)
Power supply voltage			5~24V DC±10%; Pulsation P-P below 10%		Protect the structure	IP66
Current consumption			≤15mA		Ambient temperature	-25～+55℃ (no condensation or freezing allowed) during storage: -30～+80℃
Hysteresis			≤0.05mm		Ambient humidity in use	5%～85%RH, during storage: 5%～95%RH
Repeat accuracy			≤0.01mm		Use ambient lighting	Fluorescent lighting: the illuminance of the illuminated surface is below 10002x
Output	Applied voltage		NPN open-collector transistor: 30VDC (between output and OV); PNP open-collector transistor: 30VDC (between output and +V)		Withstand voltage	AC1000V for 1 minute, between all power connection terminals and the housing
	Maximum inflow current		50mA		Insulation resistance	All power connection terminals and the housing, with a resistance of 20MΩ or more, based on a DC250V megohmmeter
	Pressure drop		<2V		Resistance to vibration	Frequency 10~2000Hz, double amplitude 1.5mm (maximum acceleration 196m/S⊃2;) 2 hours in each of the XYZ directions
Output motion			2 types of output: ON when light is incident / ON when light is blocked		Lmpact resistance	Acceleration of 15000m/s⊃2; (approximately 1500G) in X, Y, Z directions, 3 times each
Short circuit protection			NPN- Yes 、PNP- No		Material	Shell: PC + PBT, Display cover: ABS
Reaction time			When light is incident: ≤20μs, when light is blocked: ≤80μs (maximum response frequency is 3KHz)		Cable	0 . 09mm², 4-core rubber-insulated cable with PVC, length 2M
