SiRON Y03 Series Leakage C/D Type Circuit Breaker

Name: SiRON Y03 Series Leakage C/D Type Circuit Breaker
Brand: SiRON
Rating: 5.0 (68 reviews)

Features

Suitable for AC 50/60Hz;can quickly cut off the fault power supply in a very short time to protect the safety of personal andelectrical equipment;
Protects lines and motors from overload and short circuit..

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y03
Brand:
SiRON
Code:
8536901100

Short circuit Y03 Series Circuit Breaker Leakage Breaker Switch

Product Description

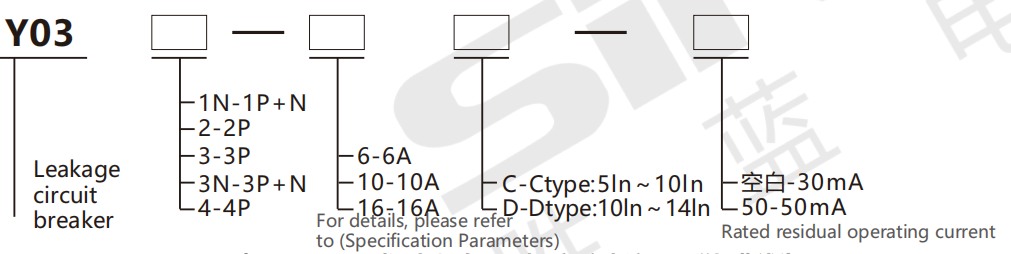

For Selection

Y03

Y032-6C indicates :Y03 series electrical circuit breaker, 2-pole, rated current 6A, trip curve type C. Selection example: Rated residual operating current 30mA.

Y033N-6D-50 indicates :Y03 series leakage circuit breaker,3P+N pole, rated current 6A, trip curve type D, rated residual operating current 50mA.

Type selection reference

Model

Y03Series

Number of poles

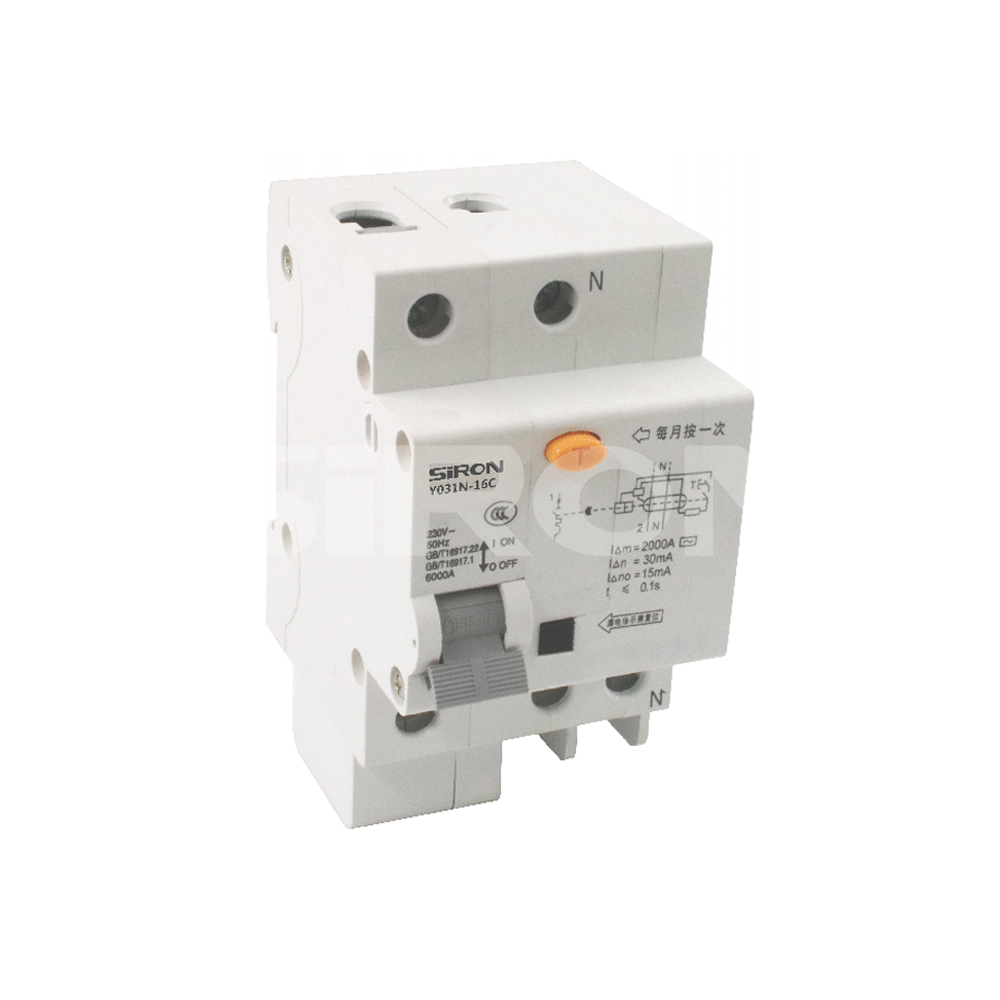

1P+N
(Single-pole two-wire)

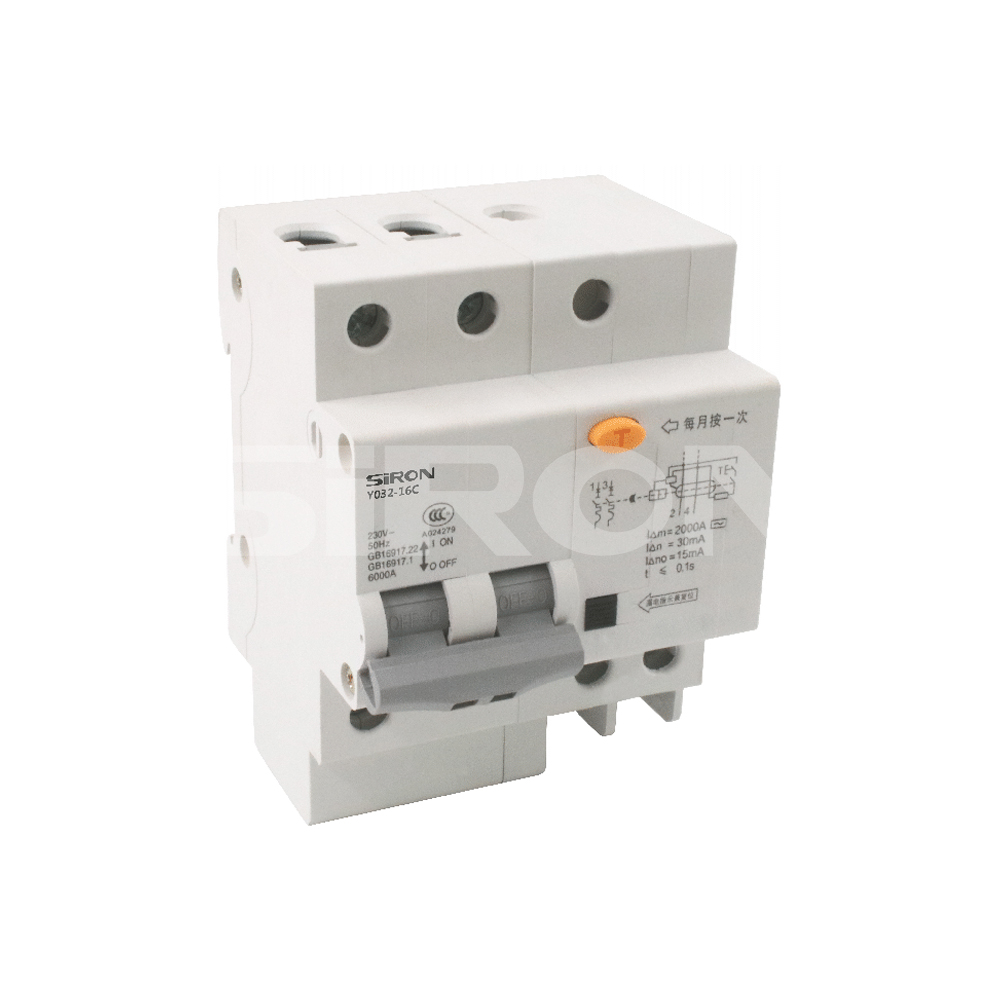

2P
(Two poles and two wire)

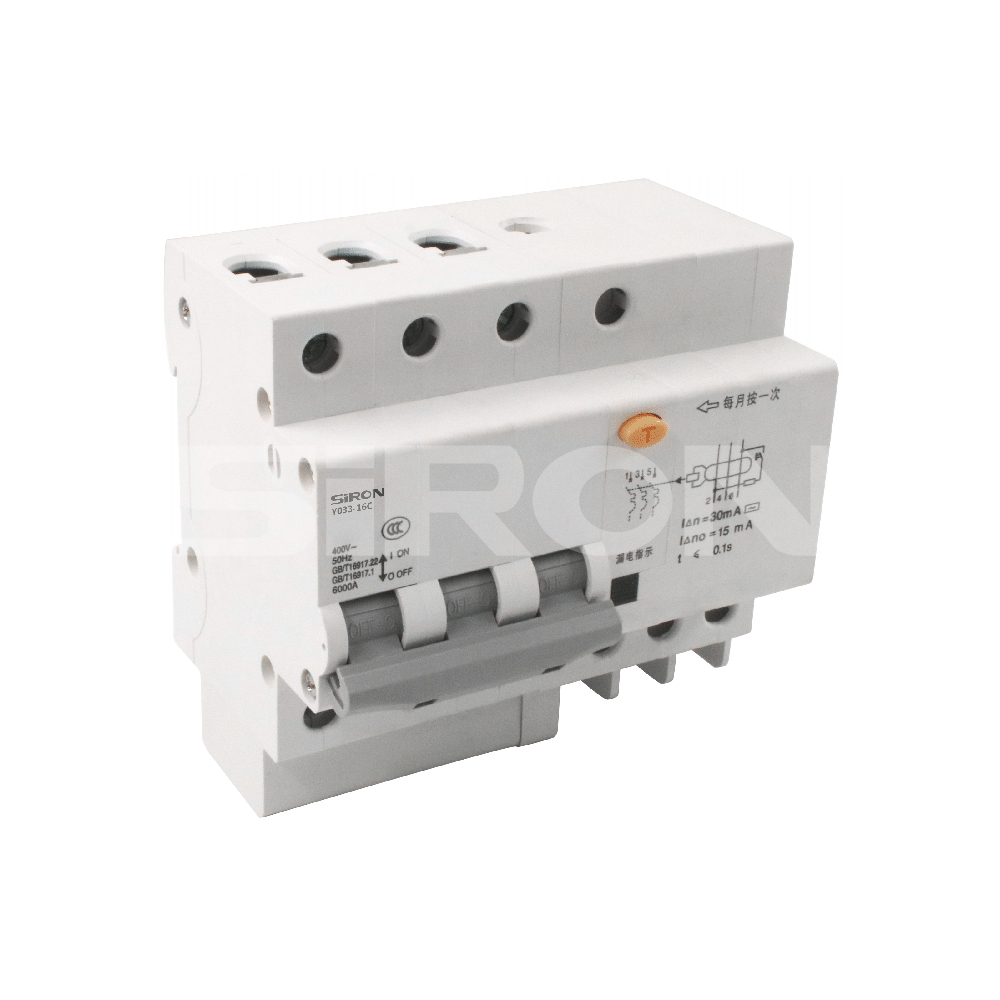

3P
(Three poles and three wire)

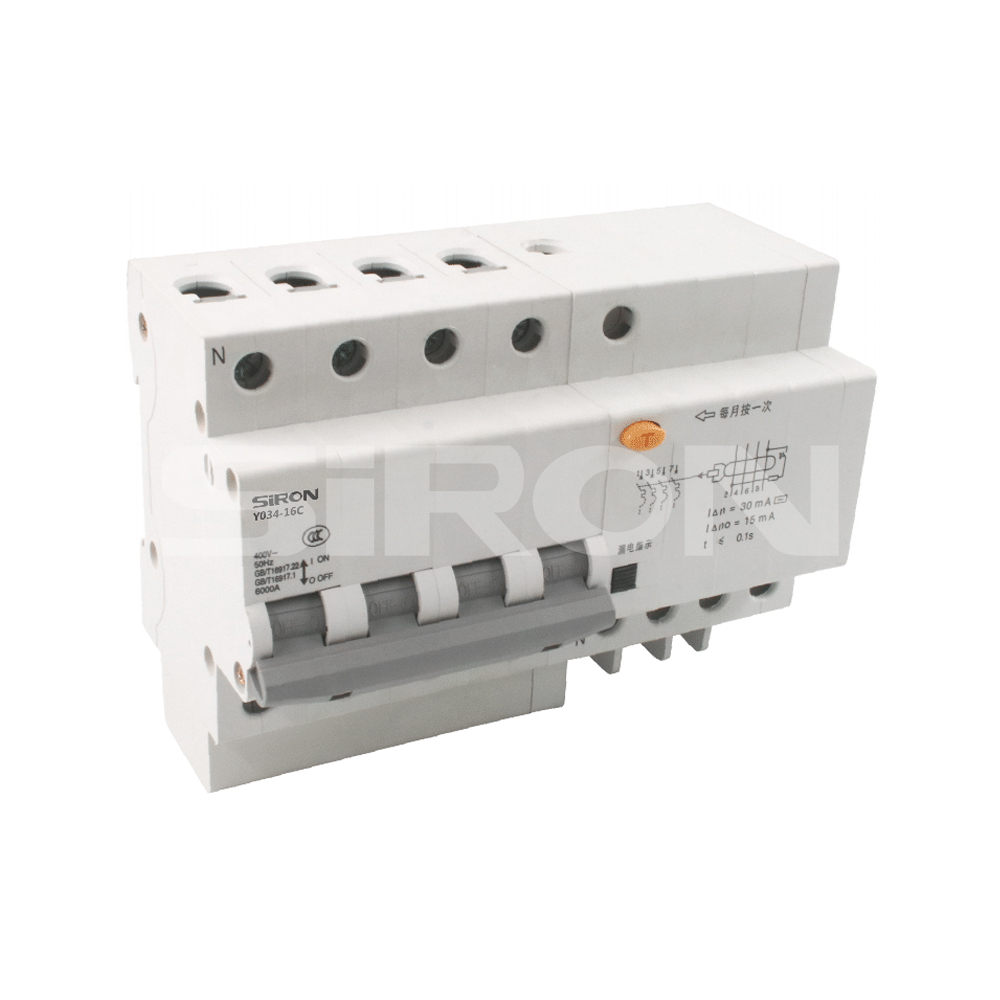

3P+N
(Three-pole four-wire)

4P
(Four poles and four wires)

Nominal voltage

230V

400V

Rated residual operating current

30/50mA

Tripping curves

Ctype(5In~10ln)、Dtype(10ln~14ln)

Rated current

6A

10A

16A

20A

25A

32A

40A

50A

63A

Wiring

1

1.5

2.5

4

6

10

16

Rated shor-circuit breaking current

6000A(Rated current: 6-40A) 4500A(Rated current: 50-63A)

Frequency

50Hz

Power factor

0.65 to 0.7(rated current: 6 to 40A) 0.75-0.8(Rated current: 50-63A)

Electrical life

4000time， cosφ=0 .85~0 .9

Mechanical life

1 0 0 0 0 time

Operating firequancy

In≤25A,240 times per hour; In>25A,120 times per hour

Raled residual swiching and breakingcapacity

2000A

Raled residual swiching and breakingcapacity

0.5I△n

Insulation resistance to impact voltage

When each pole is connected together, it can withstand a peak impulse voltage of 6000V with the neutral pole.
2. Each pole is connected to the neutral pole and can withstand a peak impulse voltage of 8000V with the metal bracket.
The residual current operated circuit breaker has a peak current of 200A+1% inrush current and a peak voltage of
It has the capacity to withstand 2.5/2Un surge overvoltage and does not cause false operation.

Tripper action
characteristics

Time delay

1.13In≥1hNon tripping

1.45In<1htrip

2.55In1~60strip(In≤32);2.55In1~120strip(ln>32)

Instantaneous

5In≥0.1sNon tripping；10ln<0.1strip(Ctype)

10ln≥0.1sNon tripping；14In<0.1strip(Dtype)
