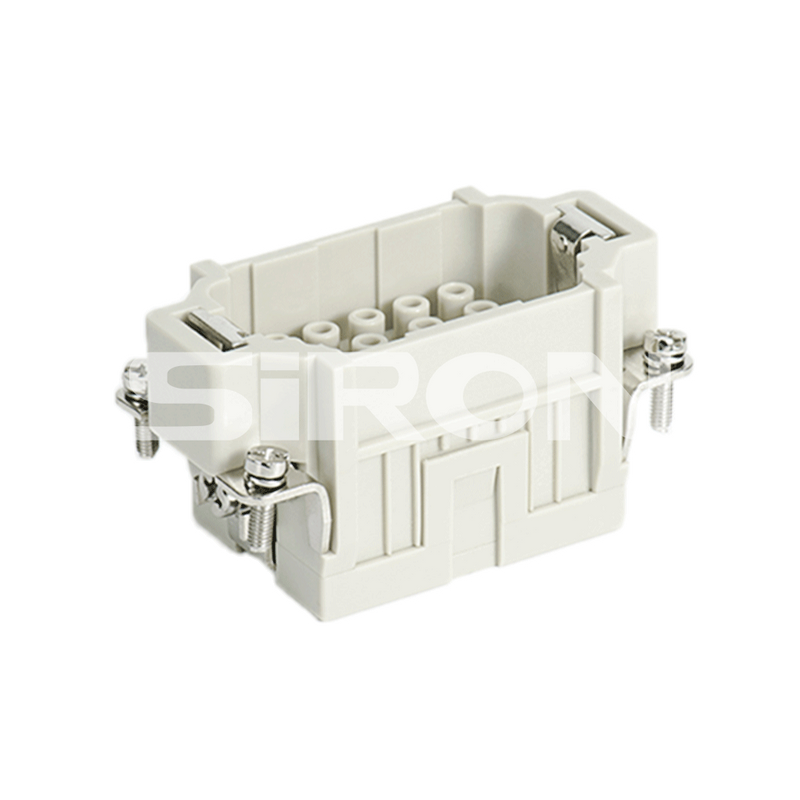

X906/X938
SiRON
8538900000
About selection
Plug the needle
| Material | Cuprum | Connection form | Cold pressing and crimping |
| Surface treatment | Silver plating/gold plating | Working current | 10A |
| Contact resistance | ≤1mΩ | Moment of screw tightening | 0.25Nm(3core/4core)0.5Nm(10core/16core) |
Crimp needle
| Crimp needle | Model(male) | Model (female) | Wire gauge | Stripping length | |
 | X938-1M | X938-1F | 0.14-0.37mm² | AWG 26-22 | 7.5mm |
| X938-2M | X938-2F | 0.5mm² | AWG 20 | 7.5mm | |
| X938-3M | X938-3F | 0.75mm² | AWG 18 | 7.5mm | |
| X938-4M | X938-4F | 1.0mm² | AWG 18 | 7.5mm | |
| X938-5M | X938-5F | 1.5mm² | AWG 16 | 7.5mm | |
| X938-6M | X938-6F | 2.5mm² | AWG 14 | 7.5mm | |
| X938-7M | X938-7F | 3mm² | AWG 12 | 7.5mm | |
| X938-8M | X938-8F | 4mm² | AWG 12 | 7.5mm | |
10 pcs/ pack
Note: The cold-pressing needle needs to be ordered separately. Add '2' after the silver-plated model
For S 'gold-plated models, add' G 'after them. When the wire gauge is less than 0.75mm, it is recommended to use an auxiliary needle loading tool

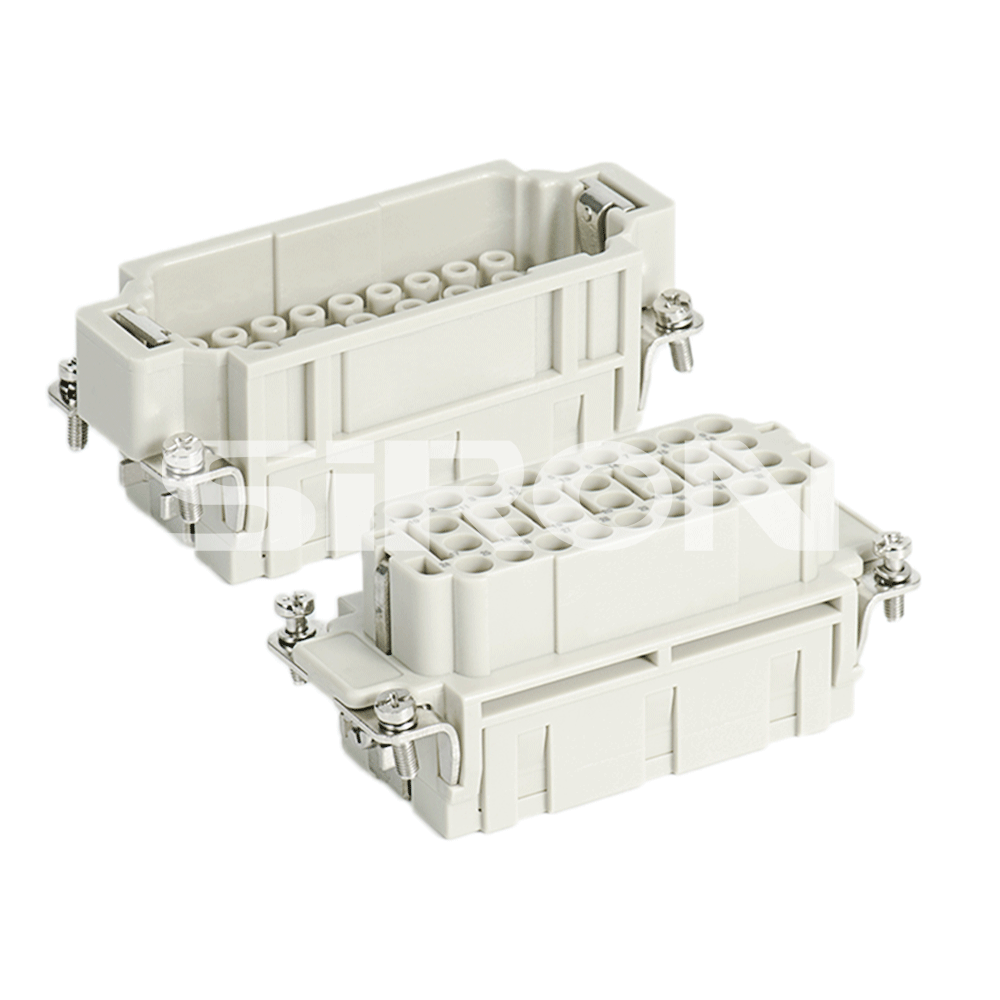

Type selection reference
| Model | Pin(Male insert) | X906-10M | X906-18M | X906-32M | X906-46M | X906-64M | X906-92M |
| Jack(Female insert) | X906-10F | X906-18F | X906-32F | X906-46F | X906-64F | X906-92F | |

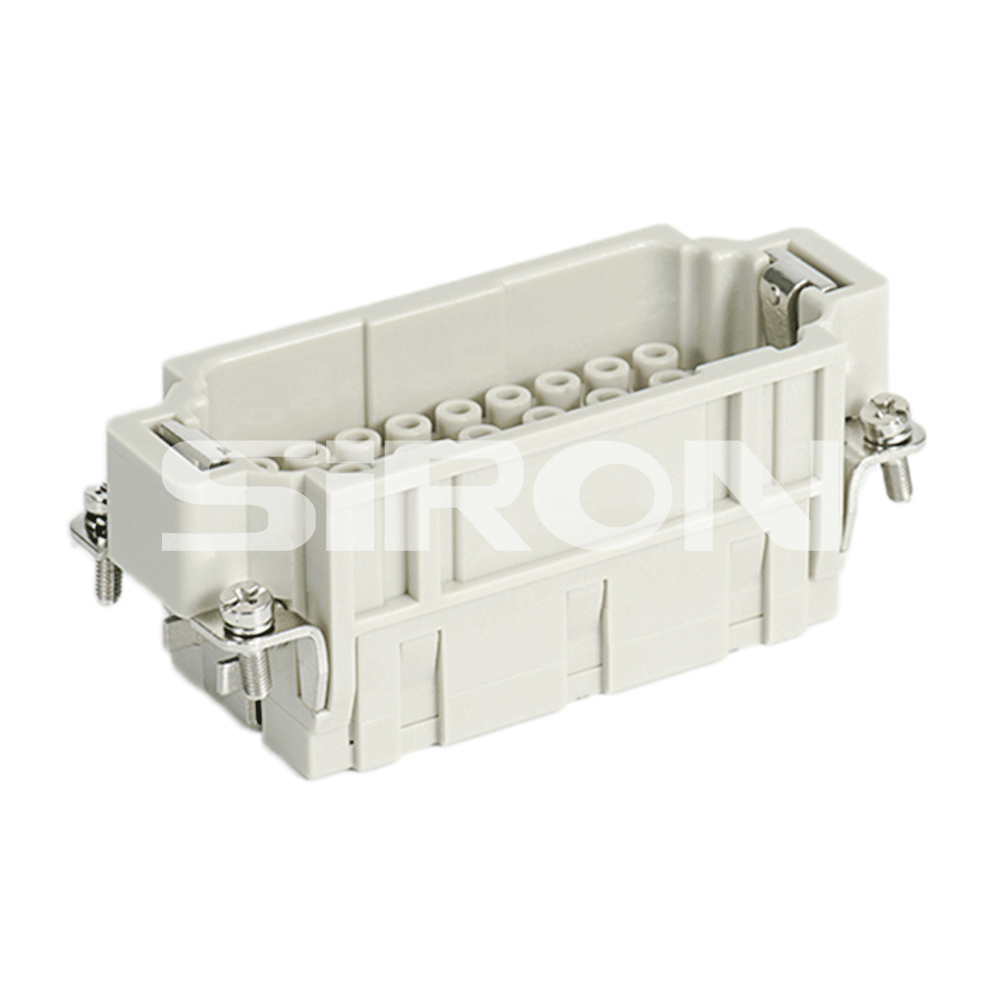

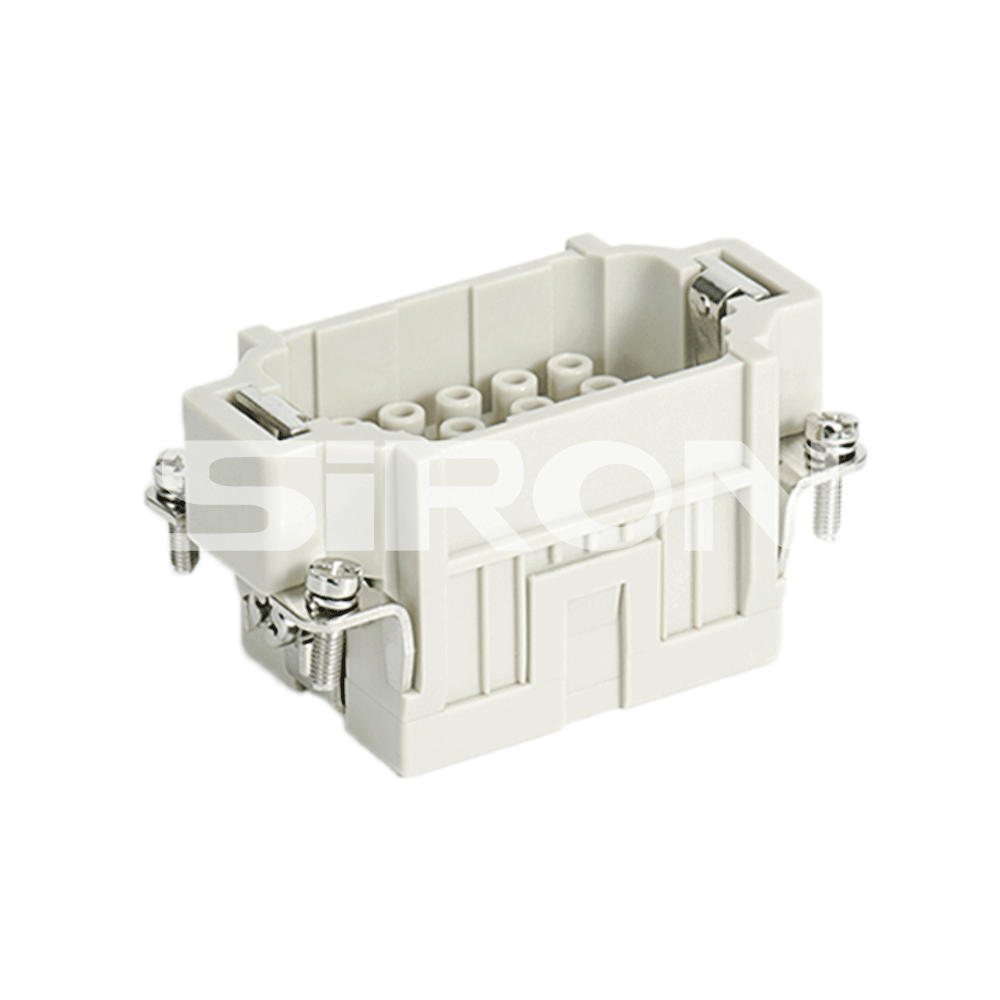

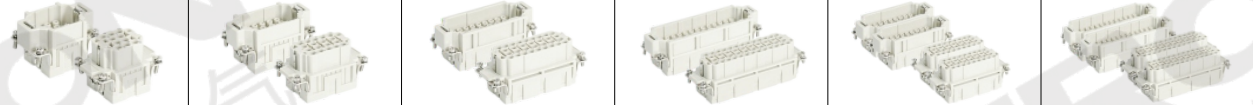

| Appearance |  | ||||||
| Connector core number | 10 | 18 | 32 | 46 | 64(2×32) | 92(2×46) | |
| Working current | 16A | ||||||
| Working voltage | 500V | ||||||
| Apply lid(Upper cover) | X 9 3 0 series ▶P.031 | X 9 3 1 series ▶P.031 | X 9 3 2 series ▶P.031 | X 9 3 3 series P.031 | X 9 3 4 series ▶P.031 | X 9 3 5 series P.031 | |
| Apply the base(lower cover) | |||||||
| Rated impulse voltage | 6KV | ||||||
| Pollution degree | 3,When the pollution level=2(10A 230/400V 4KV 2) | ||||||
| Insulation resistance | ≥10⊃1;Ω | ||||||
| Fammability acc.to(UL94) | Vo | ||||||
| Limiting temperatures | -40℃~+125℃ | ||||||
| Mechanical working life | ≥500 | ||||||
| Working voltage acc.to ULCSA | 600V | ||||||
