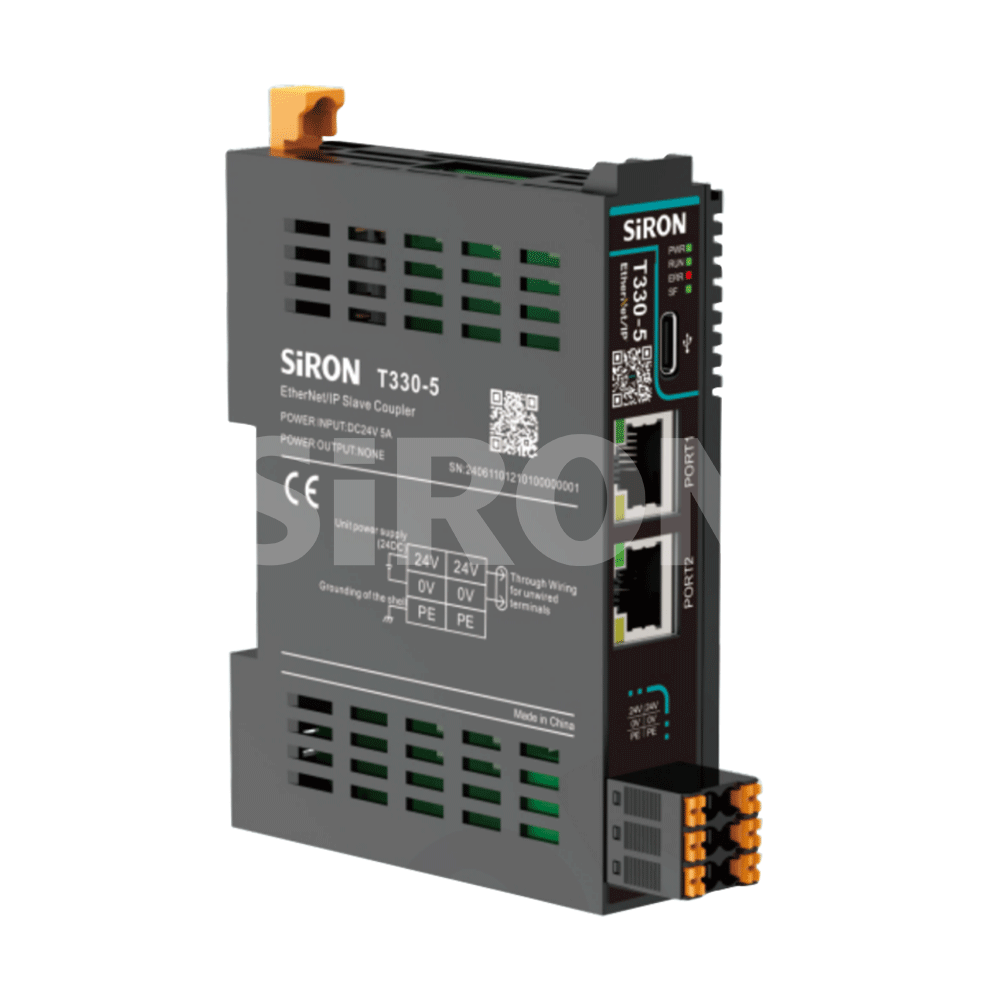

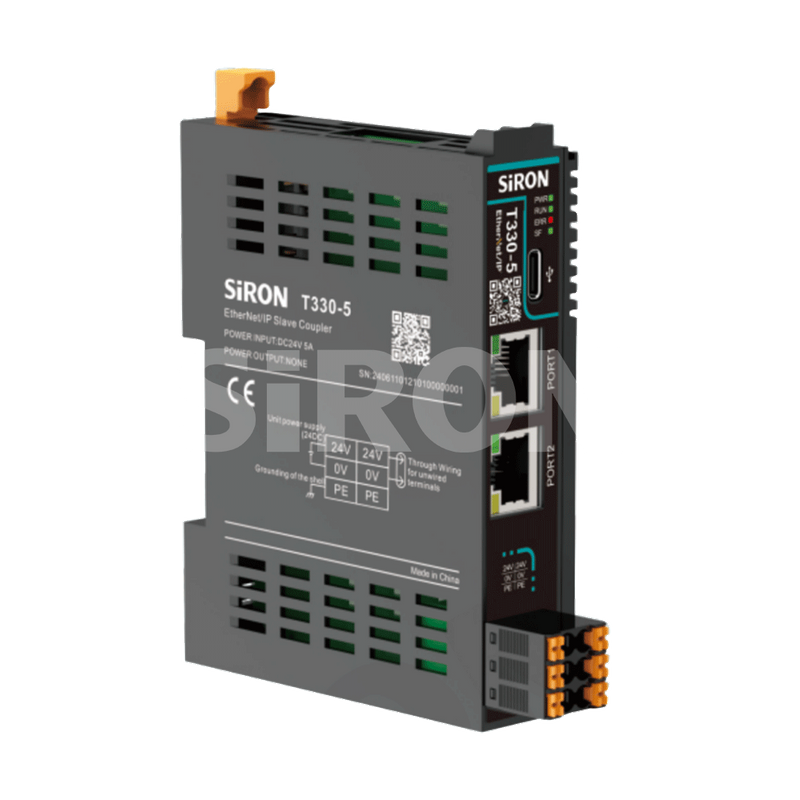

T330-5
SiRON
8517799000
About selection
Model Selection Example: T330-5 belongs to the blade-type I/O module series with EtherNet/IP coupler protocol.
Specification
| Power parameters | |
| Terminal input power supply rated voltage | 24V DC(20.4VDC~28.8V DC) |
| Terminal input power supply rated current | 5A(Typical value at 24V Dc) |
| Usys backplane output power supply rated voltage | 5V DC(4.75VDC~5.25VDC) |
| Usys backplane output power supply rated current | 2A(Typical value at 5V Dc) |
| Uin backplane output power supply rated voltage | 24VDC(20.4VDC~28.8V DC) |
| Uin backplane output power supply rated current | 4A(Typical value at 24V Dc) |
| Function parameters | |
| Communication protocol | CC-Link IE Field Basic |
| Communication rate | 10/100Mbps,adaptive,full-duplex |
| Address mapping | support |
| Diagnosis | Diagnostic alarm,process alarm,module plugging and unplugging alarm |
| Isolation method | Be electrically isolated from the site |
| Transmission medium | Cat5 Twisted Pair |
| Minimum cycle time | 1ms |
| Connection technology:Communication/Feeback Bus | CC-Link IE Field Basic IO:2xRJ-45 |
| Connection technology | PUSH-IN terminal block |
| Connection type | System/On-site power supply/input |
| Winding area of the wire | 26~16AWG/0.2~1.5mm² |
| Striplength | 10mm |
| Installation method | DIN-35 |
| Shell material | PC plastic |
| Environmental conditions | |
| Allowable ambient temperature(during operation) | -40~75℃ |
| Allowable ambient temperature(for storage) | -40~85℃ |
| Protection type | IP20 |
| Pollution grade | 2 |
| Operating altitude | 0~2000m |
| Relative humidity(without condensation) | 5~95%RH |
