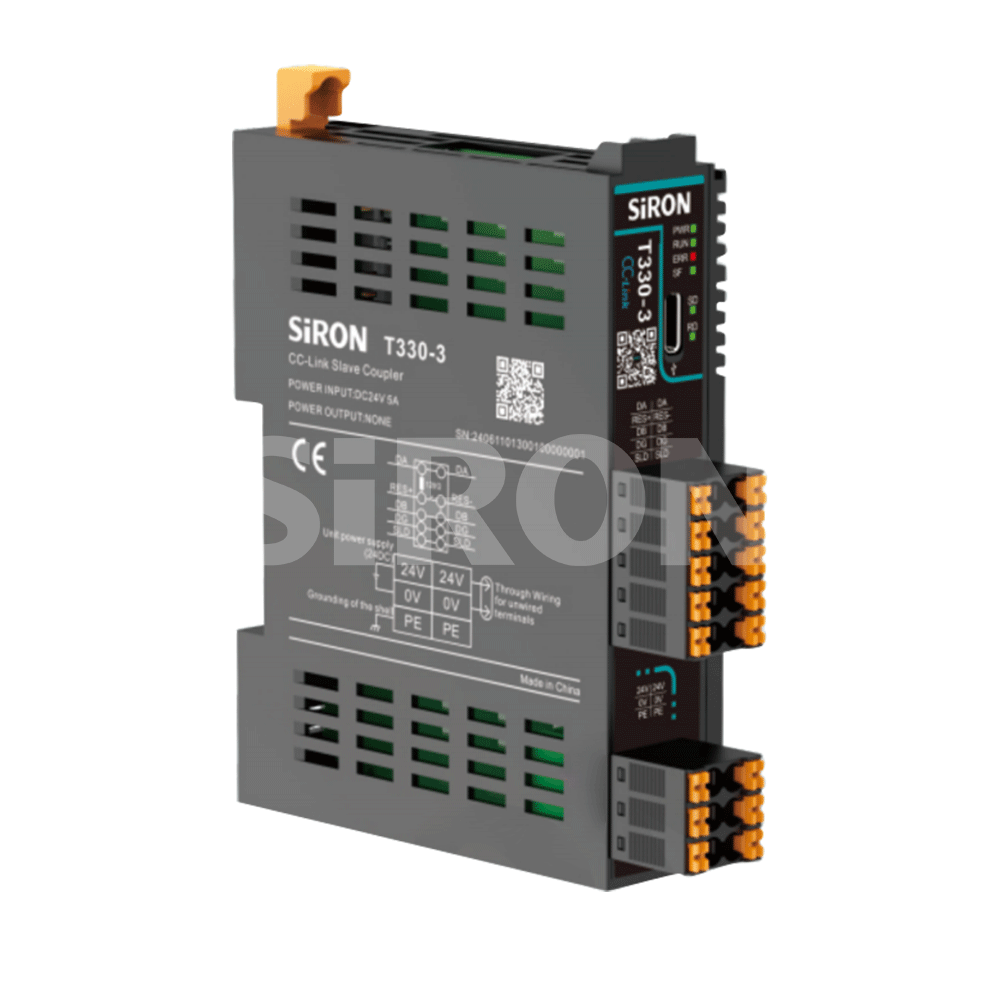

SiRON T330-3 IP20 CC-Link Coupler

Name: SiRON T330-3 IP20 CC-Link Coupler
Brand: SiRON
Rating: 5.0 (99 reviews)

Features

* The coupler supports access via the CC-Link protocol ;
* The coupler supports a maximum input of 128 bytes and a maximum output of 128 bytes ;
* Up to 32 expansion IO modules can be supported.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T330-3
Brand:
SiRON
Code:
8517799000

IP20 CC-Link DIN rail CC-Link DC 24V CC-Link

Product Description

About selection

企业微信截图_17775358871267

Selection example: T330-3 represents the blade-type I/O module series, and the coupler protocol is CC-Link

Specification

Power parameters
Terminal input power supply rated voltage	24V DC+20%/-15%(20.4V DC～28.8V DC)
Terminal input power supply rated current	5A(Typical value at 24V Dc)
Usys backplane output power supply rated voltage	5V DC+20%/-15%(4.75V DC~5.25V DC)
Usys backplane output power supply rated current	2A(Typical value at 5V Dc)
Uin backplane output power supply rated voltage	24VDC+20%/-15%(20.4V DC～28.8V DC)
Uin backplane output power supply rated current	4A(Typical value at 24V Dc)
Function parameters
Communication protocol	CC-Link
Station category	Remote device station
Data transmission medium	CC-Link dedicated cable (Three-core shielded stranded wire)
Node address(station number)	1 to 64,dip switch Settings
Bus rate	Adjustable 5-speed rate 10Mbps/5Mbps/2.5Mbps/625 kbps/156kbps
Transmission distance	10Mbps	5Mbps	2.5Mbps	625 kbps	156 kbps
	≤100m	≤160m	≤400m	≤900m	≤1200m
Bus interface	2×5P Spring Push-in Terminal
Input PDO data volume	RXmax128 bits,RWr max32 Bytes
Output PDO data volume	RYmax 128 bits,RWwmax32 Bytes
Connection technology:Communication/Feeback Bus	CC-Link dedicated cable (Three-core shielded stranded wire)

Connection technology	PUSH-IN terminal block
Connection type	System/On-site power supply/input
Welding area of the wire	26~16AWG/0.2~1.5mm²
Length of stripping the wire	10mm
Installation method	DIN-35
Shell material	PC plastic
Environmental conditions
Allowable ambient temperature(during operation)	-40~75℃
Allowable ambient temperature(for storage)	-40~85℃
Protection type	IP20
Pollution grade	2
Operating altitude	0~2000m
Relative humidity(without condensation)	5~95%RH
