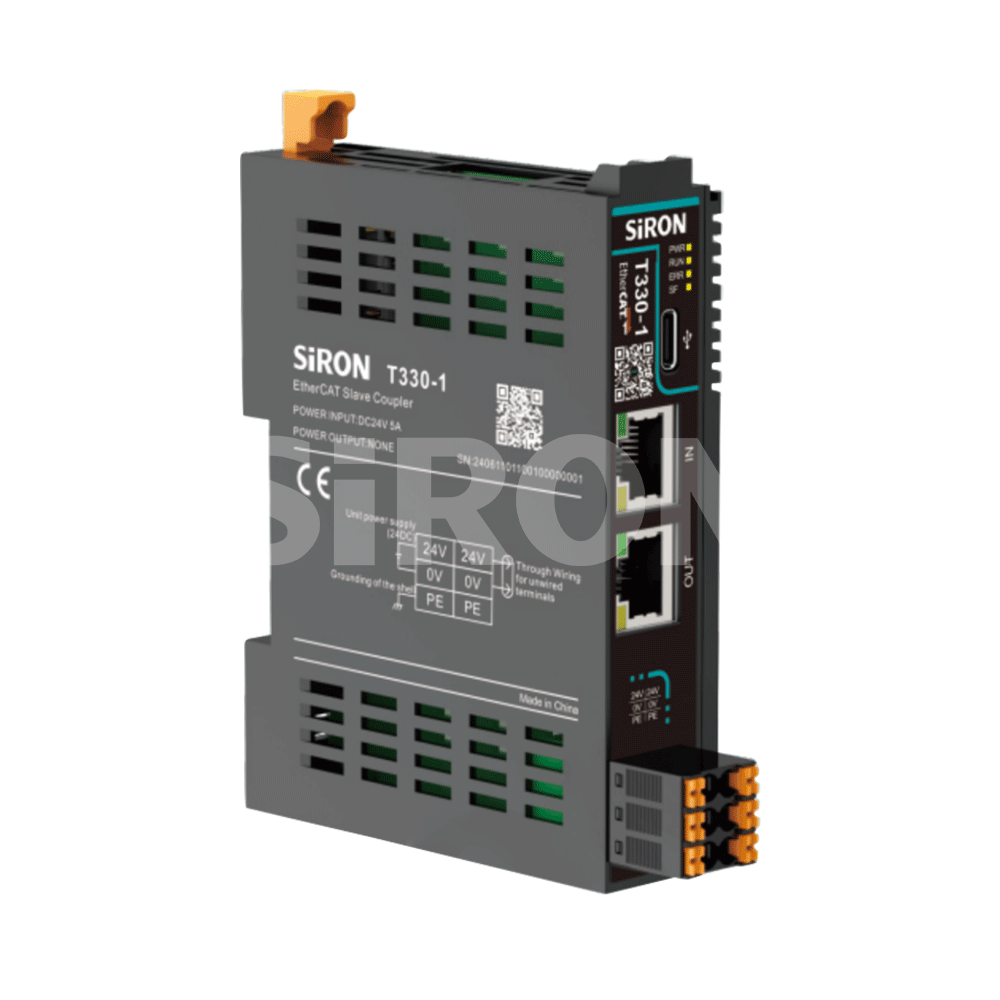

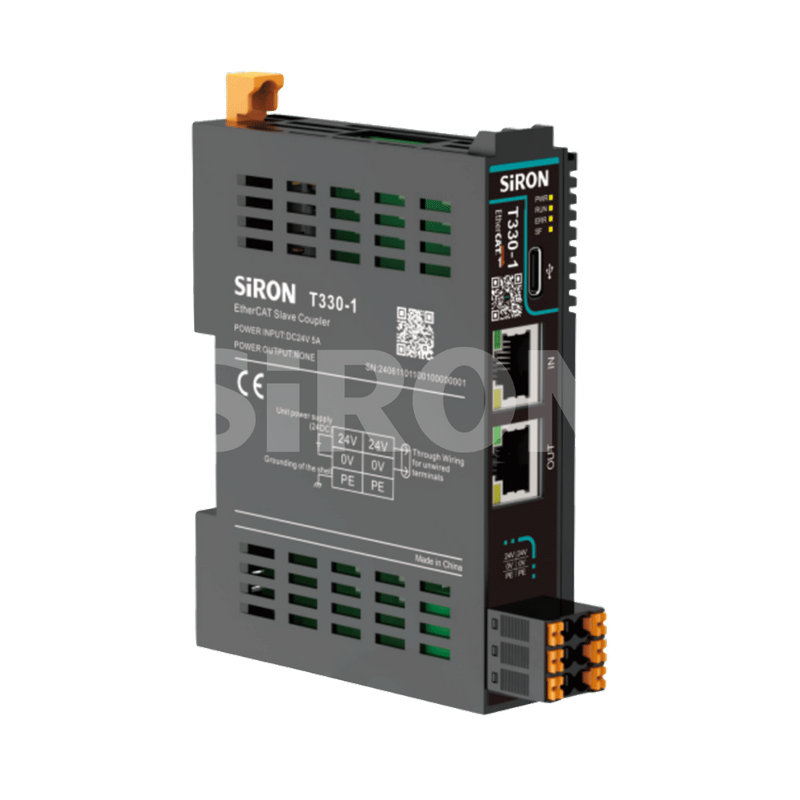

T330-1
SiRON
8517799000
About selection
Selection example: T330-1 represents the blade-type I/O module series, and the coupler protocol is EtherCAT.
Specification
| Power parameters | |
| Terminal input power supply rated voltage | 24V DC(20.4V DC~28.8V DC) |
| Terminal input power supply rated current | 5A(24V DcTime-typical value) |
| Usys backplane output power supply rated voltage | 5V DC(4.75V DC~5.25V DC) |
| Usys backplane output power supply rated current | 2A(5V Time-typical value) |
| Uin backplane output power supply rated voltage | 24V DC(20.4V DC~28.8V DC) |
| Uin backplane output power supply rated current | 4A(24V Time-typical value) |
| Function parameters | |
| Communication protocol | EtherCAT |
| Communication rate | 10/100Mbps,Full-duplex |
| Address mapping | support |
| Transmission distance | 100m |
| Alarm function | Standard Diagnostics Enhanced Diagnostics |
| Isolation method | Galvanically isolated from field side |
| Transmission medium | Cat5 cable |
| Minimumcycle time | 1ms |
| Input PDOdata volume | Max.1024 bytes |
| Output PDOdata volume | Max.1024 bytes |
| Inpu mailbox size | Max.512 bytes |
| Output mailbox size | Max.512 bytes |
| Connection technology:Communication/Feeback Bu | EtherCAT IO:2xRJ-45 s |
| Connection technology | PUSH-IN terminal block |
| Connection type | System/Field Power/Input |
| Wire crimping area | 26~16AWG/0.2~1.5mm² |
| Strip length | 10mm |
| Installation method | DIN-35 din rail |
| Shellmaterial | PC |
| Environmental conditions | |
| Allowable ambient temperature(during operation) | -40~75℃ |
| Allowable ambient temperature(for storage) | -40~85℃ |
| Protecion type | IP20 |
| Pollution grade | 2 |
| Operating alitude | 0~2000m |
| Relative humidity(without condensation) | 5~95%RH |
Dimensions
Wiring diagram
System block diagram
