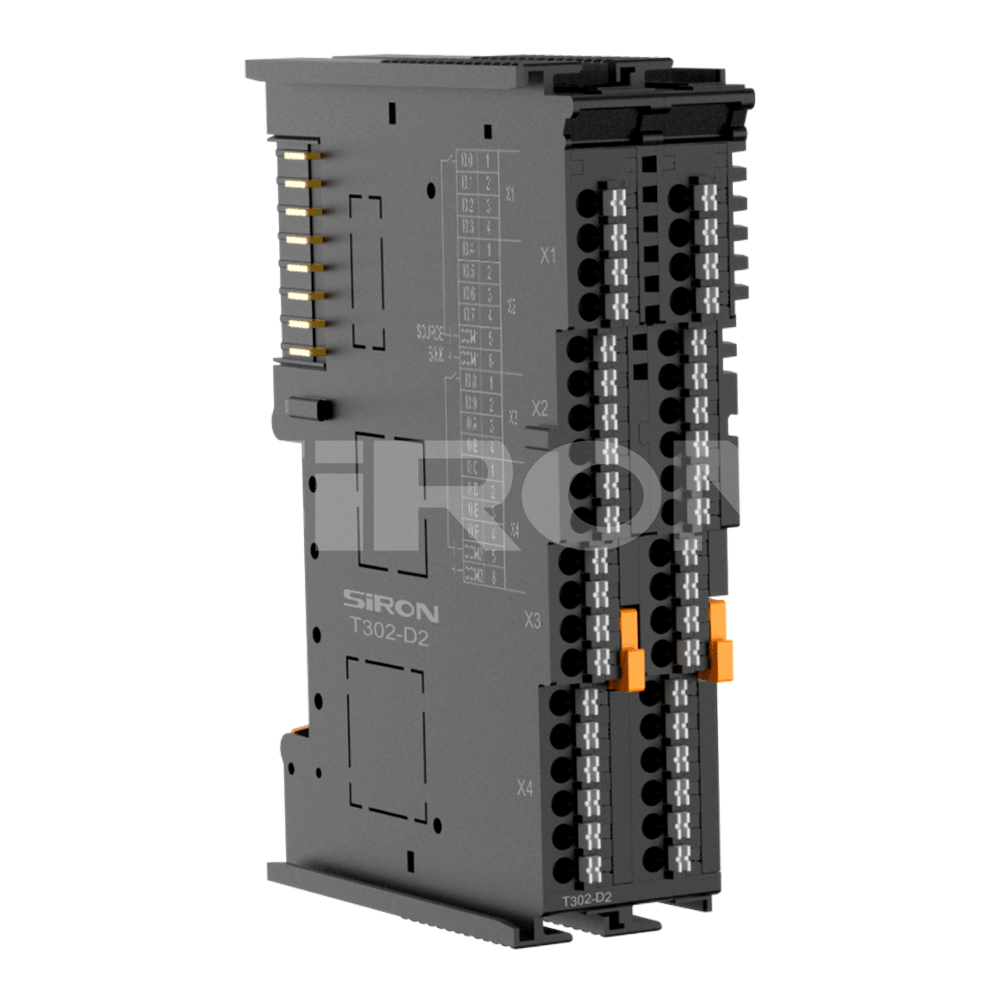

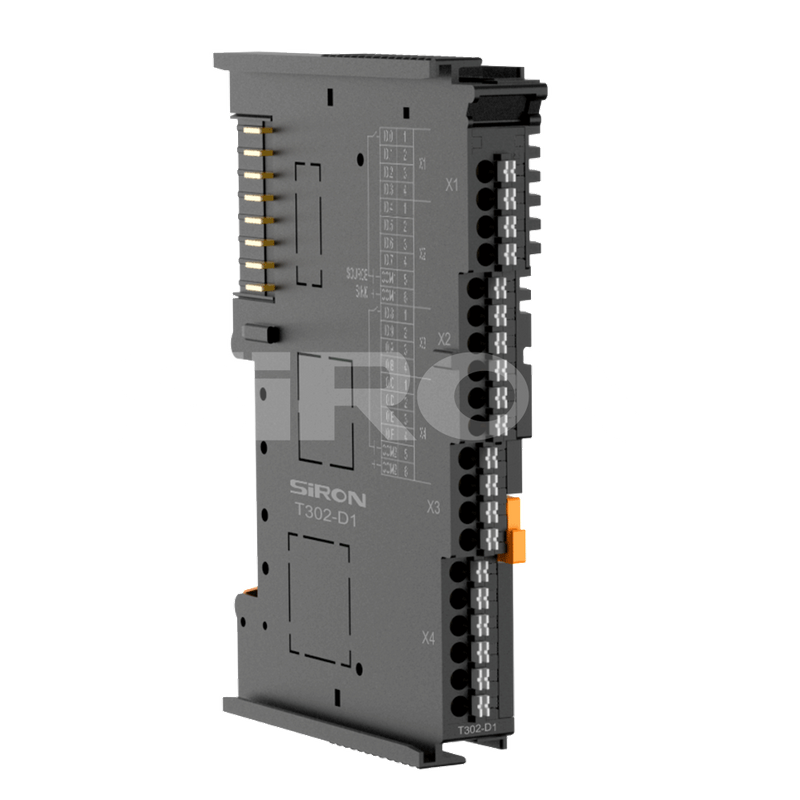

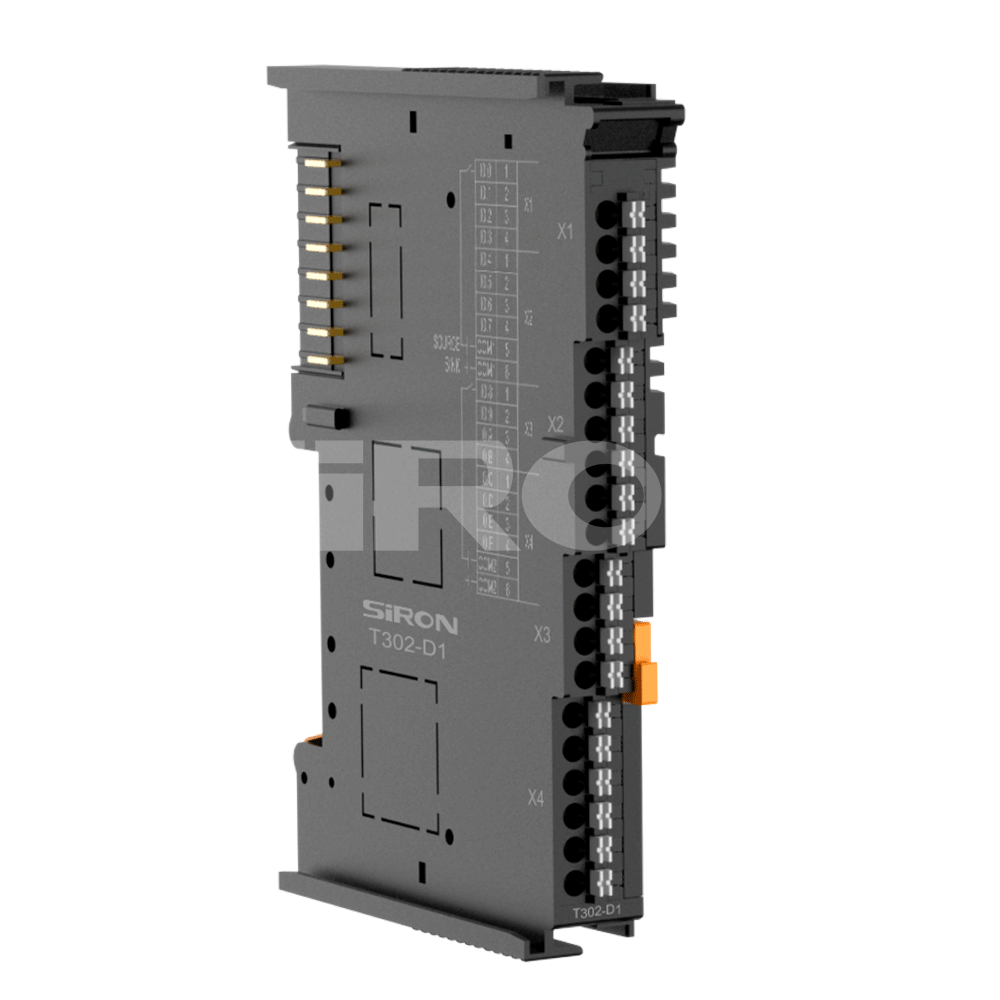

SiRON T302-D Digital Expansion Module IP20 Plug-in Remote I/O Module

Name: SiRON T302-D Digital Expansion Module IP20 Plug-in Remote I/O Module
Brand: SiRON
Rating: 5.0 (37 reviews)

Feature

* 16 point, 32 point expansion module;
* Building block design, beautiful appearance;
* Male and female slot connection; The contact area is increased, and the vibration resistance is strengthened.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T302-D
Brand:
SiRON
Code:
8517623990

IP20 expansion module 32 digital input output 16 digital input output

Product Description

About selection

企业微信截图_17552461683990

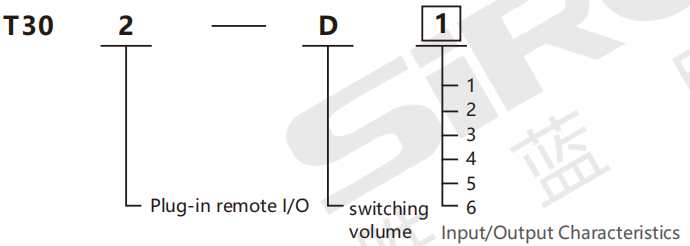

Selection example: T302-D1 indicates chip remote I/O series, digital input/output characteristics: 16 channel digital input, 0 channel digital output.

Input/Output Characteristics

Code	Input	Output
1	16 channel digital input	0 channel digital output
2	32 channel digital input	0 channel digital output
3	0 channel digital input	16 channel digital (transistor)output(NPN)
4	0 channel digital input	16 channel digital (transistor)output(PNP)
5	0 channel digital input	32 channel digital (transistor)output(NPN)
6	0 channel digital input	32 channel digital (transistor)output(PNP)

Specifications

Digital input module

Model number	T302-D1	T302-D2
Input voltage	24VDC(±25%)
Module power consumption	≤80mA(5VDC)	≤120mA(5VDC)
Input channelnumber	16	32
Input signal type	NPN/PNP General use
Opening voltage	NPN:-3～3VDC;PNP:15～30VDC
Turn-off voltage	NPN:15～30VDC;PNP:-3～3VDC
Typical input current value	3mA
Filtering(de-buffeting)time	Can be configured 1~10ms(default 3ms)
Inpu impedance	>7.5kS
Input delay	0.3ms
Isolated voltage withstand	1500V
lsolation mode	Optocoupling Isolation

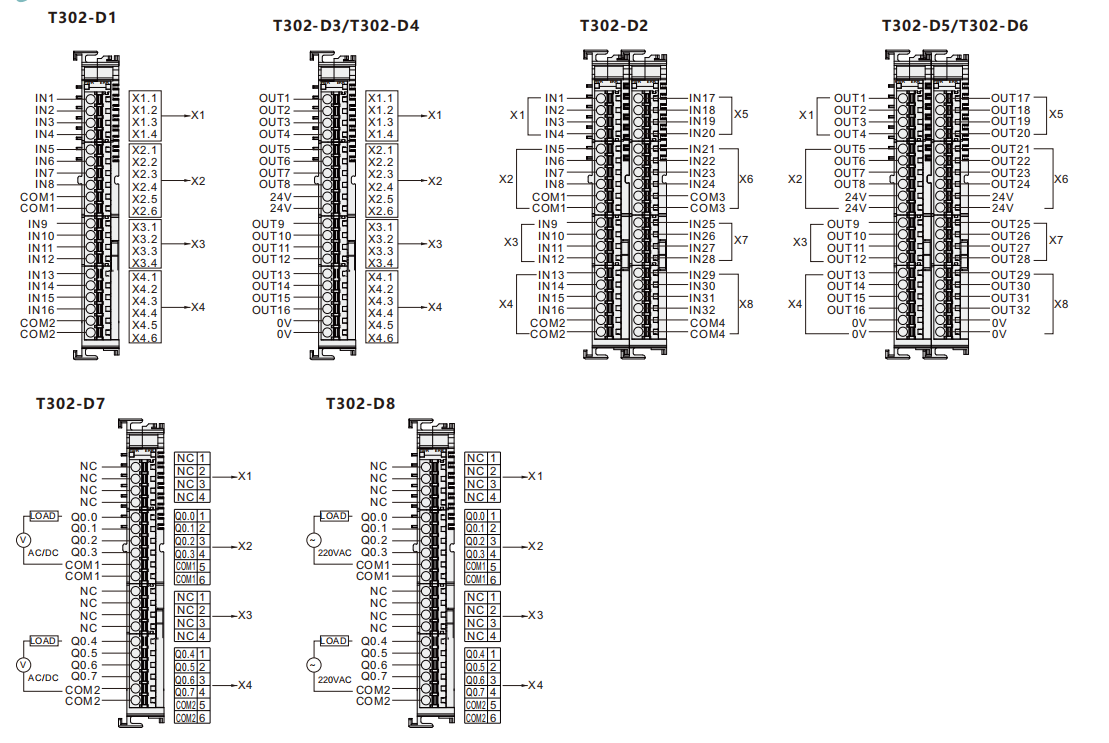

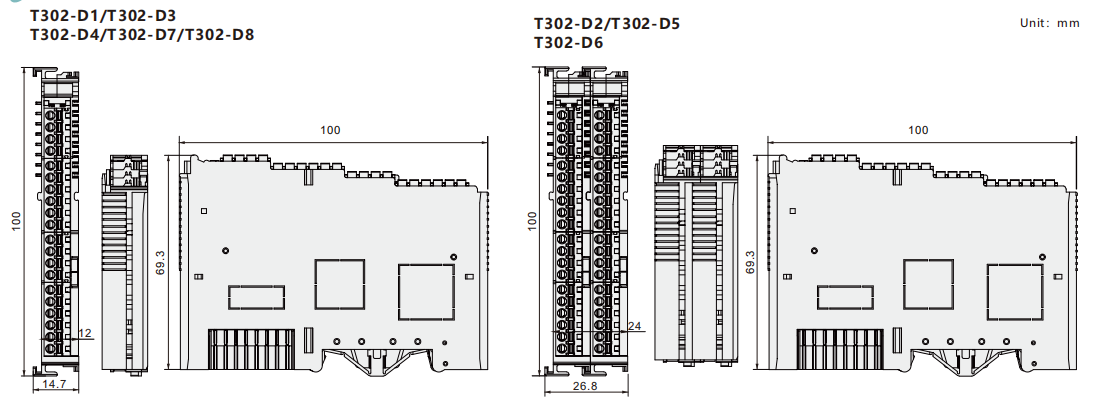

Dimension	100×68×12mm	100×68×24mm
Operating temperature	0～55℃
Ambient humidity	95%noncondensing
Protection class	P20

Digital input module

Model number	T302-D3	T032-D4	T302-D5	T302-D6
Input voltage	24VDC(±25%)		24VDC(±25%)
Module power consumption	≤40mA(5VDC)		≤50mA(5VDC)
Number of outputchannels	16		32
Output signal type	NPN	PNP	NPN	PNP
Output rated voltage	OV(±3V)	24VDC(±20%)	OV(±3V)	24VDC(±20%)
Output rated current	Single channel 500mA
Output delay	0.3ms
Isolation pressure	1500V
Isolation mode	Optocoupling Isolation
Dimension	100×68×12mm		100×68×24mm
Operating temperature	0～55℃
Ambient temperature	95%noncondensing
Protection class	IP20

Modelnumber	T302-D7	T302-D8
Systempowersupply	5VDC(±10%)
Module power oonsumption	≤40mA(5VDC)
Output track number	8
Output rated voltage	24VDC(±20%)	220VAC
Output rated current	Single-channel 40VDC or 40VAC peak(2A)	Single-channel 220VAC(1A)
Isolaed withstand voltage	1500 V
Isolafion mode	capacitive isolation
Module temperature monitoring	support
Systempowermonitoring	support
Size specification	100×69×12mm
Operating temperature	-25~+70℃
Storage temperature	-25~+85℃
Ambient humidity	95%no condensation
Class of protection	IP20
