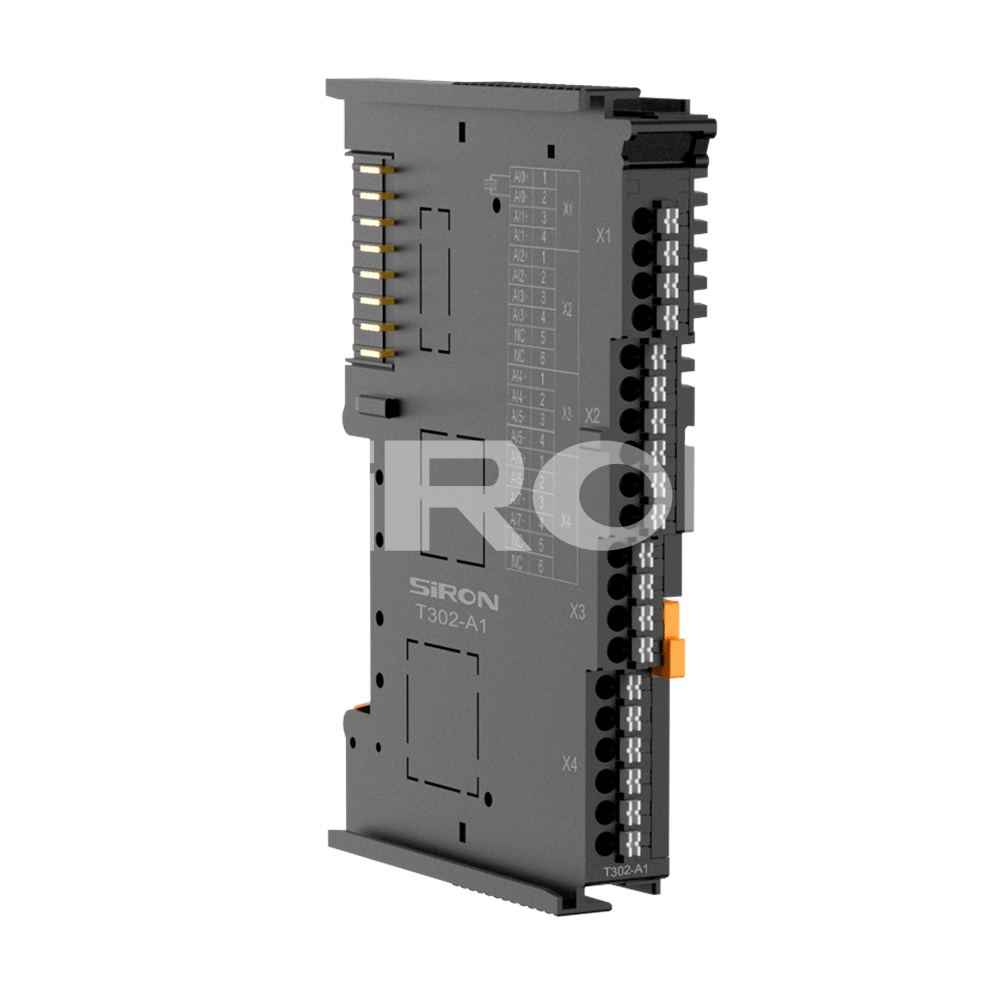

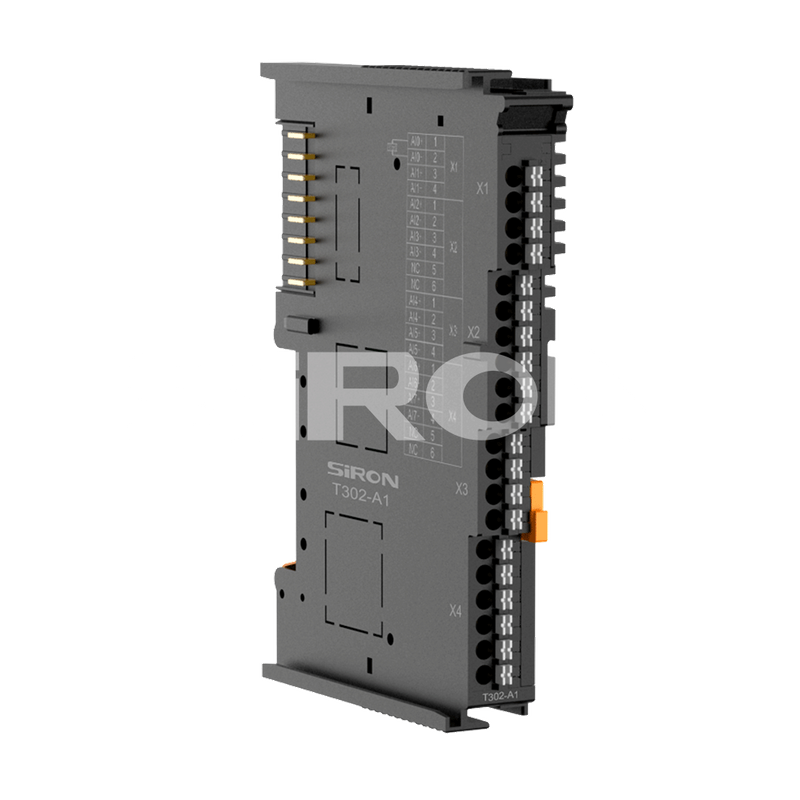

SiRON T302-A Analog Expansion Module IP20 Plug-in Remote I/O Module

Name: SiRON T302-A Analog Expansion Module IP20 Plug-in Remote I/O Module
Brand: SiRON
Rating: 5.0 (96 reviews)

Feature

* 4 point, 8 point expansion module;
* Building block design, beautiful appearance;
* Male and female slot connection; The contact area is increased, and the vibration resistance is strengthened

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T302-A
Brand:
SiRON
Code:
8517623990

IP20 expansion module 4 channels analog input 8 channels analog input 6 channels analog input

Product Description

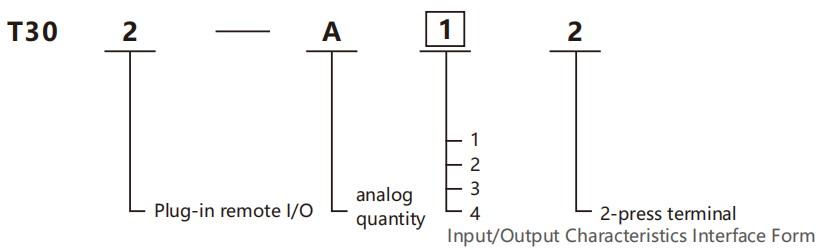

About selection

企业微信截图_17552497169271

Selection example: T302-A12 indicates chip remote I/O series, switching, input/output characteristics: 8-channel analog Input, 0 channel analog output, interface form: press the terminal.

Input/Output Characteristics

Code	Input	Output
1	8-channel analog input	0 channel analog output
2	0 channel analog input	4-channel analog output
3	4-channel analog input (thermal resistance RTD)	0 channel analog output
4	6-channel analog input (thermal resistance RTD)	0 channel analog output

Specifications

Type	Analog input module	Analog output module
Model number	T302-A1	T302-A2
System current	200mA(5VDC)
Number of channels	input:8	output:4
Signal type	0~20mA/4～20mA/0～5V/1～5V/0～10V/-10～10V
Inputfiltering	Configurable 8~256 filters	/
Input impedance	Voltage input:>500kΩ Current input:<300Ω2	/
Load capacity	/	Voltage output:>10kΩ Current output:<500Ω
Resolution	16
Accuracy	Voltage full range 0.1% Current full range 0.2%	Full range ±0.2%
Sampling time	0.3ms/per channel
Isolated voltage withstand	1500V
Isolation mode	optocoupling isolation
Common terminal	Other Inputs	Other outputs

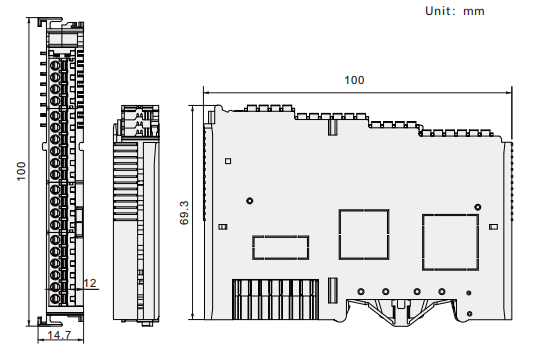

Dimension	100×68×12mm
Operating temperature	0~55℃
Ambient humidity	95%non-condensing
Protection class	IP20

Type	4-channel analog input(thermal resistance RTD)	6-channel analog input(thermal resistance RTD)
Model number	T302-A3	T302-A4
Module power consumption	<75mA(5VDC)
Number of channels	4	6
Connection mode	2-wire or 3-wire system	two-wire system
Sensor type	PT100,PT200,PT500,PT000,Ni120	K,J,T,E,N,S,R,B,C
Temperature range	-200～+800℃(PT);-79～+309℃(Ni)	Adaptation sensor type
Resolution	0.1℃	0.1℃
Accuracy	±0.1℃	0.50%
Sampling time	3ms/per channel	3ms/per channel
Isolated voltage withstand	500V	500V
Dimension	100×69×12mm
Operating temperature	0～55℃
Ambient humidity	95%non-condensing
Protection class	IP20

Model	T302-A5	T302-A6	T302-A7
System power supply	5VDC(±10%)
Curent consumption	≤60mA	≤60mA	≤150mA
Number of input channels	4
lnput signal type	0~10V	-10~10V	0~20mA
Resolution	16
Aocuracy	Full scale ±0.1%
lsolafion withstand pressure	500V
lsolafion method	coupling capacitor
System power indicafon	support
Communication fault diagnosis	support
Slze	100×69×12mm
Temperature	Operating temperature:-25 to+70℃ Storage temperature:-25 to +85℃
Enniron mental humkdity	95%non-condensing
Protection grade	IP20
