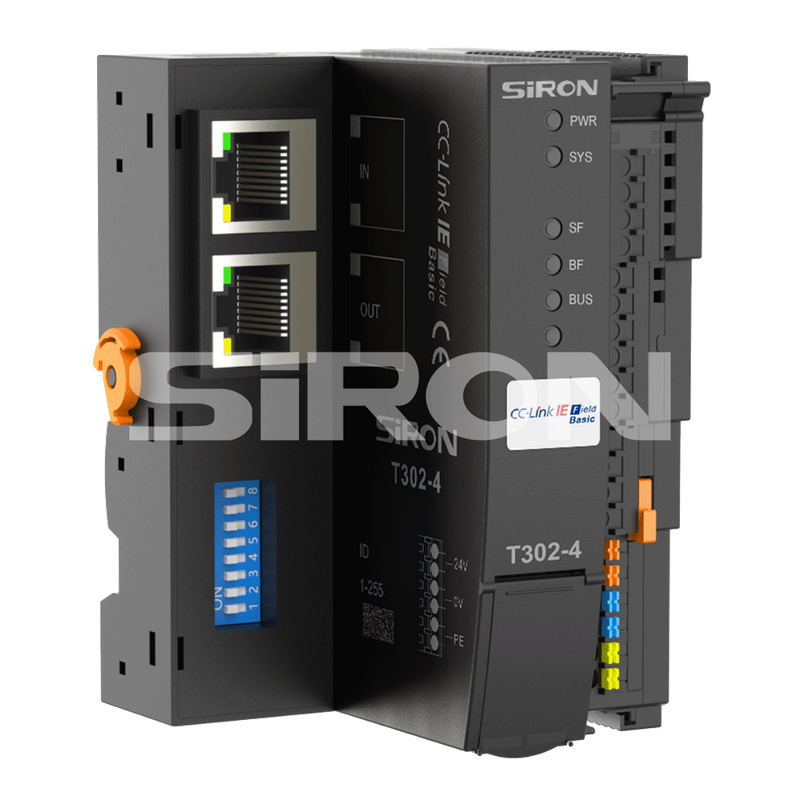

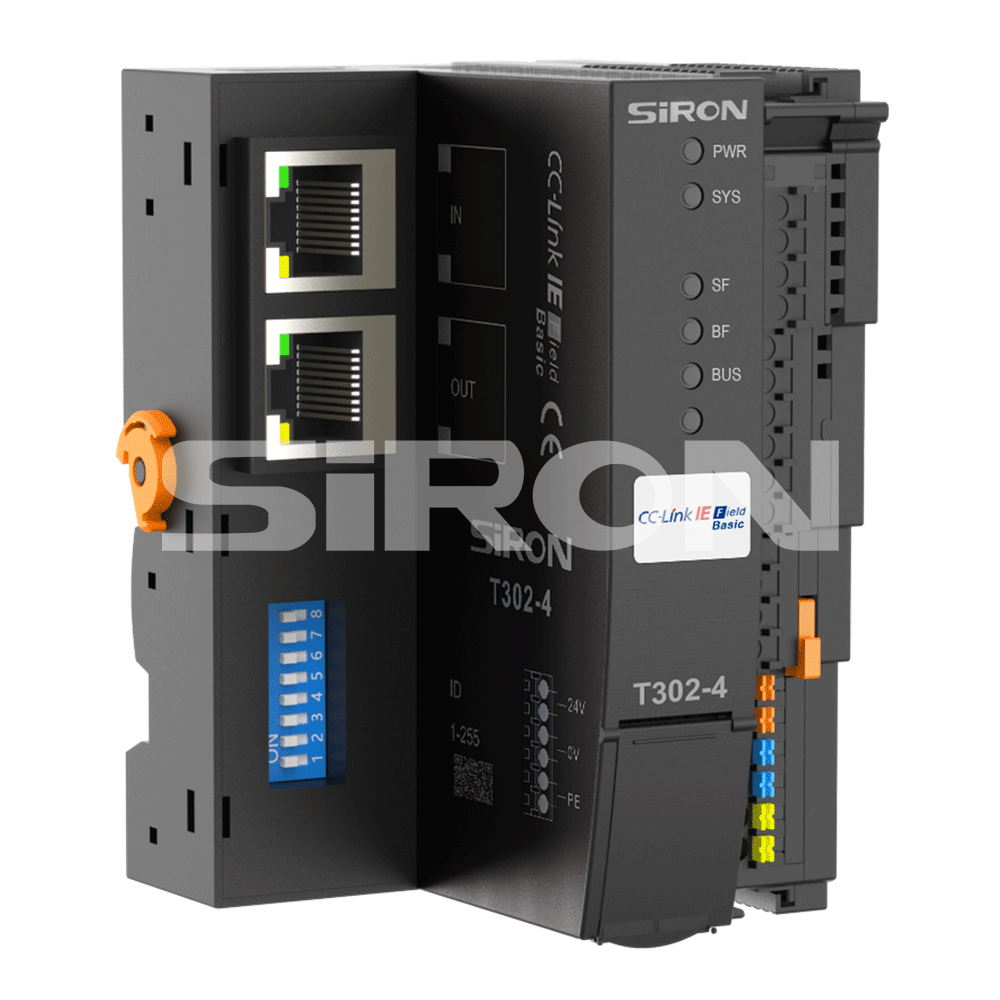

SiRON T302-4 CC-Link IE Field Basic Coupler IP20 Plug-in Remote I/O Module

Name: SiRON T302-4 CC-Link IE Field Basic Coupler IP20 Plug-in Remote I/O Module
Brand: SiRON
Rating: 5.0 (47 reviews)

Feature

* Coupler supports CC-Link IE Field Basic protocol access;
* Coupler supports maximum input 1440 bytes, maximum output 1440 bytes;
* Supports up to 32 extended IO modules.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T302-4
Brand:
SiRON
Code:
8517623990

IP20 CC-Link IE Field Basic Coupler RJ45 Profinet Coupler DC 24V Profinet Coupler

Product Description

About selection

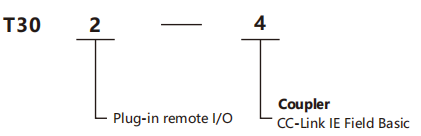

企业微信截图_17552504126934

Selection example: T302-4 represents the plug-in remote I/O series, and the coupler protocol is CC-Link IE Field Basic.

Specifications

Model number	T302-4
Bus protocol	CC-Link IE Field Basic	Module power consumption	≤500mA(5VDC)
Maximumnumber o slave stafions	According to master controller	Internal bus power supply	830mA(5VDC)
Bus rate	100Mbps,self-adaptation, full duplex	Field power supply	power supply:24VDC(±20%

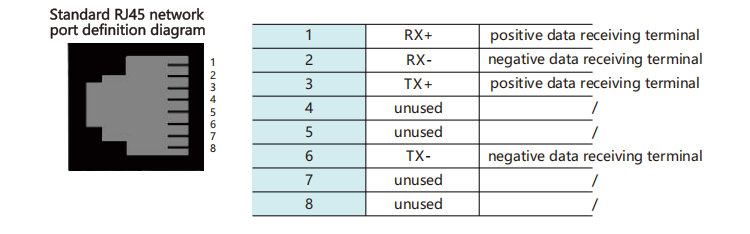

Network interface	2×RJ45	Monitoring type	Temperature monitoring, system power monitoring

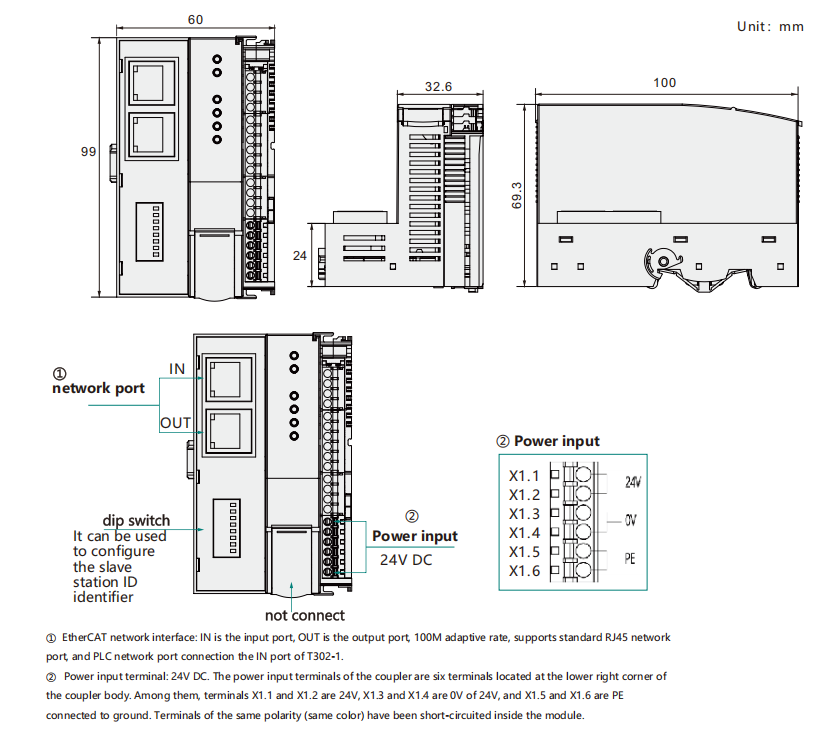

Communication cable	Category 5 Twisted Pair	Dimension	100×69×63mm
Maximum transmission dstance	100m(Station distance)	Operating temperature	0～55℃
Maximum number of I/O modules	32	Ambient humidity	95%noncondensing
System power supply	power supply:24VDC(18~36V)	Protection class	IP20
Process data area	input 288 Bytes, output 288 Bytes
