SiRON T302-1 EtherCAT Coupler IP20 Plug-in Remote I/O Module

Name: SiRON T302-1 EtherCAT Coupler IP20 Plug-in Remote I/O Module
Brand: SiRON
Rating: 5.0 (99 reviews)

Feature

* Coupler supports EtherCAT protocol access;
* Coupler supports maximum input 1440 bytes, maximum output 1440 bytes;
* Supports up to 32 extended IO modules

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T302-1
Brand:
SiRON
Code:
8517623990

IP20 EtherCAT Coupler RJ45 EtherCAT Coupler DC 24V EtherCAT Coupler

Product Description

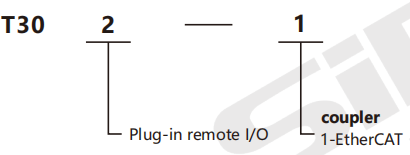

About selection

企业微信截图_17552455086315

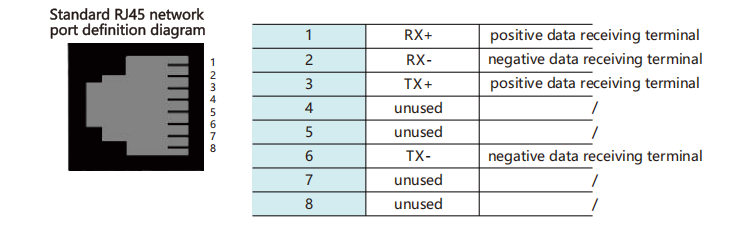

Selection example: T302-1 represents the plug-in remote I/O series, coupler protocol is Standard RJ45 network port definition diagram EtherCAT.

Note: T302-1 is under development and not commercially available

Specifications

Model number	T302-1
Bus protocol	EtherCAT	Module power consumption	≤500mA(5VDC)
Maximumnumber o slave stafions	65535	Internal bus power supply	830mA(5VDC)
Bus rate	100Mbps,self-adaptation, full duplex	Field power supply	power supply:24VDC(±20%
Network interface	2×RJ45	Monitoring type	Temperature monitoring, system power monitoring

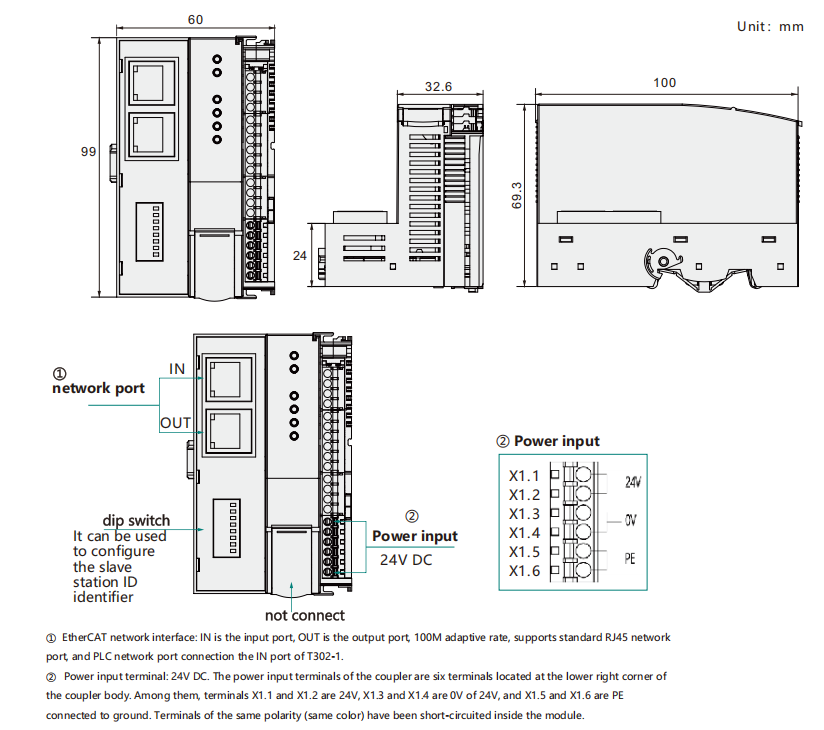

Communication cable	Category 5 Twisted Pair	Dimension	100×69×63mm
Maximum transmission dstance	100m(Station distance)	Operating temperature	0～55℃
Maximum number of I/O modules	32	Ambient humidity	95%noncondensing
System power supply	power supply:24VDC(18~36V)	Protection class	IP20
Process data area	input1024 Bytes,output1024 Bytes
