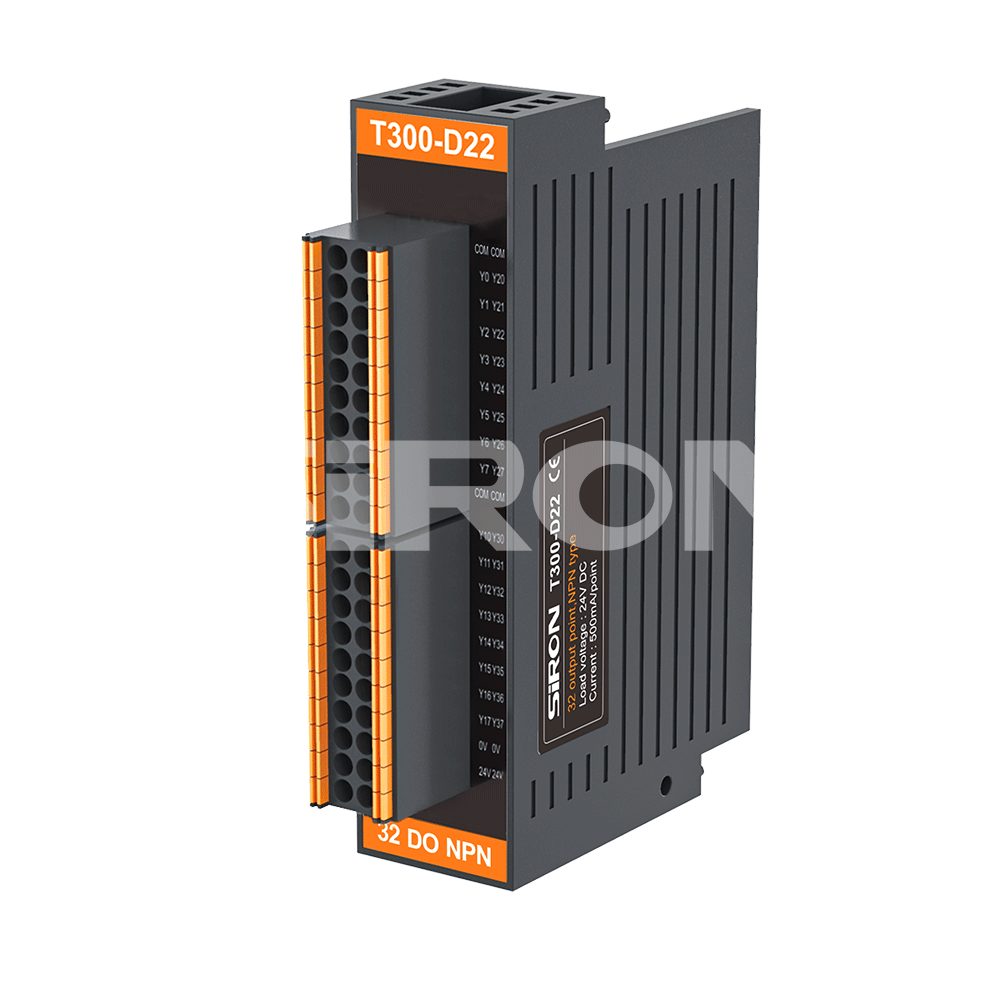

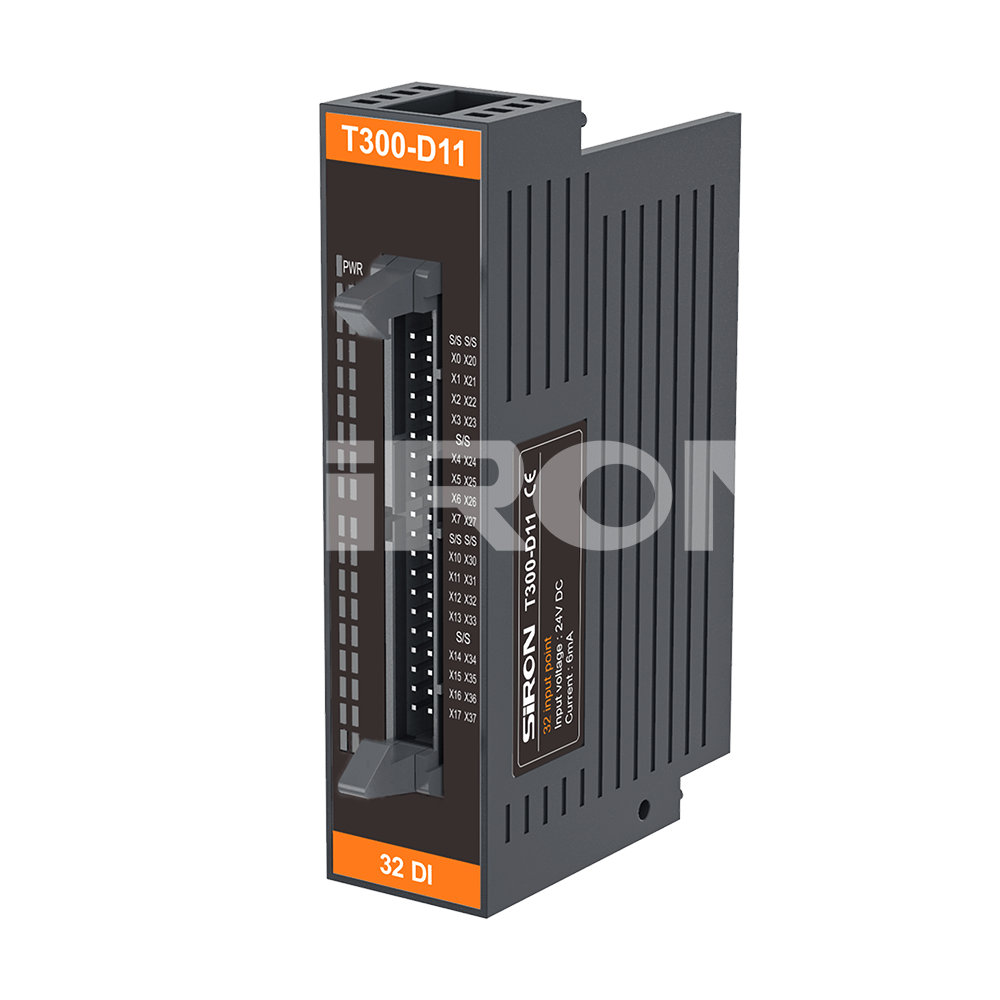

SiRON T300-D Ethernet/IP Digital Expansion Module IP20 Ultra-thin Integrated I/O Module

SiRON T300-D Ethernet/IP Digital Expansion Module IP20 Ultra-thin Integrated I/O Module

Name: SiRON T300-D Ethernet/IP Digital Expansion Module IP20 Ultra-thin Integrated I/O Module
Brand: SiRON
Rating: 5.0 (10 reviews)

Feature

* Used with T300-5;
* Standard DIN35 rail installation, easy installation;

* Press terminal, horn seat, more convenient wiring.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T300-D
Brand:
SiRON
Code:
8517623990

IP20 Ethernet/IP expansion module 32 digital input output 16 digital input output

Product Description

About selection

企业微信截图_17552438527839

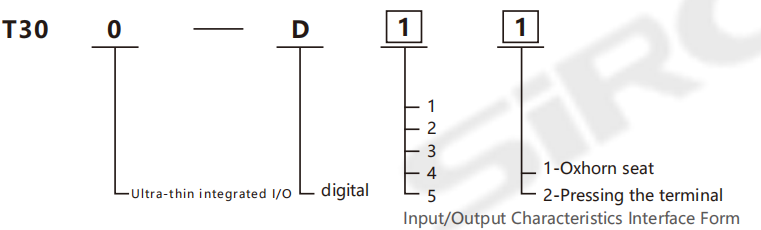

Selection example:T300-D11 represents ultra-thin integrated I/O series, switching, input/output characteristics: 32 channel switching Input, 0 channel switching output, interface form: horn.

Input/Output Characteristics

Code	Input	Output
1	32-channel digital input	0 channel digital output
2	0-channel digital input	32 channel digital (transistor)output (transistor)
3	0-channel digital input	32 channel digital (transistor)output(transistor)
4	0-channel digital input	16-channel switching output(relay)
5	16-channel digital input	16-channel digital (transistor)output (transistor)
6*	16-channel digital input	16 channel digital (transistor)output (transistor)

Specifications

Input
Rated voltage	DC 24V
0 signal voltage (NPN)	OV
1Signal voltage(NPN)	24V
0 signal voltage (PNP)	OV
1Signal voltage(PNP)	24V
Input current	6mA
Electrical isolation	AC 250V
Relay
Rated voltage	DC 24V
Electricalisolation	AC 250V
Maximum load curent	2A/port

Output
Rated voltage	DC 24V
Type ofload	resistance load
Single channel maximum curent	NPN:500mA; PNP:500mA
Maximum total output powenlcurent	2A
Electrical isolation	AC 250V
Operating temperature range	0～50℃
Storage temperaturerange	-20~125℃
