SiRON T300-A Ethernet/IP Analog Expansion Module IP20 Ultra-thin Integrated I/O Module

SiRON T300-A Ethernet/IP Analog Expansion Module IP20 Ultra-thin Integrated I/O Module

Name: SiRON T300-A Ethernet/IP Analog Expansion Module IP20 Ultra-thin Integrated I/O Module
Brand: SiRON
Rating: 5.0 (18 reviews)

Feature

* Used with T300-5;
* Standard DIN35 rail installation, easy installation;

* Press terminal, horn seat, more convenient wiring.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T300-A
Brand:
SiRON
Code:
8517623990

IP20 Ethernet/IP expansion module 32 analog input output 16 analog input output

Product Description

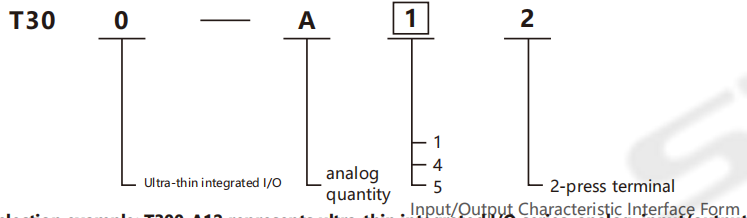

About selection

企业微信截图_17552447455201

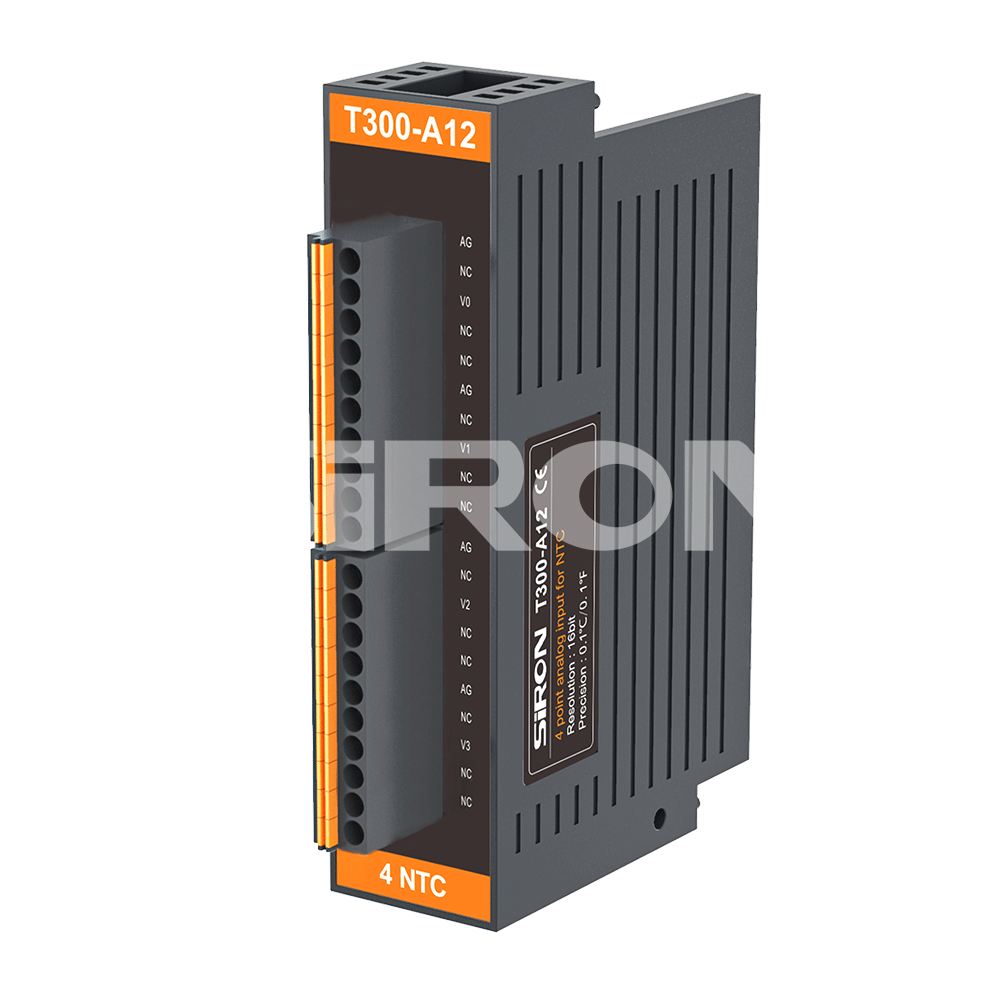

Selection example: T300-A12 represents ultra-thin integrated I/O series, analog, input/output characteristics: 4-channel analog Input (temperature module/NTC10K), 0 channel analog output, interface form: press the terminal.

Input/Output Characteristics

Code	Input	Output
1	4-channel analog input(temperature module/NTC10K)	0 channel analog output
2*	4-channel analog input(temperature module/PT100)	0 channel analog output
3*	4-channel analog input(temperature module/thermocouple)	0 channel analog output
4	4-channel analog input	0 channel analog output

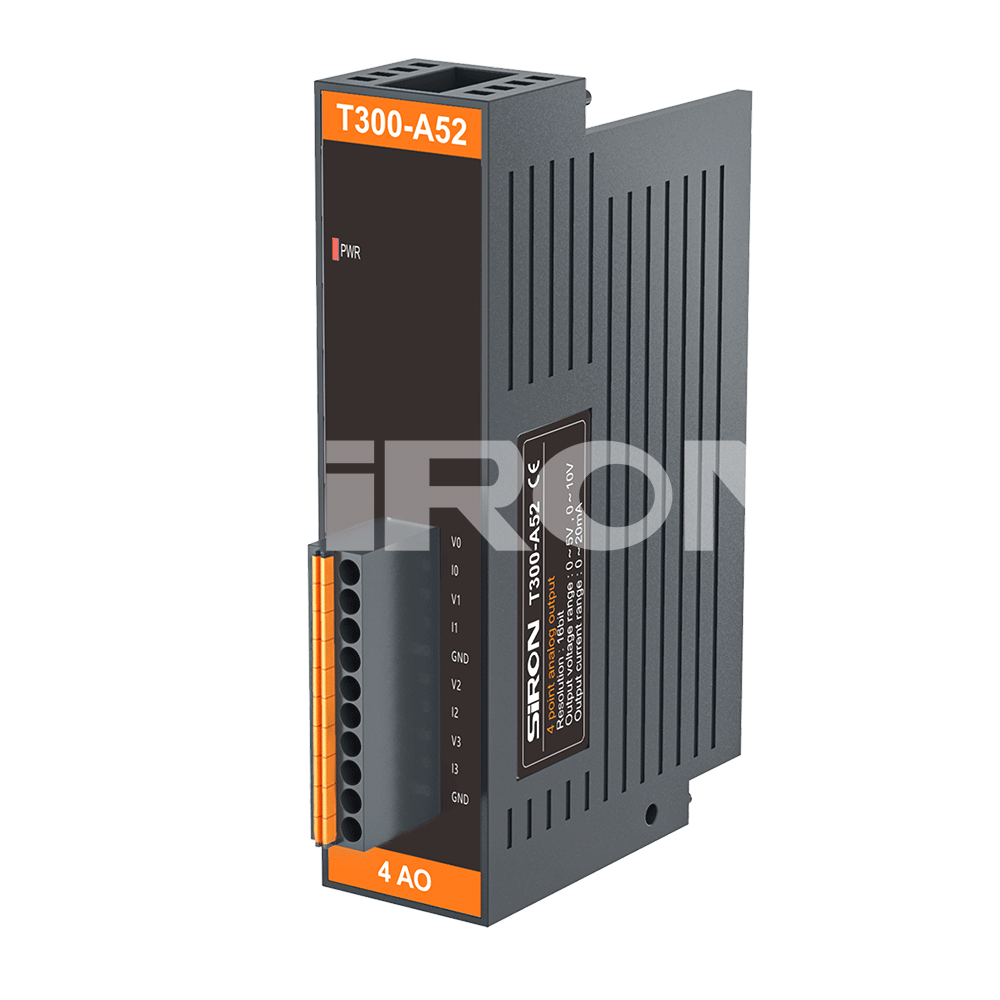

5	0-channel analog input	4 channel analog output

Specifications

Input
Rated voltage	DC 24V
0 signal voltage (NPN)	OV
1Signal voltage(NPN)	24V
0 signal voltage (PNP)	OV
1Signal voltage(PNP)	24V
Input current	6mA
Electrical isolation	AC 250V
Relay
Rated voltage	DC 24V
Electricalisolation	AC 250V
Maximum load curent	2A/port

Output
Rated voltage	DC24V
Type ofload	resistance load
Single channel maximum curent	NPN:500mA; PNP:500mA
Maximum total output powenlcurent	2A
Electrical isolation	AC 250V
Operating temperature range	0～50℃
Storage temperaturerange	-20~125℃
