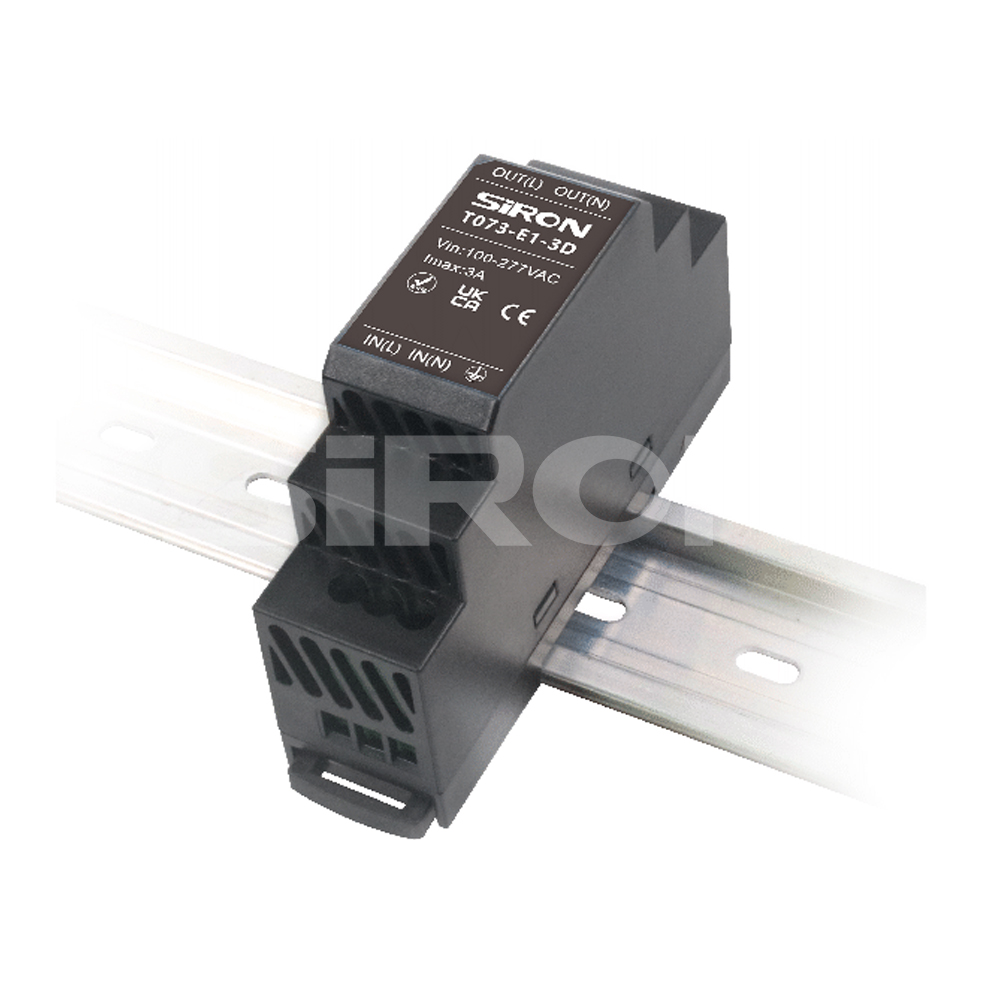

SiRON T073-E1 Series DIN-rail Install Power Filter

Name: SiRON T073-E1 Series DIN-rail Install Power Filter
Brand: SiRON
Rating: 5.0 (90 reviews)

Features

Small size, easy to install;
Insertion loss DM&CM>40dB@10MHz; Ultra-wide input power range: 0-305VAC/0-430VDC.
High surge suppression capacity 2kV/4kV, 4kV/6kV; Maximum working current up to 3A;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

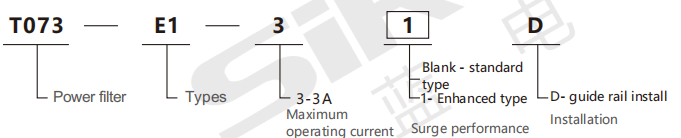

Order

T073-E1

Selection reference

Model	Operating voltage		Working current	Surge performance
Model	Nominal(range value)	Maximum value	Working current	Surge performance
T073-E1-3D	230(0-305)	310	3.0	Wire-to-wire ±2kV, wire-to-ground ±4kV

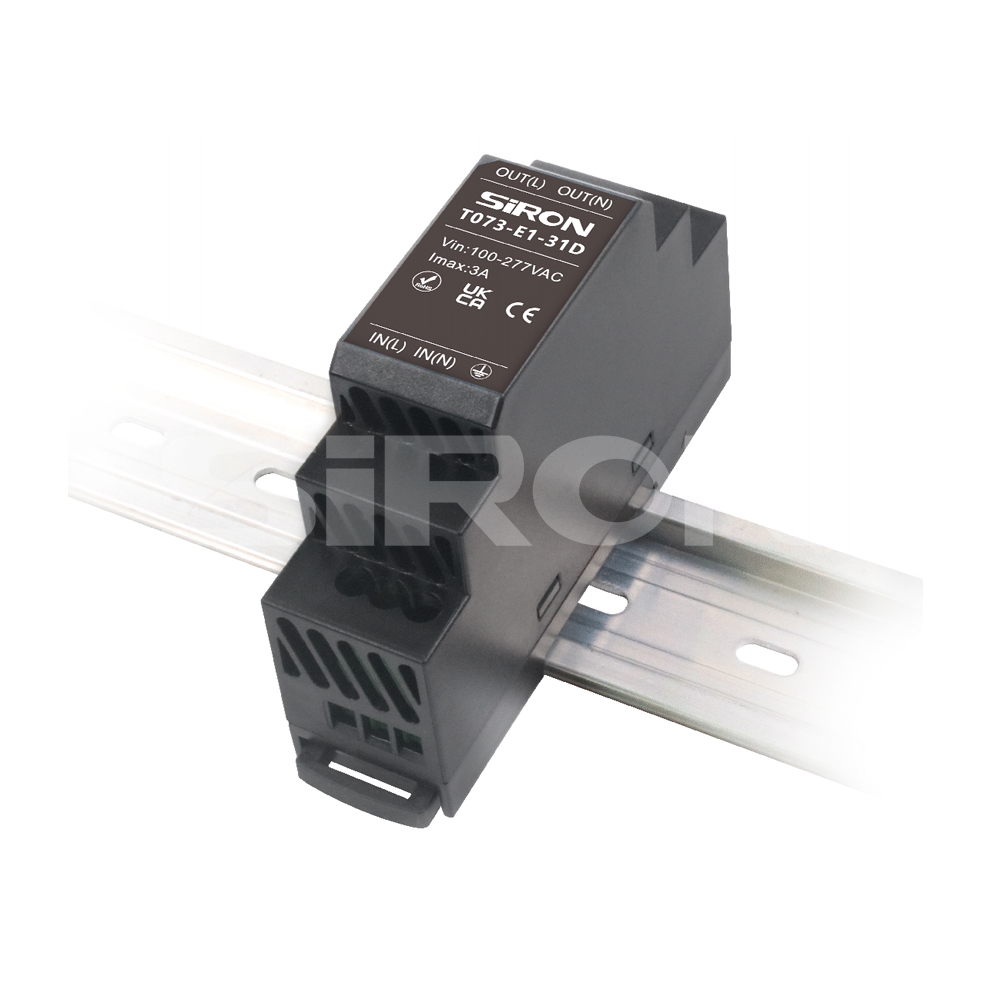

T073-E1-31D	230(0-305)	310	3.0	Wire-to-wire ±4kV, wire-to-ground 6kV

Product Attributes

EMI	Conduction disturbance	CLASS B
EMI	Radiation disturbance	CLASS B
	Electrostatic discharge	Contact discharge±8kV ,Air discharge±15kV	perf.Criteria A
	Radiation immunity	10V/m	perf.Criteria A
	Pulse group immunity	±4kV	perf.Criteria A
EMS	Surge immunity	Standard type：wire- wire±2kV,wire -ground±4kV	perf.Criteria A
	Surge immunity	Enhanced type: wire-to-wire ±4kV, wire-to-ground ±6kV	perf.Criteria A
	Conducted disturbance immunity	10V r.m.s	perf.Criteria A
	Power frequency field immunity	50/60Hz 30A/m(rms)	perf.Criteria A
