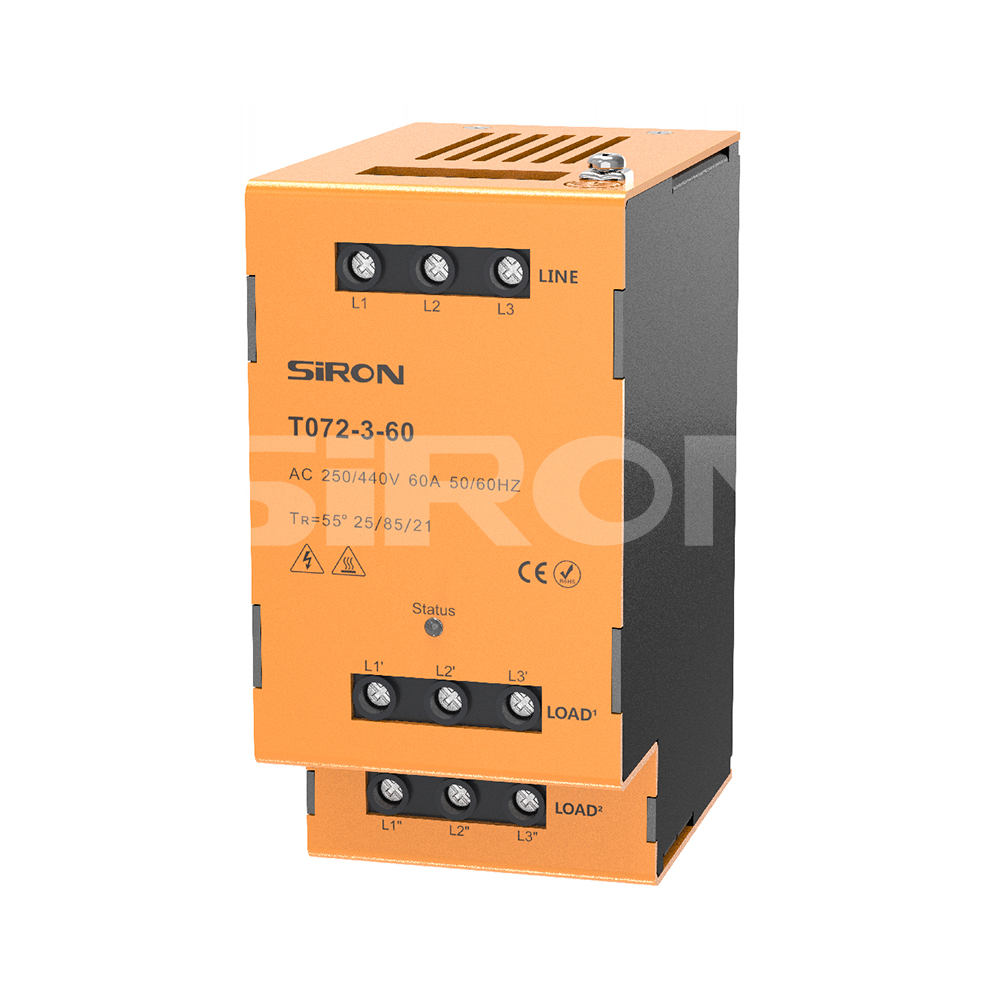

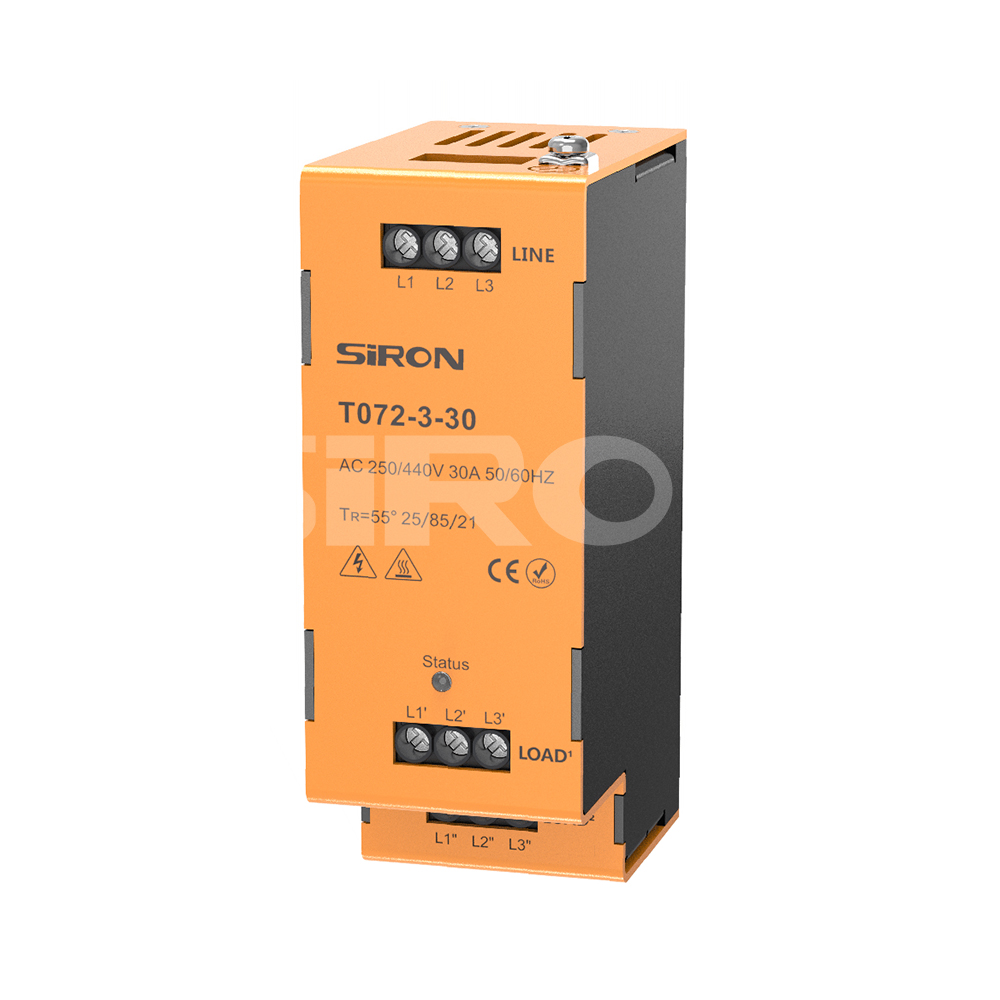

SiRON T072-3 Series DIN-rail Install Three-phase Three-wire Filter

Name: SiRON T072-3 Series DIN-rail Install Three-phase Three-wire Filter
Brand: SiRON
Rating: 5.0 (31 reviews)

Features

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Specifications

Model	T072-3-10	T072-3-20	T072-3-30	T072-3-40	T072-3-50	T072-3-60
Rated current	10A	20A	30A	40A	50A	60A
Leakage current	1.5mA			2.0mA
Voltage rating	250/440V
Operating frequency	50/60Hz
Testing voltage	wire-to-wire：1500VDC;wire-to-ground：2500VAC
Insulation resistance	>200MΩ@500VDC
Climate type	25/085/21

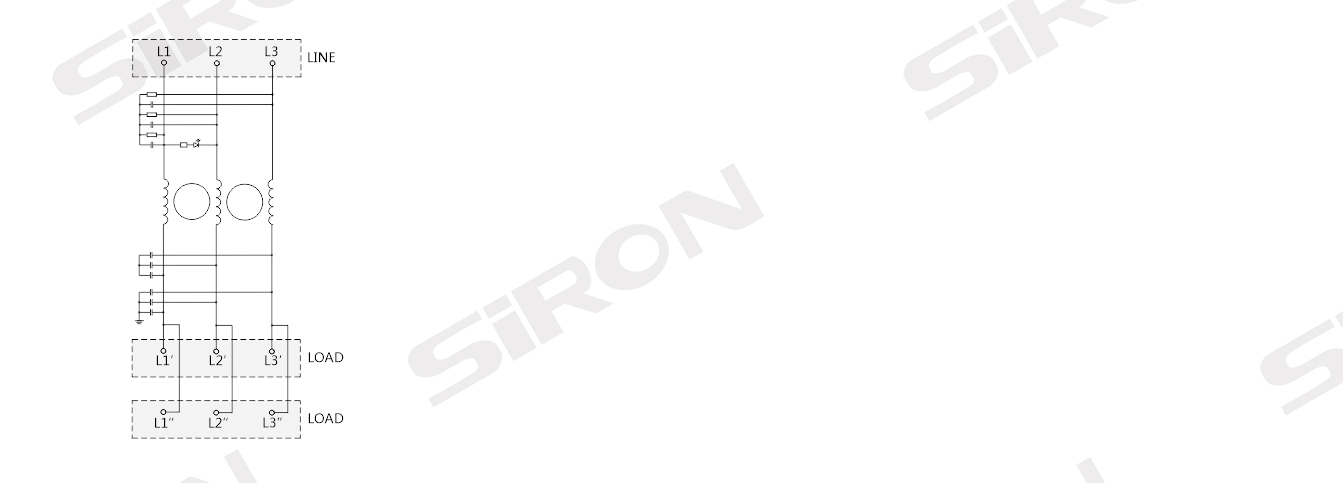

Connection method	Terminal wiring rail installation
