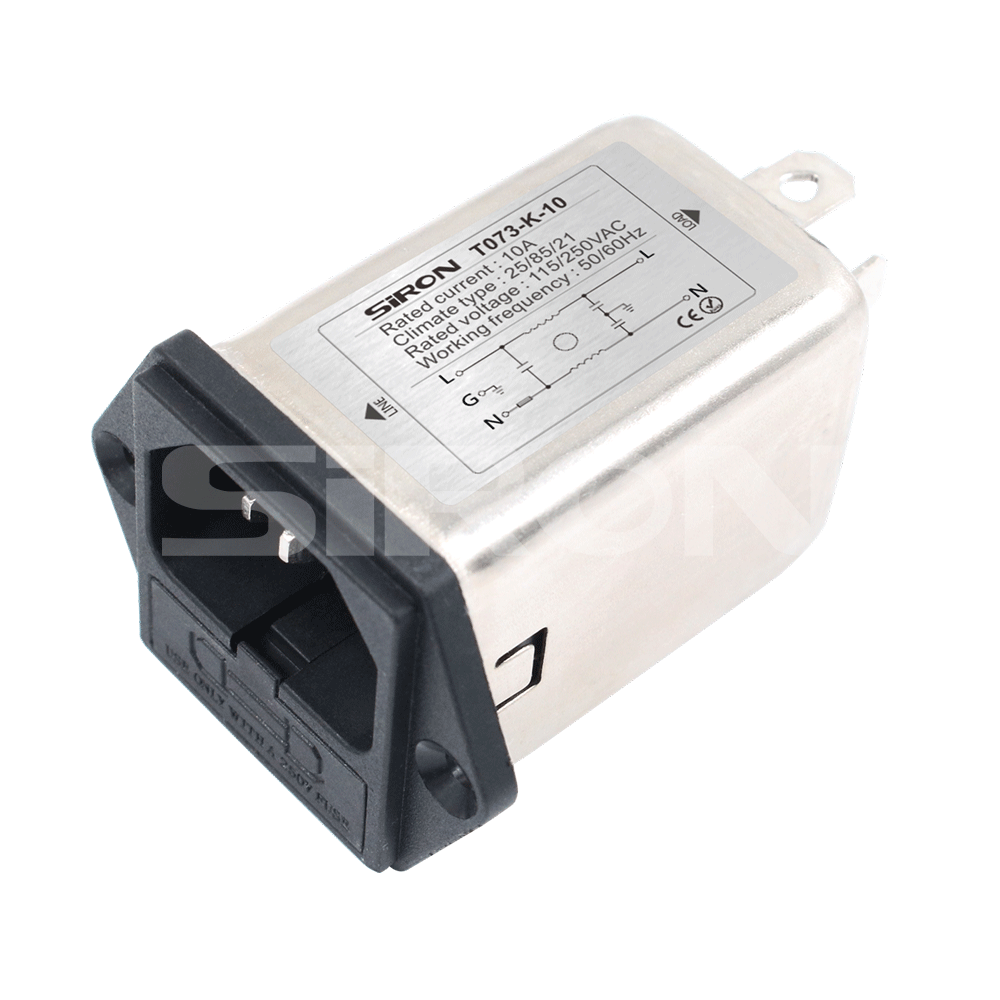

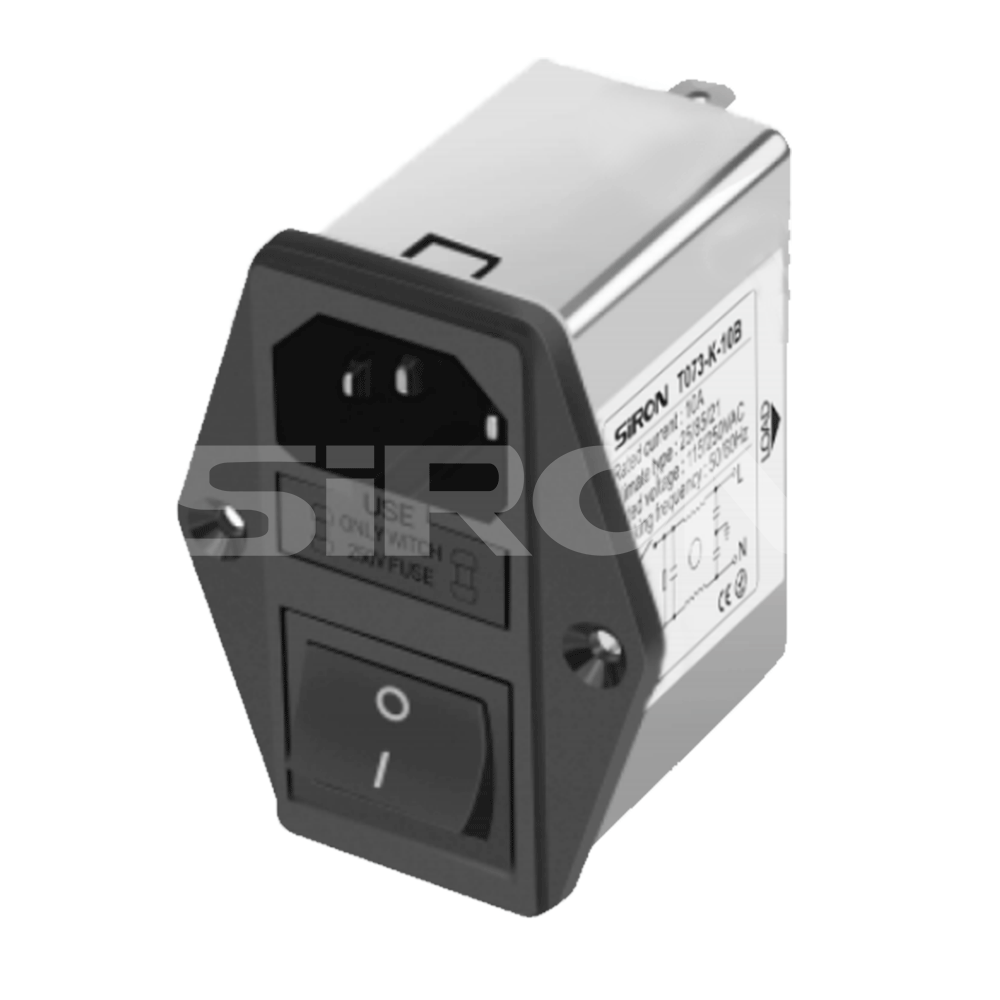

SiRON T073-K/T073-K-B IEC Socket Filter

Name: SiRON T073-K/T073-K-B IEC Socket Filter
Brand: SiRON
Rating: 5.0 (64 reviews)

Features

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Specifications

Model	T073-K-1	T073-K-3	T073-K-6	T073-K-10
Rated current	1A	3A	6A	10A
Model	T073-K-1B	T073-K-3B	T073-K-6B	T073-K-10B
Rated current	1A	3A	6A	10A
Leakage current	0.5mA
Voltage rating	115/250VAC
Operating frequency	50/60Hz
Testing voltage	Wire-wire: 1500VDC; Ground line: 1500VAC
Insulation resistance	>50MΩ@500VDC
Climate type	25/085/21
Connection method	Welded terminal type (IEC socket input, pin output.)
Environment temperature	-25~85℃
Ambient humidity	<85%
