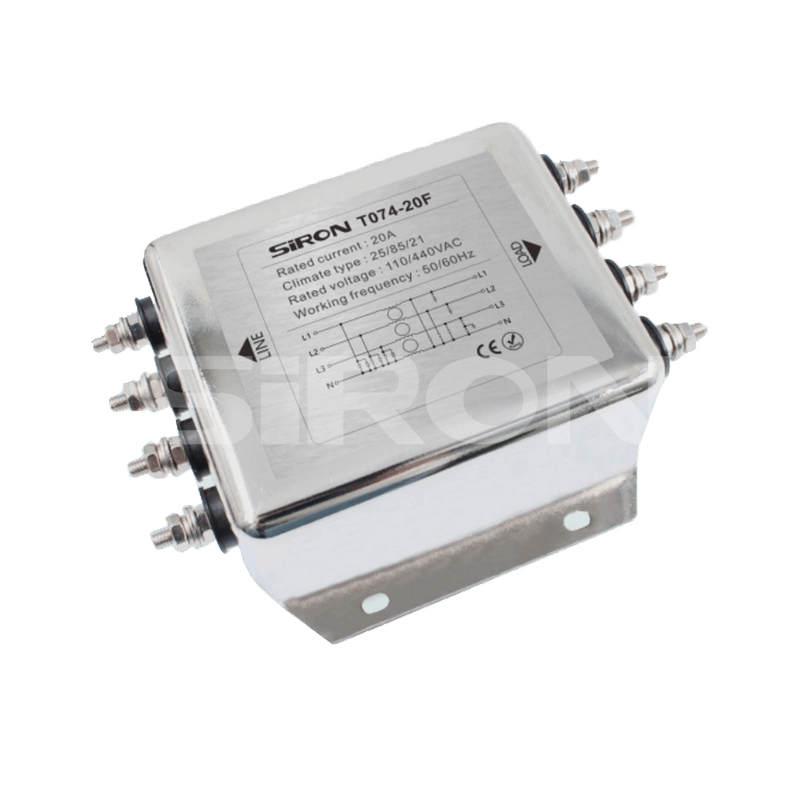

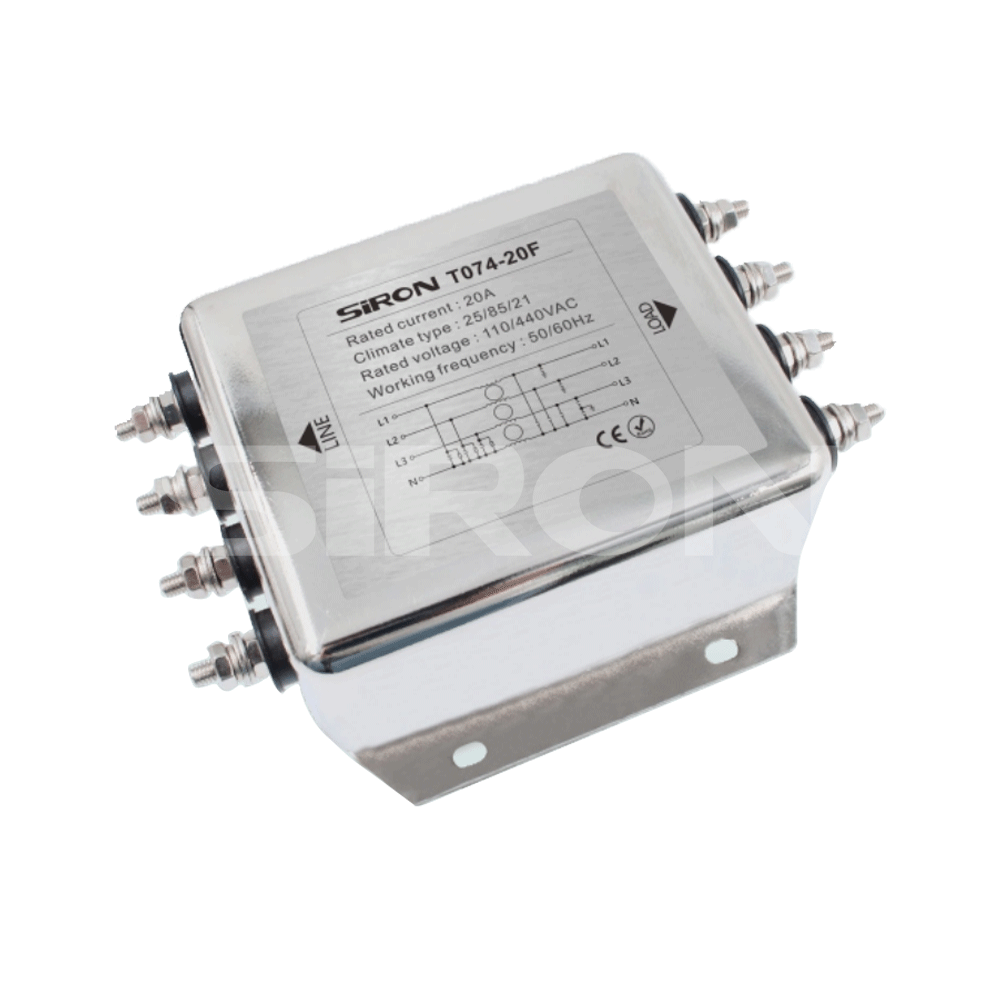

SiRON T074-F/T074-150F Series Three-phase Four-wire Filter(screw)

Features
  • Lowleakagecurrent;
  • Three-phase four-wire filter;
  • Can provide good performance in suppressing both CM and DM noises;
  • Available for digital systems,telecom systems,medical equipments and industrial installationsts.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • T074-F/T074-150F

  • SiRON

  • 8536901100

Four-wire Filter T074-F Filter Screw type Filter Three-phase filter
Product Description

Specifications

Model T074-10F T074-20F T074-30F T074-40F T074-50F T074-60F T074-80F
Rated current 10A 20A 30A 40A 50A 60A 80A
Leakage current <2.0mA <3.0mA <5.0mA <10.0mA
Voltage rating 110/440V
Operating frequency 50/60Hz
Testing voltage Wire-wire: 1500VDC; Line-ground: 2750VAC
Insulation resistance >50MΩ@500VDC
Climate type 25/085/21
Connection method Screw-fixed type
Environment temperature -25~85℃
Ambient humidity <85%

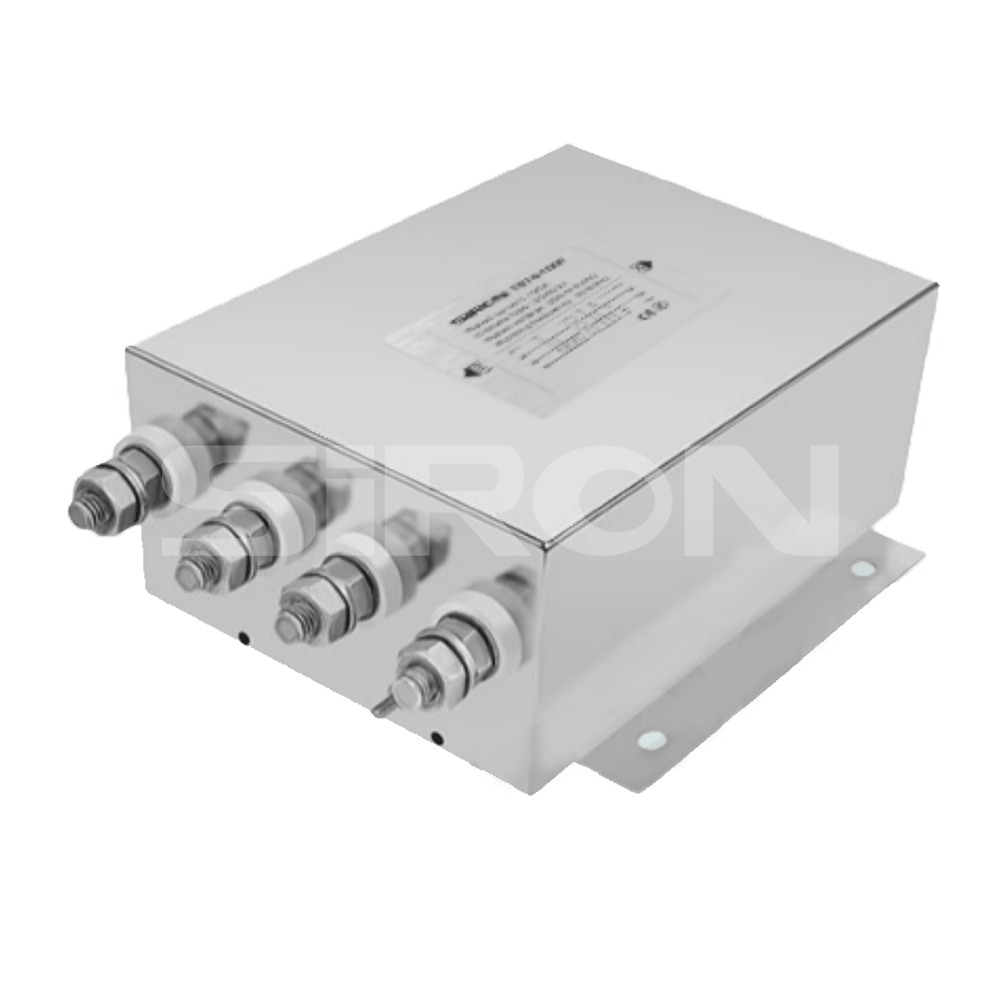

Model T074-150F
Rated current 150A
Leakage current <2.0mA
Voltage rating 250/440VAC
Operating frequency 50/60Hz
Testing voltage Wire-wire: 1500VDC; Line - ground：2250VAC
Insulation re sistance >500MΩ@500VDC
climate type 25/085/21
tionmethod Screw-fixed type
Environmenttemperature -25～85℃
Ambienthumidity <85%



Dimensions


Wiring Diagram
