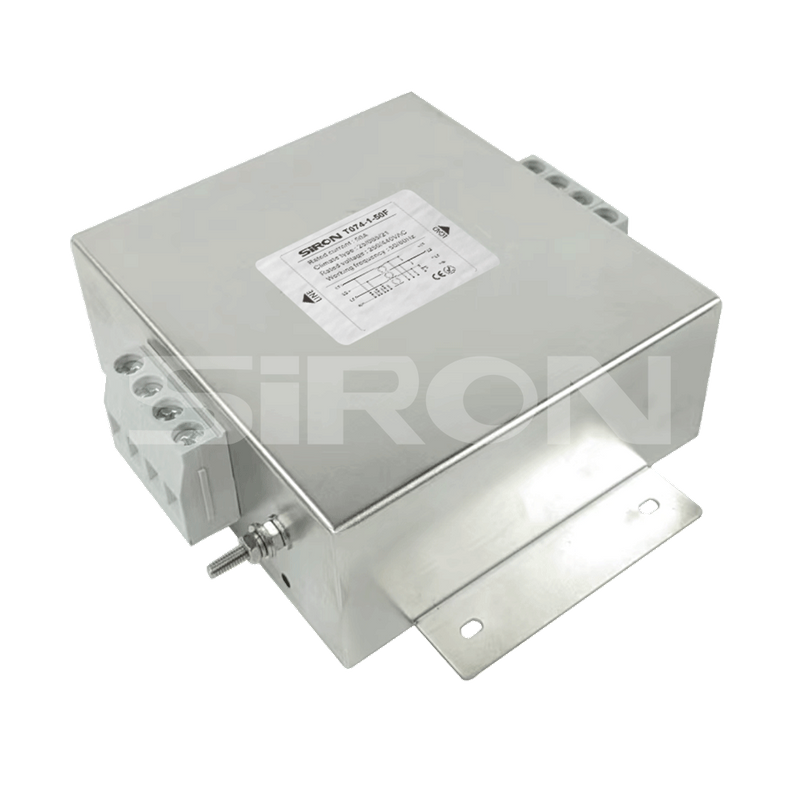

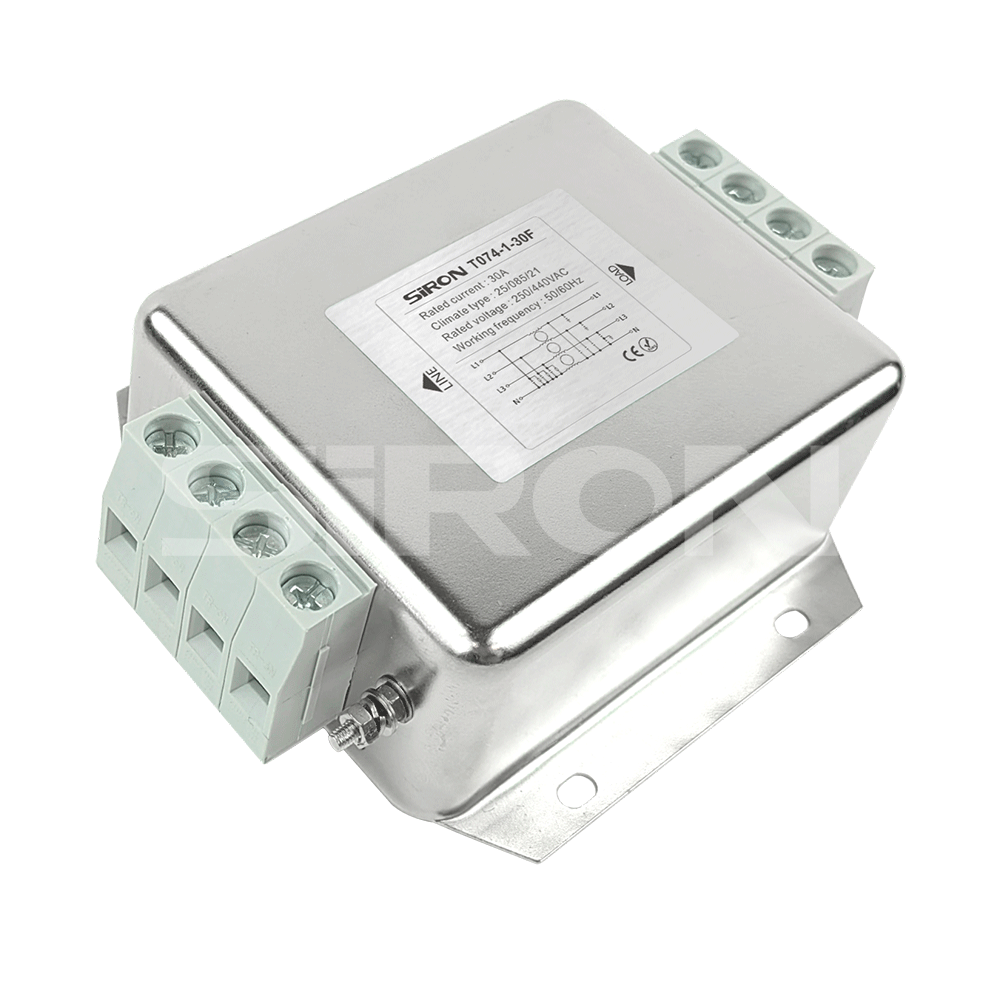

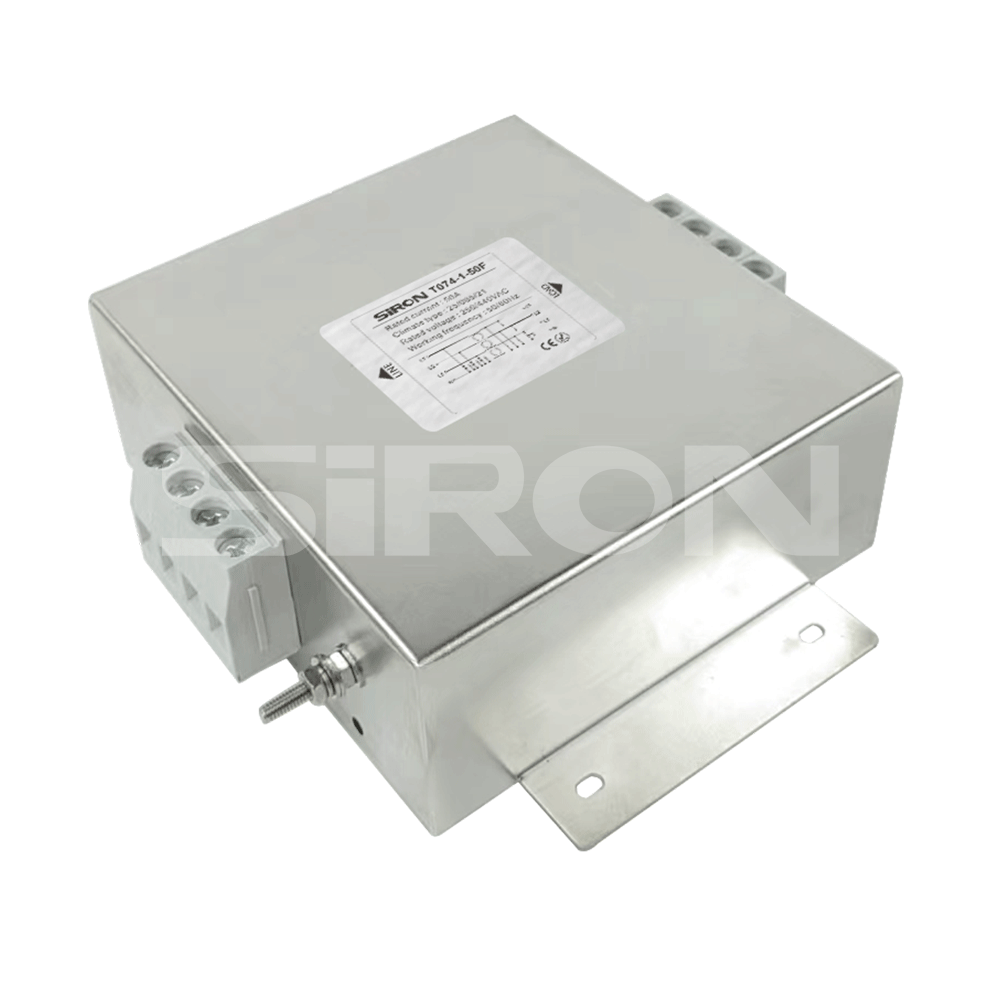

SiRON T074-1-F Series Three-phase Four-wire Filter(terminal)

Features
  • Three-phase four-wire AC 250VAC/440VAC power supply noise filter;
  • Fast terminal, easy to install, safe;
  • Good inhibition of common mode and differential mode interference.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • T074-1-F

  • SiRON

  • 8536901100

Four-wire Filter T074-1-F Filter terminal type Filter Three-phase filter
Product Description

Specifications

Model T074-1-10F T074-1-20F T074-1-30F T074-1-40F T074-1-50F T074-1-60F T074-1-80F
Rated current 10A 20A 30A 40A 50A 60A 80A
Leakage current <2.0mA <3.0mA <5.0mA <10.0mA
Voltage rating 250/440V AC
Operating frequency 50/60Hz
Testing voltage Wire-wire: 1500VDC; Line-ground: 2750VAC
insulationre sistance >50MΩ@500VDC
climate type 25/085/21

       tionmethod		 Terminal wiring

  Environmenttemperature		 -25~85℃

 Ambienthumidity		 <85%



Dimensions


Wiring Diagram
