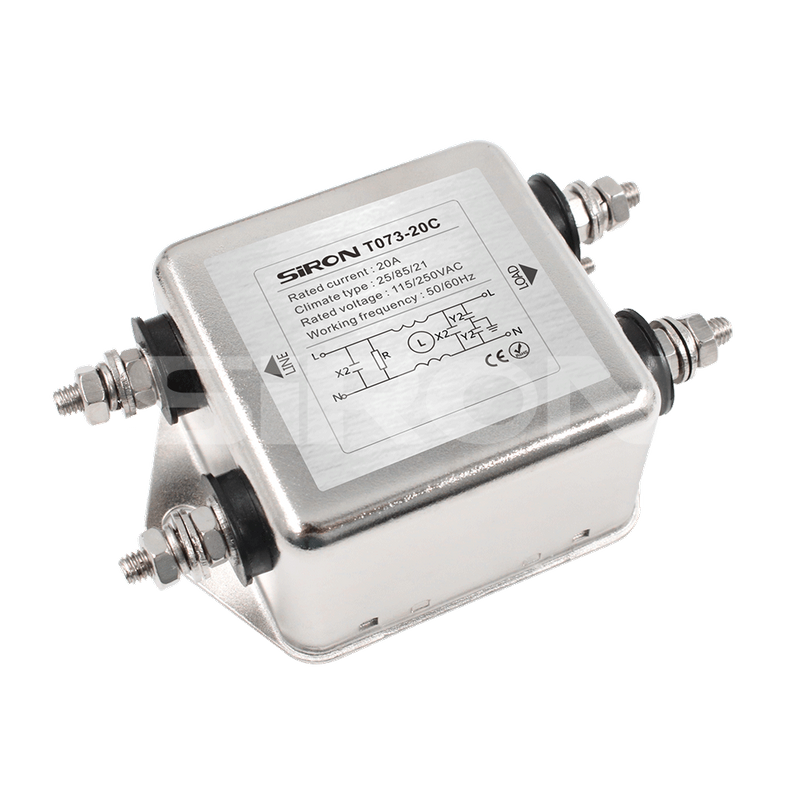

SiRON T073-C AC Single-phase Filter

SiRON T073-C AC Single-phase Filter

SiRON T073-C AC Single-phase Filter

SiRON T073-C AC Single-phase Filter

SiRON T073-C AC Single-phase Filter

SiRON T073-C AC Single-phase Filter

Features

General purpose;
Feature compact,Easy to install;
Three-phase AC filters;
Available for three phases,threelines series power supply equipments.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T073-C
Brand:
SiRON
Code:
8536901100

Single-phase AC filters T073-C 10A Filter General filter Screw-fixed type filter

Product Description

Specifications

Model	T073-10C		T073-20C			T073-30C
Rated current	10A		20A			30A
Leakage current	0.5mA
Voltage rating	115/250VAC
Operating frequency	50/60Hz
Testing voltage	wire-wire: 1500VDC; wire-ground: 2150VAC
Insulation resistance	>50MΩ@500VDC
Climate type	25/085/21
Connection method	Screw-fixed type
Environment temperature	-25～85℃
Ambienthumidity	<85%

Model	T073-40C	T073-50C		T073-60C	T073-80C		T073-100C
Rated current	40A	50A		60A	80A		100A
Leakage current	<2.0mA
Voitage rating	115/250VAC
Operating frequency	50/60Hz
Testing voltage	Wire-wire: 1500VDC; wire-ground: 2150VAC
Insulation resistance	>50MΩ@500VDC
climate type	25/085/21
Temperature rise	<30℃
Connection method	Screw-fixed type
Environment temperature	-25～85℃

Dimensions

Wiring Diagram
