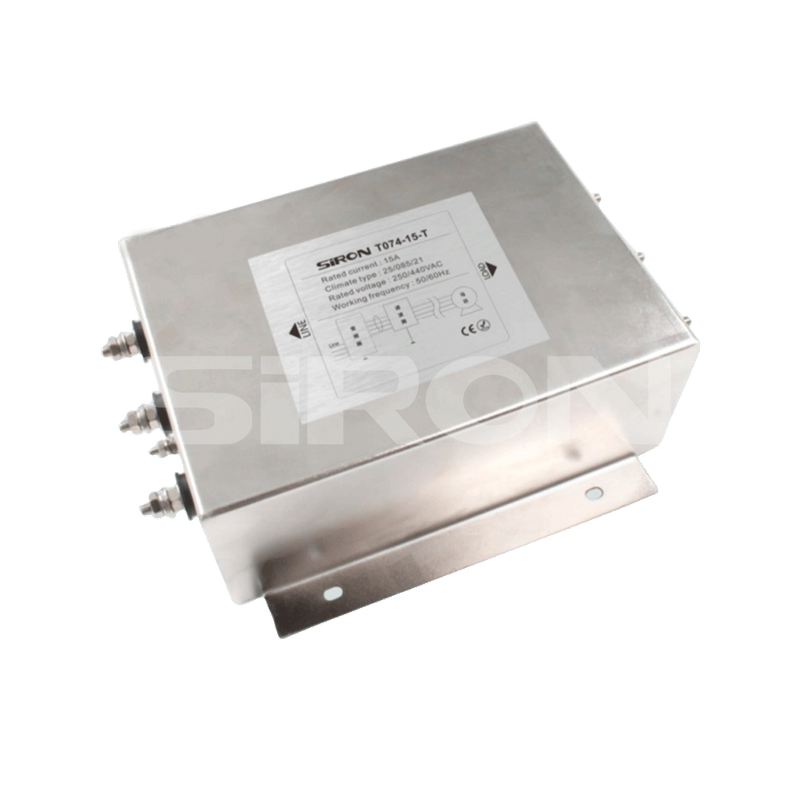

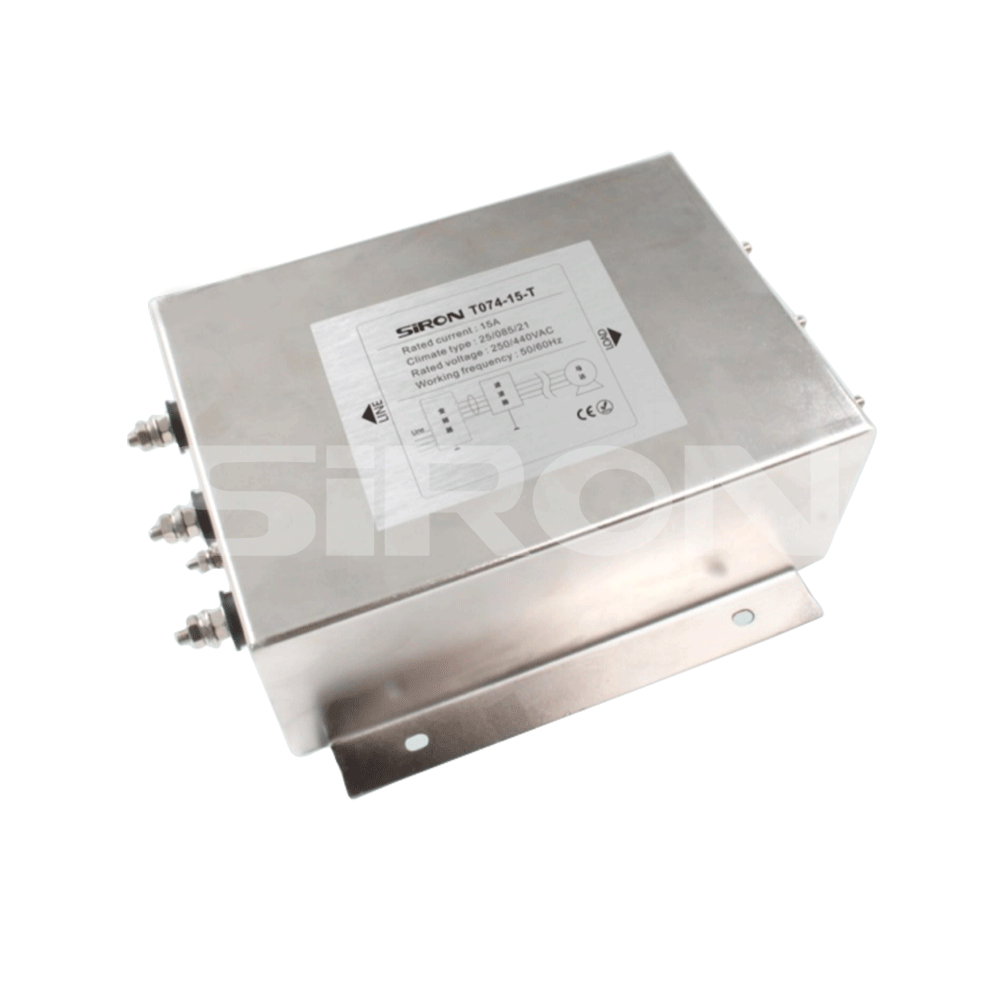

SiRON T074-T Series Three-phase Three-wire Filter (inverter Special, Output)

Features
  • Reduce frequency converter electromagnetic interference;inverter output special filter;
    Suitable for inverter
  • UPS and other AC/DC equipment output filtering loss.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • T074-T

  • SiRON

  • 8536901100

Three-wire Filter T074-T Filter inverter Special Filter Three-phase filter
Product Description

Specifications

Model T074-15-T T074-25-T T074-30-T T074-40-T T074-50-T
Ratedcurrent 15A 25A 30A 40A 50A
Conve rterpower 7.5 11.0 15.0 18.5 22.0
Model T074-60-T T074-80-T T074-100-T T074-120-T T074-150-T
Ratedcurrent 60A 80A 100A 120A 150A
Converterpower 30.0 37.0 45.0 55.0 75.0


Volitagerating 250/440VAC
open rating frequency 50/60Hz
Testing voltage Wire-wire: 1500VDC; Line-ground: 2250VAC
insulation resistance >200MΩ@500VDC
cimatetype 25/085/21
Temperaturerise <30℃
Environmentte temperature -25～85℃
Ambienthumidity <85%


Dimensions


Wiring Diagram
