H410
SiRON
8538900000
Order
| Model | Series Number |
| H410 | 1 |
Product Attributes
| Model | H410-1 | H410-2 | H410-3 | H410-3B |

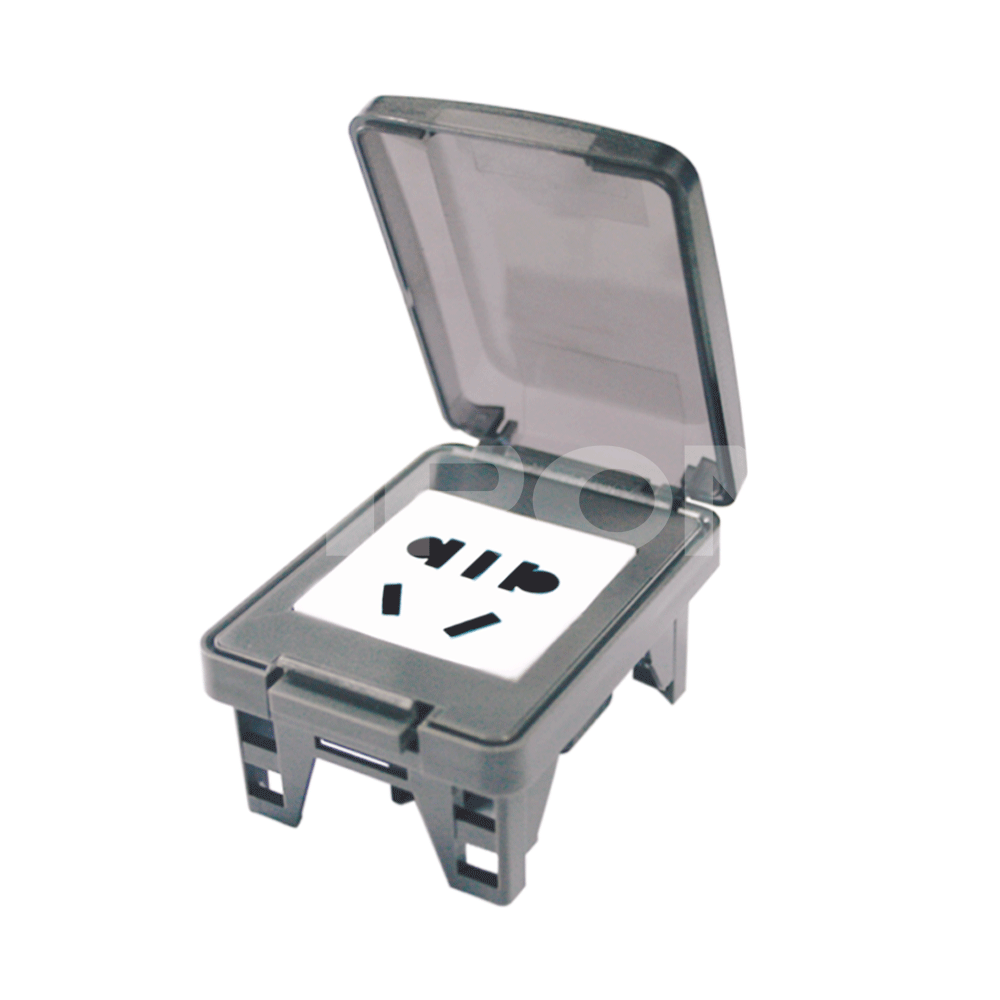

| Name | Protected Socket Panel Box | Protected Communication Interface Panel Box | ||

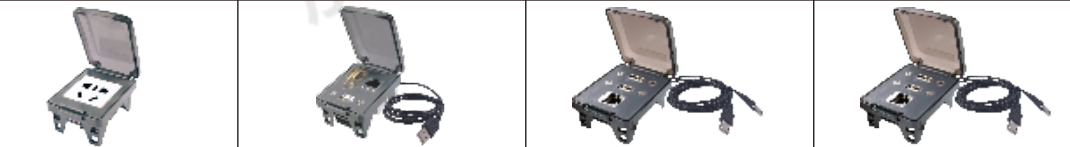

| Appearance |  | |||
| Fixing Screw | 一 | S45C Surface nickel plated | S45C , Surface is nickel-plated | |
| With standing Voltage | AC1250V/1分钟 | 一 | 一 | |
| Rating Current | 10A | 一 | 一 | |
| Rating Voltage | 220VAC | 一 | 一 | |
| Suitable Electric Wire | 2.5mm²/AWGB13 below | USB:2C×28AWG+1P×28AWG | USB:2C×24AWG+ 1P×28AWG | |
| IP Class | 50Hz/60Hz | |||
| IP Class | IP50 | |||
| Material of Top Cover | PC | |||
| Base | PC | |||
| Socket Panel | PC | |||
| Socket | PC | |||
| Data Interface Panel | PC | |||
| Seal Ring | Rubber | |||
| itting | PC | |||
| Standard wiring | 一 | 1 m ( 1pcs ) | 1m(2pcs) | 1m(2pcs) |
Standard Accessory

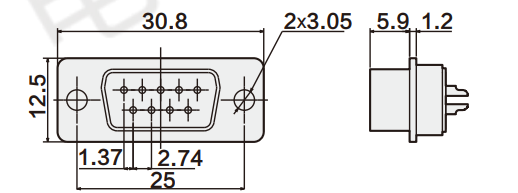

9-pin male connector (H410-2）
 | Contact Area Electroplated | 0.7μm gold 0.76μm Nickel | |||||
| Embedment Pressure | 4.3Kgmax | ||||||
| Contact Head Joint Means | Welded Type | ||||||
| Rating Current | 1A | ||||||
| Product Name | 9-core Male | Insulation Resistance | 5X108Ω 500VDC | ||||
| Male Material | Nickel Plated Steel | Rating Temperature | -20℃~-85℃ | ||||
| Insulator (inside) | Black Glass Filled Polyester | Suitable Cable | AWG22-28 | ||||
| Inflammability | UL 94V-0 | Extraction Pressure | 0.5Kgmin | ||||

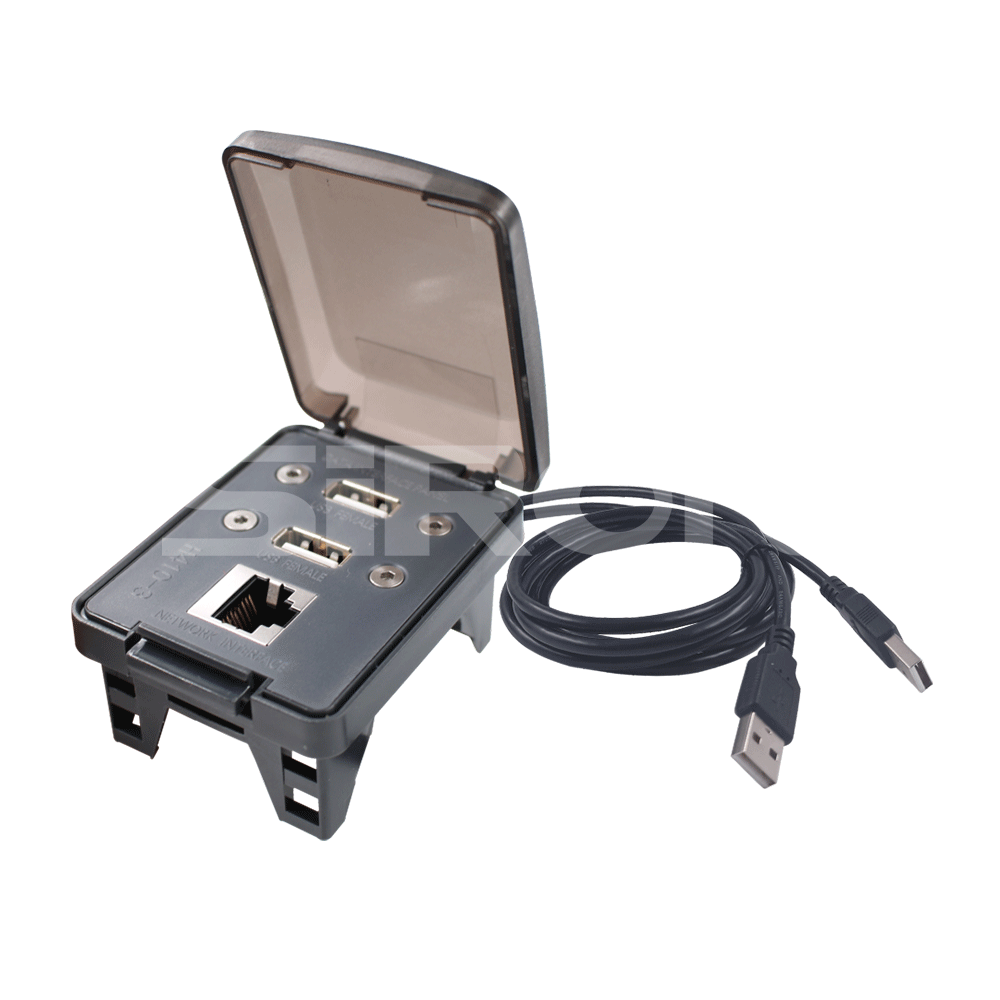

USB interface / network cable interface（H410-2 / H410-3 / H410-3B）
| Model | H410-2/H410-3 | H410-3B |
| Product Name | USB Interface/Network Cable Interface | |
| Rating Voltage | 125VAC | |
| Rating Current | 1.5A | 2A |
| Insulation Resistance | 1000MΩ 500VDC | |
| Contact Resistance | 400mΩmax | |
| Max.Matings | 750 time min | |
| Material of Protecting Cover | Engineering Plastics | |
| Inflammability | VL94V-0 | |
