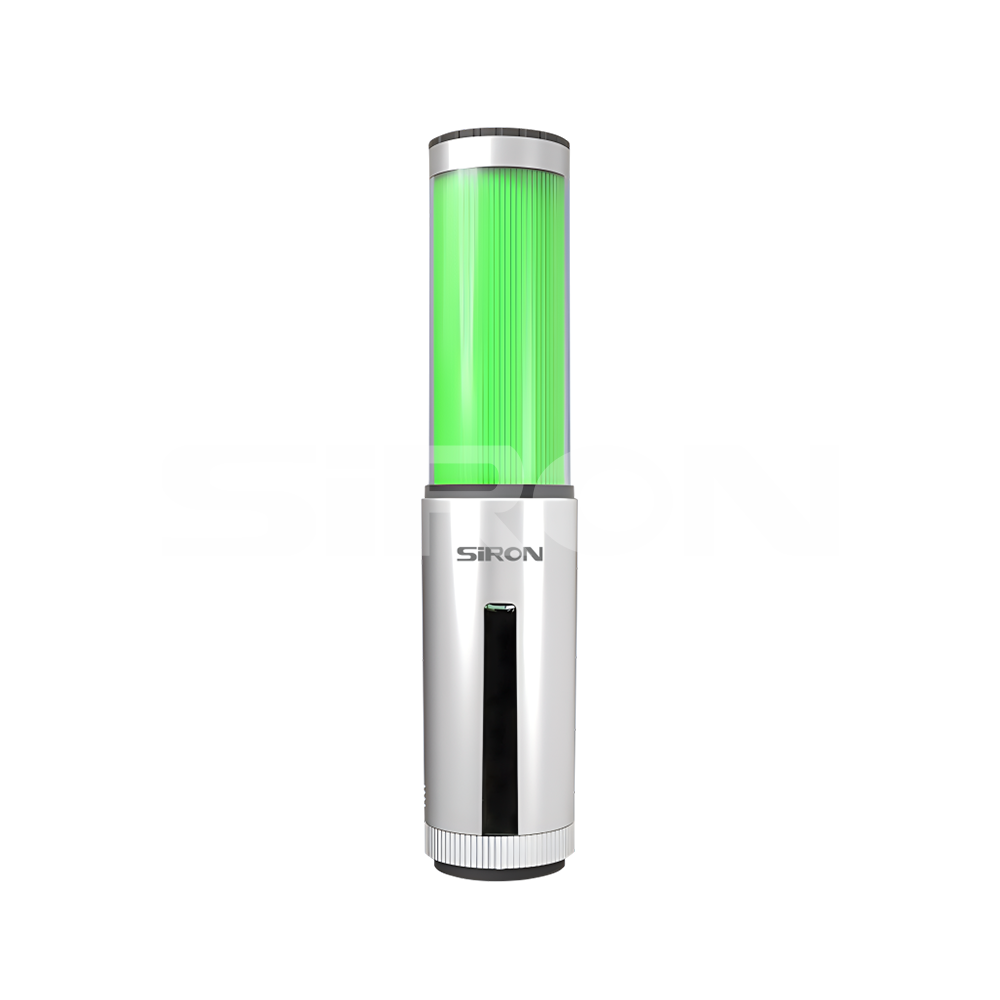

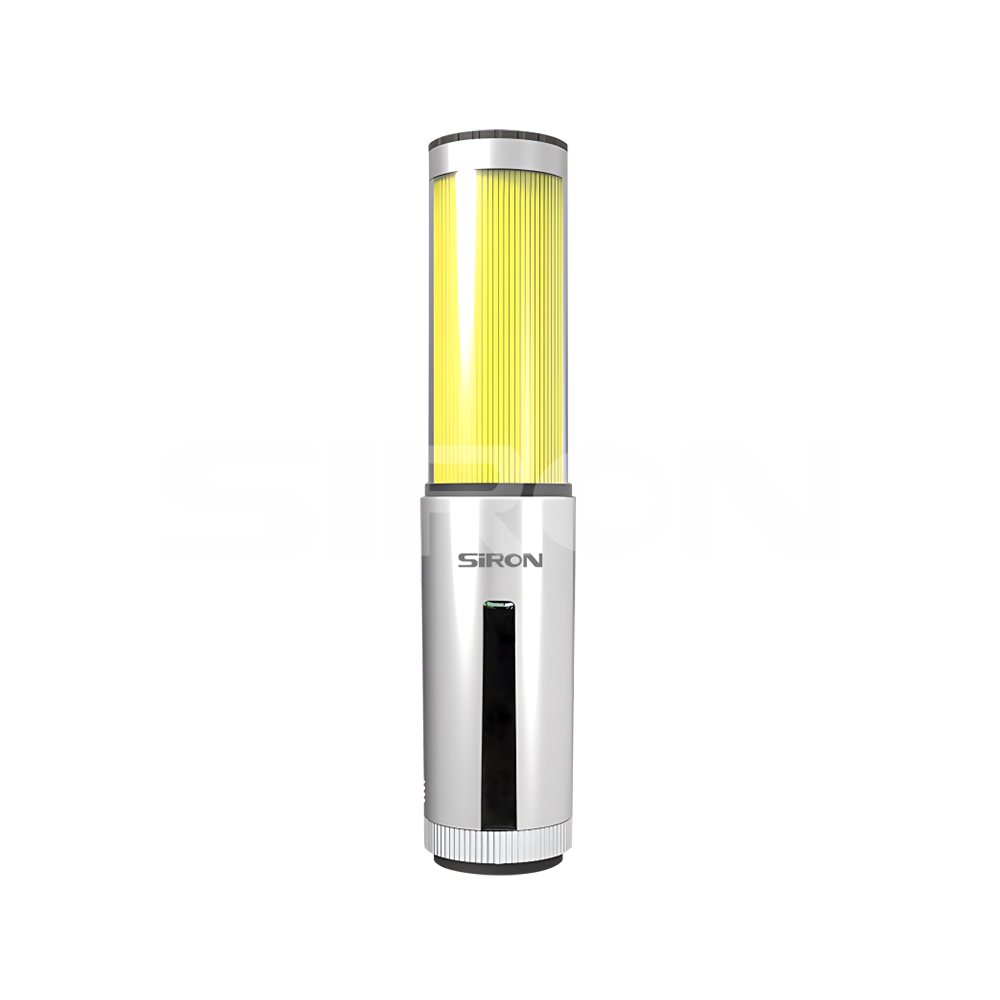

SiRON D010-2 Series LED Machine Tool Warning Light

Name: SiRON D010-2 Series LED Machine Tool Warning Light
Brand: SiRON
Rating: 5.0 (75 reviews)

Features:

*Exquisite and beautiful appearance. Double lampshade design, light soft and bright.

*Built-in buzzer up to 85 dB or more. Imported LED color chip bright spot.

*Disc mounting is integrated, with the equipment. It can bend 90 degrees during transportation.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION


Model analysis
①	LED machine tool warning light series	D010-2
②	Color layers（Acquiesce）	1：single layer
③	Color selection (Articles made to order）	R：Red Y：Yellow G：Green (Color order from top to bottom)
④	Working condition	Blank: Always on B: Always on with buzzer S: Flashing Q: Flashing with buzzer
⑤	Connection mode	Blank: commonpositive/negativeUniversal C: contacttype
⑥	Rated voltage	Blank：24VDC 220：220VAC

Specifications

Model number	D010-2-1
Appearance
Input voltage/lnput current	Input voltage:24V DC/220V AC Input current:60 to 190mA
ThematerialCase color	Material:Lamp shade PC+lamp shell ABS Shell color:silver
Power	1.4W~4.5W
Lhigtsource/Luminous angle	Light source:Patch 2835 LED luminous Angle:360°
Sound intensity/Class of protection	Sound intensity.Buzzer>90 dB Protection level:P40
Color layer	Single layer 3 color
Working condition	Steady/steady with buzzer/Shiny/shiny with buzzer
Installation mode	Bending type
Service life/Standard wiring length	Service life:50000h Wiring length:1500mm
Connection mode	Direct power input type (common positive/negative)/contact typeOperating
Operating temperature/Storage temperature	Temperature:-20~45℃ Storage temperature:-40~70℃
Operating humidity/Storage humidity	Operating humidity:10~90%Storage humidity:10~90%
Luminescent lamp source color	Red Yellow Green
