D018-1/2/3 Series
D018-1/2/3 Series
9405410000
ABOUT SELECTION
|
|

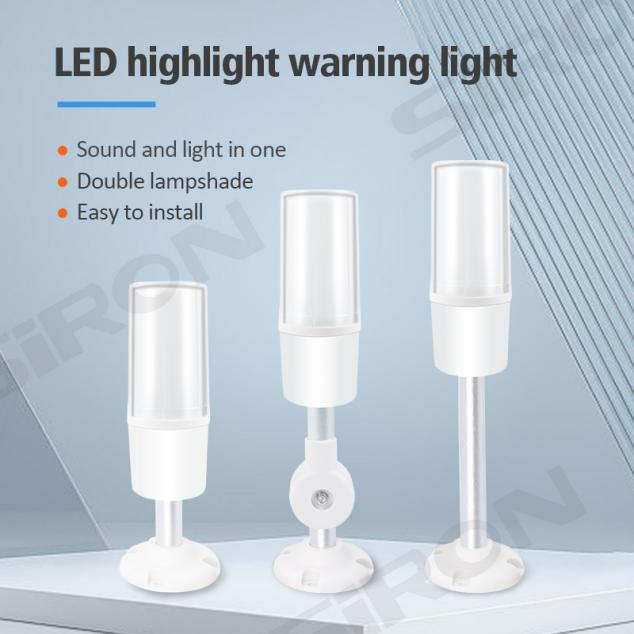

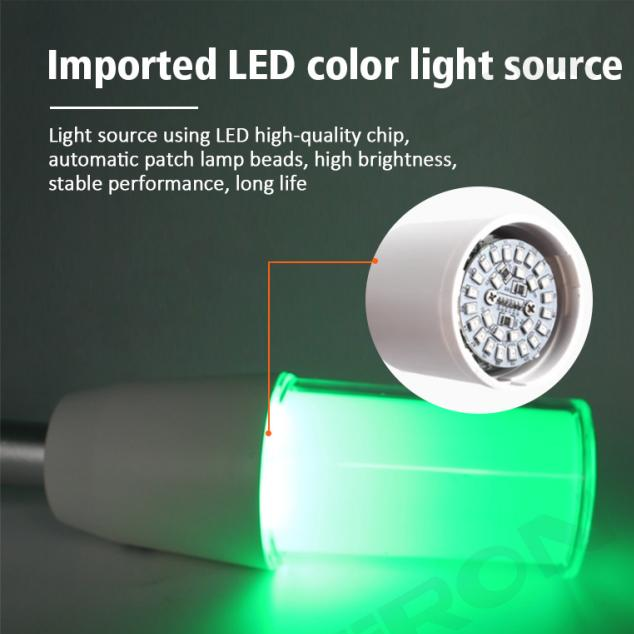

LED highlight warning light Sound and light in one Double lampshade Easy to install | Imported LED color light source Light source using LED high-quality chip, automatic patch lamp beads, high brightness, stable performance, long life |
|
|

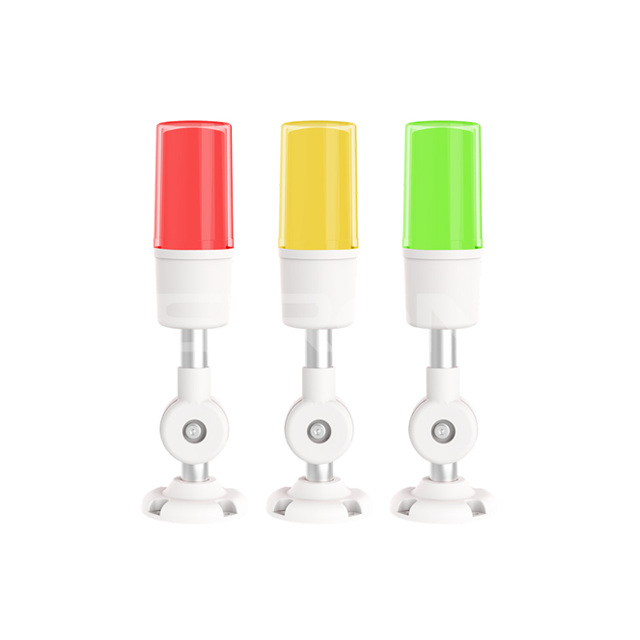

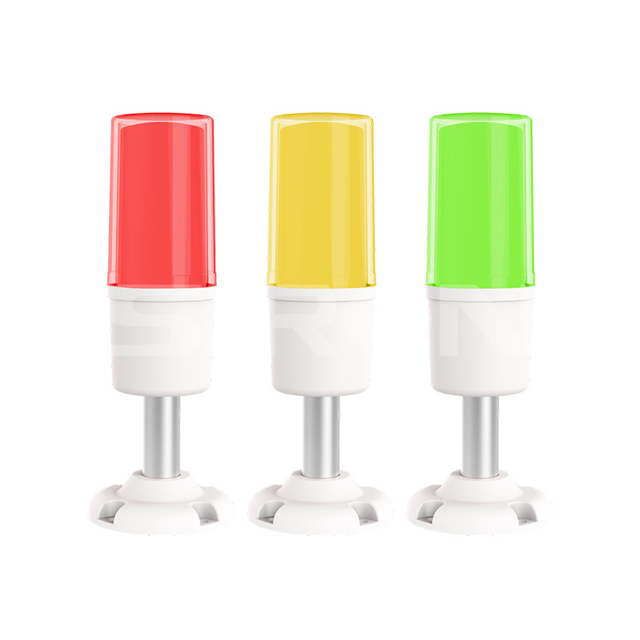

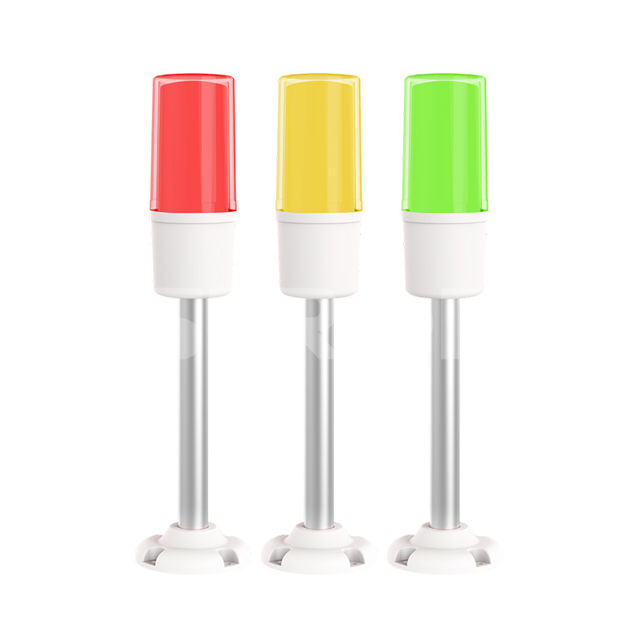

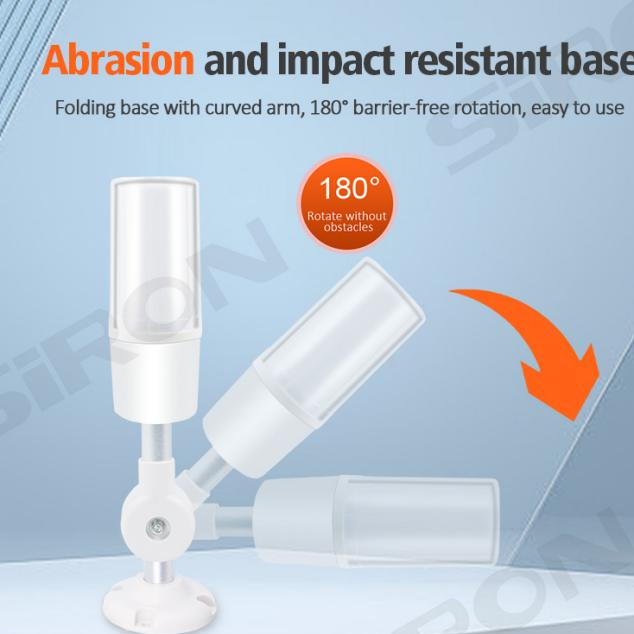

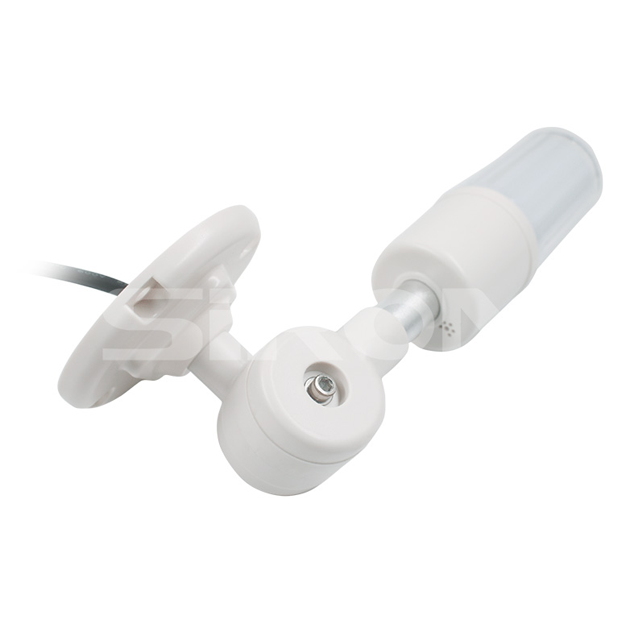

Abrasion and impact resistant base Folding base with curved arm, 180 barrier-free rotation, easy to use | Provide various specifications Short arm D018-1 Bent arm D018-2 Long arm D018-3 |

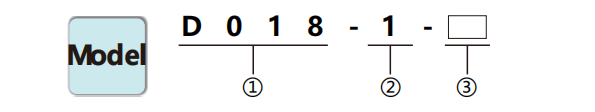

About selection
| ||
① | LED signal light series | D018 |
② | Installation mode | 1:Short arm 2:Bent arm 3:Long arm |
| ③ | Working status | Blank:Always on B:Always on with buzzer S:Flashing Q:Flashing with buzzer |
Specifications
Model | D018-1 | D018-2 | D018-3 |
Appearance | |||
Installation mode | Short arm | Bent arm | Long arm |
Input voltage | 24V DC | ||
The material | Lamp shade PC+lamp body ABS+lamp pole aluminum alloy | ||
Appearance color | White | ||
Power | 3W | ||
Lhigt source | Imported LED chip | ||
Sound intensity | >85 dB | ||
Class of protection | IP54 | ||
Working condition | Always on/Always on with buzzer/flashing/flashing with buzzer | ||
Service life | 50000h | ||
Standard wiring length | Standard 1500mm | ||
Luminescent lamp |
| ||

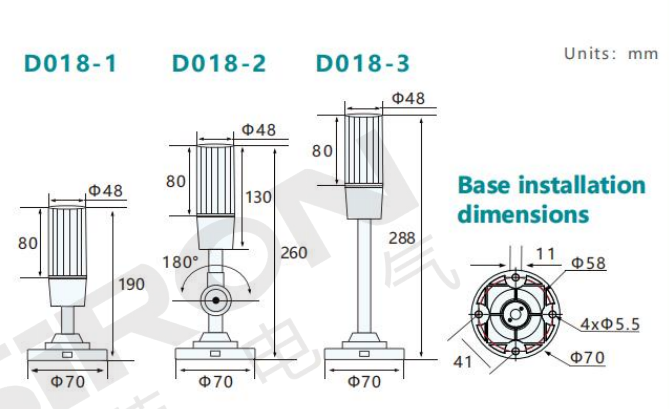

External Drawing

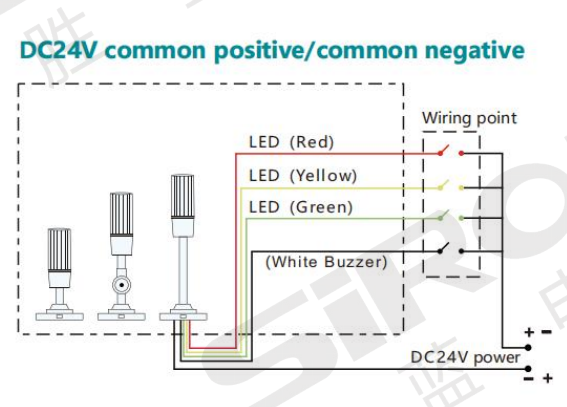

Wiring diagram
