Stable performance D014 Signal Tower Light

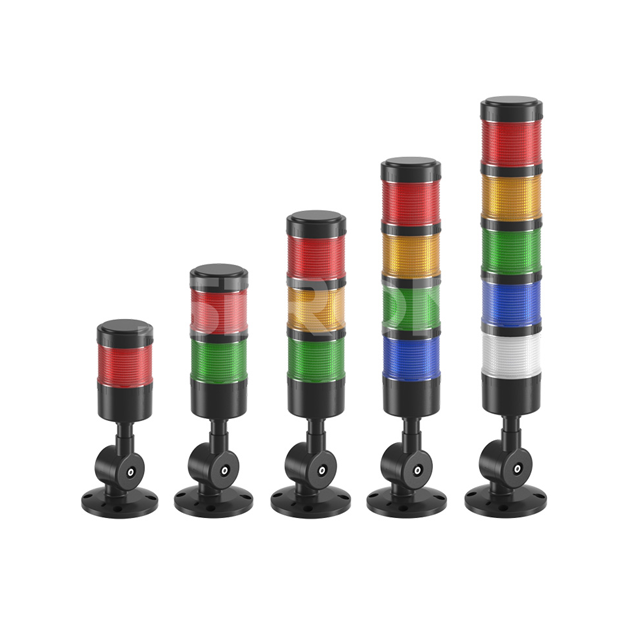

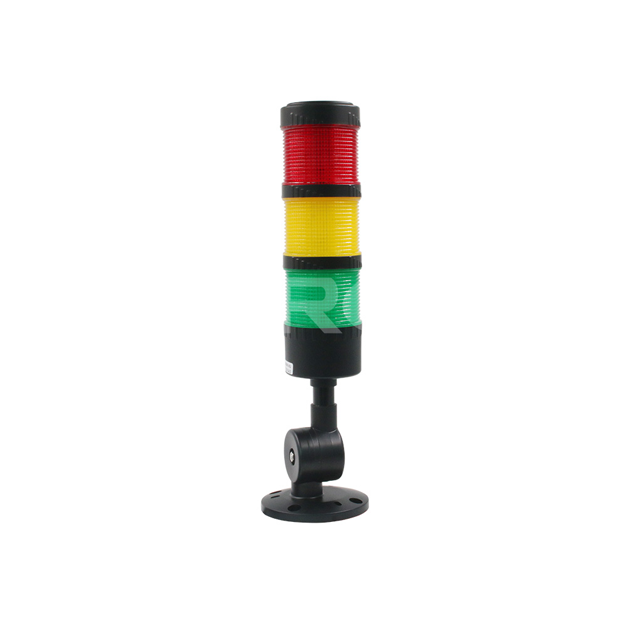

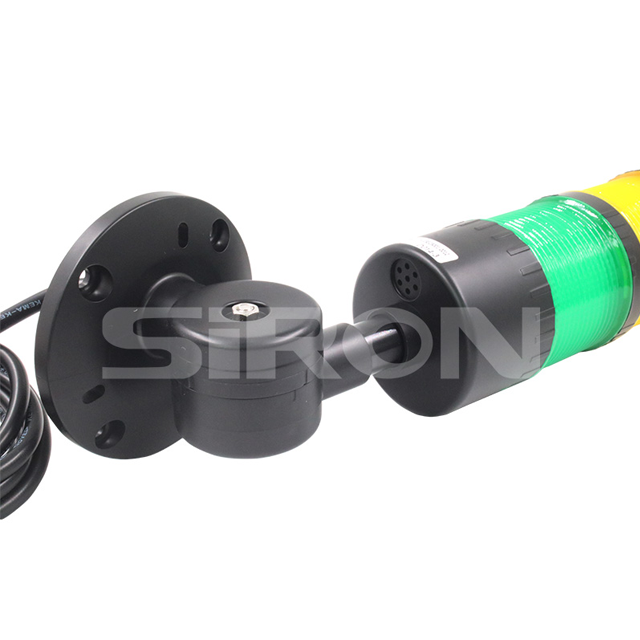

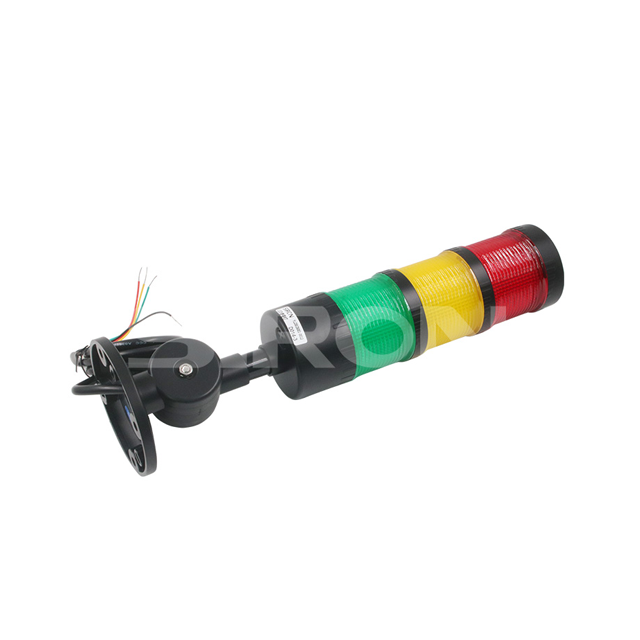

SiRON D014 Series LED Signal Light /RS485 Intelligent Signal Light

Name: SiRON D014 Series LED Signal Light /RS485 Intelligent Signal Light
Brand: SiRON
Rating: 5.0 (56 reviews)

Features:

* Hybrid prism improve long-distance visual performance.
* The use of dual mirror structure to produce a distinctive color recognition effect.
* Heat-resistant and impact-resistant.

Quantity:
Availability:





Inquire Add to Basket

Model:
D014 Series
Brand:
SiRON
Code:
9405410000

Industrial Lighting LED Signal Tower Light Energy saving Highlight light beads Intelligent control CE certification

Product Description

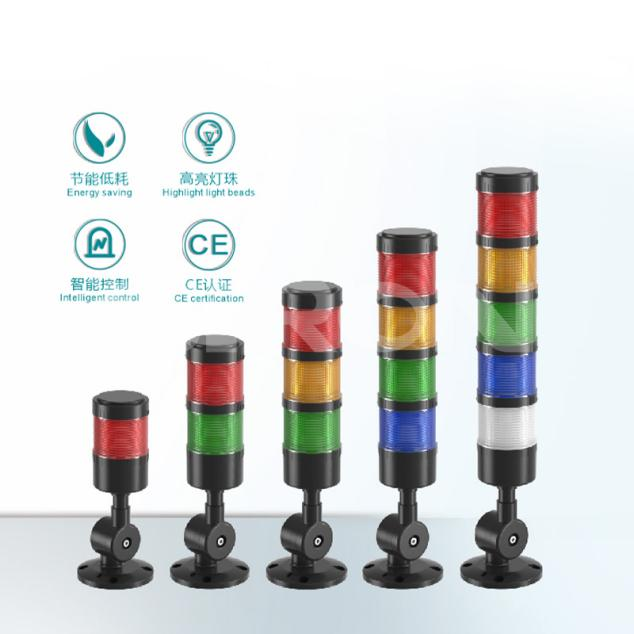

ABOUT SELECTION

Energy saving

Highlight light beads

Intelligent control

CE certification

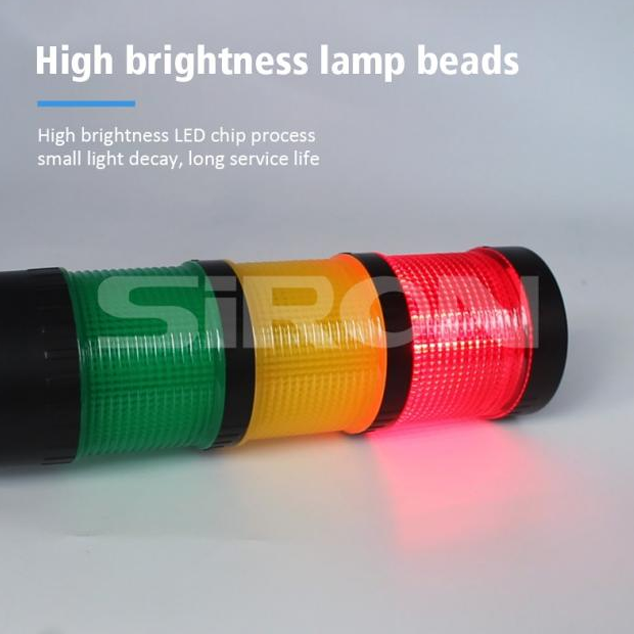

High brightness lamp beads

High brightness LED chip process small light decay, long service life


Model analysis
①	LED signal light series	D014
②	Non-smart/smart	Blank:Warning light (Z):RS485 intelligent warning light
③	Number of color layers	1:Single layer 2:Two layers3:Three layers 4:Four layers 5:Five layers
④	Working status	Blank:Always on B:Always on with buzzer S:Flashing Q:Hashing with buzzer
⑤	Signal polarity	Blank:NPN P:PNP

Note:

1. D014-1 is single-layer and three-color;

2. light source color can be customized(R-red,Y-yellow,G-green,B-blue,W-white)Example:Custom model D014-4(RYBW)-indicates four layers of signal lights,light source color (from the lampshade top-down)are red,yellow,blue,white.Steady on,NPN is positive.If you need to customize,please contact our sales staff;

3. D014(Z)-3 color layer can only choose 3 layers,light source color can not be customized;

4. D014(Z)-3 working state can only be steady on,D014 total positive bright and shiny with buzzer is not optional;

5. D014(Z)-3 No signal polarity is optional.

Specifications

Model	D014-1	D014-2	D014-3	D014-4	D014-5	D014(Z)-3
Appearance
Luminescent lamp source color
Layer number of color	Single-layer three-color	Two-layers two-color	Three-layers three-color	Four-layers four-color	Five-layers five-color	Three-layers three-color
Nominal voltage	24VDC
Rated current	Multi-layer multi-color.red 0.07A,yellow 0.09A,green 0.06A,blue 0.06A,white 0.06A Single-layer monochrome:red 0.03A yellow 0.035A,green 0.015A,blue 0.015A,white 0.015A
Installation method	Bend
Working status	Always on/Always on with buzz/flashing/flashing with buzz					Always on
The material	Light shade ABS+Light shell translucent PC
Protection grade	IP20
Bean Angle	360°
Service life	50000h
Environment temperature	-25~55℃
Signal polarity	NPN common positive electrode /PNP common negative electrode
Standard wiring length	Standard 1500mm					USB wire length 1000mm

Intelligent Warning Light Description

Play packet details

Support asynchronous serial port communication mode, through the serial port to receive the command sent by the host computer communication standard (baud rate):9600bps	Format:$SCMDpara1 para2 $O
	$	CMD	para1	para2	$o
Data bit:8	start bit 0×7E	Command word	Parameter 1	Parameter 2	End bit0xEF
Stop bit:1 Check bit:none Flow control:none	Each command feedback starts with $, That's Ox7E	Indicates a specification Such as control/ query, etc	Parameter 1	Lights on or off	End bit0xEF

Control instruction code

Sent command	7E AA0100 EF	7E AA 0101 EF	7E AA0200 EF	7E AA0201 EF	7E AA0300 EF	7E AA0301 EF	7E AA0000 EF	7E AA 0001 EF
Explain	D1 (yellow light)off	D1 (yellow light)on	D2(green)Off	D2(green light)on	D3(red light)off	D3(red light)on	AIl-OFF	Full open
For example,if you want to specify turning on a red light (Section 3 light),you need to send 7EAA0301EF return code:Success 00 failure 01

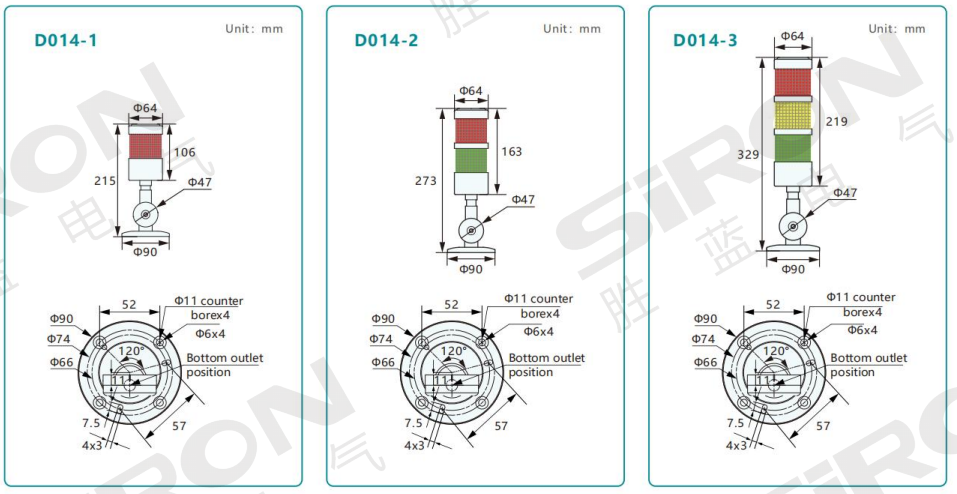

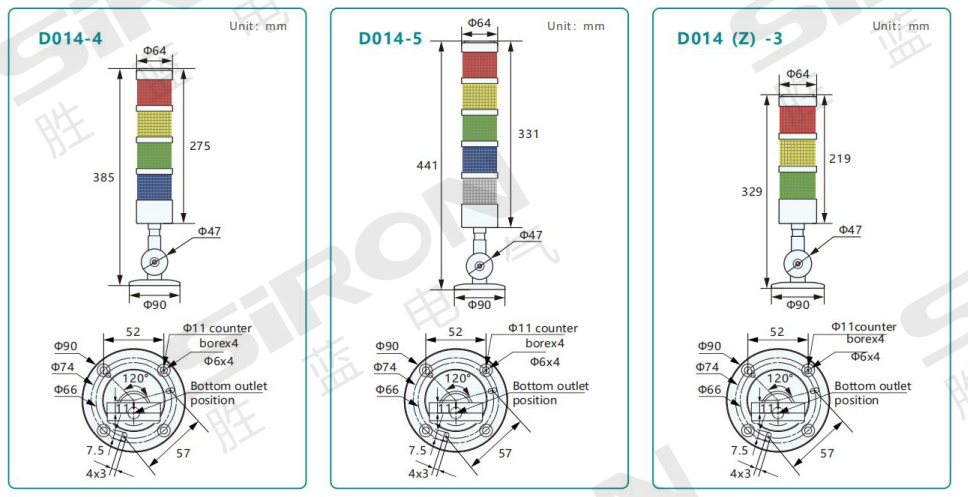

External drawing

Wiring diagram

Intelligent warning light description

Query instruction code
7E 000000 EF	Example Query the current indicator status

Query return code

7E BB0101EF

7E BB 0201 EF

7E BB 0301 EF

7E BB0401 EF

7E BB 0501 EF

7E BB 0601 EF

7E BB 0000 EF

7E BB 0001 EF

D1(yellow light)on

D2(green light)on

D3(red light)on

D1(yellow light)+

D2(green light)on

D1(yellow light)+D3(red light)On

D2(green light)+D3(red light)on

Lights-all

The product is powered on by default,that is,return:7E BB 0001 EF

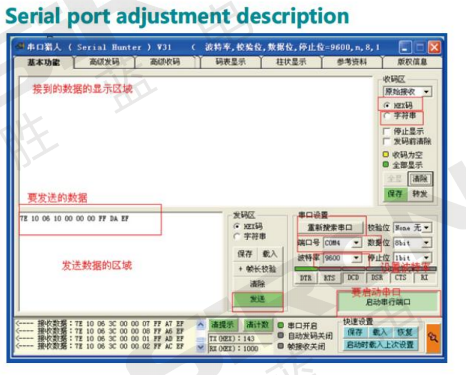

1. First download a software on the Internet"serial hunter",why choose this,because it has the function of automatic search serial port is very useful.After opening the main interface is shown in the figure,you can see the red parts,set in turn.

2. open the software,first to search the serial port,find the specified port,specify "baud rate",the default baud rate of our product is 9600,and finally"start serial port",so that the software is configured.There are two concepts that need to be clarified:the first is the "HEX code",we default to this,this is used to display data,so it must be set here.The second is "string",this is used to display printed characters,we do not use here.

3. After the software configuration is OK,copy the required instructions to the sending area.Refer to the document instruction table for specific instructions.
