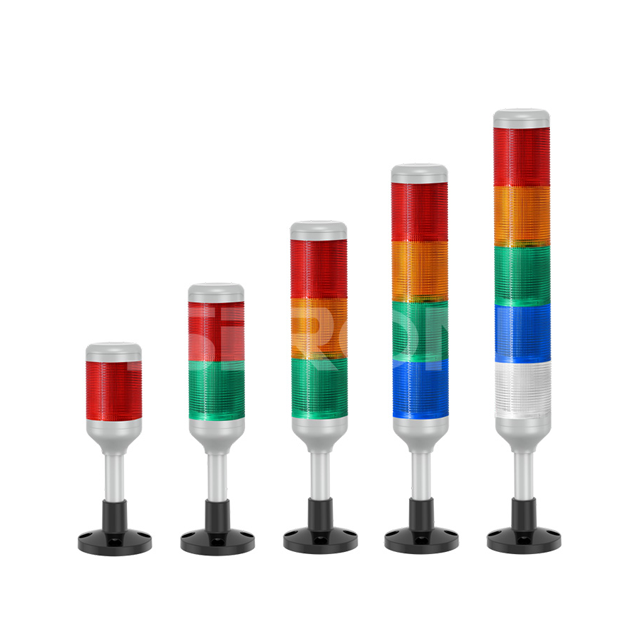

SiRON D013-1
SiRON
9405410000
ABOUT SELECTION
|
|

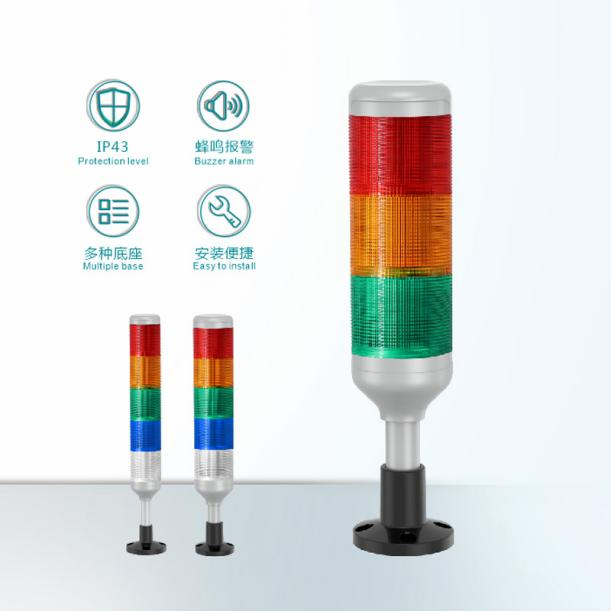

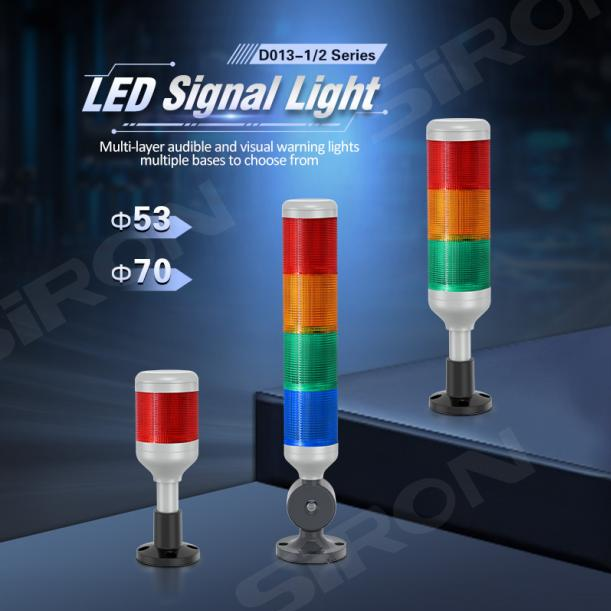

IP43 protection level Buzzer alarm Multiple base Easy to install | Multi-layer audible and visual warning lights multiple bases to choose |
Model |
D013-1 ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ | ||
Type analysis | |||
① | LED signal lamp series | D013-1 | |
② | Diameter | A:φ53 B:φ70 | |
③ | Installation mode | Blank:Bent type 1:Upright type 2:L-shaped bracket | |
④ | Rod length (No need to select this item for the bent type) | Blank:10cm L1:15cm L2:26cm | |
⑤ | Number of color layers | 2:Layer 2(RG)3:Layer 3(RYG)4:Layer 4(RYGB)5:Layer 5(RYGBW) | |
⑥ | Number of color layers | R:Red Y:Yellow G:Green B:Blue W:White | |
⑦ | Working status | B:Always on with beeping/Shining with beeping(Default constant on,adjustable flashing) | |
⑧ | Sound type | Blank:Continuous note J:Discontinuous note | |
⑨ | Rated voltage | Blank:24V AC/DC 220:220V AC | |
Note:1.The φ70 type without bending is available as an option. | |||
2.The vertical/L-shaped brackets can be customized in terms of the length of the rods. | |||
Specifications
Model number | D013-1A | D013-1B |
Appearance |
|
|
Voltage | 24V AC/DC 220V AC | |
The material | Lamp base:ABS Lampshade:Polycarbonate resin Straight rod:Made of aluminum alloy,electroplated | |
illuminating | High-brightness LED light-emitting diode 3528 | |
Working condition | Constantly on with beeping/Shining with beeping(default:constantly on,can be adjusted to shining) | |
Sound type | Continuous sounds/discontinuous sounds | |
Sound intensity | Max 95dB(10cm horizontally from the sound source) | |

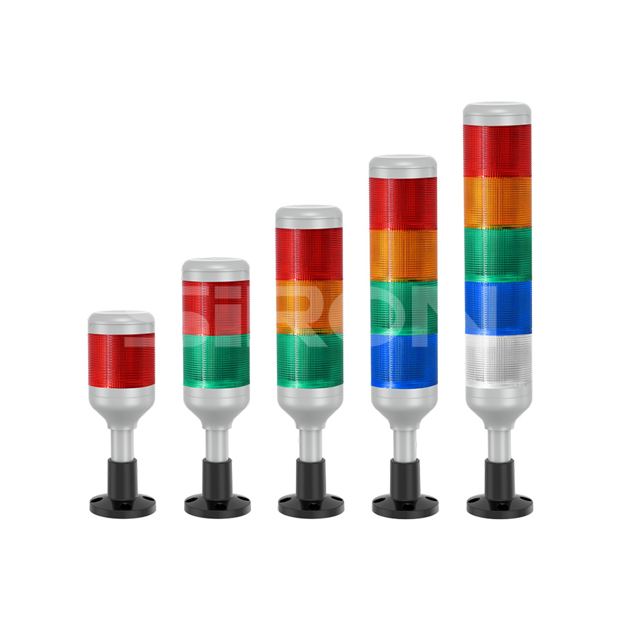

Color layer | Layers 1 to 5 (The color sequence can be freely changed) | |
Connection mode | NPN/PNP common | |
Installation mode | Bent type/upright type/L-shaped bracket | |
Protection grade | IP43 | |
Service life | 100000h | |
Standard wiring length | 600mm | |
Luminescent lamp |
| |

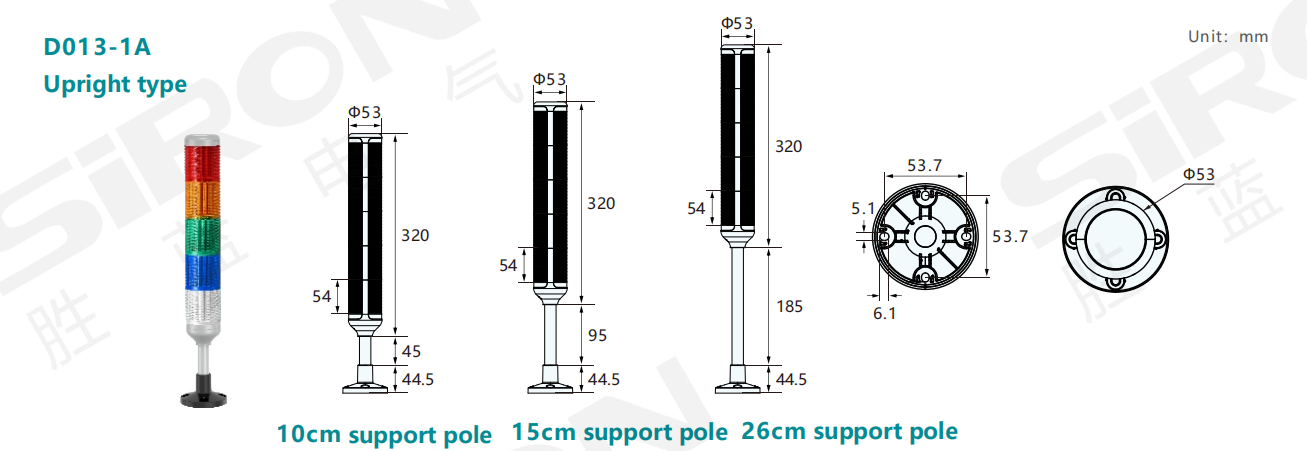

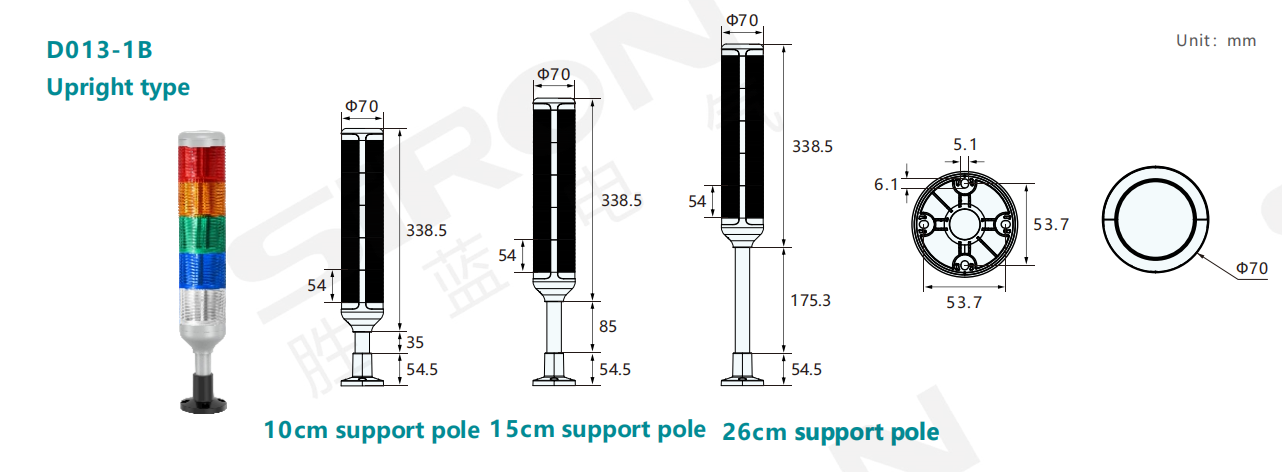

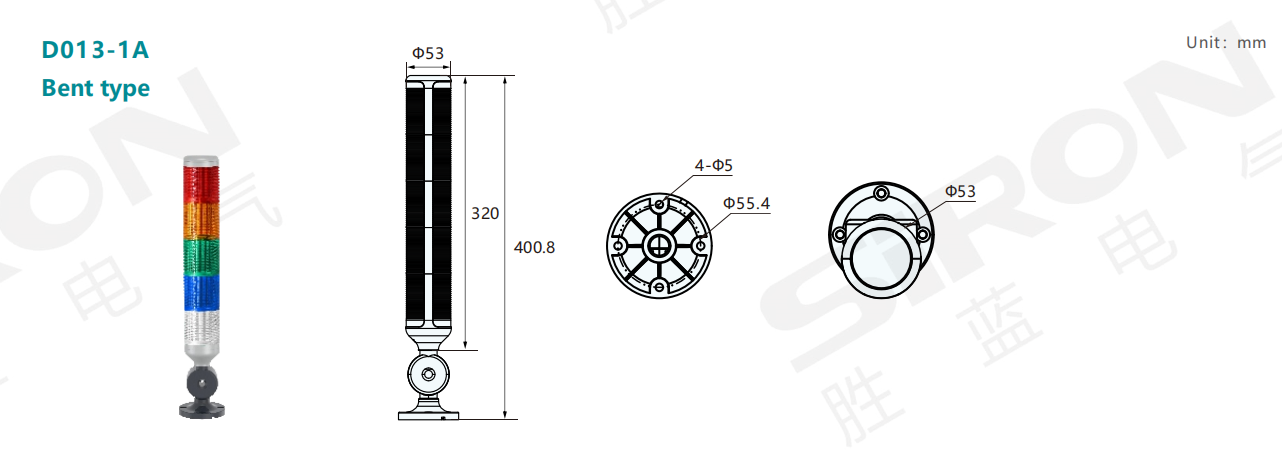

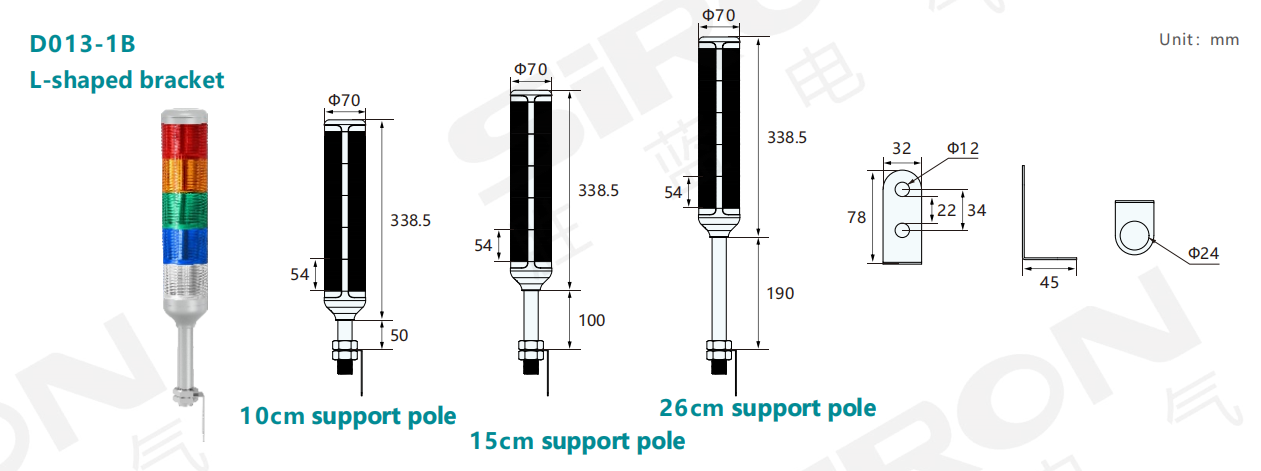

External drawing

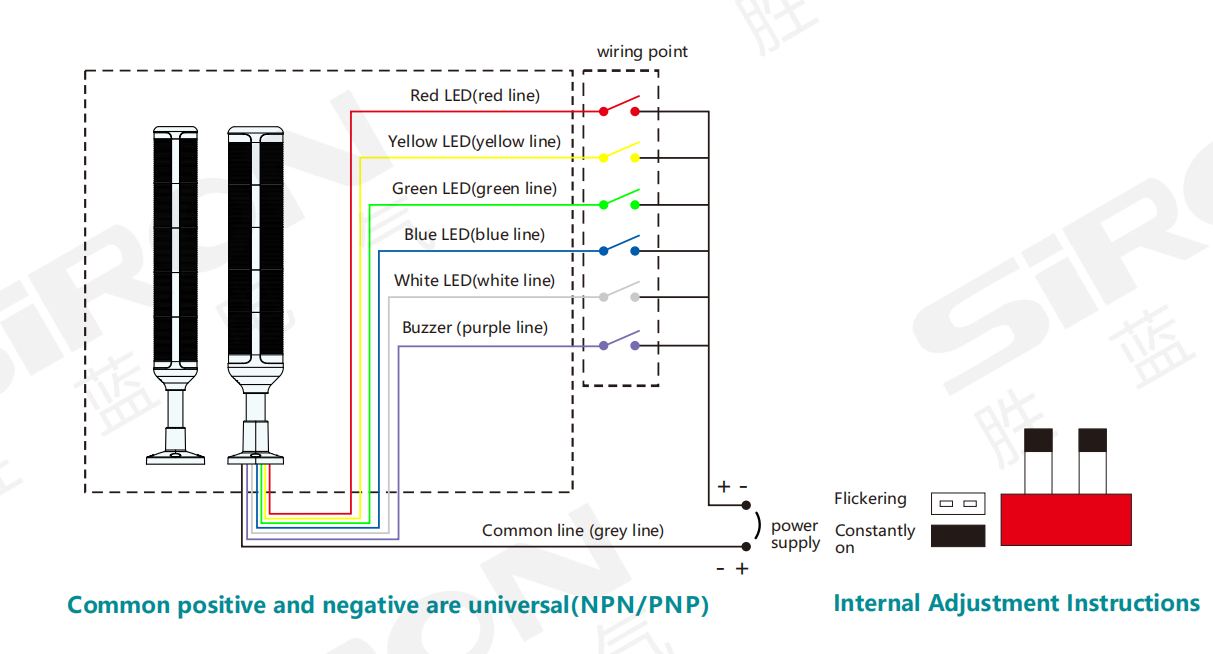

Wiring diagram
