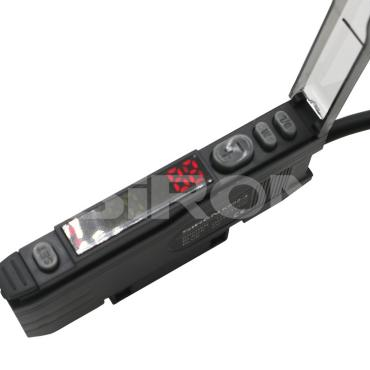

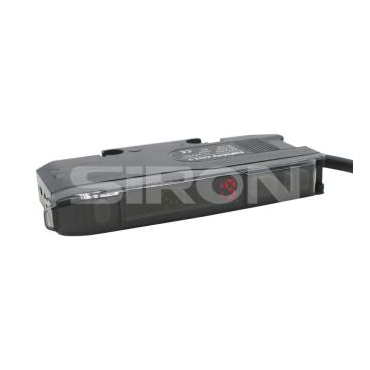

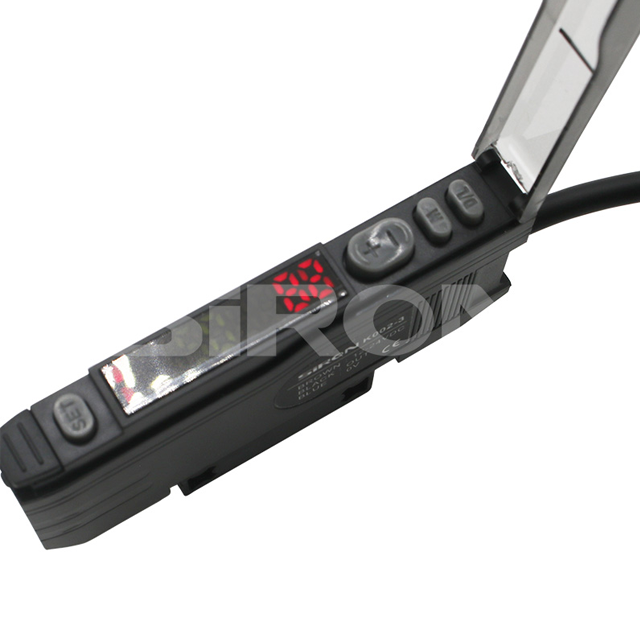

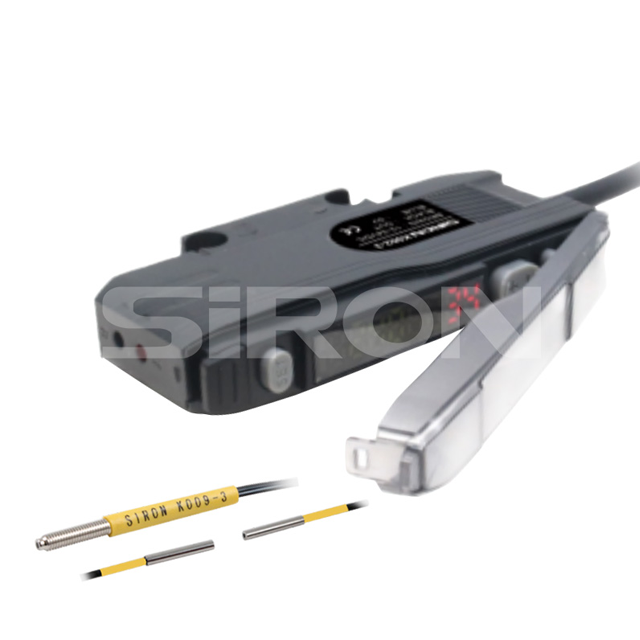

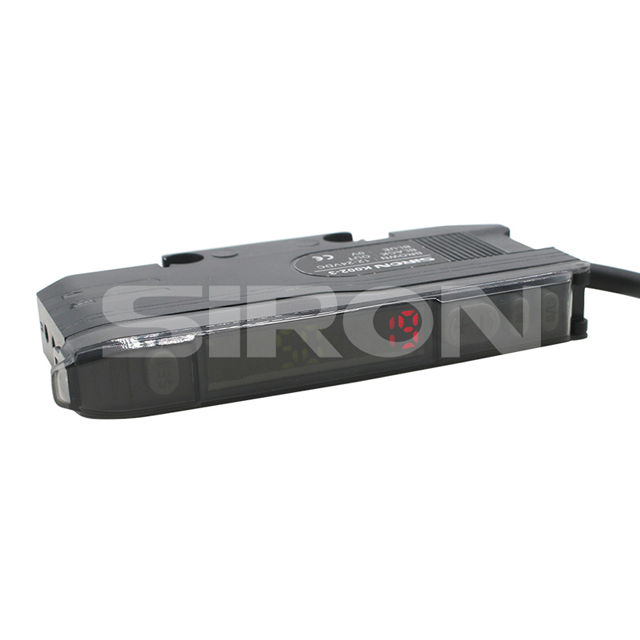

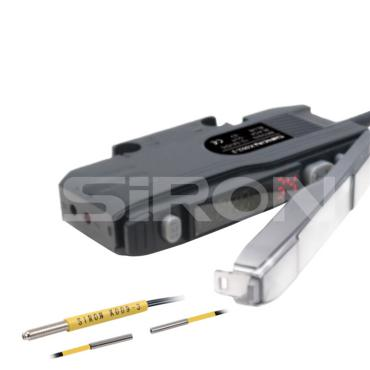

K002-3 Fiber Amplifier

As a trusted K002-3 fiber amplifier manufacturer, SiRON Electrical delivers advanced optical sensing solutions built for precision, reliability, and industrial performance. The high-sensitivity K002-3 fiber amplifier ensures accurate detection of even the smallest changes in light levels, while its fast-response K002-3 fiber amplifier design provides immediate signal processing for high-speed automation systems. Engineered to minimize interference, the low-noise K002-3 fiber amplifier delivers stable and consistent performance in demanding environments. With its waterproof K002-3 fiber amplifier housing, it offers dependable operation in moisture-prone or dust-heavy conditions. Designed for user convenience, the easy-to-install K002-3 fiber amplifier supports quick setup and seamless integration with leading PLC brands such as KEYENCE, MITSUBISHI, OMRON, Panasonic, FUJI, AB Allen-Bradley, and YOKOGAWA. Reflecting SiRON’s philosophy of “Endless innovation, Everlasting operation,” this fiber amplifier provides the high accuracy and durability required by modern industrial automation applications worldwide.

Fiber optic amplifiers need to be used with fiber optic components

Example

Inspection of packaging materials

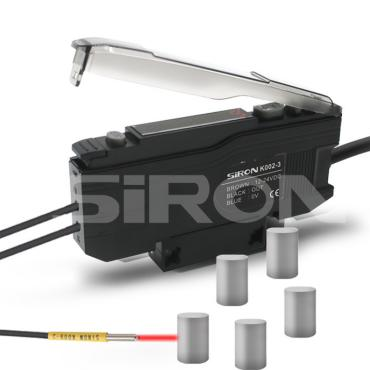

Test the application of connector pins

Specifications

Name	High-speed dual-digital optical fiber amplifier
Model	K002-3	K002-3P

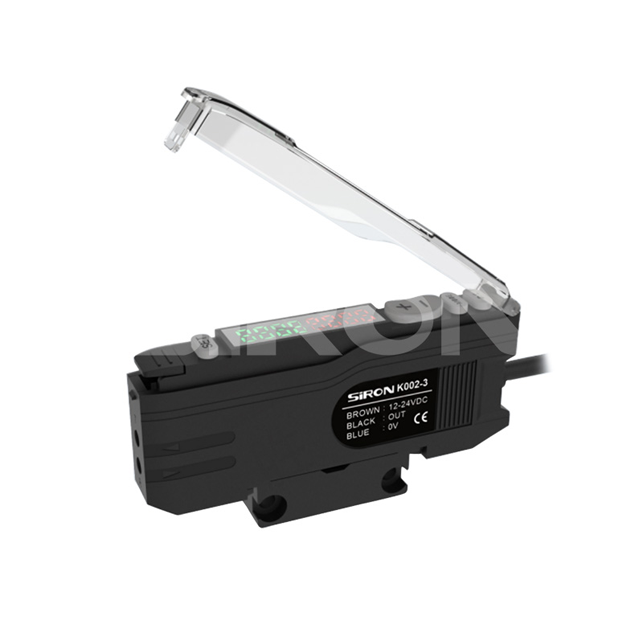

Appearance
Supply voltage	DC12~24V+10%
Current consumption	≤40mA
Light source	4-element red light-emitting diode 630nm
Detection distance	Reflection :300mm,opposite reflection:1500mm
Response time	P0:<50us;P1:<200μs;P2:<400μs;P3:<8004s;P4:<4ms
Frequency of response	10KHz
Delay function	No delay/Single delay/high delay/low delay
Output mode	The collector of NPN is open-circuited	The collector of PNP is open-circuited
Maximum input current	100mA
Maximum residual voltage	<1V	<2V
Switch mode	Light-on(Light entry action)/dark-on (light blocking action)can be switched
Display	Threshold setting value:4-digit green LED Current collected value:4-bit red LED
Ambient ilumination	Incandescent lamp 3000Lux;Sunlight 10,000 lux
Ambient temperature	Operating temperature:-10℃ to 55℃ Storage :-25℃to 70℃,no freezing
Ambient humidity	During operation:35%-85%RH Storage :35%-95%Rh,no condensation
Protection circuits	Polarity reverse connection protection/surge protection/short circuit protection
Degree of protection	IP64
Connection	Lead-out type(3 cores standard wire length 2 meters)
Housing material	ABS
Vibration resistant	10-55Hz,dual amplitude 1.0mm,30 minutes each in the XY/Z directions
Impact-resistant	300m/S2,3 times each in the XN/Z directions
