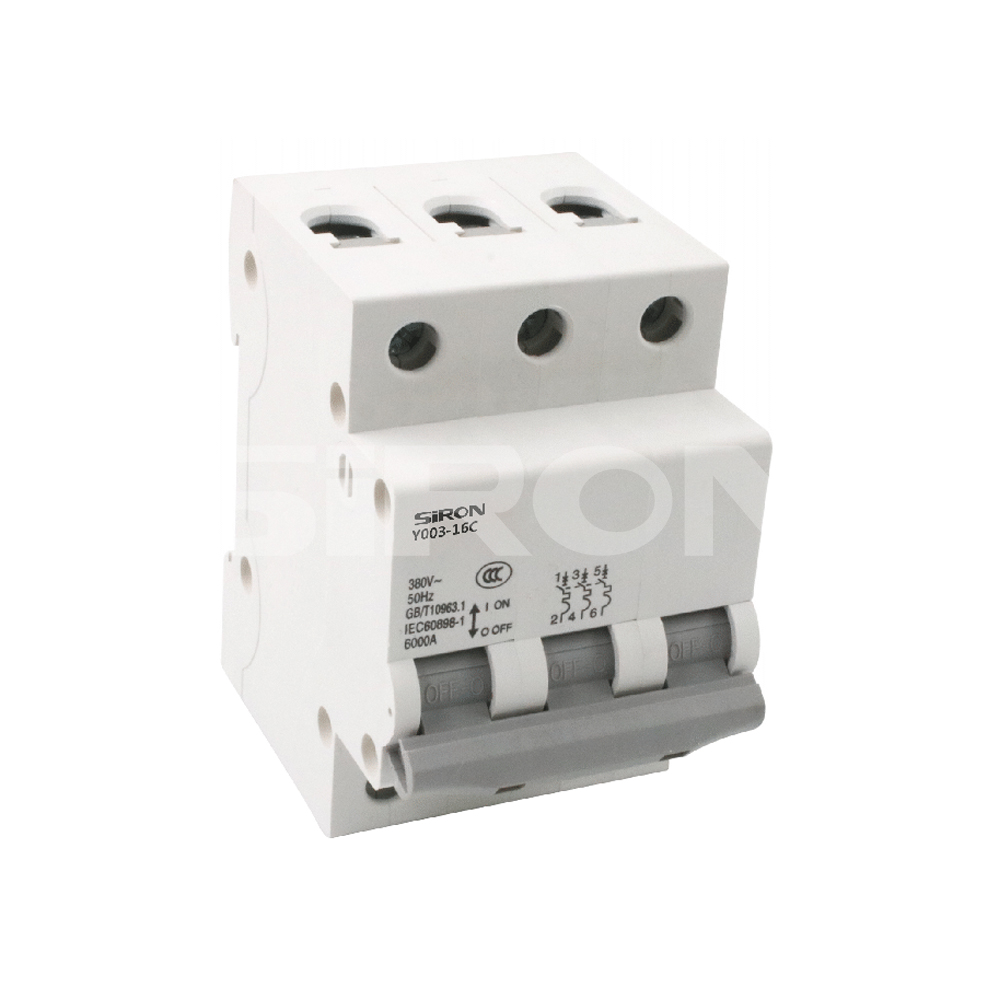

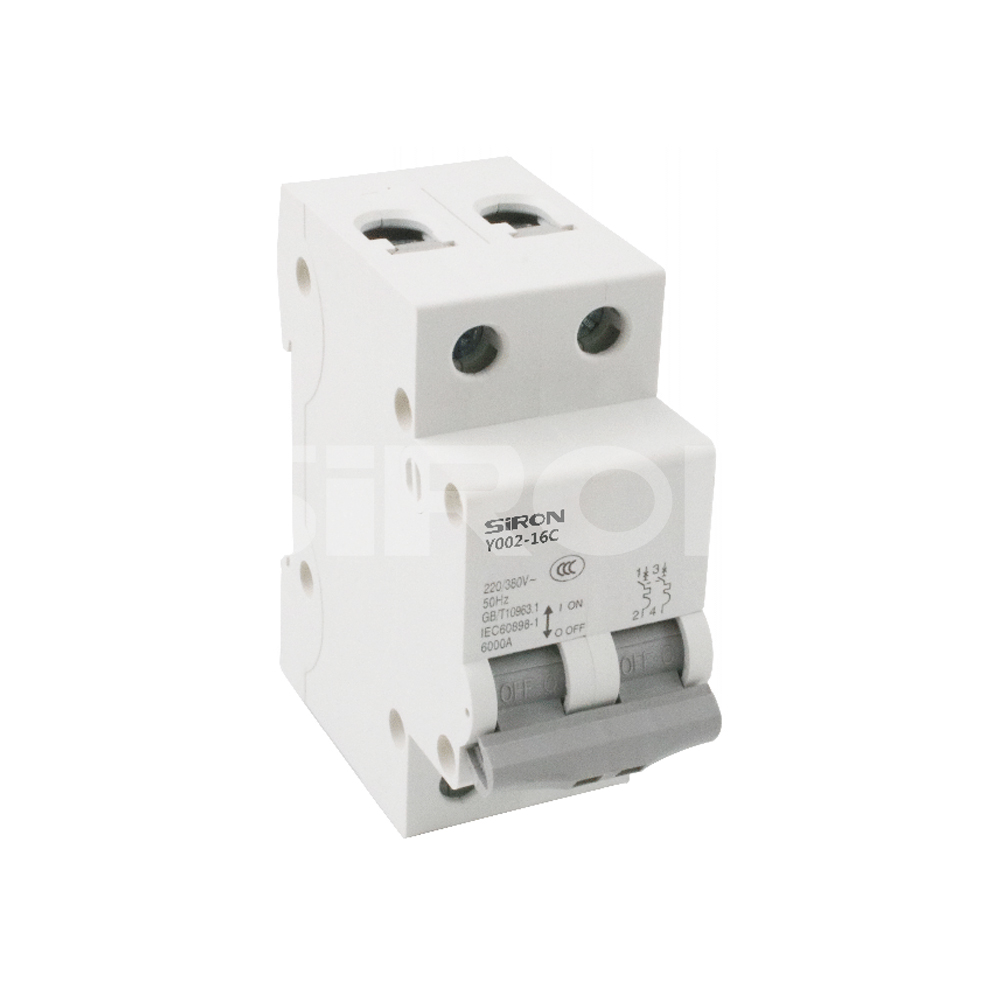

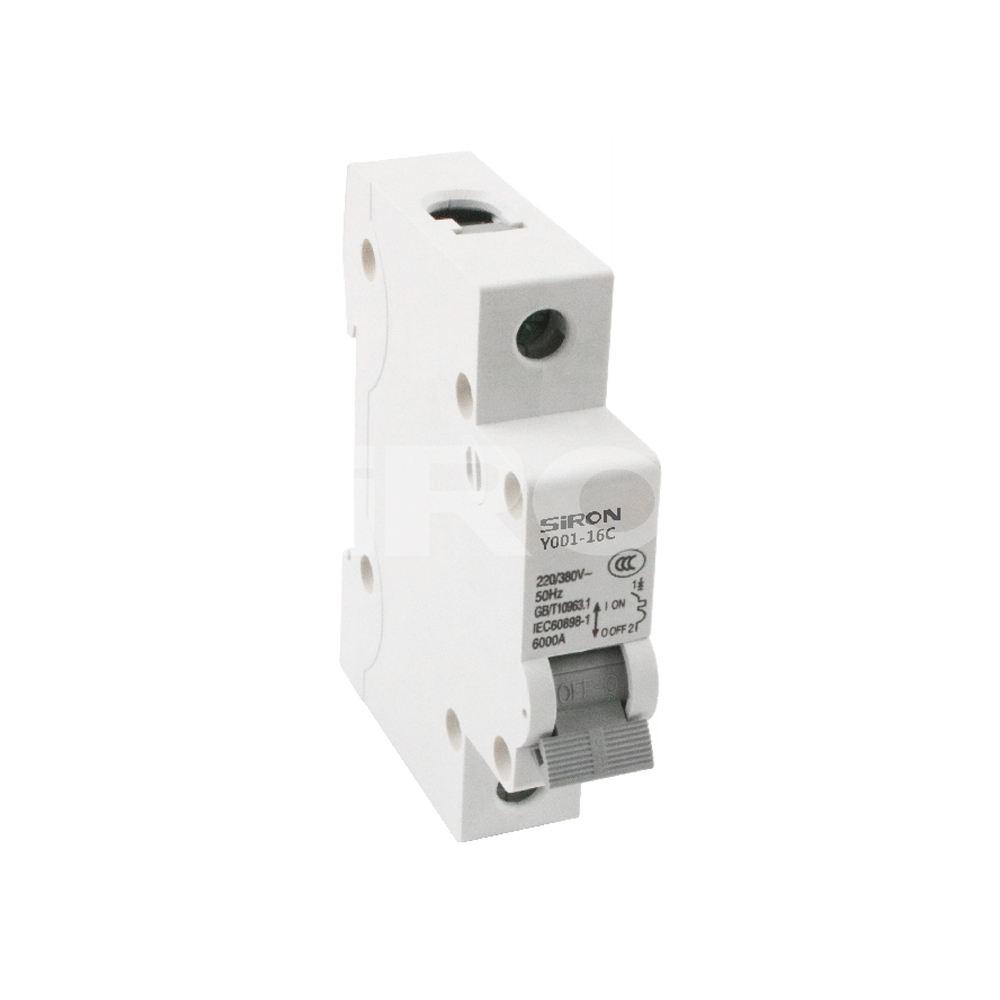

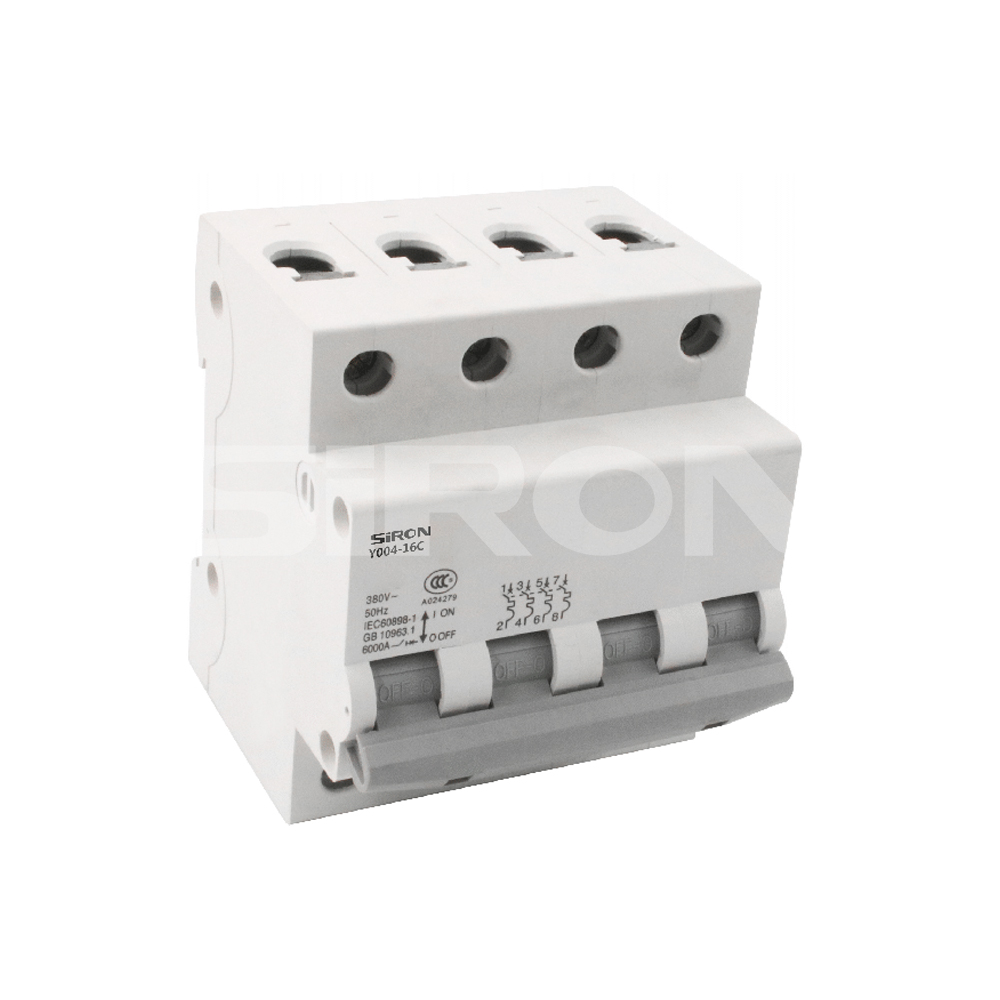

SiRON Y00 Series Miniature Circuit Breaker

For Selection

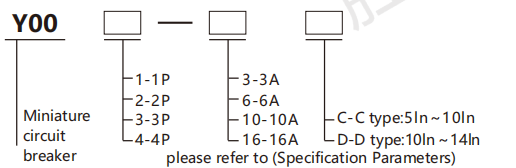

Model example :Y001-3C indicates :Y00 series miniature circuit breaker, 1-pole, rated current 3A, trip curve C type. Y001-3D indicates :Y00 series miniature circuit breaker, 1-pole, rated current 3A, trip curve D type

Type selection reference

Model		Y00 series
Number of poles		1P、2P、3P、4P
Tripping curves		C type(5ln~10ln)、D type(10ln~14ln)
Rated current		3A	6A	10A	16A	20A	25A	32A	40A	50A	63A
Wiring		1	1	1.5	2.5	2.5	4	6	10	10	16
Nominal voltage		230V(1P、2P);400         V(3P、4P)
Rated short-circuit breaking current		6000A
Power factor		0.65～0.7								0.75～0.8
Mechanical life		No less than 10,000 times
Electrical life		No less than 4,000 times
Rated power		50Hz
Mode of connection		Wires and cables (top connection, bottom connection)
Tripper action  characteristics	Time delay	1.13In≥1hNon tripping
		1.45In<1h trip
		2.55In1～60strip(In≤32);2.55In1～120strip(ln>32)
	Instantaneous	5In≥0.1s Non tripping；10ln<0.1s strip(C)
		10ln≥0.1s Non tripping；14In<0.1s strip(D)

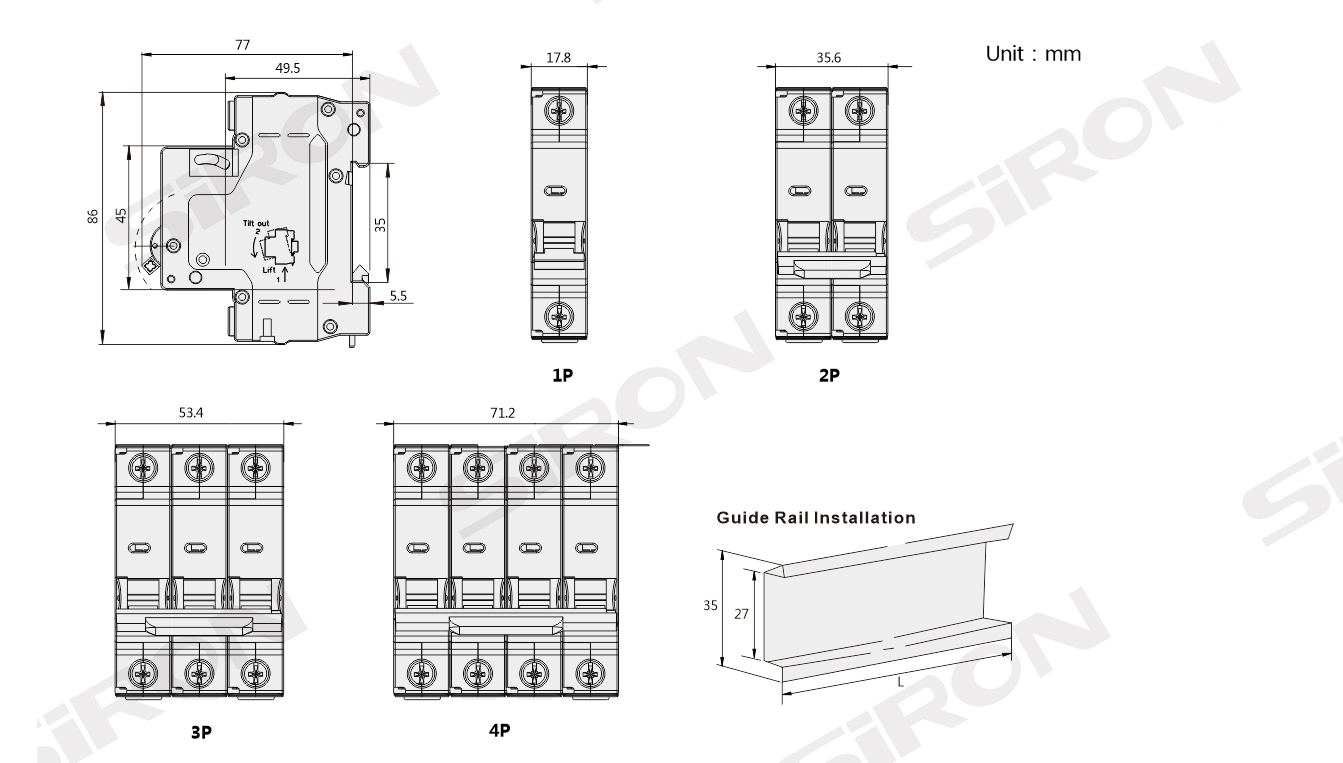

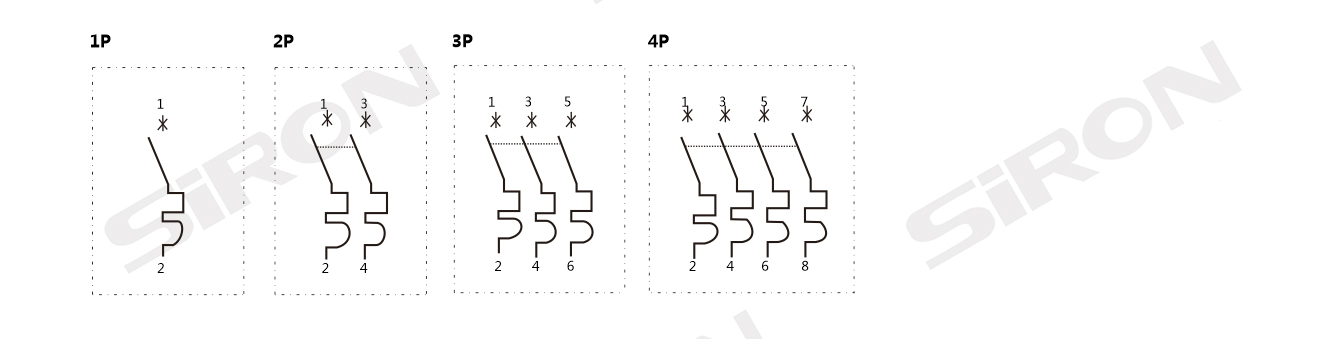

Wiring Diagram
