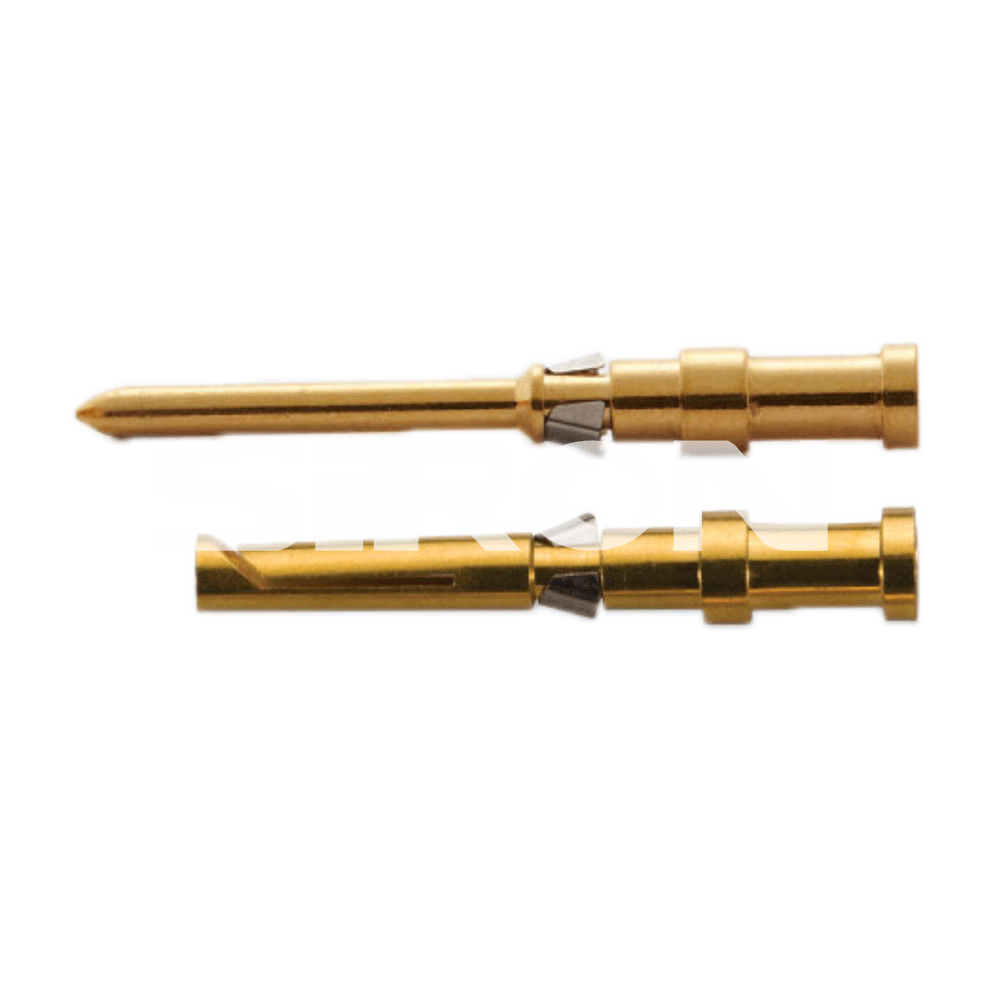

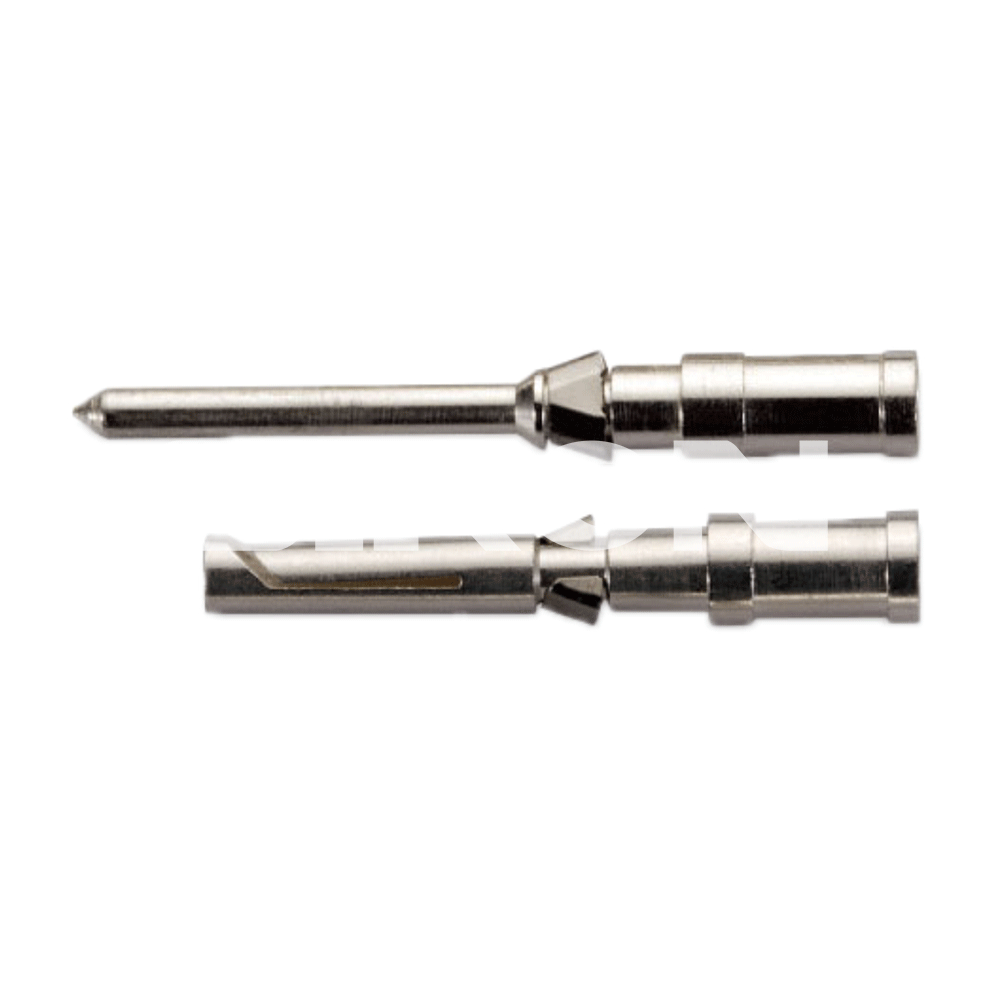

X937/938
SiRON
8538900000
About selection
Selection reference
| Crimp needle | Model(male) | Model(emale) | Whre gauge | a | b | C | d | e | f | Stripping length | |||||||||||||||||
Silver plating "Gold plating"10 pieces per pack | x938-1M-5 | X938-1F-5 | 0.09-0.25mm² | AWG 28-24 | 8.10 | 4.0 | 14.8 | 0.64 | 1.66 | 4.4 | 5mm | ||||||||||||||||
| ×938-2M-5 | x938-2F-5 | 0.25-0.33mm² | AWG 26-22 | 8.10 | 4.0 | 14.80 | 0.90 | 1.66 | 4.4 | 5mm | |||||||||||||||||
| x938-3M-5) | X938-3F-5 | 0.33-0.52mm² | AWG 22-20 | 8.10 | 4.0 | 14.8 | 1.12 | 166 | 4.4 | 5mm | |||||||||||||||||
| ×938-4M-5 | X938-4F-5| | 0.52-0.82mm² | AWG 22-18 | 8.23 | 4.2 | 14 | 1.35 | 1.75 | 13.6 | 5mm | |||||||||||||||||
