SiRON X93 Series 304 Stainless Steel Type A Shell

Name: SiRON X93 Series 304 Stainless Steel Type A Shell
Brand: SiRON
Rating: 5.0 (93 reviews)

Features

The bayonet and rivet adopt 304 stainless steel, with pulley, metal elastic pressing;
The shell is fireproof and flame retardant,durable;
The shell thread is automatically operated by mechanization, the effect is fine, bright and accurate;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X930
Brand:
SiRON
Code:
8538900000

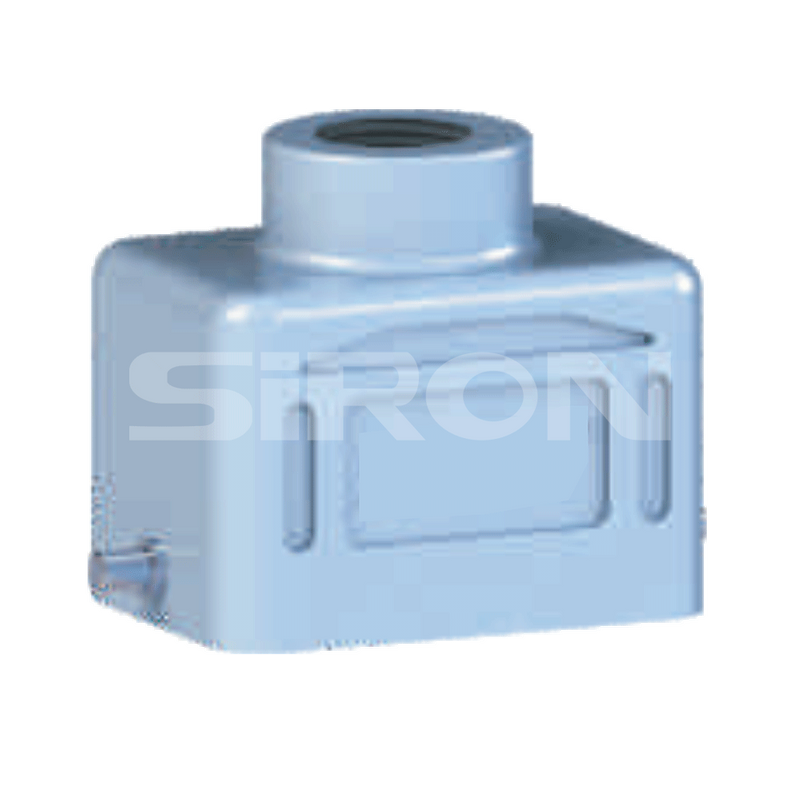

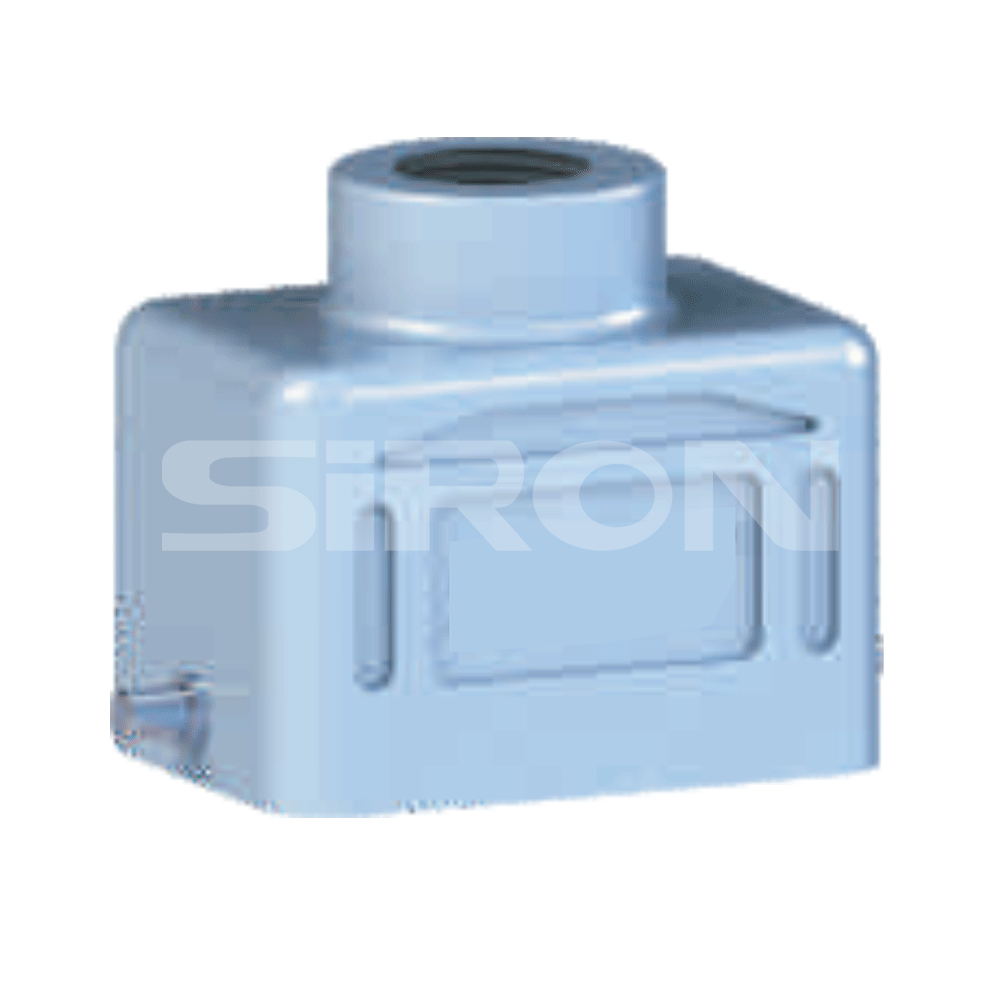

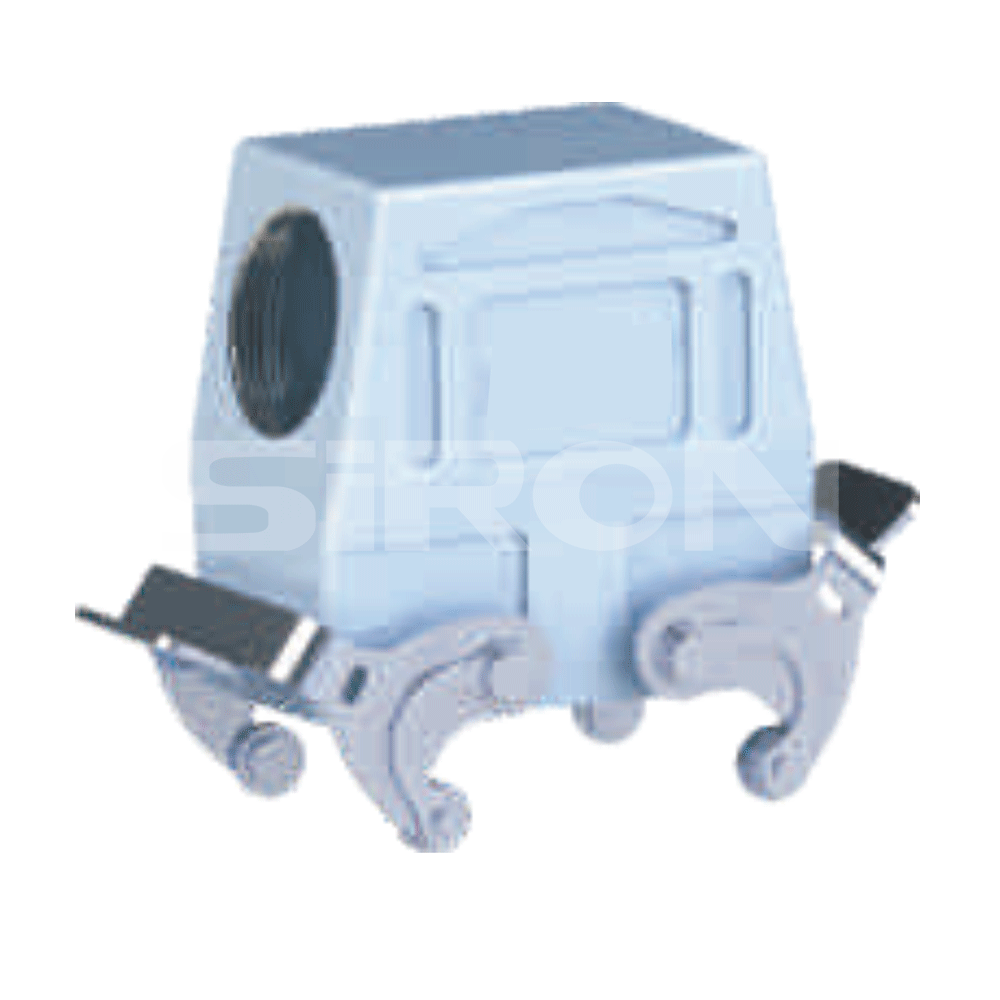

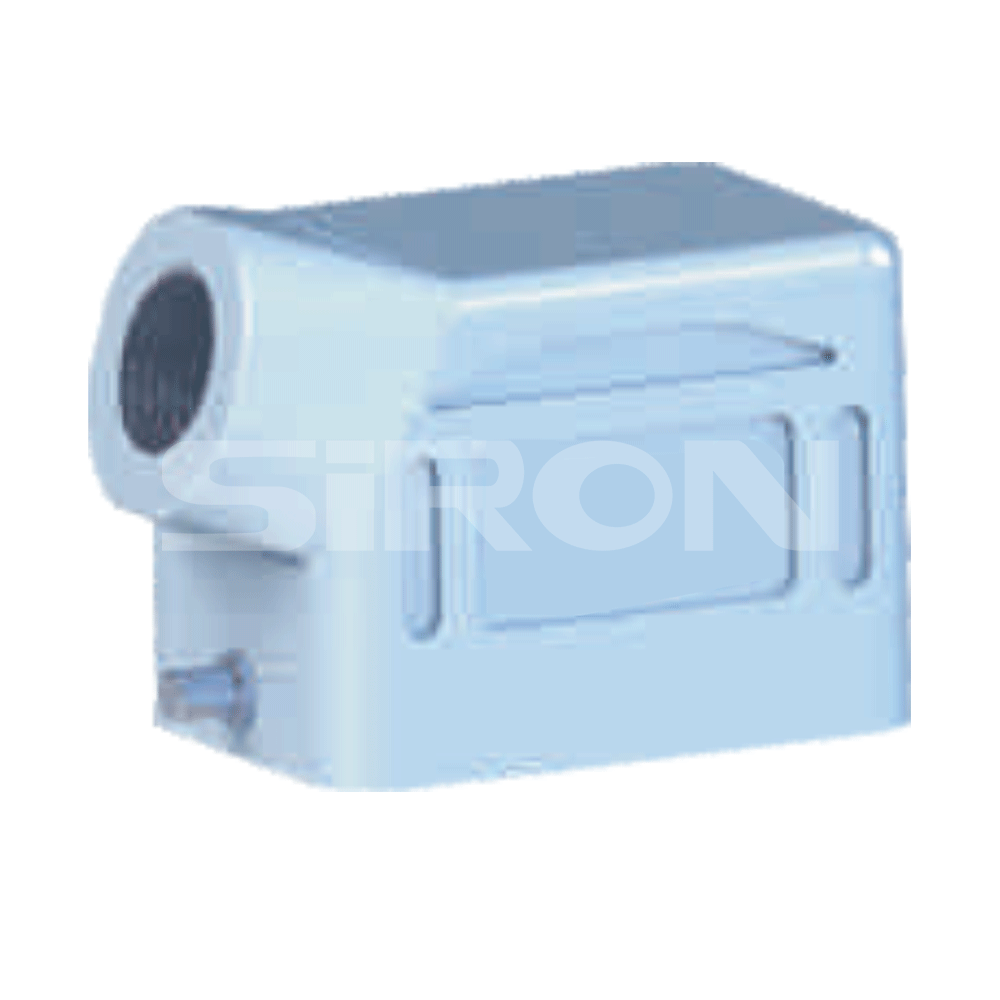

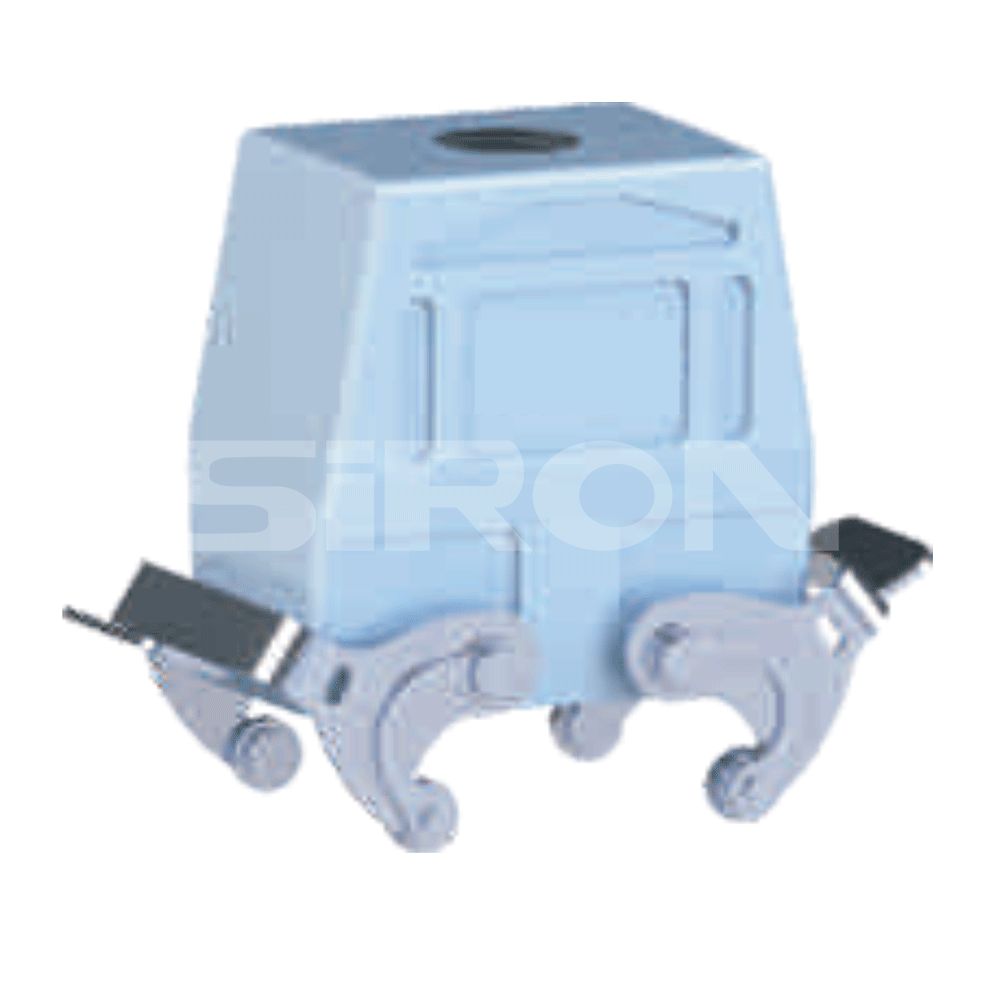

X93 Series Flame retardant material shell X93 Series Upper cover X93 Series Lower metal elastic shell and cover

Product Description

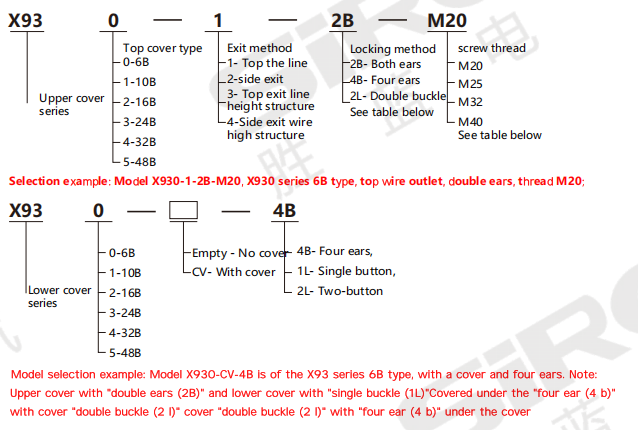

About selection

X93

Type selection reference

Model

Macn he owe

specification

Way out

Lock

Thread

Model

Match the cover

specification

Way out

Lock

Thread

X933-1-2B-M25

X933-1L
X933-CV-1L
X933-2L
X933-CV-4B

24B

Top wire

Two ears

M25

X933-2-2L-M25/M32

X933-1L
X933-CV-1L
X933-2L
X933-CV-4B

24B

Side exit wire

Double button

M25/M32

X933-2-2B-M25/M32

Side exit wire

M25/M32

X933-3-2L-M32/M40

The top exit wire has a high structure

M32/M40

X933-3-2B-M32/M40

The top exit wire has a high structure

M32/M40

X933-4-2L-M32/M40

Side exit wire high structure

M32/M40

X933-4-2B-M32/M40

Side exit wire high structure

M32/M40

X9341-4B-M32/M40/M50

X934-1L
X934CV-1L
X934-2L

32B

Top wire

Four ears

M32
M40
M50

X933-1-4B-M25

Top wire

Four ears

M25

X934-2-4B-MB2/M40/M50

Side exit wire

X933-2-4B-M25/M32

Side exit wire

M25/M32

X934-1-2B-M32/M40/M50

Top wire

Two ears

X933-3-4B-M32/M40

The top exit wire has a high structure

M32/M40

X934-2-2B-MB2/M40/M50

Side exit wire

X933-4-4B-M32/M40

Side exit wire high structure

M32/M40

X935-1-2B-M32/M40/M50

X935-1L
X935-CV-1L

48B

Top wire

Two ears

X933-1-2L-M25

Top wire

Double button

M25

X935-2-2B-M32/M40/M50

Side exit wire

Supporting plastic cable connector

Model

Match the lower cover

Specification

Way out

Locking

Thread

X930-1-2B-M20

X930-1L
X930-CV-1L

6B

Top wire

Two ears

M20

X930-2-2B-M20

Side exit wire

X930-3-2B-M25/M32

The top exit wire has a high structure

M25
M32

X930-4-2B-M25/M32

Side exit wire high structure

X931-1-2B-M20

X931-1L
X931-CV-1L
X931-2L
X931-CV-4B

10B

Top wire

Two ears

M20

X931-2-2B-M20

Side exit wire

X931-3-2B-M25/M32

The top exit wire has a high structure

M25
M32

X931-4-2B-M25/M32

Side exit wire high structure

X931-1-4B-M20

Top wire

Four ears

M20

X931-2-4B-M20

Side exit wire

X931-3-4B-M25/M32

The top exit wire has a high structure

M3

X931-4-4B-M25/M32

Side exit wire high structure

X931-1-2L-M20

Top wire

Double button

M20

X931-2-2L-M20

Side exit wire

X931-3-2L-M25/M32

The top exit wire has a high structure

M3

X931-4-2L-M25/M32

Side exit wire high structure

X932-1-2B-M25

X932-1L
X932-CV-1L
X932-2L
X932-CV-4B

16B

Top wire

Two ears

M25

X932-2-2B-M25/32

Side exit wire

M25/M32

X932-3-2B-M32/M40

The top exit wire has a high structure

M32/M40

X932-4-2B-M32/M40

Side exit wire high structure

M32/M40

X932-1-4B-M25

Top wire

Four ears

M25

X932-2-4B-M25/M32

Side exit wire

M25/M32

X932-3-4B-M32/M40

The top exit wire has a high structure

M32/M40

X932-4-4B-M32/M40

Side exit wire high structure

M32/M40

X932-1-2L-M25

Top wire

Double button

M25

X932-2-2L-M25/M32

Side exit wire

M25/M32

X932-3-2L-M32/M40

The top exit wire has a high structure

M32/M40

X932-4-2L-M32/M40

Side exit wire high structure

M32/M40

Dimensions table

Locking type	2B(2ears)
Type and size	A	B		C1		φD1		C2		ΦD2		C3		ΦD3		C4		φD4
6B	60	43		53		M20		50.55		M20		72		M25/M32		72		M25/M32
10B	73	43		58		M20		57		M20		72		M25/M32		72		M25/M32
16B	93.5	43		59		M25		59		M25/M32		76		M32/M40		76		M32/M40
24B	120	43		69		M25		59		M25/M32		76		M32/M40		76		M32/M40
Locking type	4B(4ears)
Type and size	A	B	C1		ΦD1		E		C2		φD2		C3		ΦD3		C4	φD4
10B	73	43	58		M20		57		57		M20		72		M25/M32		72	M25/M32
16B	93.5	43	59		M25		57		63		M25/M32		76		M32/M40		76	M32/M40

24B	120	43	69		M25		57		62.5		M25/M32		76		M32/M40		76	M32/M40

Locking type	2L(2button)
Type and size	A	B	C1	ΦD1	E	F	C2	φD2	C3	φD3	C4	φD4
10B	73	43	58	M20	55	22	57	M20	72	M25/M32	72	M25/M32
16B	93.5	43	62	M25	58	22	62.5	M25/M32	76	M32/M40	76	M32/M40

24B	120	43	69	M25	58.5	19.5	62.5	M25/M32	76	M32/M40	76	M32/M40
