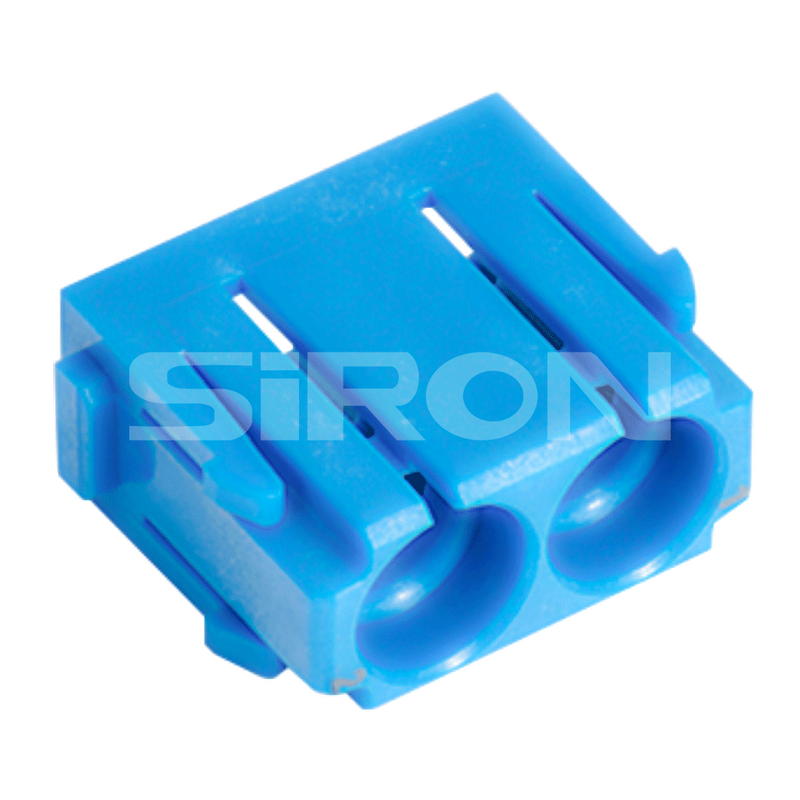

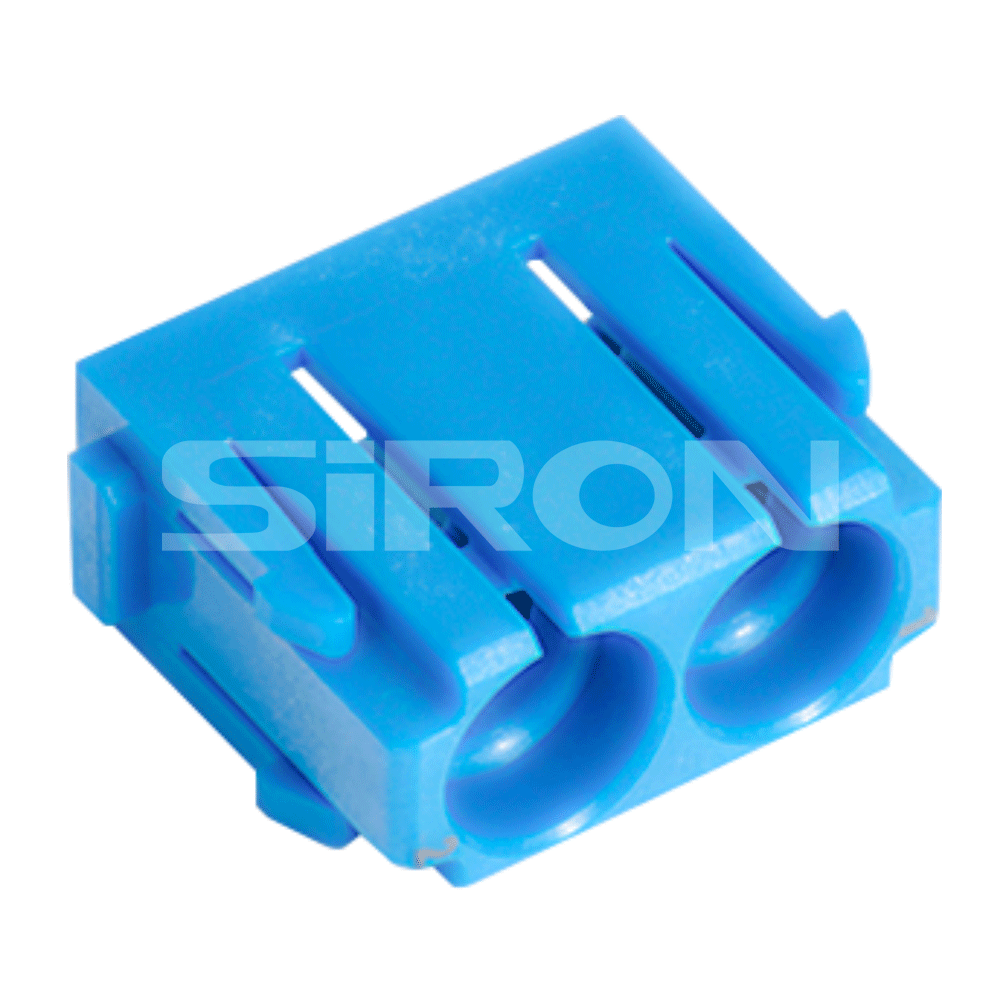

SiRON X916 Series (Gas Needle Module) HM Connectors

Features
  • Flame retardant material, module style, can be used in combination, suitable for gas needle;
  • Specially designed for modular production pre-wiring and to meet the requirements of harsh environmental conditions
  • Reduce on-site wiring operations after equipment or vehicles leave the production shop to improve production efficiencyand reduce quality risks of wiring,

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X916

  • SiRON

  • 8538900000

X916 Series Gas Needle Module X916 Series HM Connectors X916 Series Flame-retardant material Connection Multi-core connector
Product Description

About selection

X916

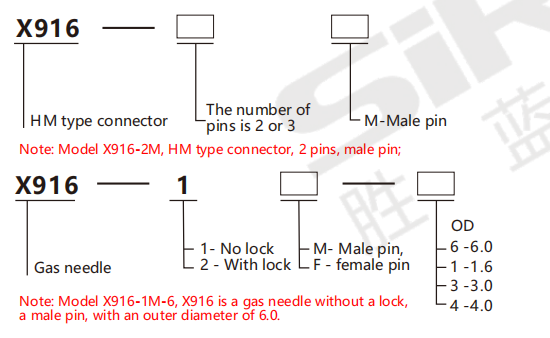

Type selection reference

Model X916-2M X916-3M
Connector core number 2 3

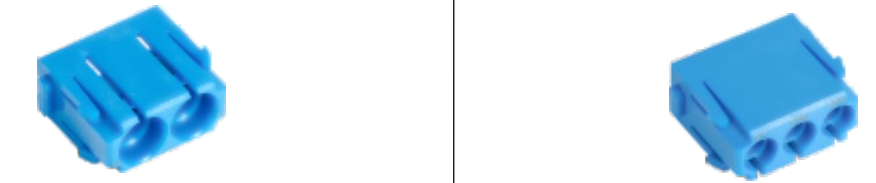

Appearance 43ff5f9b4be1c3f035f76be5a0eaa932
Flame retardant class Ul94 vo
Working pressure up8 bar/116psi
Number of insertions ≥500
Materials

Daicel
Sealing element nitrile rubber
Holding valve propathene
Pipe diameter 6.0mm/1/4" (1.6mm/1/16)/3.0mm(4.0mm/1/87)
Operating temperature range -40℃~+80℃
Structural location 1
Assorting Metal frame X937-1 series
Plastic frame X937-2 series
