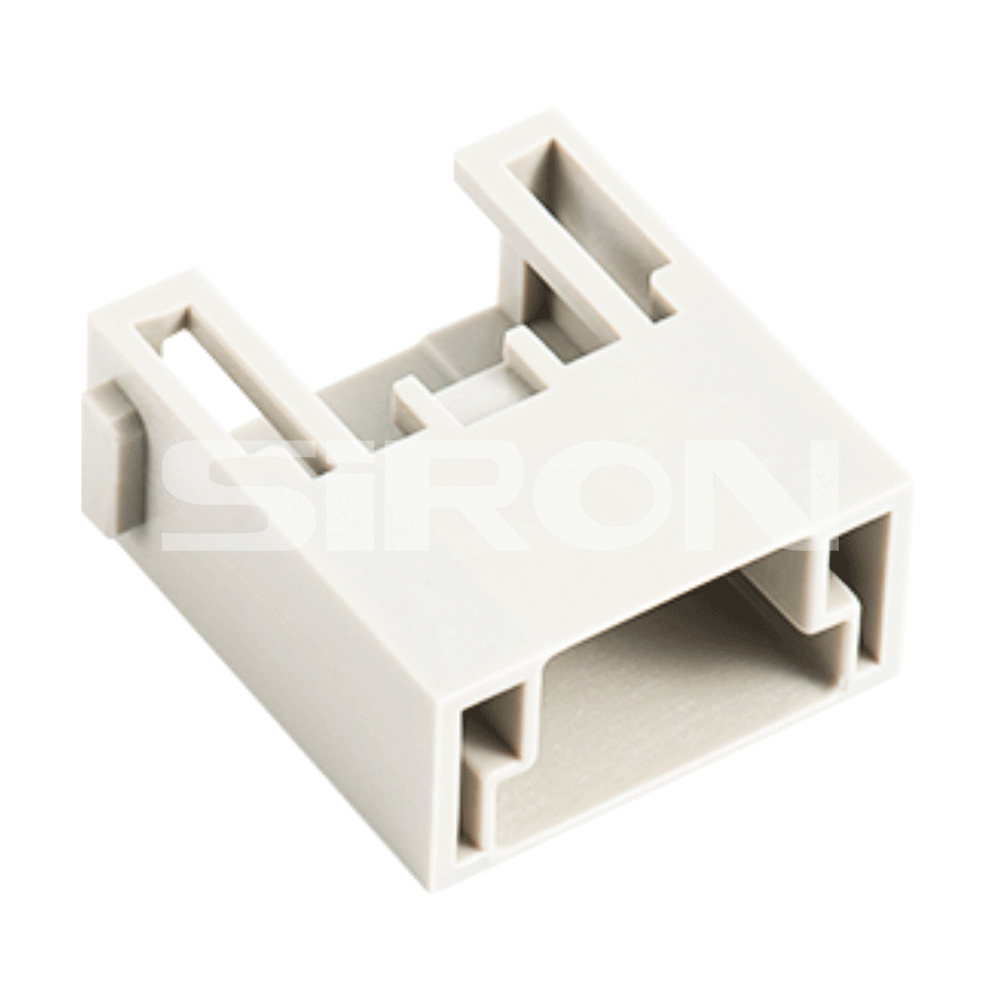

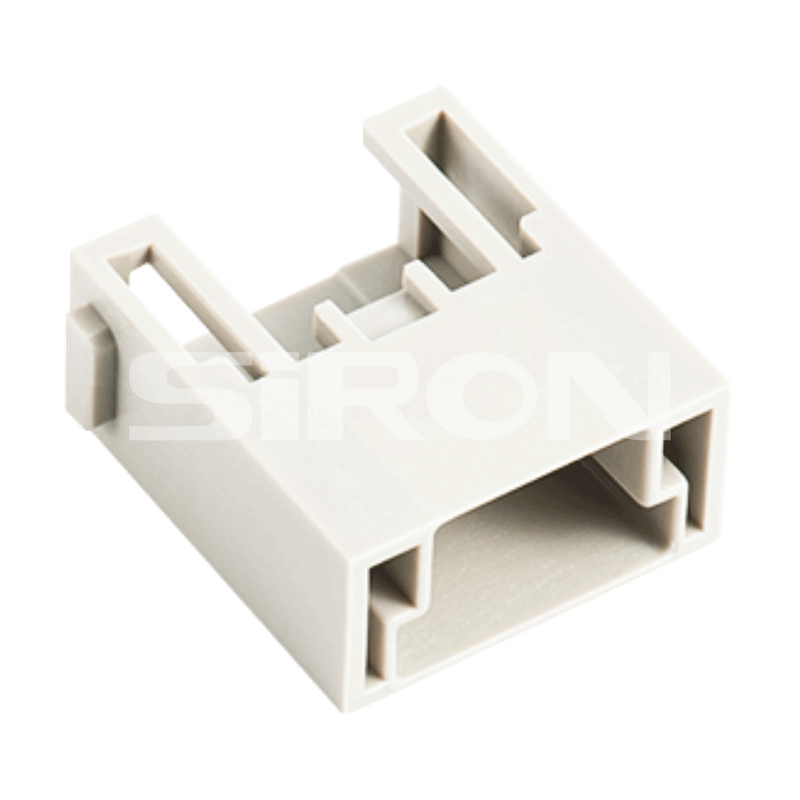

SiRON X914 Series RJ45 Module HM Connectors

Features
  • Flame retardant material, module style, can be used in combination, suitable for cold pressing needle, Pollution level 3;
  • Specially designed for modular production pre-wiring and to meet the requirements of harsh environmental conditions
  • Reduce on-site wiring operations after eauipment or vehicles leave the production shop to improve production efficiencyand reduce quality risks of wiring

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X914

  • SiRON

  • 8538900000

X914 Series RJ45 Connectors X914 Series HM Connectors X914 Series Flame-retardant material Connection Multi-core connector
Product Description

About selection

X914

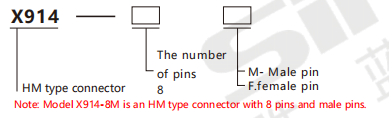

Type selection reference

Assorting

Model Pin(Maleinsert) X914-8M
Jack(Femaleinsert) X914-8F

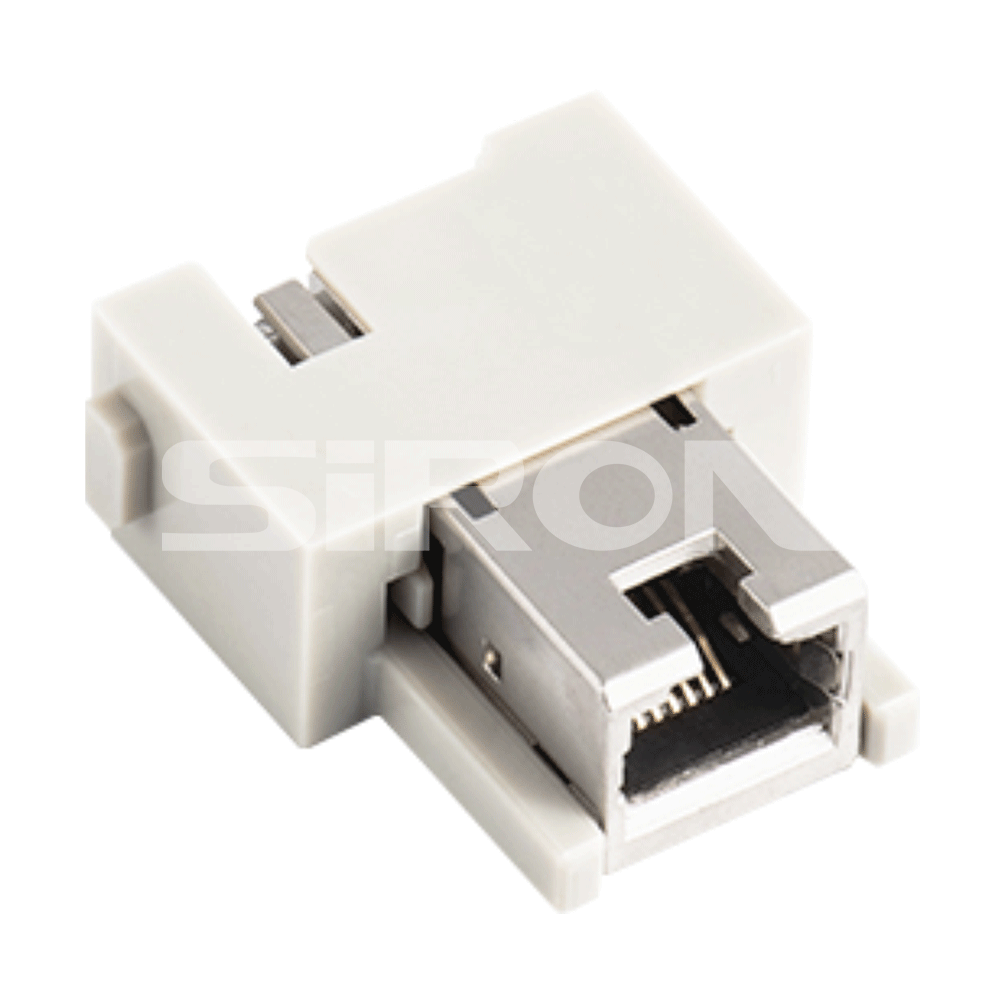

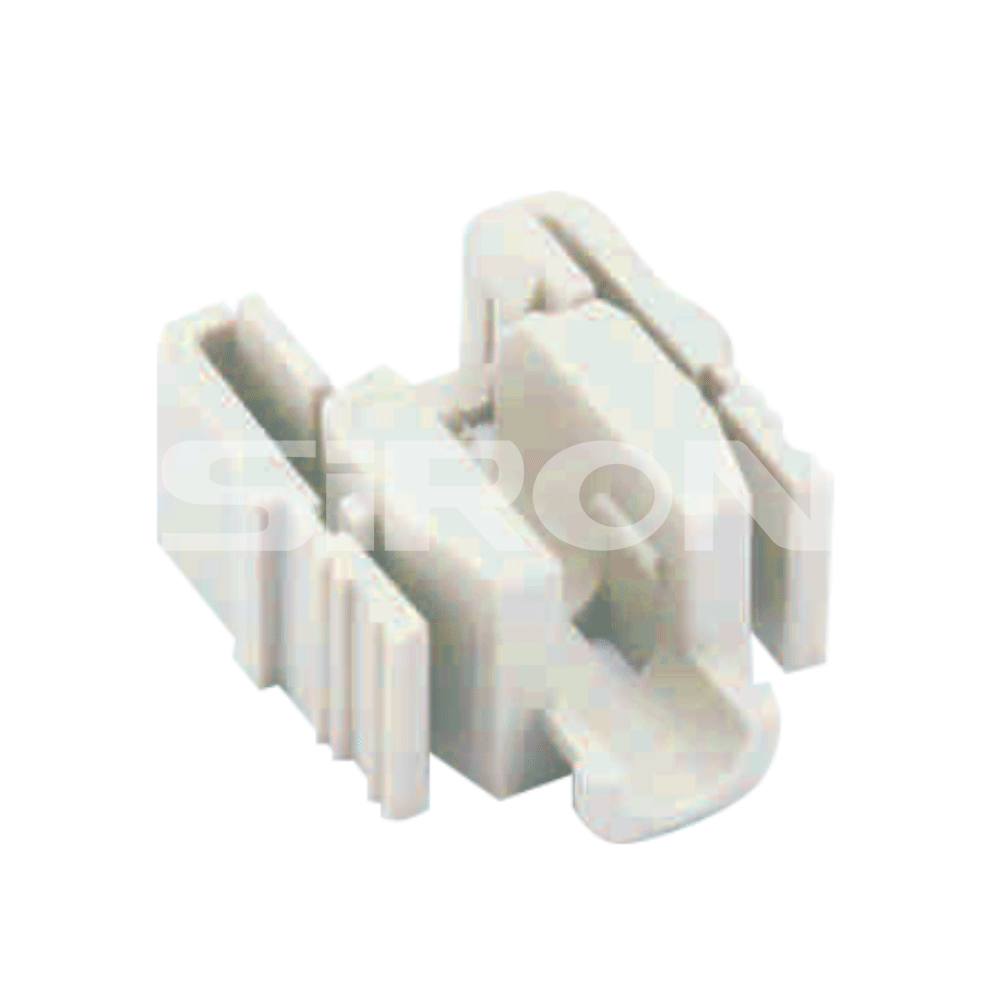

Appearance 6df8a4a58ad96e779d4bb35468ae43db
Connector core number 8
Working current 1A
Working voltage 50V
Ratedim pulse voltage 0.8KV
Pollution degree 3
Module with RJ45 terminal -
Strandedwirediameter (1)0.89-0.99mm,(2)0.94-1.07mm,AWG24-26,AWG22-24
Structurallocation 1
Assorting Metalframe X937-1 series
Plasticframe X937-2 series
