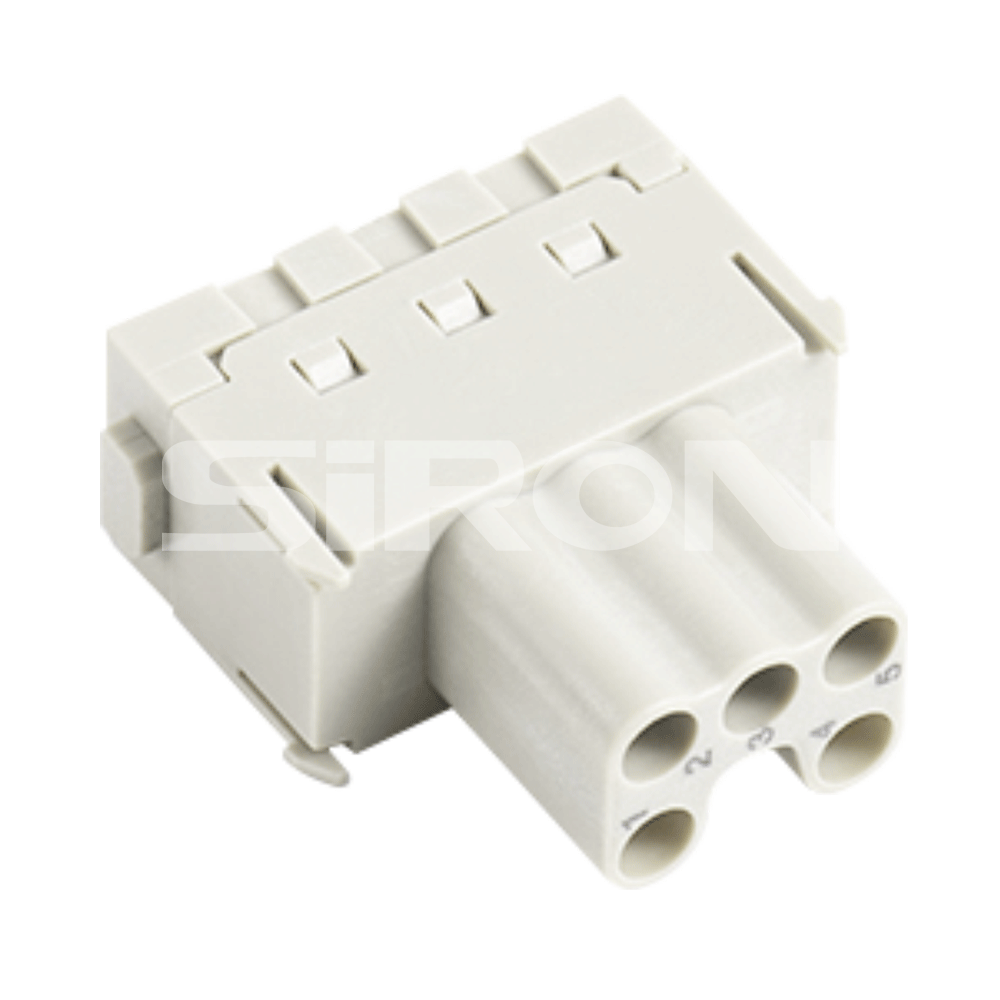

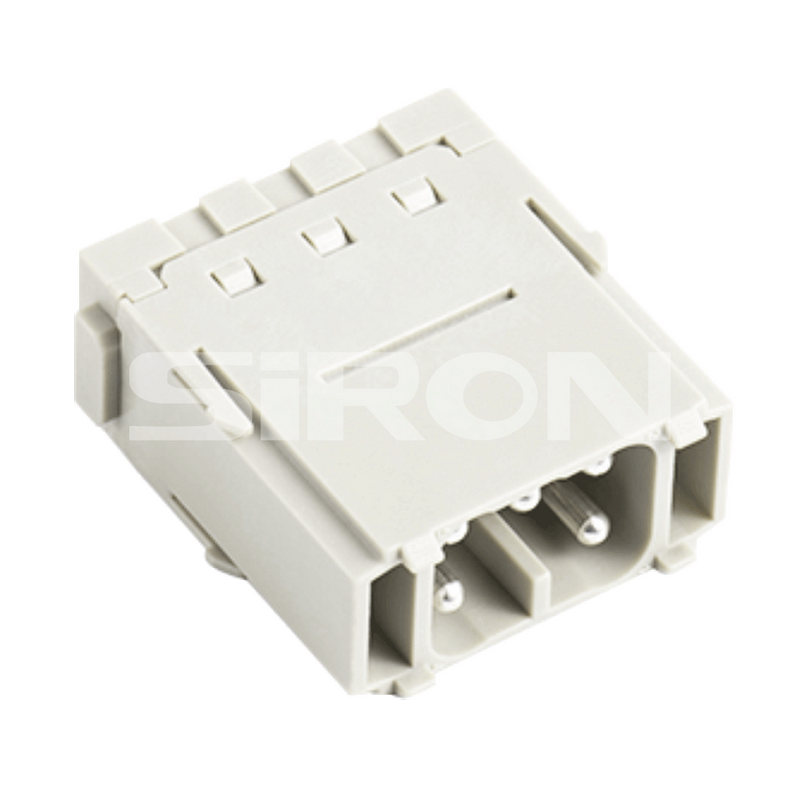

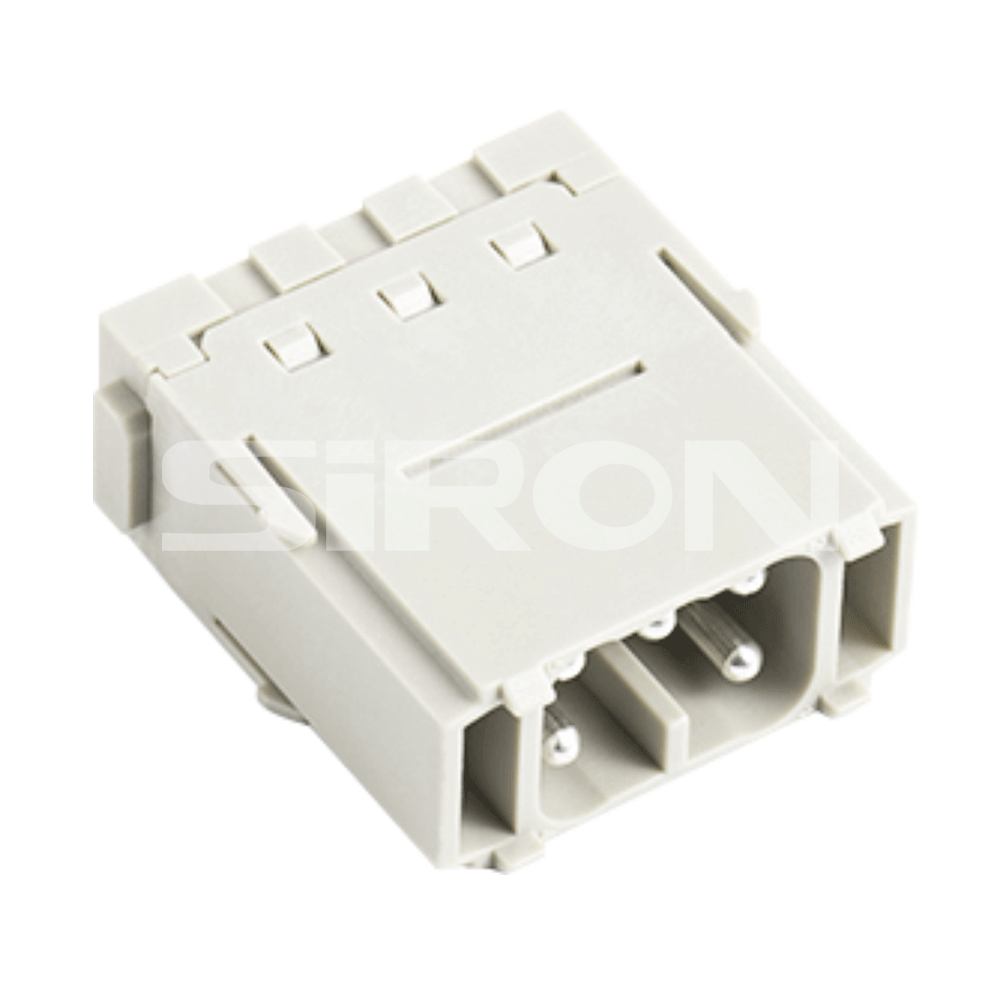

SiRON X913 Series Bullet Connection HM Connectors

Features
  • Flame retardant material, module style, can be used in combination, suitable for cold pressing needle, Pollution level 3;
  • Specially designed for modular production pre-wiring and to meet the requirements of harsh environmental conditions
  • Reduce on-site wiring operations after eauipment or vehicles leave the production shop to improve production efficiencyand reduce quality risks of wiring

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X913

  • SiRON

  • 8538900000

X913 Series HM Connectors X913 Series Bullet Connection X913 Series Flame-retardant material Connection Multi-core connector
Product Description

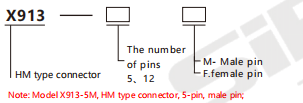

About selection

X913

Type selection reference

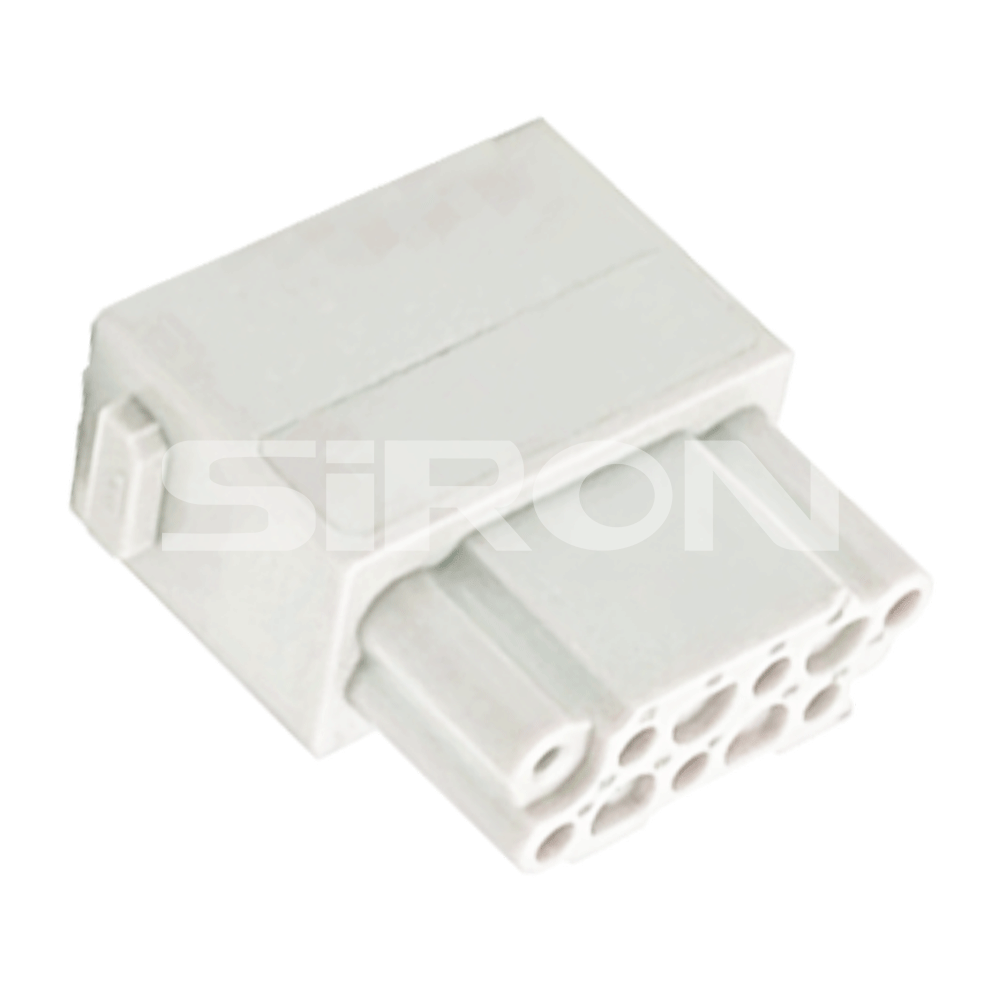

Model Pin(Male insert) X913-5M X913-12M
Jack(Female insert) X913-5F X913-12F
Appearance 96410fc58ef92c8258c5870b022baa67
Connector core number 5 12
Working current 16A 10A
Rated impulse voltage 6KV 4KV
Working voltage 400V 250V
Shrapnel connection 0.14-2.5mm²(AWG26-14) 0.5-2.5mm²(AWG20-14)
Contact resistance ≤3mΩ
Pollution degree 3
Spigot pin Copper, silver-plated
Structural location 1
Assorting Metal frame X937-1series
Plastic frame X937-2series
