SiRON X909/X910 Series Screw/cold Press Connection of HKS Connectors

Name: SiRON X909/X910 Series Screw/cold Press Connection of HKS Connectors
Brand: SiRON
Rating: 5.0 (60 reviews)

Features

Specially designed for modular production of pre-wiring and meet the requirements of harshenvironmental conditions And design;
Reduce on-site wiring after equipment or vehicles leave the production shop
Production efficiency.and reduce wiringuality risk;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

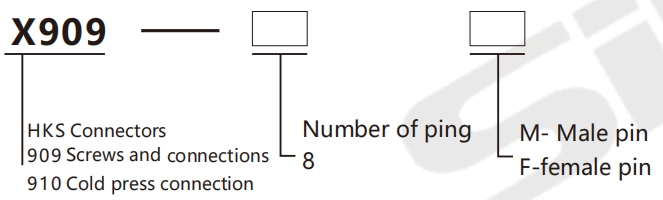

About selection

3417ada50b63942c006ff6b148ea1062

Type selection reference

Model	Pin(Male insert)	X909-8M	X910-8M
	Jack(Female insert)	X909-8F	X910-8F
Teminal		Nail connection	Cold pressure connection

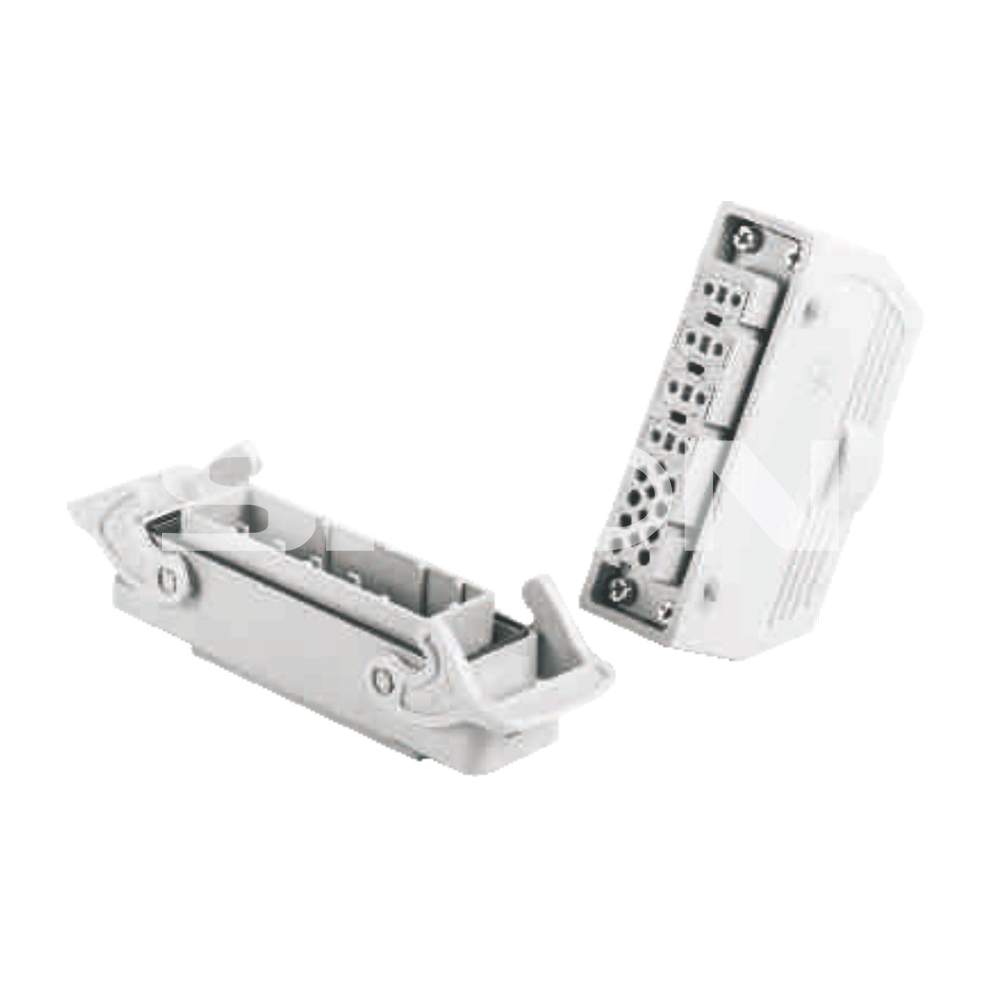

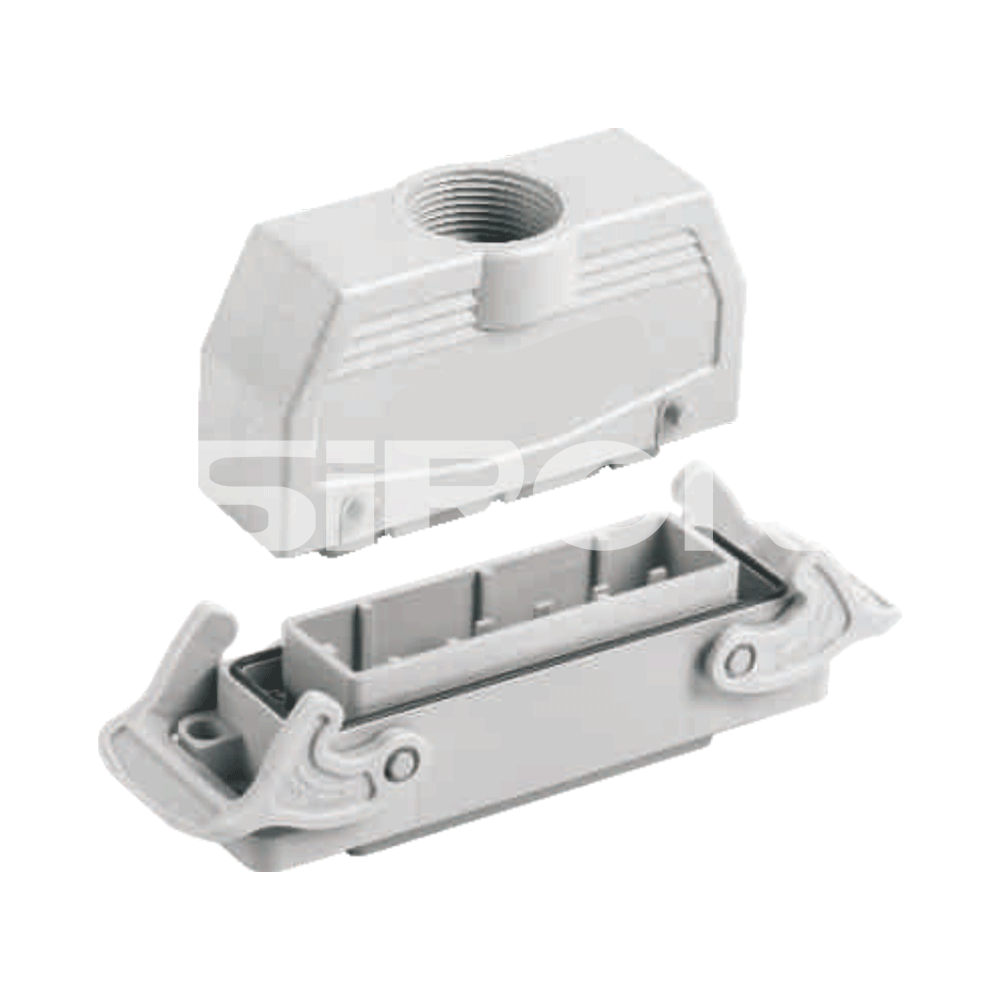

Appearanoe
Material		Shell/Plug Core: Polycarbonate Pin: Copper Alloy Surface Contact
Limiting temperatures		-40℃~+125℃
Degree of protection acc		IP65
Entry		Top edge protrusion
Cable entry		1*M25(φ13-18)
Locking lever/Material		Plastic double buttons/ N B R
Contacts		8 + 8 ( Anti-accident measures for road construction )
Rated current		10A
Rated voltage		250V
Rated impulse voltage		4KV
Mechanical working life		≥500
Insulation resistance		≥10⊃1;Ω
Contacts	Contact resistance	≤3⊃1;°mΩ
	Wire gauge	screw： 0 . 7 5 ～ 2 . 5 m m ⊃2; Cold pressure： 0 . 3 7 ～ 2 . 5 m m ⊃2;
	Surface	silver plating
