X908
SiRON
8538900000
About selection
Technical Features
| Contacts | |
| Material | aluminum alloy |
| Surface treatment | Silver plating/gold plating |
| Contact resistance | ≤1mΩ |
| Connection form | Screw connection |
| Wire specifications | 4.0-6.0mm (AWG12-10) |
| Moment of screw tightening | 1.2Nm |

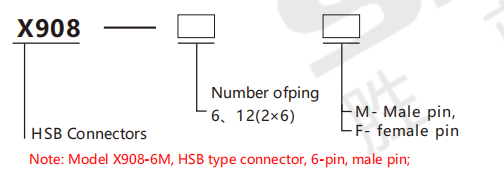

Type selection reference
Model | Pin(Male insert) | X908-6M | X908-12M |
| Jack(Female insert) | X908-6F | X908-12F | |
| Appearance |  | ||
| Connector core number | 6 | 12(2×6) | |
| Working current | 35A | ||
| Working voltage | 400V690V | ||
| Apply lidUpper cover) | X 9 3 2 series P.031 | X 9 3 4 series P.031 | |
| Apply the base(lower cover) | |||
| Ratedimpulse voltage | 6KV | ||
| Pollution degree | 3,When the pollution level is 2(10A 230/400V 4KV 2) | ||
| Insulation resistance | ≥10¹Ω | ||
| Flammability acc.to(UL94) | Vo | ||
| Limiting temperatures | -40℃~+125℃ | ||
| Mechanical working life | ≥500 | ||
| Working voltage acc.to UL/CSA | 600V | ||
Note: The 12 pins consist of two 6-pin products.
