X907/X938
SiRON
8538900000
About selection

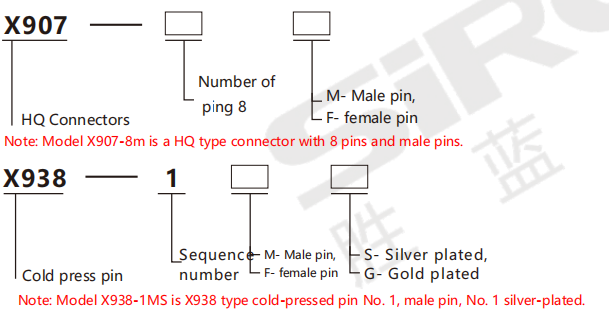

Type selection reference

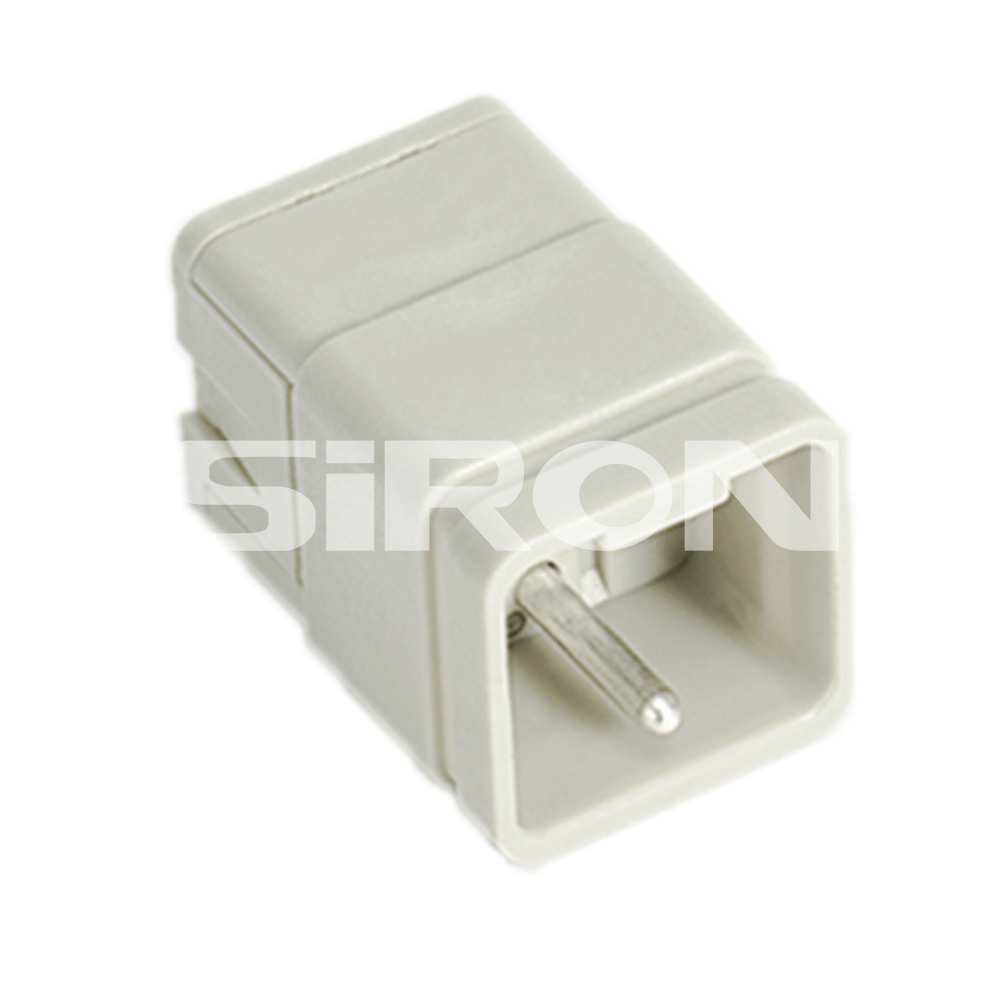

| Model | Pin(Male insert | X907-8M |

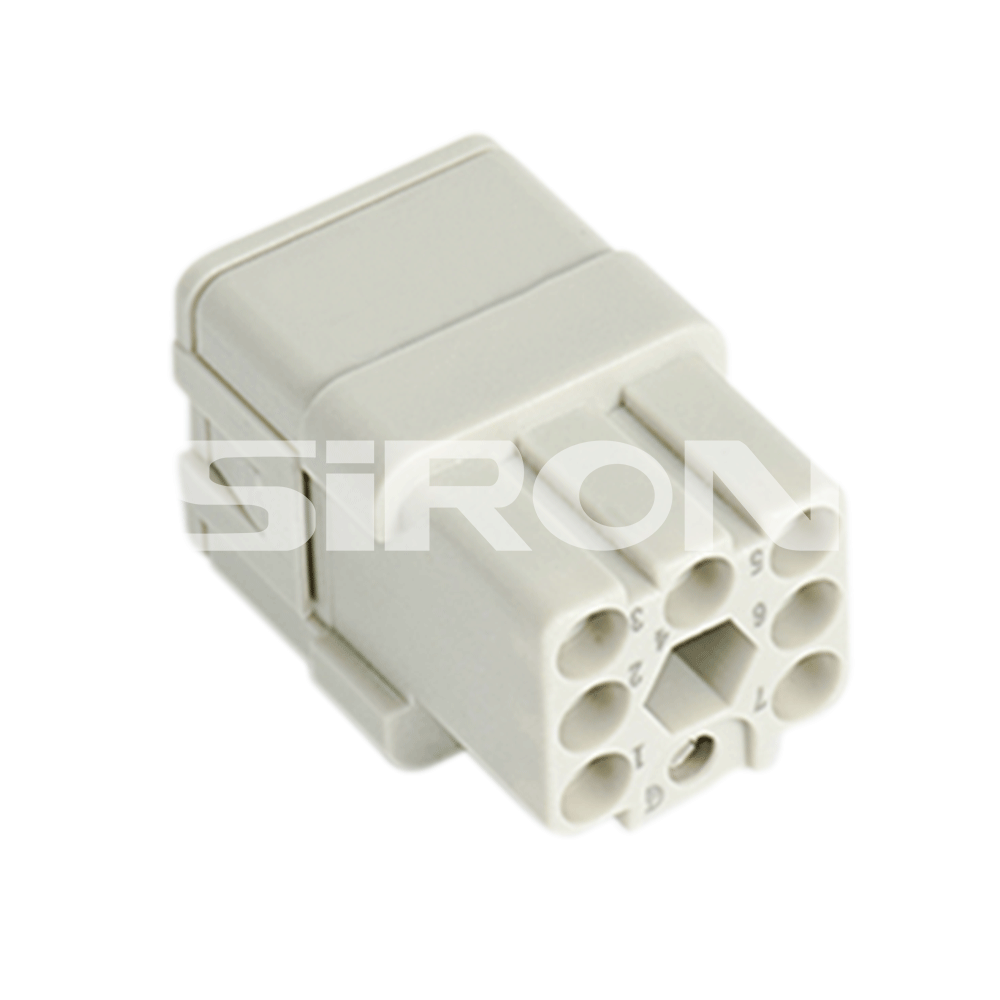

| Jack(Female insert) | X907-8F | |

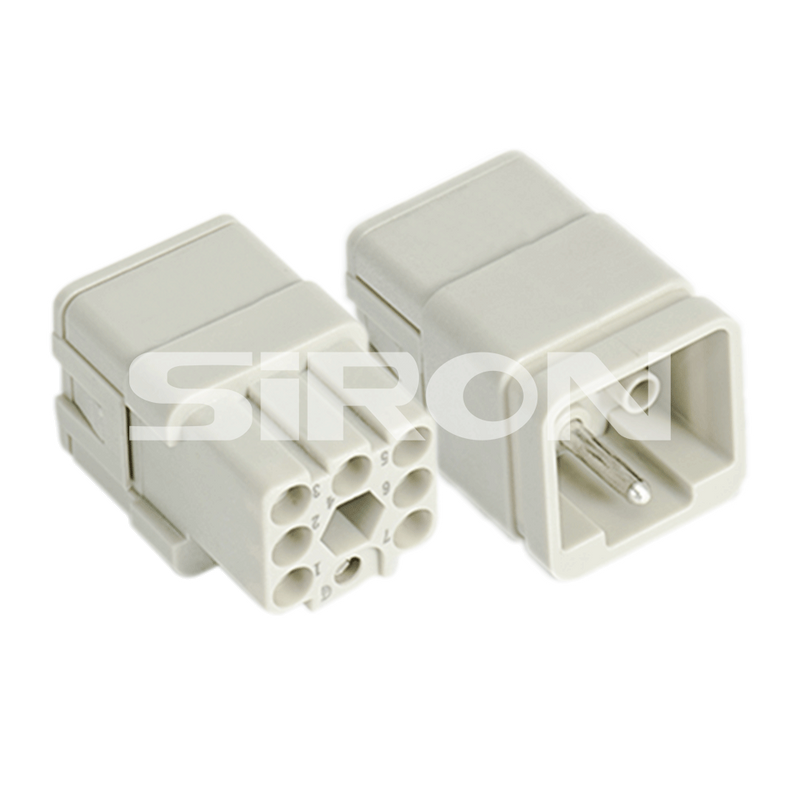

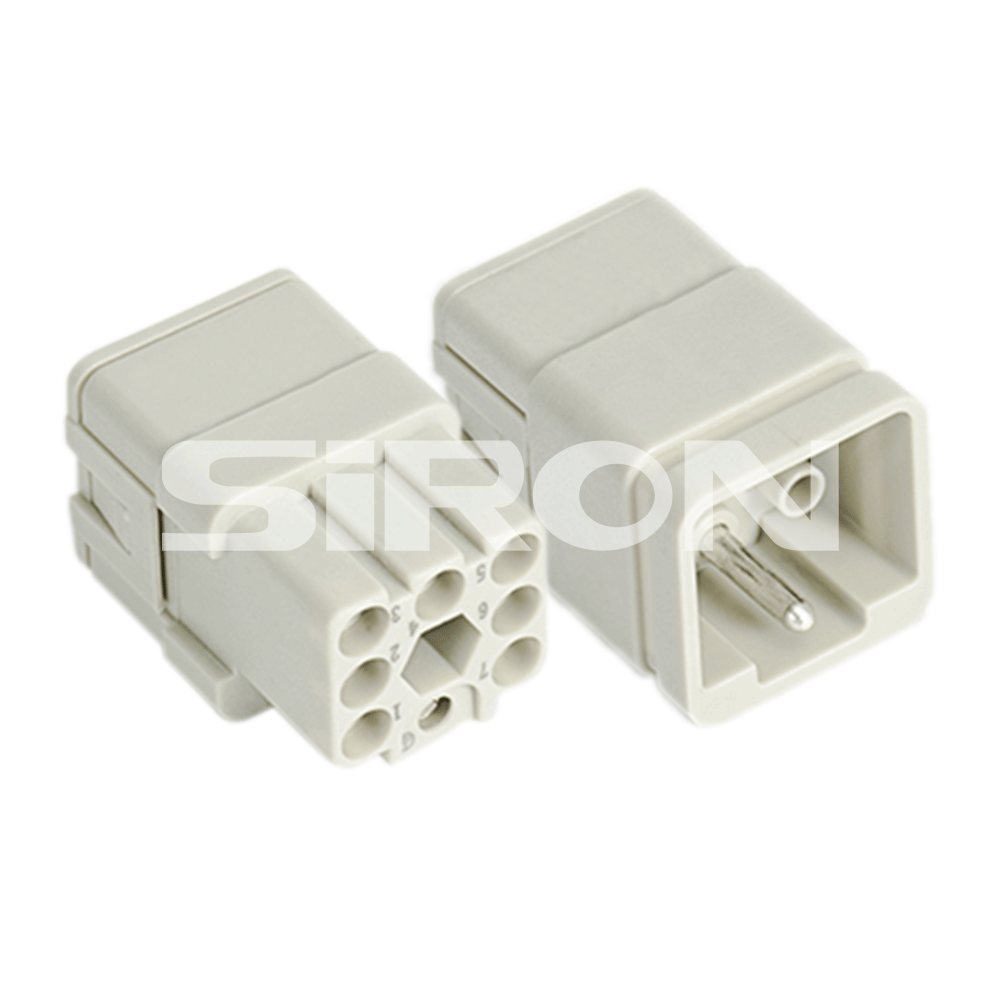

| Appearance |
| |
| Material | polycarbonate | |
| Apply lid(Upper cover) | X 9 3 6 series P.035 | |
| Apply the base(lower cover) | ||
| Limiting temperatures | -40℃~+125℃ | |
| Fame retardant grade | V0 | |
| Pluggable times | ≥500 | |
| Rated current | 16A | |
| Rated voltage | 500V | |
| Ratedimpulse voltage | 6KV | |
| Pollution level | 3 | |
| When the pollution level is 2 | 16A 400/690V 6KV 2 | |
| When installing the metal housing | 16A 400/690V 4KV 2 | |
| Fame retardant grade according to U194 | 600 | |
| Pluggable times | ≥10⊃1;Ω | |
| Contacis | Material | copper alloy |
| Surface | Silver plating / Gold plating | |
| Contact resistance | ≤1mΩ | |
| Terminal | mm²:0.14-4mm²AWG:26-12 | |
Crimp needle
| Crimp needle | Model(male) | Model (female) | Wire gauge | Stripping length | |
 | X938-1M | X938-1F | 0.14-0.37mm² | AWG 26-22 | 7.5mm |
| X938-2M | X938-2F | 0.5mm² | AWG 20 | 7.5mm | |
| X938-3M | X938-3F | 0.75mm² | AWG 18 | 7.5mm | |
| X938-4M | X938-4F | 1.0mm² | AWG 18 | 7.5mm | |
| X938-5M | X938-5F | 1.5mm² | AWG 16 | 7.5mm | |
| X938-6M | X938-6F | 2.5mm² | AWG 14 | 7.5mm | |
| X938-7M | X938-7F | 3mm² | AWG 12 | 7.5mm | |
| X938-8M | X938-8F | 4mm² | AWG 12 | 7.5mm | |
10 pcs/ pack
Note: The cold-pressing needle needs to be ordered separately. Add '2' after the silver-plated model
For S 'gold-plated models, add' G 'after them. When the wire gauge is less than 0.75mm, it is recommended to use an auxiliary needle loading tool
